Sida 1/16
SJ-AJ-MSSBM-880E-MR1
© 2020 by Snow Joe®, LLC | All rights reserved. Original instructions. SAVE THESE INSTRUCTIONS | Derechos reservados. Instrucciones
originales. GUARDE ESTAS INSTRUCCIONES | Tous droits réservés. Instructions d’origine. CONSERVER CES INSTRUCTIONS
If you have any questions or comments,
please call the Snow Joe
® + Sun Joe® customer service department at:
Si tiene preguntas o comentarios, comuníquese con el centro de servicio
al cliente de Snow Joe
® + Sun Joe® llamando al:
Si vous avez des questions ou des commentaires, veuillez appeler
le service clientèle Snow Joe
® + Sun Joe® au :
1-866-SNOWJOE (1-866-766-9563)

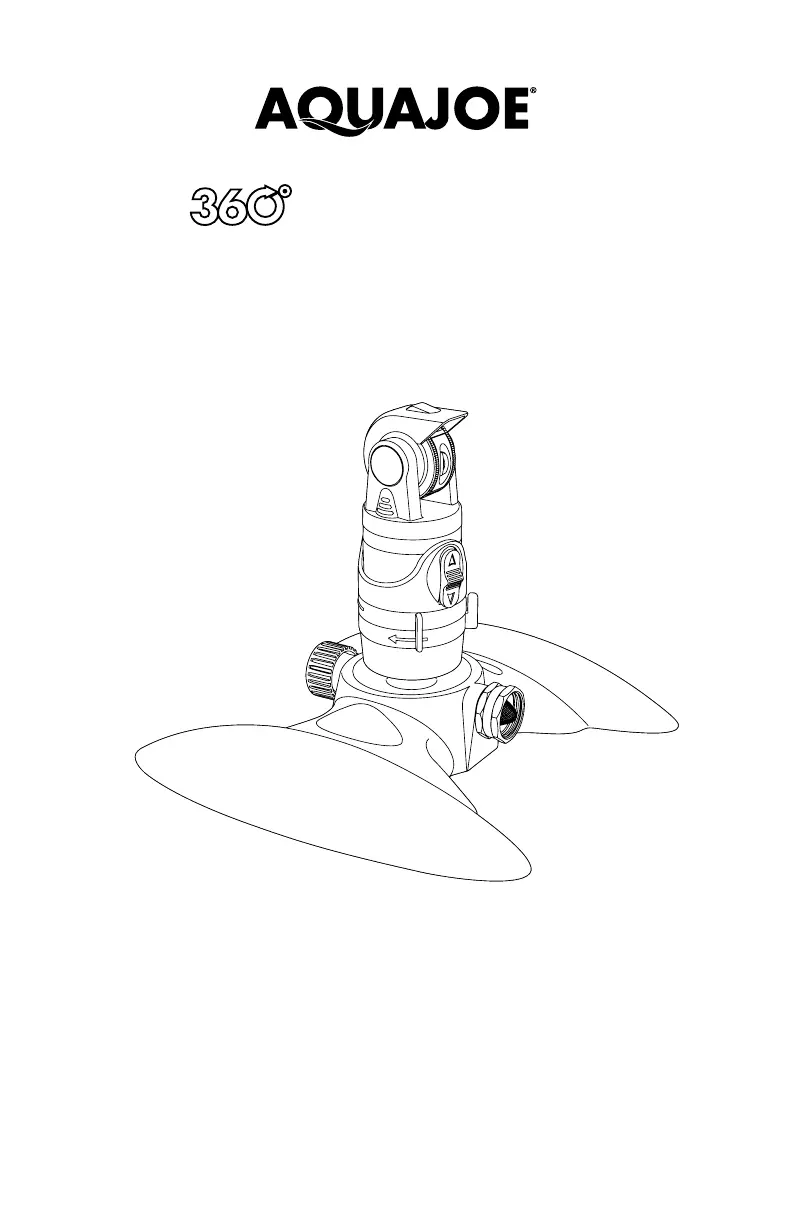

4-PATTERN TURBO DRIVE
SPRINKLER
Rociador turbo drive 360˚ de cuatro patrone
Arroseur 360˚ à entraînement à turbine et quatre formes de jet
Model/Modelo/Modèle AJ-MSSBM
2
1. Spray distance adjuster
2. Spray pattern adjuster
3. 360º rotation switch
4. Coverage sliding tabs
5. Hose-end connector
9. Base
Know Your 4-Pattern Turbo Drive 360º Sprinkler
Read the owner’s manual and safety rules carefully before using your turbo drive 360º sprinkler.
Compare the illustration below to the actual unit in order to familiarize yourself with the location of the
various controls and adjustments. Save this manual for future reference.
Technical Data
Coverage Max 3740 sq ft ......................................
Spray Diameter Max 69 ft (21 m) ...........................
Max Pressure* 120 PSI ..........................................
Max Flow 10 GPM .................................................
Spray Distance Max 34.5 ft (10.5 m) .....................
Spray Patterns 4 ....................................................
Adjustable Coverage Partial to full ........................
............................................................. 360º circle
Fitting Size Standard garden hose ..............................
Weight 1.2 lbs (0.5 kg) ...........................................
1
2
3
4
5
EN
6
* Peak pressure at initial discharge; working pressure under
typical load is 60 PSI.
3
Operation
Four Selectable Spray Patterns
Use spray pattern adjuster to select desired
spray pattern: mist, fountain, multi, jet (Fig. 1).
Distance Control
Use spray distance adjuster to adjust the length
of the spray. (Fig. 2).
Coverage Control
Sliding tabs allow for coverage adjustment
from 30º – 360° (Fig. 3).
360º Rotation Control
Push the rotation switch up for full circle
(0˚ – 360˚) (Fig. 4).
Fig. 1
Spray pattern
adjuster
MULTI
MIST
JET
FOUNTAIN
Spray distance
adjuster
Fig. 2
1/4 1/2 3/4
Fig. 3
30º – 360º
Sliding
tabs
Fig. 4
360º rotation
switch
