Sida 1/16

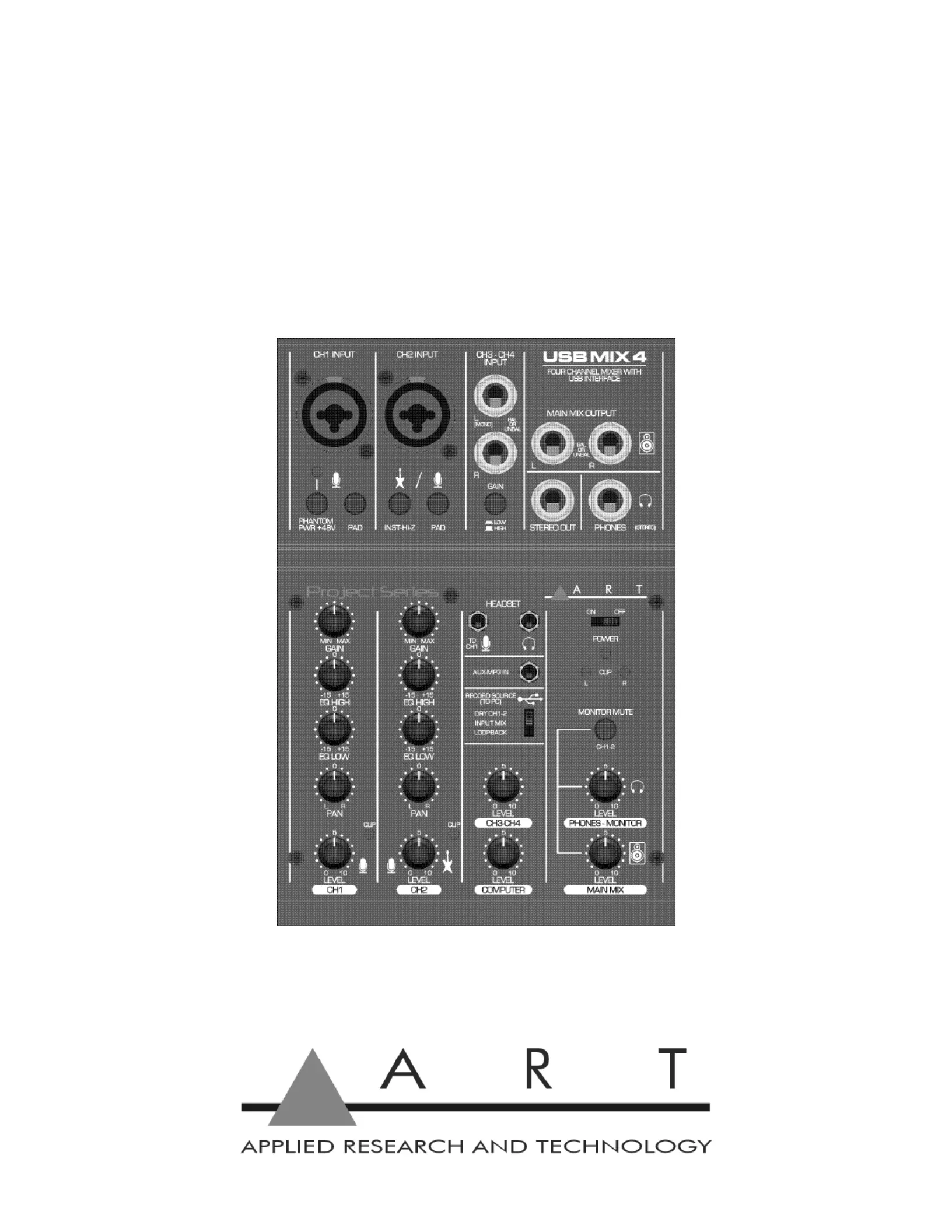

USBMIX4
FOUR CHANNEL MIXER WITH USB INTERFACE
Project Series
User's Manual
1
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST
This symbol, wherever it appears, This symbol, wherever it appears, alerts you
alerts you to the presence of uninsulated to important operating and maintenance
dangerous voltages inside the enclosure that instructions in the accompanying literature.
may be sufficient to constitute a risk of shock. Please read the manual.
Read instructions
Retain these safety and operating instructions for future reference. Heed all warnings printed here and on the
equipment. Follow the operating instructions printed in this user guide.
Do not open
There are no user serviceable parts inside. Refer any service work to qualified technical personnel only.
Power sources
Only connect the unit to mains power of the type described in this user guide or marked on the rear panel. The
power source must provide a good ground connection.
Power supply
Use the external power supply for your local mains supply as provided with the equipment. If the provided
external supply does not fit into you outlet consult your service agent. Route the external power cord so that it
is not likely to be walked on, stretched or pinched by items placed upon or against.
Grounding
Do not defeat the grounding and polarization means of the external power supply.
Moisture
To reduce the risk of fire or electrical shock, do not expose the unit to rain, moisture or use in damp or wet
conditions. Do not place container of liquid on it, which may spill into any openings
Heat
Do not locate the unit in a place close to excessive heat or direct sunlight, as this could be a fire hazard.
Locate the unit away from any equipment, which produces heat such as: power supplies, power amplifiers and
heaters.
Environment
Protect from excessive dirt, dust, heat, and vibration when operating and storing. Avoid tobacco ash, drink
spillage and smoke especially that associated with smoke machines.
Handling
Protect the controls from damage during transit. Use adequate padding if you need to ship the unit. To avoid
injury to yourself or damage to the equipment take care when lifting, moving or carrying the unit.
Servicing
Switch off the equipment and unplug the power cord immediately if it is exposed to moisture, spilled liquid or
the power cord or plug becomes damaged during a lightning storm or if smoke odor or noise is noted. Refer
servicing to qualified technical personnel only.
Installation
Install the unit in accordance with the instruction printed in the user manual.
2
INTRODUCTION
The ART Microphone, Instrument, and Line Mixer/Computer Interface is a compact USBMIX4
versatile audio interface for your computer that converts analog signals from a variety of audio
sources to a digital signal that your computer recognizes. It can also be used as a stand-alone mixer
through the main mix outputs. The provides a great starting point for personal home studio USBMIX4
recording or for anyone wants to do mobile location recording. Use the to record pod casts, USBMIX4
capture your latest idea for a song, make voiceovers for your home movies, or record a jam with a
friend - whenever and wherever your creativity takes you!
Features
•
Powered by USB from your computer or via USB power adapter (included)
•
CH1 and 2 Microphone (balanced XLR) inputs or instrument (unbalanced ¼-inch TS) inputs with
switchable impedances
•
Switchable low noise +48V phantom power for microphones
•
Balanced ¼-inch TRS inputs for stereo or mono line-level sources on CH3
•
¼-inch TRS output jacks work with balanced or unbalanced lines
•
⅛-inch TRS stereo Aux/MP3 input
•
Stereo output, independent from the PC interface switch
•
Stereo ¼-inch TRS headphone jack with independent level control for output monitoring
•
Independent controls for both sets of inputs, main output, and headphone monitor
•
Red LED signal/clip indicator for Ch1-2
•
No special drivers are needed with most modern versions of Windows or Mac OS and Linux
•
USB cable, USB power adaptor and Audacity recording software included
•
Rugged steel chassis
