Aruba 7005 Controller

The Aruba 7005 Controller is a wireless LAN controller that connects, controls,

and intelligently integrates wireless Access Points (APs) and Air Monitors (AMs)

into a wired LAN system. The 7005 controller includes four ethernet ports, one

Console port, one Mini-USB console port, and one USB port. This device

supports up to 16 APs and 1024 users.

Package Contents

Aruba 7005 Controller

Mini-USB Console Cable

Installation Guide (this document, printed)

Quick Start Guide (Printed)

End User License Agreement (Printed)

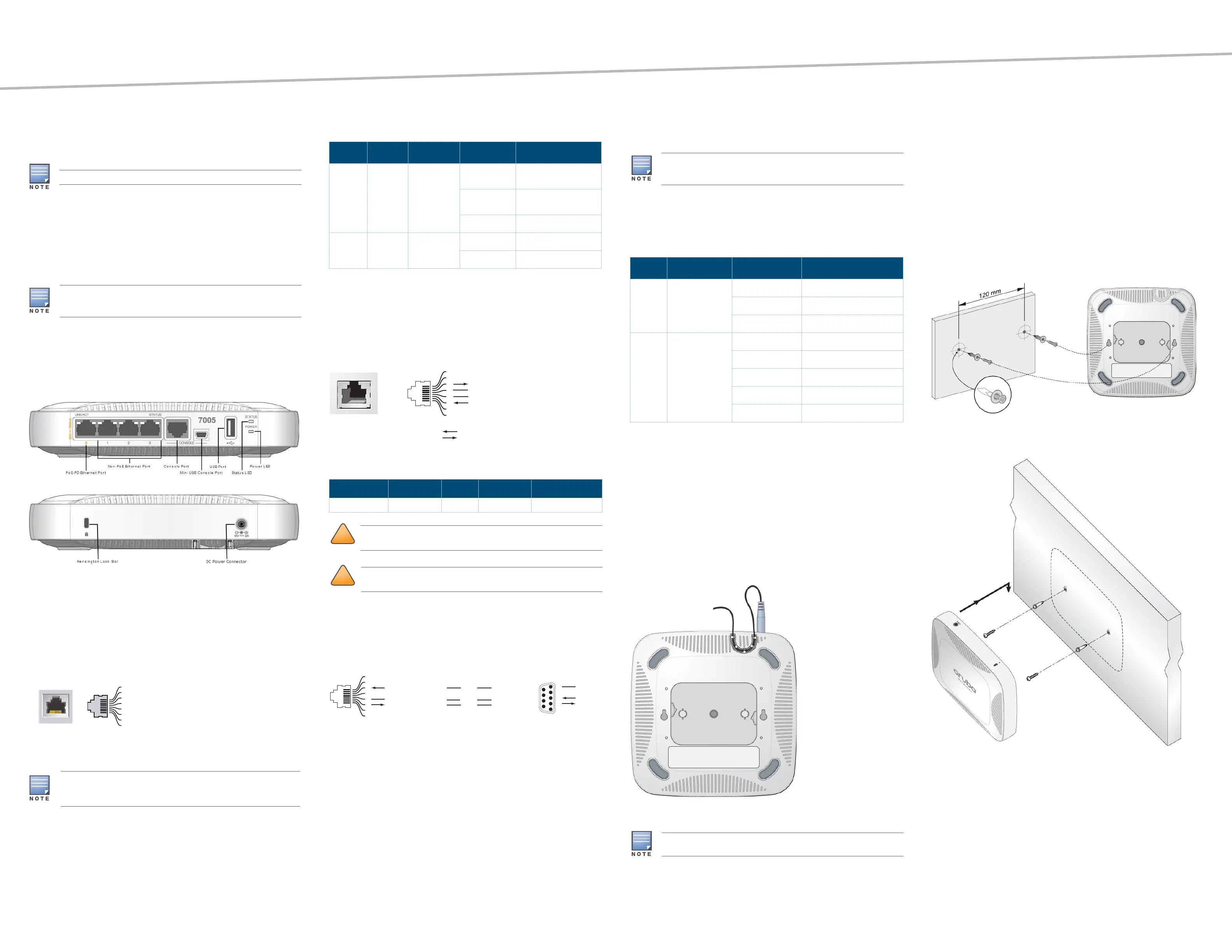

7005 Components

This section introduces the different components and their location in the Aruba

7005 controller. Figure 1 shows the front panel of the Aruba 7005 controller and

Figure 2 shows the back panel of the Aruba 7005 controller.

Figure 1 Front Panel of the 7005 Controller

Figure 2 Back Panel of the 7005 Controller

Ethernet Ports

The Aruba 7005 controller is equipped with four 10/100/ 1000BASE-T Gigabit

Ethernet ports (0 to 3). Gigabit Ethernet uses all eight wires and each pair is bi-

directional, which means, the same pair is used for both data transmission and

data reception. Figure 3 illustrates the Gigabit Ethernet port pin-out for an RJ-45

connector. The pins paired on a 10/100/1000BASE-T Gigabit Ethernet port are: 1/

2, 3/6, 4/5, and 7/8.

Figure 3 Gigabit Ethernet Port Pin-Out

Ethernet Port LEDs

Each 10/100/1000BASE-T Ethernet port is equipped with two LEDs that allow

basic monitoring of link/port status and activity.

LINK/ACT: Placed on the left side of the port, this LED displays the link

status and activity of the port.

STATUS: Placed on the right side of the port, this LED displays the status of

the port based on the CLI.

The following table describes the LED behavior for each mode:

Console Port

The serial console port allows connecting the controller to a serial terminal or a

laptop for direct local management. This port is an RJ-45 female connector with

the pinouts described in Figure 4. Connect it directly to a terminal or terminal

server using an Ethernet cable.

Figure 4 Serial Console Port Pin-Out

The communication settings for the Console port is shown in the following table:

Serial Console Port Adaptor

A modular adaptor can be used to convert the female RJ-45 connector to a male

DB9 connector. See Figure 5 for complete details.

Figure 5 RJ-45 (Female) to DB9 (Male) Modular Adapter Conversion

Mini-USB Console Connector

The Aruba 7005 controller is equipped with one Mini-USB (type B) connector

that provides console access for direct local access. If both Mini-USB and RJ-45

Console ports are connected, the Mini-USB connection takes precedence over

the RJ-45 Console connection.

Mini-USB Driver

To use the Mini-USB console port, install the Aruba Mini-USB driver on the

computer that will manage your controller. To download the driver, perform the

following steps:

1. Go to https://support.arubanetworks.com.

2. Click on the Tools & Resources tab.

3. Open the USB Console Driver folder.

4. Open the Mobility Controller and Mobility Access Switch folder.

5. Select the appropriate file for your application. The corresponding operating

system is in the file name.

USB Interface

The Aruba 7005 controller is equipped with one USB 2.0 interface. A USB storage

device can be used to save and upload configurations to the controller.

Power and Status LEDs

The front panel also includes power and status LEDs that provide basic

monitoring of the overall status of the Aruba 7005 controller

Kensington Security Slot

The Aruba 7005 controller is equipped with a Kensington security slot for

additional security.

DC Power Socket

The AC-DC adapter kit with the following specification is used to power the

Aruba 7005 controller:

12V/ 2A power interface

Center-positive 1.7/4.0 mm circular plug, 9.5 mm length

Make sure to securely route the DC cable through the slot provided. See

Figure 6.

Figure 6 DC Cable Routing Slot

Installing the 7005 Controller

Installation Recommendations

For proper air circulation, leave at least 10 cm (4 inches) clearance for the

vents on the left, right, front, and rear side of the controller.

Leave additional space in front and rear side of the controller to access

power cords, network cables, and indicator LEDs.

Avoid placing anything that covers the vents on top of the controller.

Covering the vents can lead to overheating of the controller.

Avoid placing this controller on any other device because the heat dissipated

from the other device may overheat the controller.

Installation Using the Integrated Wall-Mounting Slots

The keyhole-shaped slots on the bottom of the controller can be used to attach

the device upright (front port facing downwards) to an indoor wall or shelf.

Since the ports are on the front of the device, make sure to mount the controller

in such a way that there is a clear path to the Ethernet port, such as a predrilled

hole in the mounting surface.

1. At the mounting location, install two screws on the wall or shelf, 120 mm

apart. If you are attaching the device to drywall, it is recommended that you

use appropriate wall anchors (not included). See Figure 7.

Figure 7 Mounting Using the Integrated Wall-Mounting Slots

2. Align the mounting slots on the bottom of the controller over the screws and

slide the unit into place. See Figure 8

Figure 8 Wall Mounting Aruba 7005

Product Specifications

Physical

Device Dimensions (HxWxD): 4.09 cm x 20 cm x 20 cm

Device Weight: 2.03 lbs (0.92 kg)

Electrical

Ethernet:

4 x 10/100/1000BASE-T auto-sensing Ethernet RJ-45 Interfaces

MDI/MDX

Power over Ethernet (IEEE 802.3af or IEEE 802.3at compliant), 48V DC

(nominal) and 56V DC (maximum)/ 350 mA (see Figure 3 for pin

configuration)

The 7005 controller requires ArubaOS 6.4.1.0 or later.

Optional accessories are available for use with the Aruba 7005 controller and

are sold separately. Contact your Aruba sales representative for details and

assistance.

In the Aruba 7005 controller, the orange numbering on port 0 indicates that

it is a PoE powered device (PoE-PD) port and the gray numbering on ports

1, 2, and 3 indicate that they are non-PoE ports.

1000Base-T Gigabit

Ethernet Port

RJ-45 Female

Pin-Out

Signal Name

BI_DC+

BI_DC-

BI_DD+

BI_DD-

BI_DA+

BI_DA-

BI_DB+

BI_DB-

Function

Bi-directional pair +C

Bi-directional pair -C

Bi-directional pair +D

Bi-directional pair -D

Bi-directional pair +A

Bi-directional pair -A

Bi-directional pair +B

Bi-directional pair -B

Table 1 10/100/1000BASE-T Ethernet Port LEDs

LED Function Mode Indicator Status

LINK/ACT Link status N/A Green (Solid) Link has been

established

Green (Blinking) Port is transmitting or

receiving data

Off No link on port

STATUS Port status Speed Green (Solid) 1000 Mbps

Off 10/100 Mbps

Table 2 Console Terminal Settings

Baud Rate Data Bits Parity Stop Bits Flow Control

9600 8 None 1 None

CAUTION

The CONSOLE port is compatible only with RS-232 devices. Non-RS-232

devices, such as APs, are not supported.

CAUTION

Do not connect the Console port to an Ethernet switch or a PoE power

source. This may damage the controller.

Serial

Console Port

TxD

GND

RxD

RJ-45 Female

Pin-Out

Direction

Input

Output

GND

6 3

RJ-45 DB-9

Internal

Connections

TxD

GND

RxD

TxD

GND

RxD

RJ-45 Female

Pin-Out

DB-9 Male

Pin-Out

TxD

RxD

Ground5

If the 7005 controller is powered from IEEE 802.3at PSE then the USB port

remains enabled. If the 7005 controller is powered from IEEE 802.3af PSE,

then the USB port is automatically disabled.

Table 3 Power and Status LEDs

LED Function Indicator Status

Power System powers Green (Solid) Powered from DC adapter

Amber (Solid) Powered from PoE source

Off Power Off

Status System status Green (Solid) Operational

Green (Blinking) Device is loading software

Amber (Blinking) Major Alarm

Amber (Solid) Critical Alarm

Off No power

Service to all Aruba Networks, Inc. products should be performed by trained

service personnel only.

Aruba 7005 Controller

Installation Guide

www.arubanetworks.com

1344 Crossman Avenue

Sunnyvale, California 94089

Phone: 408.227.4500

Fax 408.227.4550

Aruba 7005 Controller | Installation Guide

Part Number 0511563-02 | June 2014

Contacting Aruba Networks

Web Support

Main Site http://www.arubanetworks.com

Support Site https://support.arubanetworks.com

Airheads Social Forums and Knowledge Base community.arubanetworks.com

North American Telephone 1-800-943-4526 (Toll Free)

1-408-754-1200

International Telephones arubanetworks.com/support-services/aruba-support-

program/contact-support/

Software Licensing Site licensing.arubanetworks.com/login.php

Wireless Security Incident

Response Team (WSIRT) arubanetworks.com/support/wsirt.php

Support Email Addresses

Americas and APAC support@arubanetworks.com

EMEA emea.support@arubanetworks.com

Americas and APAC Support Email support@arubanetworks.com

WSIRT Email

Please email details of any security

problem found in an Aruba product.

wsirt@arubanetworks.com

For Wireless That Works®, Mobile Edge Architecture, People Move. Networks Must Follow., RFProtect

®, The All

Wireless Workplace Is Now Open For Business, and The Mobile Edge Company

® are trademarks of Aruba

Open Source Code

Certain Aruba products include Open Source software code developed by third parties, including software code

subject to the GNU General Public License ("GPL"), GNU Lesser General Public License ("LGPL"), or other Open

Source Licenses. The Open Source code used can be found at this site:

http://www.arubanetworks.com/open_source

Legal Notice

The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate

other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for

this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against

it with respect to infringement of copyright on behalf of those vendors.

Warranty

This hardware product is protected by an Aruba warranty. For details, see Aruba Networks standard warranty

terms and conditions.

Power:

12V DC power interface, supports powering through an 12V DC, 2A

AC-to-DC power adapter

PoE support on port 0: supports PoE-PD IEEE 802.3af/at

Environmental

Operating:

Temperature: 0° C to +40° C (+32° F to +122° F)

Humidity: 10% to 90% non-condensing

Storage and transportation:

Temperature: -40° C to +70° C (-40° F to +158°)

For additional specifications on this product, please refer to the data sheet. The

data sheet can be found at www.arubanetworks.com.

Safety and Regulatory Compliance

Aruba Networks provides a multi-language document that contains country-

specific restrictions and additional safety and regulatory information for all

Aruba controllers. This document can be viewed or downloaded from the

following location: www.arubanetworks.com/safety_addendum

FCC Class B Part 15

This device complies with Part 15 of the Federal Communications Commission

(FCC) Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in

accordance with the manufacturer’s instructions, may cause interference

harmful to radio communications.

If this equipment does cause interference, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio or TV technician for help.

Industry Canada

This product complies with the Class B limits for radio noise emissions as set out

in the interference-causing equipment standard entitled “Digital Apparatus,”

ICES-003 of Industry Canada.

Cet apareil numerique de la classe B respecte toutes les exigencies du Reglement

sur le materiel brouilleur du Canada.

EU Regulatory Conformance

This product is CE marked according to the provisions of the EMC

Directive (2004/108/EC) - CE. Aruba Networks Inc., hereby declares that 7005

controller device models are in compliance with the essential requirements and

other relevant provisions of Directive (2004/108/EC). CE The Declaration of

Conformity made under Directive 1999/5/EC is available for viewing at the

following location in the EU community.

Battery Statements

Japan VCCI

This product is a Class B product based on the standard of the VCCI Council. If

this is used near a radio or television receiver in a domestic environment, it may

cause radio interference. Install and use the equipment according to the

instruction manual.

Proper Disposal of Aruba Equipment

Waste of Electrical and Electronic Equipment

Aruba products at end of life are subject to separate collection

and treatment in the EU Member States, Norway, and

Switzerland and therefore are marked with the symbol shown at

the left (crossed-out wheelie bin). The treatment applied at end

of life of these products in these countries shall comply with the

applicable national laws of countries implementing Directive

2002/96EC on Waste of Electrical and Electronic Equipment (WEEE).

European Union RoHS

Aruba products also comply with the EU Restriction of

Hazardous Substances Directive 2011/65/EC (RoHS). EU

RoHS restricts the use of specific hazardous materials in the

manufacture of electrical and electronic equipment. Specifically, restricted

materials under the RoHS Directive are Lead (including Solder used in printed

circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine.

Some Aruba products are subject to the exemptions listed in RoHS Directive

Annex 7 (Lead in solder used in printed circuit assemblies). Products and

packaging will be marked with the “RoHS” label shown at the left indicating

conformance to this Directive.

India RoHS

This product complies with RoHS requirements as prescribed by E-Waste

(Management & Handling) Rules, governed by the Ministry of Environment &

Forests, Government of India.

China RoHS

Aruba products also comply with China environmental declaration

requirements and are labeled with the “EFUP 10” label shown at the

left.

CAUTION

Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate this

equipment.

CAUTION

Use of controls or adjustments of performance or procedures other than

those specified in this manual may result in hazardous radiation exposure

CAUTION

Although this controller has been tested up to 1kV per CE immunity

requirements, it requires surge protection to be provided as part of the

building installation to protect against unidirectional surges resulting from

electrical switching and lightning strikes.

For protection against these surges in an outdoor installation, any exposed

wiring must be shielded, and the shield for the wiring must be grounded at

both ends.

CAUTION

Il y a danger d’explosion s’il y a remplacement incorrect de la batterie.

Remplacer uniquement avec une batterie due même type ou d’un

équivalent recommandé par le constructeur.

Mettre au rebut les batteries usagées conformément aux unstruction du

fabricant.

CAUTION

The battery supplied with this product may contain perchlorate material.

Special handling may apply in California and other certain states. See

www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

WARNING

Risk of explosion if battery is replaced by an incorrect type. Dispose of used

batteries according to the instructions.

᳝↦᳝ᆇ⠽䋼ໄᯢ

᳝↦᳝ᆇ⠽䋼ໄᯢ᳝↦᳝ᆇ⠽䋼ໄᯢ

Hazardous Materials Declaration

᳝↦᳝ᆇ⠽䋼៪ܗ㋴(Hazardous Substance)

䚼ӊৡ⿄

(Parts) 䪙

3E

∲

+J

䬝

&G

݁Ӌ䫀

&U





໮⒈㘨㣃

3%%

໮⒈Ѡ㣃䝮

3%'(

⬉䏃ᵓ

(PCA Boards)

h ƻ ƻ ƻ ƻ ƻ

ᴎẄ㒘ӊ

(Mechanical Sub-Assemblies)

h ƻ ƻ ƻ ƻ ƻ



ƻ˖ 㸼⼎䆹

᳝

↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼

SJ/T11363-2006

ᷛ

ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟǄ

Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is

below the relevant threshold of the SJ/T11363-2006 standard.



h˖ 㸼⼎䆹

᳝

↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ6-7

ᷛ

ޚ㾘ᅮⱘ䰤䞣㽕∖Ǆ

Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials

in the parts is above the relevant threshold of the SJ/T11363-2006 standard.



ᇍ䫔ଂП᮹ⱘ᠔ଂѻકᴀ㸼ᰒ⼎կᑨ䫒ⱘ⬉ᄤֵᙃѻકৃ㛑ࣙ৿䖭ѯ⠽䋼Ǆ

This table shows where these substances may be found in the supply chain of electronic information

products, as of the date of sale of the enclosed product.

ℸ

ᷛ

ᖫЎ䩜ᇍ᠔⍝ঞѻકⱘ⦃ֱՓ⫼ᳳᷛᖫᶤѯ䳊䚼ӊӮ

᳝

ϔϾϡৠⱘ⦃ֱՓ⫼ᳳ

՟བ⬉∴ऩܗ῵ഫ䌈೼݊ѻકϞ

ℸ

⦃Փ⫼ᳳ䰤া䗖⫼Ѣѻકᰃ೼ѻક᠟ݠЁ᠔㾘ᅮⱘᴵӊϟᎹ԰

The Environment- Friendly Use Period (EFUP) for all enclosed products and their parts are

per the symbol shown here. The Environment- Friendly Use Period is valid only when the

product is operated under the conditions defined in the product manual.

Produktspecifikationer

Varumärke:	Aruba
Kategori:	Kontroller
Modell:	7005
Färg på produkten:	Zwart
Vikt:	157 g
Bredd:	85.7 mm
Djup:	37.4 mm
Höjd:	110.3 mm
Beeldscherm:	LCD
Skärm diagonal:	2.7 "
Autofokus:	Ja
Totalt antal megapixlar:	10.7 MP
Minimal belysning:	4 Lux
Kompatibla minneskort:	SD, SDHC
Antal USB 2.0-portar:	1
Diafragma (FF):	3.5 - 3.7
Brännvidd:	6.8 - 34 mm
Inbyggda högtalare:	Ja
Optisk sensorstorlek:	1/2.33 "
Bildstabilisator:	Ja
Bildsensortyp:	CMOS
Digital zoom:	60 x
Optisk zoom:	5 x
35 mm kameraobjektiv motsvarande:	38 - 190 mm
Kamerans slutartid:	1/2 - 1/1500 s
Inbyggd blixt:	Ja
Gränssnitt:	USB
Exponeringsinställning:	±1.8EV
Inbyggd mikrofon:	Ja
Internminne:	30 MB
Nattläge:	Ja
HDMI:	Ja
Brusreducering:	Ja
Kompositvideoutgång:	1
sporter:	Ja
Volym:	175 cm³
Faktiskt antal megapixlar (film):	1 MP
Manuell fokusering:	Ja
Strömförbrukning (typiskt):	3.4 W
Drifttemperatur (TT):	0 - 40 °C
Batteriteknik:	Lithium-Ion (Li-Ion)
Batterityp:	DB-L80
Spela zoom:	62.5 x
Vindfilter:	Ja
