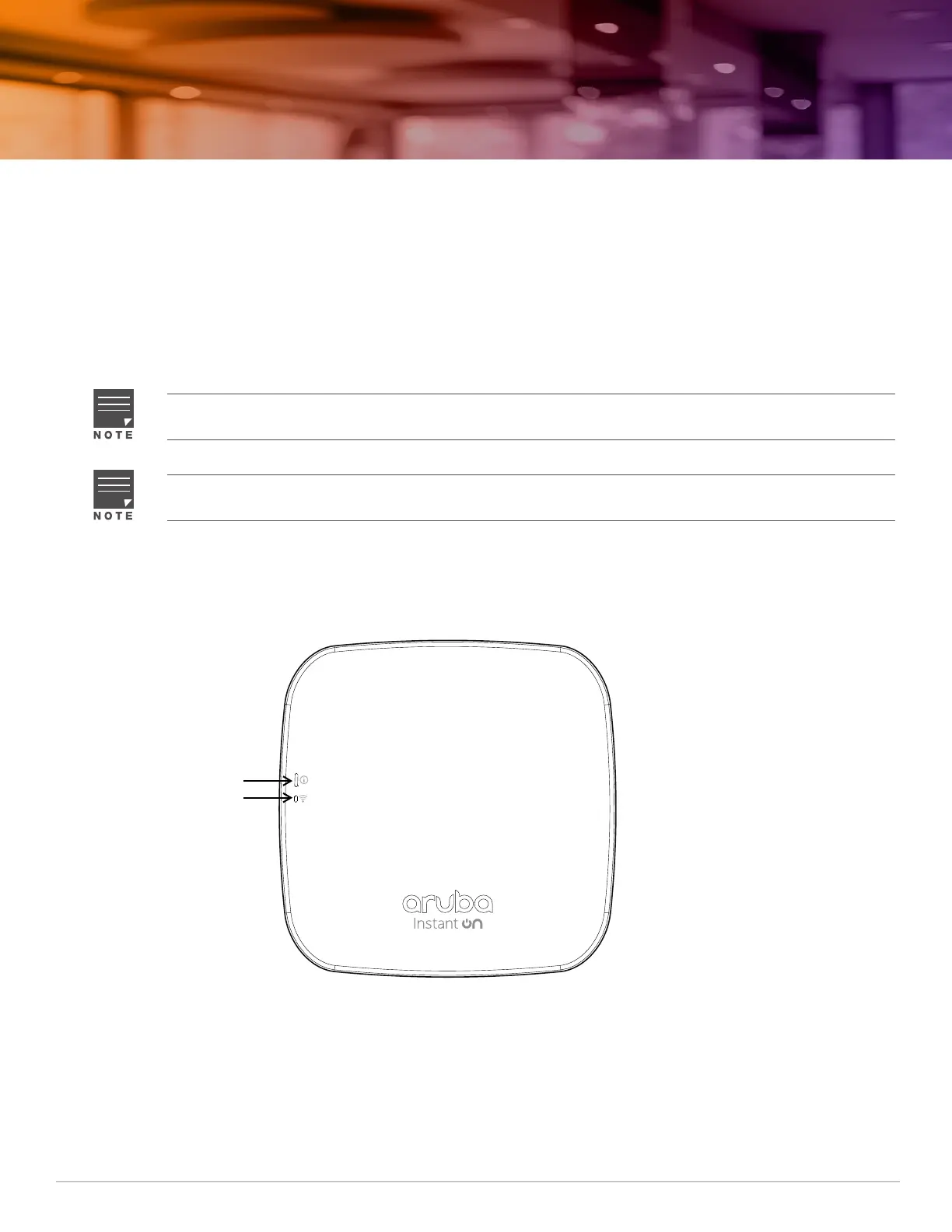

Aruba Instant On AP11 Access Point
Installation Guide
Rev01 | June 2019 1
The Aruba Instant On AP11 dual-radio access point supports IEEE 802.11ac Wave 2, delivering high performance
with 2x2 MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g /
n wireless services. The AP11 access point is designed for ceiling and wall mount.
Package Contents
1 x AP11 access point
1 x Ceiling mount bracket (suspended ceiling rail)
1 x Wall/ceiling mount bracket (solid surface)
1 x Ethernet cable
Hardware Overview
The following sections outline the hardware components of the AP11 access point.
Figure 1 AP11 (front view)
If you have ordered AP11 bundle, the package would also include a power adapter and cord to power the AP
through an electrical power outlet.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
System
Radio
2Aruba Instant On AP11 Access Point | Installation Guide
LED
The AP11 access point has two LEDs that indicate the system and radio status of the device.
Figure 2 AP11 (rear view)
E0/POE Port
The AP11 access point is equipped with one 10/100/1000Base-T auto-sensing, MDI/MDX Ethernet port (E0) for
wired network connectivity. This port supports IEEE 802.3af Power over Ethernet (PoE), accepting 48Vdc
(nominal) as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE) such as a PoE
midspan injector, or network infrastructure that supports PoE.
DC Power Socket
If PoE is not available, a proprietary Aruba 12V/30W power adapter can be used to power the AP11 access point.
This power adapter is available in the box if you buy the AP11 and power adapter bundle.
Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this device, as long as it
complies with all applicable local regulatory requirements and the DC interface meets the following
specifications:
12 Vdc (+/- 5%) and at least 12W
2.1/5.5 mm center-positive circular plug, 9.5 mm length
Table 1 AP11 Access Point LEDs Status
LED Color/State Meaning
System No Lights Device has no power
Blinking Green Device is starting
Alternating Green/Amber Device is ready for setup
Solid Green Device is ready
Solid Amber Device has detected a problem
Solid Red Device has an issue- immediate action required
Radio No Lights Wi-Fi is not ready, wireless clients cannot connect
Solid Green Wi-Fi is ready, wireless clients can connect
DC Power Socket E0/POE Reset
Aruba Instant On AP11 Access Point | Installation Guide 3
Reset Button
The reset button located on the bottom of the device can be used to reset the access point to factory default
settings or turn off/on the LED display.
There are two ways to reset the access point to factory default settings:
Reset the AP during normal operation
Press and hold down the reset button using a small, narrow object such as a paper clip for more than 10
seconds during normal operation.
Reset the AP while powering up
1. Press and hold down the reset button using a small, narrow object such as a paper clip while the access point
is not powered on (either via DC power or PoE).
2. Connect the power supply (DC or PoE) to the access point while the reset button is being held down.
3. Release the reset button on the access point after 15 seconds.
To turn off/on the LED display, press and release the reset button using a small, narrow object, such as a
paperclip for less than 10 seconds during normal operation of the access point.
Kensington Lock Slot
The AP11 access point is equipped with a Kensington lock slot for additional security.
Figure 3 AP11 Kensington Lock Slot
Cable Clips
The cable clips on the rear of the access point is . The use of used to organize Ethernet cable, as shown in Figure 4
the cable clips is optional and does not support all types of cables and plugs.
Kensington Lock Slot
