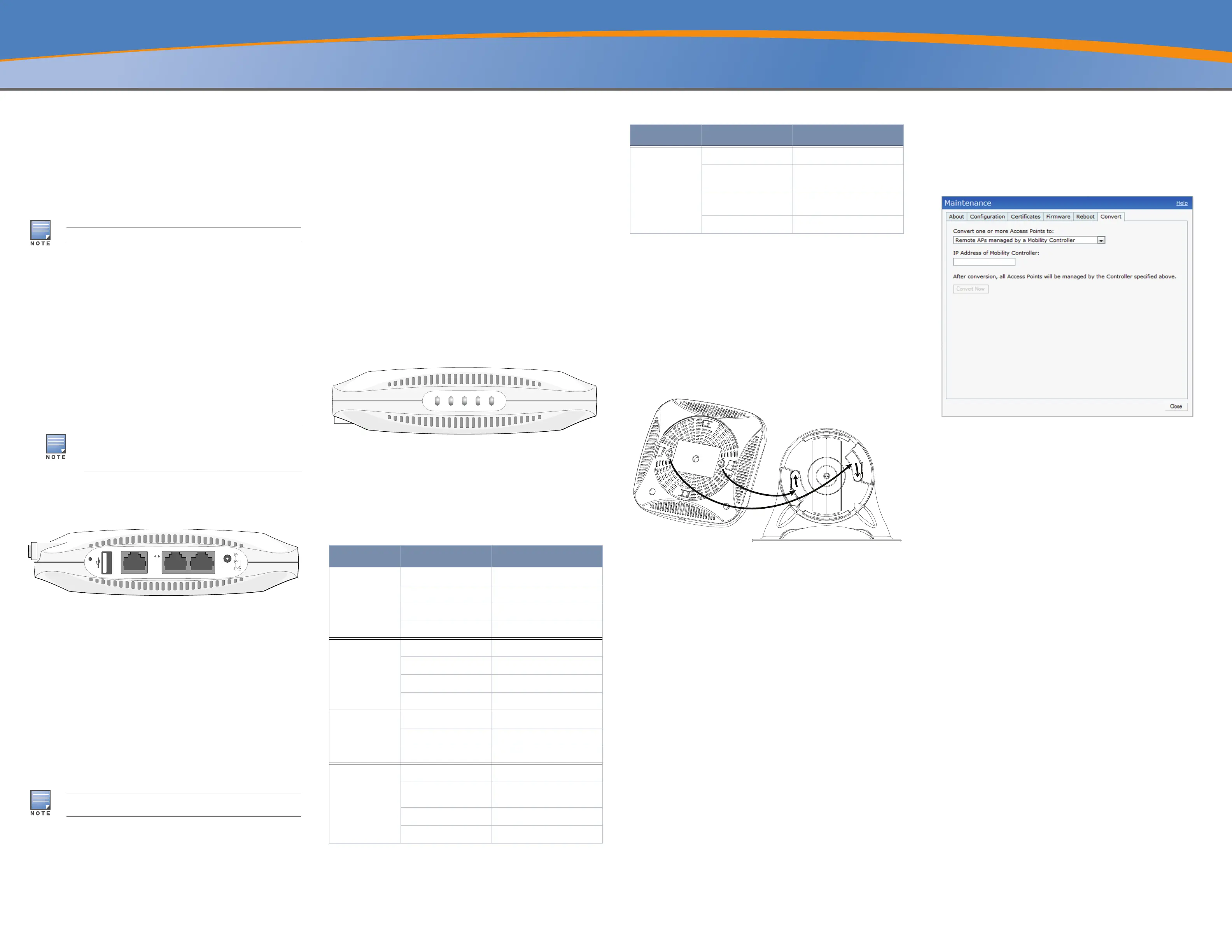

Aruba RAP-108 and RAP-109 Remote Access Point

Installation Guide

The Aruba RAP-108 and RAP-109 are dual-radio, dual-band remote access points

that supports the IEEE 802.11n standard for high-performance WLAN. These

access point uses MIMO (Multiple-in, Multiple-out) technology and other high-

throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz and 5

GHz functionality while simultaneously supporting existing 802.11a/b/g wireless

services.

The RAP-108/RAP-109 ships with Aruba Instant software. Therefore, out of the

box, the RAP-108/RAP-109 will operate as a Virtual Controller (VC) or an Instant

AP. However, the RAP-108/RAP-109 can be converted to operate as a Remote AP

(RAP). For information about the IAP to RAP conversion, see .RAP Conversion

The Aruba RAP-108/RAP-109 remote access point provides the following

capabilities:

Wireless transceiver

Protocol-independent networking functionality

IEEE 802.11a/b/g/n operation as a wireless access point

IEEE 802.11a/b/g/n operation as a wireless air monitor

Compatibility with IEEE 802.3af and 802.3at

Package Contents

RAP-108 or RAP-109 Remote Access Point

RAP-108/RAP-109 Mounting Stand

Installation Guide

RAP-108/RAP-109 Hardware Overview

Figure 1 Ports

Reset Button

The reset button can be used to return the AP to factory default settings. To reset

the AP:

1. Power off the AP.

2. Press and hold the reset button using a small, narrow object, such as a

paperclip.

3. Power-on the AP without releasing the reset button. The power LED will

flash within 5 seconds.

4. Release the reset button.

The power LED will flash again within 15 seconds indicating that the reset is

completed. The AP will now continue to boot with the factory default settings.

USB Interface

The RAP-108/RAP-109 is equipped with a USB interface for connectivity with

cellular modems.

Console Port

Use the console port to connect to a terminal for direct local management.

ENET 0

For primary network connectivity, RAP-108/RAP-109 is equipped with a 10/100/

1000BASE-T (RJ-45) auto-sensing, MDI/MDX Gigabit Ethernet port. This port

supports IEEE 802.3af Power over Ethernet (PoE) compliance, accepting 48VDC

as a standard defined Powered Device (PD) from a Power Sourcing Equipment

(PSE) such as a PoE midspan injector, or network infrastructure that supports

PoE.

ENET 1

For secondary network connectivity, RAP-108/RAP-109 is equipped with a 10/

100BASE-T (RJ-45) auto-sensing, MDI/MDX Fast Ethernet port.

DC Power Socket

If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately)

can be used to power the RAP-108/RAP-109.

External Antenna Connectors (RAP-108 Only)

The RAP-108 is equipped with two RP-SMA external antenna connectors and

requires the use of two dual-band antennas. These ports are marked ANT0 and

ANT1, matching radio chains 0 and 1.

In order to ensure accurate RF power level setting and reporting in software, as

well as compliance with any regulatory restrictions, the correct gain for

antennas used (adjusted for any additional cabling loss, if applicable) needs to

be entered in software when provisioning the RAP-108. Two antenna gain

numbers are needed for this; one for each supported band (2.4GHz and 5GHz).

These numbers can be obtained from the antenna datasheet or specifications.

Antenna gain for RAP-109 is hardcoded to the correct values already, so there is

no need for any additional action on that platform.

Figure 2 LEDs

LEDs

PWR: Indicates whether or not the RAP-108/RAP-109 is powered-on

ENET0 and ENET1: Indicates the status of the RAP-108/RAP-109’s Ethernet

ports

5 GHz: Indicates the status of the 802.11a/n radio

2.4 GHz: Indicates the status of the 802.11b/g/n radio

Installing the AP

Tabletop Mounting

The RAP-108/RAP-109 is shipped with a stand to use on flat (i.e. table top)

surfaces. Place the RAP-108/RAP-109 in the stand (see ) and place the Figure 3

stand on a flat, level surface.

To attach the RAP to the stand:

1. Align the center peg of the stand with recessed hole on the unit.

2. Align the mounting posts on the back of the AP with corresponding openings

on the stand.

3. Rotate the AP clockwise until it clicks into place.

Figure 3 Stand Installation

Connecting the Required Cables

The RAP-108/RAP-109 must be connected to a network device that has access to

the Internet, such as a router or modem. To complete the installation of the RAP-

108/RAP-109:

1. Connect one end of the provided RJ-45 cable to port E0 on the RAP-108/RAP-

109.

2. Connect the other end of the RJ-45 cable to a free RJ-45 port on your modem

or router.

3. Attach the provided power adapter to the DC IN port on the RAP-108/RAP-

109.

4. Connect the other end of the power adapter to a power outlet.

The RAP-108/RAP-109 is now powered on. To verify this, ensure that the PWR

LED is solid green.

Verifying Successful Installation

Once the RAP-108/RAP-109’s PWR LED has come up, the device will take 2 to 3

minutes to complete the boot cycle. Once the boot cycle is complete, you can

connect to your company or corporate network.

RAP Conversion

If your network administrator has instructed you to convert the RAP-108/RAP-

109 to work in RAP mode, follow the process below to complete the RAP

conversion.

1. Power up the RAP-108/RAP-109.

2. Connect to SSID.Instant

3. Login to the RAP-108/RAP-109 by navigating to http://

instant.arubanetworks.com and login to the Instant WebUI. The default

username is and the default password is . See the included admin admin

Aruba Instant Quick Start Guide for more information.

4. Navigate to the tab in the top right.Maintenance

5. Click on the tab.Convert

6. Select from the drop Remote APs managed by a Mobility Controller

down menu.

7. Enter the IP address of the controller. This is provided by your network

administrator.

8. Click to complete the conversion (see ).Convert Now Figure 4

9. The RAP-108/RAP-109 will reboot and begin operating in RAP mode.

Figure 4 IAP-RAP Conversion over the Internet

The RAP-108/RAP-109 requires Aruba Instant 3.2 or ArubaOS 6.2.

Inform your supplier if there are any incorrect, missing, or damaged

parts. If possible, retain the carton, including the original packing

materials. Use these materials to repack and return the unit to the

supplier if needed.

The USB interface is disabled when the RAP-108/RAP-109 is powered from

802.3af PoE.

ENET 1

ENET 0

56V 350mA

1.25A

CONSOLE

Table 1 RAP-108/RAP-109 Series LED Meanings

LED Color/State Meaning

PWR Off No power to AP

Red steady System initializing

Green flashing Device booting, not ready

Green steady Device ready

ENET0 Off No link

Amber 10/100 Mbps link

Green 1000 Mbps link

Flashing Ethernet link activity

ENET1 Off No link

Green 10/100 Mbps link

Flashing Ethernet link activity

5 GHz Off 5 GHz radio is disabled

Amber steady 5 GHz radio enabled in WLAN

mode

Green steady 5 GHz radio enabled in 11n mode

Green flashing 5 GHz Air Monitor mode

2.4 G Hz

5 GHz

ENET 1

ENET 0

PWR

2.4 GHz Off 2.4 GHz radio disabled

Amber steady 2.4 GHz radio enabled in WLAN

mode

Green steady 2.4 GHz radio enabled in 11n

mode

Green flashing 2.4 GHz Air Monitor mode

Table 1 RAP-108/RAP-109 Series LED Meanings (Continued)

LED Color/State Meaning

RAP-108_02

Aruba RAP-108 and RAP-109

Remote Access Point

Installation Guide

www.arubanetworks.com

1344 Crossman Avenue

Sunnyvale, California 94089

Phone: 408.227.4500

Fax 408.227.4550

Aruba RAP-108 and RAP-109 Remote Access Point | Installation Guide

Part Number 0511191-02 | December 2012

Contacting Aruba Networks

Table 1

Web Site Support

Main Site http://www.arubanetworks.com

Support Site https://support.arubanetworks.com

Software Licensing Site https://licensing.arubanetworks.com/login.php

Wireless Security Incident

Response Team (WSIRT)

http://www.arubanetworks.com/support/wsirt.php

Americas and APAC Support Email support@arubanetworks.com

EMEA Support Email emea.support@arubanetworks.com

WSIRT Email

Please email details of any security

problem found in an Aruba product.

wsirt@arubanetworks.com

Table 2

Telephone Support

Aruba Corporate +1 (408) 227-4500

FAX +1 (408) 227-4550

For Wireless That Works®, Mobile Edge Architecture, People Move. Networks Must Follow., RFProtect

®, The All

Wireless Workplace Is Now Open For Business, and The Mobile Edge Company

® are trademarks of Aruba

Open Source Code

Certain Aruba products include Open Source software code developed by third parties, including software code

subject to the GNU General Public License ("GPL"), GNU Lesser General Public License ("LGPL"), or other Open

Source Licenses. The Open Source code used can be found at this site:

http://www.arubanetworks.com/open_source

Legal Notice

The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate

other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for

this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against

it with respect to infringement of copyright on behalf of those vendors.

Warranty

This hardware product is protected by the standard Aruba warranty of one year parts/labor. For more information,

refer to the ARUBACARE SERVICE AND SUPPORT TERMS AND CONDITIONS.

Altering this device (such as painting it) voids the warranty.

Product Specifications

Electrical

Ethernet:

1 x 10/100/1000Base-T auto-sensing Ethernet RJ-45 Interface

1x 10/100Base-T auto-sensing Ethernet RJ-45 Interface

MDI/MDX

IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-T). IEEE 802.3ab

(1000Base-T)

Power over Ethernet (IEEE 802.3af and 802.3at compliant), 56V DC/

350mA

Power: 12 VDC power interface, supports powering through an AC-to-DC

power adapter

For additional specifications on this product, please refer to the data sheet. The

data sheet can be found at .www.arubanetworks.com

Proper Disposal of Aruba Equipment

For the most current information about Global Environmental Compliance and

Aruba products, see our website at .www.arubanetworks.com

Waste of Electrical and Electronic Equipment

Aruba products at end of life are subject to separate collection

and treatment in the EU Member States, Norway, and

Switzerland and therefore are marked with the symbol shown at

the left (crossed-out wheelie bin). The treatment applied at end

of life of these products in these countries shall comply with the

applicable national laws of countries implementing Directive

2002/96EC on Waste of Electrical and Electronic Equipment (WEEE).

European Union RoHS

Aruba products also comply with the EU Restriction of

Hazardous Substances Directive 2002/95/EC (RoHS). EU

RoHS restricts the use of specific hazardous materials in

the manufacture of electrical and electronic equipment. Specifically, restricted

materials under the RoHS Directive are Lead (including Solder used in printed

circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine.

Some Aruba products are subject to the exemptions listed in RoHS Directive

Annex 7 (Lead in solder used in printed circuit assemblies). Products and

packaging will be marked with the “RoHS” label shown at the left indicating

conformance to this Directive.

China RoHS

Aruba products also comply with China environmental declaration

requirements and are labeled with the “EFUP 10” label shown at the

left.

Safety and Regulatory Compliance

Aruba Networks provides a multi-language document that contains country-

specific restrictions and additional safety and regulatory information for all

Aruba access points. This document can be viewed or downloaded from the

following location: www.arubanetworks.com/safety_addendum

Regulatory Model Names

The following regulatory model names apply to the RAP-108/109:

RAP-108: APINR108

RAP-109: APINR109

FCC

This device is electronically labeled and the FCC ID is displayed in the WebUI

under the menu.About

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that

may cause undesired operation.

Modifications not expressly approved by, Aruba Networks could void the user's

authority to operate the equipment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

EMC Compliance and Warning Statement

IEC 60601-1-2: 2007

EN 60601-1-2: 2007

This equipment has been tested and found to comply with the limits of the

standard for medical devices, IEC 60601-1-2:2007. The unit also complies with the

requirements of EN 60601-1-2:2007, providing the presumption of compliance to

the European Union’s Medical Device Directive 2007/47/EC. The limits are

designed to provide reasonable protection against harmful interference in a

typical medical installation. This equipment generates, uses and can radiate radio

frequency energy, and, if not installed and used in accordance with the

manufacturer’s instructions may cause harmful interference to other devices in

the vicinity. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment causes interference with other devices,

which may be determined by turning the equipment off and on, the user is

encouraged to try and correct the interference by one or more of the following

measures:

Reorient or relocate the device receiving the interference.

Increase the separation between the equipment.

Connect the equipment into an outlet on a circuit different from that to which

the other device(s) are connected.

Consult the manufacturer or field service technician for help.

The Models APINR108 and APINR109 do not have an Applied Part as defined in

IEC 60601-1. The protection against electric shock is Class ll.

Device is not protected against ingress of liquids and has a protection class of

IPX0 as defined by IEC 60601-1 and IEC 60529. Equipment not suitable for use in

the presence of flammable mixtures.

The unit is considered “Continuous Operation” equipment as defined by IEC

60601-1.

Power Consumption – 56 VDC 802.3at power over Ethernet or 12VDC, 1.25A for

external AC supplied power (adapter sold separately); Maximum power

consumption - 12.5W (without USB device connected); 15W (with USB device

connected).

Mechanical Dimensions: 160mm x 160mm x 41mm; 300g.

Environmental: Operating Temp: 0° C to +40° C (+32° F to +104° F); Humidity: 5

to 95% non-condensing. Storage Temp: -40° CS to +70° C (-40°F to +158°F).

If a power adapter other than the one provided by Aruba Networks is used

in the US or Canada, it should be cULus (NRTL) Listed, with an output rated

12 VDC, minimum 1.25A, marked “LPS” or “Class 2,” and suitable for

plugging into a standard power receptacle in the US and Canada.

ѻકݙ৿ᆇ⠽䋼ᧁ䴆㸼

䳊䚼ӊৡ⿄䳊䚼ӊৡ⿄䳊䚼ӊৡ⿄䳊䚼ӊৡ⿄

ᆇ⠽䋼乍Ⳃ

䪙

䪙䪙

䪙



 䬝

䬝䬝

䬝



 ∲

∲∲

∲



 ݁Ӌ䫀

݁Ӌ䫀݁Ӌ䫀

݁Ӌ䫀







PBB PBDE

(Pb) (Cd) (Hg) (Cr

)(໮⒈

໮⒈໮⒈

໮⒈

㘨㣃㘨㣃㘨㣃㘨㣃)

(໮⒈

໮⒈໮⒈

໮⒈

Ѡ㣃ЭѠ㣃ЭѠ㣃ЭѠ㣃Э

䝮䝮䝮䝮)

৿䡙ঞ䣐ᴤ䞥ቀӊ Øƻ ƻ ƻ ƻ ƻ

৿⦏⩗⬉䰏 Øƻ ƻ ƻ ƻ ƻ

催⏽䫵ᴤ Øƻ ƻ ƻ ƻ ƻ

ƻ˖㸼⼎ℸ䚼ӊՓ⫼ⱘ᠔᳝ৠ㉏ᴤ᭭Ёℸ⾡

᳝

↦៪

᳝

ᆇ⠽䋼ⱘ৿䞣

ഛԢѢ 㾘ᅮⱘ䰤ࠊ㽕∖Ǆ SJ/T11363-2006

Ø˖㸼⼎ℸ䚼ӊՓ⫼ⱘ㟇ᇥϔ⾡ৠ㉏ᴤ᭭Ёˈℸ⾡

᳝

↦៪

᳝

ᆇ⠽䋼

ⱘ৿䞣催Ѣ 㾘ᅮⱘ䰤ࠊ㽕∖Ǆ SJ/T11363-2006

Aruba access points must be installed by a professional installer. The

professional installer is responsible for ensuring that grounding is

available and it meets applicable local and national electrical codes.

RF Radiation Exposure Statement: This equipment complies with FCC

RF radiation exposure limits. The antenna(s) used for this transmitter must

be installed to provide a separation distance of at least 20 cm from all

persons and must not be co-located or operating in conjunction with any

other antenna or transmitter.

When operated in the 5.15 to 5.25 GHz frequency range, this device is

restricted to indoor use to reduce the potential for harmful interference with

co-channel Mobile Satellite Systems.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation.

Produktspecifikationer

Varumärke:	Aruba
Kategori:	Åtkomstpunkt
Modell:	Instant RAP-108
Färg på produkten:	Rood
Vikt:	52 g
Bredd:	70 mm
Djup:	135 mm
Höjd:	20 mm
Förpackningens vikt:	121 g
Förpackningens bredd:	175 mm
Djuppackning:	144 mm
Förpackningshöjd:	32 mm
Strömförsörjning:	3.3V
Vormfaktor:	LP/ST
Plattform:	PC
Anslutningsteknik:	Bedraad
Certifiering:	CE, FC, ROHS
Anslutningar:	1x PCI 32-bit
Kompatibla operativsystem:	Windows 2000/XP/Vista
Mac-kompatibilitet:	Nee
Värdgränssnitt:	PCIe
Chipset:	PERICOM PI7C9X110BNBE
Drifttemperatur (TT):	0 - 85 °C
Harmoniserad systemkod (HS):	84733020
Antal portar:	1
Utgångsgränssnitt:	PCI 32-bit
