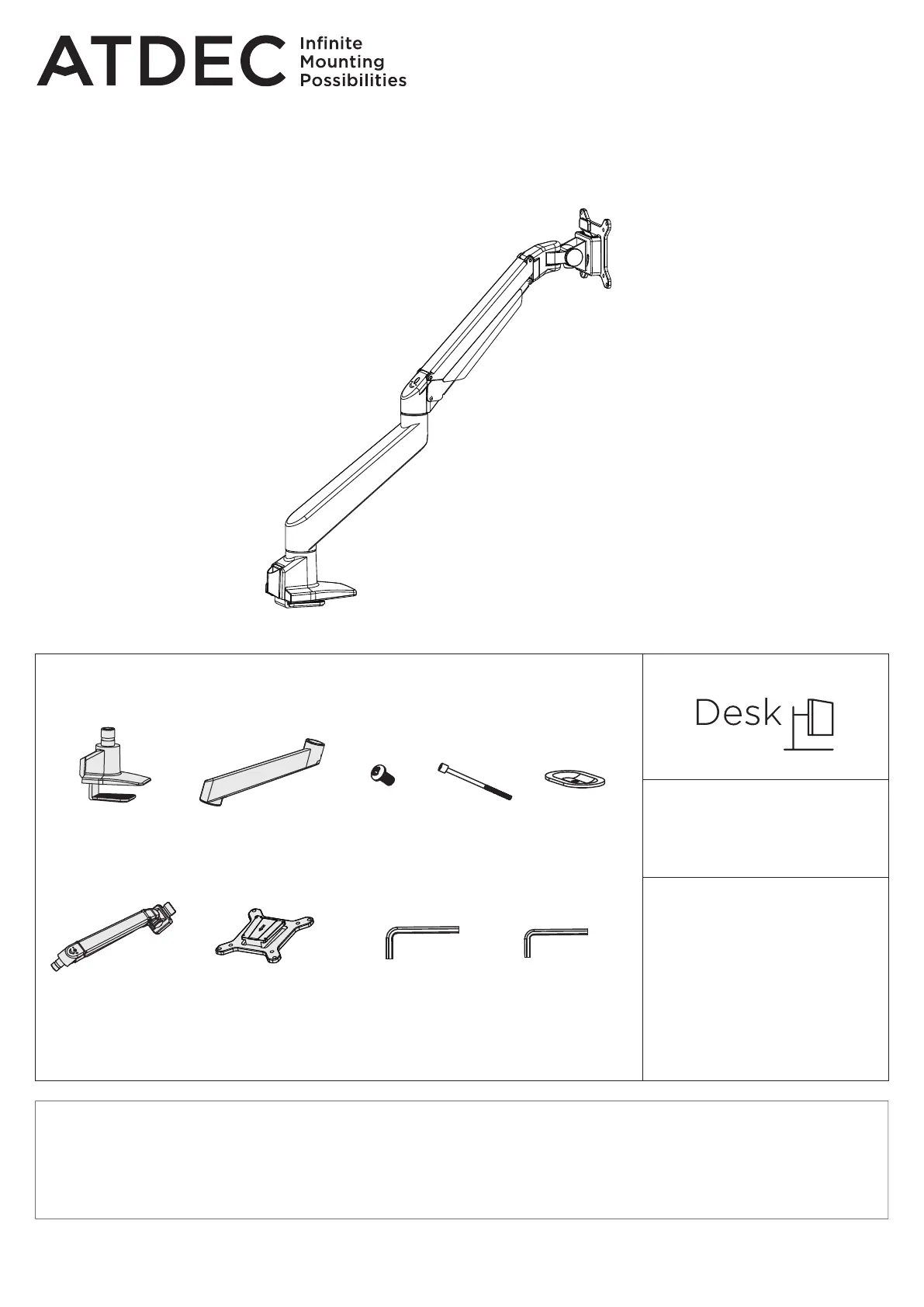

A-HDA-0818 Page 1 of 4
Installation Guide
A-HDA-0818
Heavy Duty Monitor Arm
COMPONENT CHECKLIST
REQUIRED TOOLS
B
Lower Arm
(x1)
C
Upper Arm
(x1)
D
VESA Plate
(x1)
a
Screw
M4x12mm
(x4)
d
6mm Allen Key
(x1)
e
4mm Allen Key
(x1)
b
Screw
M8x160mm
(x1)
c
Bolt Through
Plate
(x1)
A
Desk Clamp
(x1)
• Phillips Head Screwdriver
WEIGHT RANGE
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Curved monitors, deep devices (such as all-in-one PCs) and oset VESA locations exert additional leverage that can exceed the
capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like
further information.
Flat Monitors
8 - 18kg
(17.6 - 40lbs)
Curved Monitors
8 - 10kg
(17.6 - 22lbs)
A-HDA-0818 Page 2 of 4
1A Base Installation - Desk Clamp
2 Assemble Arm
3 Assemble Monitor to Arm and Adjust Tilt Tension
Desk thickness
10 - 50mm
(0.4 - 2”)
d
A
d
b
A
c
Hole size
≥ 8.5mm
(0.33”)
B
D
a
e
e
d
C
(2”)
Desk thickness
range ≤ 50mm
1B Base Installation - Bolt Through
2.1
3.1
2.2 2.2
3.2 3.3
Adjust Tilt according
to monitor weight
Adjust pivot
tension according
to desired freedom
of movement.
A-HDA-0818 Page 3 of 4
4 Adjust Arm Spring Tension
6 Removing Monitor from Arm
5 Cable management
Arm must be in horizontal
position while adjusting
e
Ⅰ Ⅱ
Do not force or
over stress cable
covers when
removing and
assembling!
Allow an extra cable
length through the joints
for movemet of arm
4.1
6.1
5.1
Adjust tension until
the arm holds the
monitor in top and
bottom positions.
Pull tab back and
lift monitor o end
of arm
Remove Cable Covers
