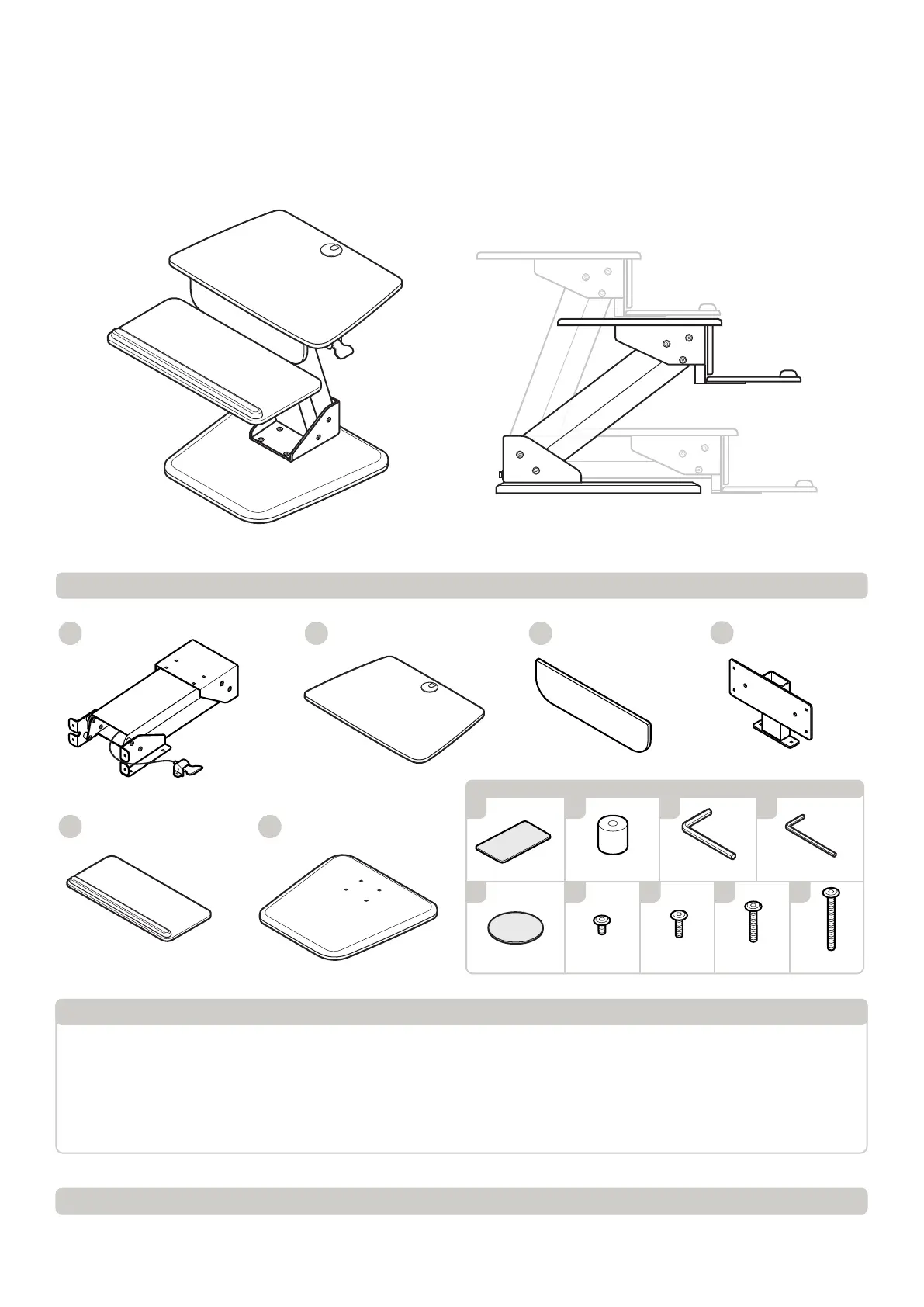

Lift Mechanism
Tabletop Base
DKeyboard Bracket
Keyboard Tray
C Keyboard Panel
BW kor Surface
Spacer (x2)Square Pad (x2)
Round Pad (x4)
Large Allen Key Small Allen Key
M6X8 (x2) M6X25 (x4)M6X12 (x10) M6X35 (x2)
F
G H I J
LK M N O
Hardware
Installation Instructions
Sit-to-Stand Workstation
Freestanding
Step 1. Check components
Component Checklist
A-STSFB
Check that you have received all parts against the Component Checklist.
IMPORTANT INFORMATION
! IMPORTANT - Install as per Installation Instructions
! This product is compatible with VisidecTM Focus and SYSTEMATM monitor mounts.
! This product supports a total maximum load of 28.6lbs ( ). 13Kg
! The manufacturer accepts no responsibility for incorrect installation.
! Excessive pressure on the Keyboard Tray may result in the workstation tipping over.
! Ensure any required electrical/data cables have sufficient length to accommodate the sit-to-stand workstation’s movement.
Step 2. Attach lift mechanism to work surface
Step 3. Attach keyboard bracket and tray
Step 4. Assemble tabletop base
Lift Paddle
Alternate Position
The lift paddle can
be attached on the
left or right side of
the work station.
Cable Routing
Route the lift
paddle cable
through the slot in
the plates on the lift
mechanism (A)
3.1
4.1
4.2
4.3
3.2
3.3
Caution
Avoid pressing
the lift paddle
until Step 4.
Caution
When pressing the
paddle, the lift mechanism
will rise. Keep clear as the
arm rises.
Depress the lift paddle to
raise the lift mechanism.
AJ
M
C
MM
G
H
E
O
J
Lift
Paddle
J
D
J
B
J
L
K
F
N
J
45˚
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to the continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 5/11/15 ©
Step 5. How to adjust from sitting to standing
Installation Complete
Step 6. Adjust lift assistance
Push
Note:
For heavier weights turn the
adjustment screw towards +
For lighter weights turn the
adjustment screw towards -
Adjust the amount
of lift assistance. The
workstation should
not fall when the lift
paddle is depressed.
While gripping onto the sides of the work surface, depress the lift paddle to adjust the height of the work station.
6.26.1
This workstation is compatible with accessories such as monitor mounts. For advice on positioning accessories on
this workstation please refer to the Technical Specifications for this product, found on atdec.com.
Position the workstation at mid height
While gripping onto the sides of the work
surface, depress the lift paddle and adjust
the angle of the lift mechanism to 45° from
the table.
I
