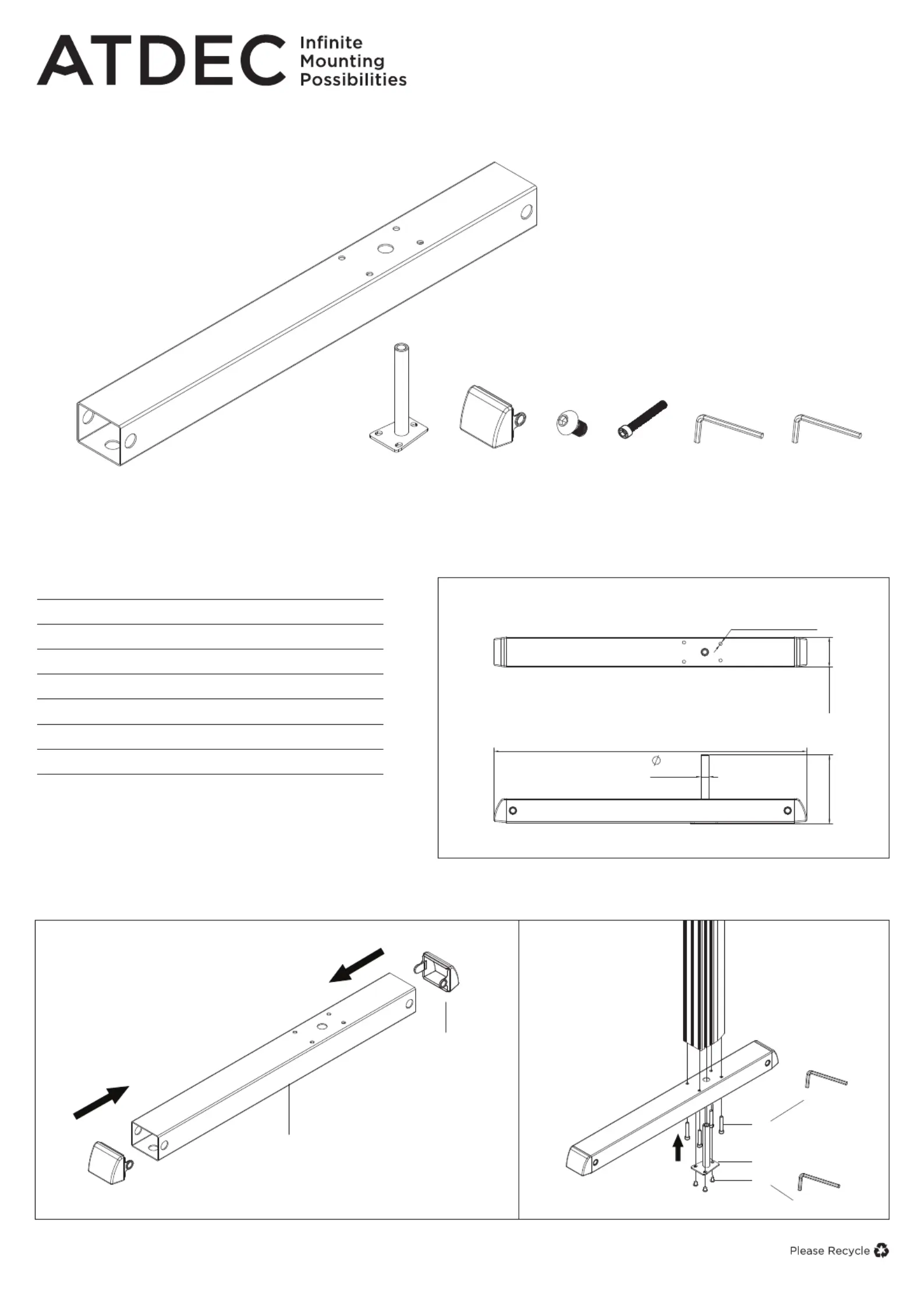

INSTALLATION INSTRUCTION
Technical Summary
ADB-F
Foot
ADB-F Page 1 of 1
PRODUCT DIMENSIONSCOMPONENT CHECKLIST
Item Name QTY
AFoot Tube 1
BPost Support 1
CEnd Cap 2
DM8 x 12mm Screw 3
EM8 x 45mm Screw 4
F5mm Allen Key 1
G6mm Allen Key 1
813.6mm (32.03”)
180mm
(7.09”)
78.2mm
(3.08”)
20mm
(0.79”)
4 x M8
Through Holes
1. 2.
