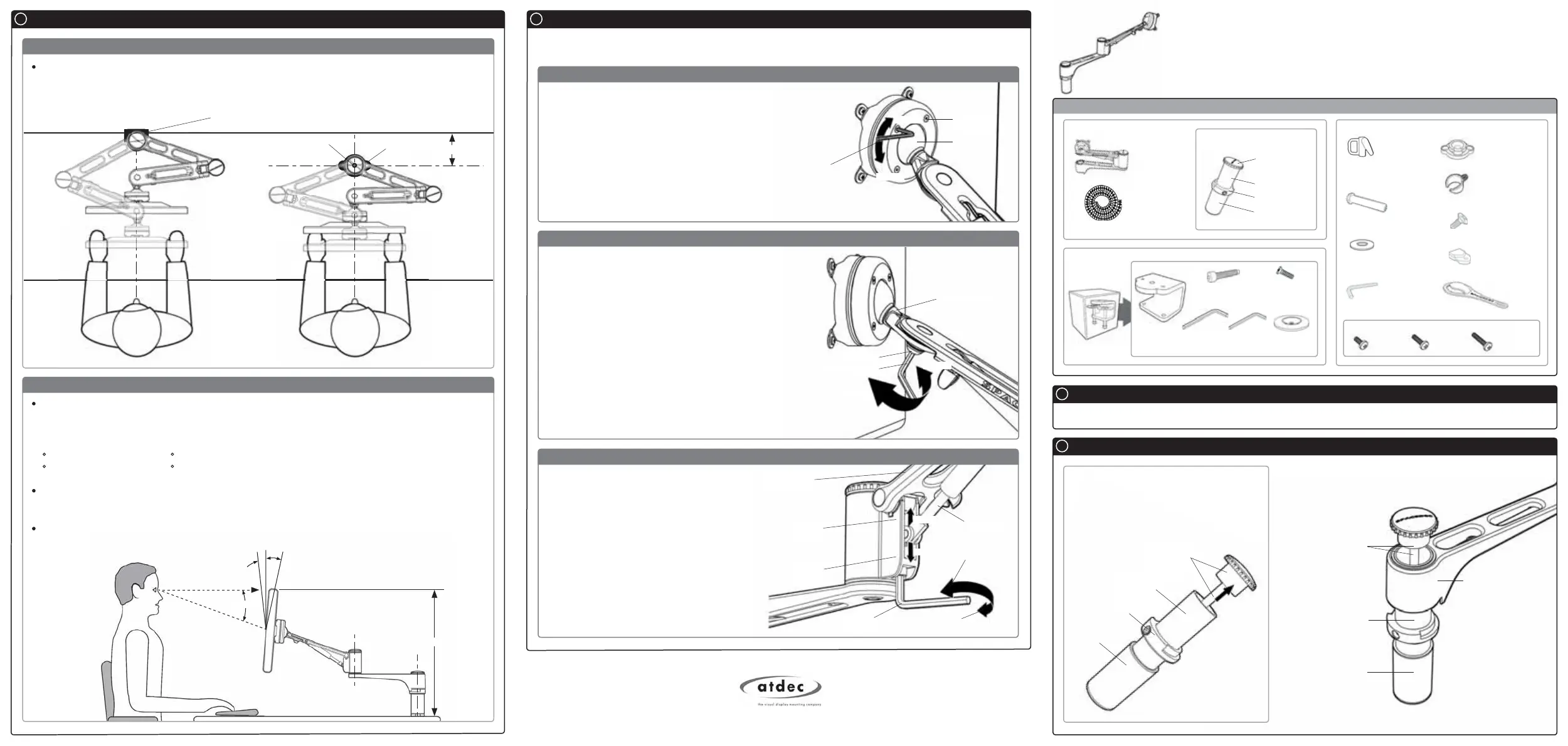

Sida 1/3
Component Checklist
Installation Instructions
SPACEDEC ACROBAT
ARTICULATED ARM
Single Arm
Articulated Arm
Assembly (x1)
Base Casting (x1)
Cable Wrap
Applicator (x1)
Top Cap Tool (x1)
2.5mm Allen
Key (x1)
16mm Cable
Wrap (x1)
M10 Interscrew (x1)
Cable Clip (x3)
M6x12mm
Countersunk
Screw (x2)
Extension
Clip (x4)
Desk Clamp Box
Desk Clamp
Bracket (x1)
M8 Desk Clamp
Screw (x2)
Pressure
Plate (x2)
Component Checklist
A
Check you have received all parts against the Component Checklist above.
Bits Box
5mm Allen
Key (x1)
Assembling the Arm
B
Adjusting the Display
H
As LCD Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the mounting hole pattern does not comply with the
international VESA standards. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice.
Published: 29.03.11
Installation Complete
14 Gauge Self
Tapping Screw (x2)
B.1. Disassemble the Tube Assembly
In order to attach the Articulated Arm to the
tube assembly you will need to remove the
Top Cap and Threaded Rod as shown:
B.2. Assemble the Articulated Arm
Assemble the Articulated Arm as shown:
Top Cap and
Threaded Rod
Arm Assembly
Internal Tube Post
Spacer
Tube
Top Cap and
Threaded Rod
Internal
Tube Post
Spacer
Tube
Collar
Mounting Fasteners
M4x10mm
Screw (x4)
M4x12mm
Screw (x4)
M4x16mm
Screw (x4)
Tube Assembly (x1)
Threaded Rod
and Top Cap (x1)
Collar
Inner Tube Post
Spacer Tube
Washer (x1)
H.1. Adjusting the Ball Joint Resistance
The Acrobat Articulated Arm comes factory set to support 6kg displays. Adjust the arm to suit the weight of your
display as shown in the following steps:
Depending on the weight of the monitor, it may
be necessary to make adjustments to the Ball Joint
Mechanism. If the monitor doesn’t hold its position or
is too resistant, adjust the four tension screws located
around the Ball Joint (see diagram on the right) using
the supplied 2.5mm Allen Key.
Check the display, and then adjust again if necessary.
NOTE: Be sure to adjust screws evenly.
Tighten
Loosen
Tension
Screws (x4)
Ball Joint
2.5mm
Allen Key
H.2. Adjusting the Pivot Head Resistance
It is possible to control the amount of resistance in the
Pivot Head to suit your display.
To increase the resistant of the Pivot Head to suit heavier
displays, use the 5mm Allen Key supplied in the Desk
Clamp Box to tighten the interscrew in a clockwise
direction.
To decrease the resistance of the Pivot Head to suit
lighter displays, loosen the interscrew in an
anti-clockwise direction.
NOTE: It is recommended the Pivot Head be left
at the factory setting for best performance.
Pivot Head
Interscrew
5mm Allen Key
Loosen
Tighten
H.3. Adjusting the Articulated Arm/Gas Strut Resistance
3kg
Monitor
9kg
Monitor
Arm
Raise Gas
Strut to suit
lighter display
5mm
Allen key
Gas Strut
Lighter
Heavier
Lower Gas Strut to
suit heavier display
4mm Allen
Key (x1)
Ergonomic Guidelines
G
H.3.1. Depending on the weight of the monitor, it
may be necessary to adjust the arm. This can be
done by using the 5mm Allen Key supplied in the
Desk Clamp Box.
H.3.2. If the arm tends to automatically rise or fall
when the display is attached, it will be necessary
to make small adjustments to the gas strut. (see
diagram on the right)
H.3.3. If the arm tends to rise, the gas strut
position should be raised. If the arm tends to fall,
the gas strut position should be lowered.
Ergonomists recommend that the optimal position of your screen should be slightly below eye level.
When looking at the screen’s centre the user should have a downward visual angle of approximately
10°-20°. As a guide, the height (h) of your display should approximately be as follows:
Tall Male (Max): 560mm (22”) Tall Female ( Max): 520mm (201/2”)
Short Male (Min): 368mm (141/2”) Short Female (Min): 356mm (14”)
For visual comfort, a viewing distance (d) between 500mm (19
1/2”) to 750mm (291/2”) is
recommended.
Angular adjustments to reduce reflection on your monitor should range between 5° forward tilt to 15°
backward tilt.
Desk Clamp
15°
5°
HORIZONTAL SIGHT LINE (d)
CENTRE OF SCREEN
10°-20°
Recommended Viewing Distance / Height
Recommended Mounting Position
50mm (2”)
When mounting the Spacedec Acrobat Articulated Arm, ensure the correct focal distance can be
achieved for ultimate visual comfort (Refer to Recommended Viewing Distance / Height below)
Desk Clamp Bolt Through
(h)
15mm Hole (9/16 ”) Base Casting
C.1. Bolt Through
Mounting Options
C
C.2. Desk Clamp
There are two Mounting Options: Desk Clamp and Bolt Through
To use the Bolt Through system (Suits desktop thicknesses of 12mm-40mm [
1/2”-1
1/2”]) follow the Bolt
Through instructions at C.1. To use the Desk Clamp (Suits destop thicknesses of 12mm-38mm [
1/2”-11/2”])
follow the Desk Clamp instructions at C.2.
Attaching the Display
D
Direct Mount Configuration
75mm x 75mm (3” x 3”) mounting hole pattern 100mm x 100mm (4” x 4”) mounting hole pattern
Installing Cable Management
E
Attaching the Cable Wrap to the Arm
F
E.1. Push the four supplied Cable Clips into the holes on the underside of the arm as shown in diagram
E.2. Feed the cables into the Cable Wrap Applicator.
E.3. Insert the Cable Wrap Applicator into the Cable Wrap as shown.
E.4. Squeeze the nose of the Applicator and place inside the Cable Wrap ensuring that the opening edges
of the Cable Wrap face towards the nose of the applicator as shown in diagram.
F.1. Position the display at its highest possible
position to ensure that there is sufficient
cabling at the end of the arm so the cables
are not stretched or pulled out when the
display is moved.
F.2. Clip the cable wrap into the four Cable
Clips as shown in diagram.
Cable Clips
Display at
highest point
E.1.
Push in
Clips
NOTE:
Ensure that
the flat side of
each Extension
Clip sits against
the back of the
display
Extension Clip
4x12mm or
4x16mm ScrewsDisplay
4x10mm
Screws
C.1.1. Base Casting
The Articulated Arm is limited to 180° rotation. This is
determined by the location of the Base Casting, as shown.
When mounting the Base Casting, ensure that the
Articulated Arm is free to achieve its full 180° range of
movement.
If mounting the Base Casting in a 90° corner, position the
casting to ensure that the Articulated Arm can only make
contact with one side of the corner.
The Base Casting should be mounted no less than
50mm (2”) from the edge of the desk.
C.1.2. Drill Mounting Hole
Position the Base Casting on the desk in the
desired location ensuring that the letter “F”
faces the user. Using the base casting position,
locate and mark the holes (x3) for drilling.
Drill the holes and then secure the Base
Casting to the desk using the supplied 14
Gauge Self Tapping Screws (x2).
C.2.1. Assemble Desk Clamp
Place the Base Casting on top of the Desk
Clamp ensuring the “F” is facing towards the
user. Using the 4mm Allen Key, attach the Base
Casting to the clamp by inserting the supplied
M6x12mm Countersunk Screws (x2) into the
holes in the Base Casting as shown.
BEFORE PROCEEDING TO THE NEXT STEP PLEASE NOTE:
Articulated Arm will only work when a display is properly installed.
DO NOT adjust tension screws or gas strut until your display has been attached.
14 Guage
Self Tapping
Screw
Desktop
3mm Hole
(1/8”)
15mm Hole (9/16 ”)
Base
Casting User
C.1.3. Installing the Articulated Arm
Insert the M10 Interscrew up through the hole in the
work surface.
Using both hands, secure the M10 Interscrew with
the 5mm Allen Key and use the other hand to
tighten the Threaded Rod into the Interscrew with
the supplied Top Cap Tool.
C.2.2. Attaching the Desk Clamp
Place the Desk Clamp in the desired position on the
edge of the dektop and secure in place using the
supplied 5mm Allen Key as shown in diagram.
C.2.3. Attaching the Articulated Arm
Use the Top Cap Tool to tighten the Threaded
Rod into the Base Casting as shown.
Top Cap Tool
NOTE:
Desk Clamp Assembly is
Suitable for square edged desks only
DESK CLAMP ADJUSTMENT RANGE
NOTE:
It is
recommended
that the Desk
Clamp be
attached to
the rear or
side edge of
the work
surface
Adjust the Desk Clamp to suit your desk
thickness by turning the M8 Desk Clamp Screw
with the supplied 5mm Allen Key.
Suits 12mm (1/2”) to
38mm (11/2”) thick
Work Surfaces
Pressure Plate (x2)
M8 Desk Clamp
Screw (x2)
Nose
E.2. E.3. E.4.
Tighten
Firmly
12mm
Countersunk
Screws (x2)
Base
Casting
4mm
Allen Key
Desk
Clamp
Assembly
Tighten
Firmly
Cable Wrap
100mm
(4”)
100mm (4”)
75mm
(3”)
75mm (3”)
Display
5mm Allen Key
Top Cap
Tool
Tighten
Firmly
Tighten Firmly
Washer
M8 Desk
Clamp
Screw
Desk
Clamp
Assembly
Threaded
Rod
5mm Allen Key
Tighten
Firmly
Towards User
Desktop
Base
Casting’s
Tongue
Inner Tube
Slot
NOTE:
When attaching the
Articulated Arm,
ensure the Base
Casting’s Tongue
is inserted into the
Inner Tube Slot as
shown in C.2.2.
Articulated
Arm
50mm
(2”)
180° Rotation
Desktop
180°
NOTE:
Ensure the Base
Casting’s Tongue is
inserted in to the Inner
Tube Slot when securing
the arm assembly
Inner Tube Slot
Base
Casting’s
Tongue
M10 Interscrew
