Sida 1/2
D Horizontal Rail
Brace
C Horizontal Rail
C Horizontal Rail
G
T Screw M8x40mm
S
T
U

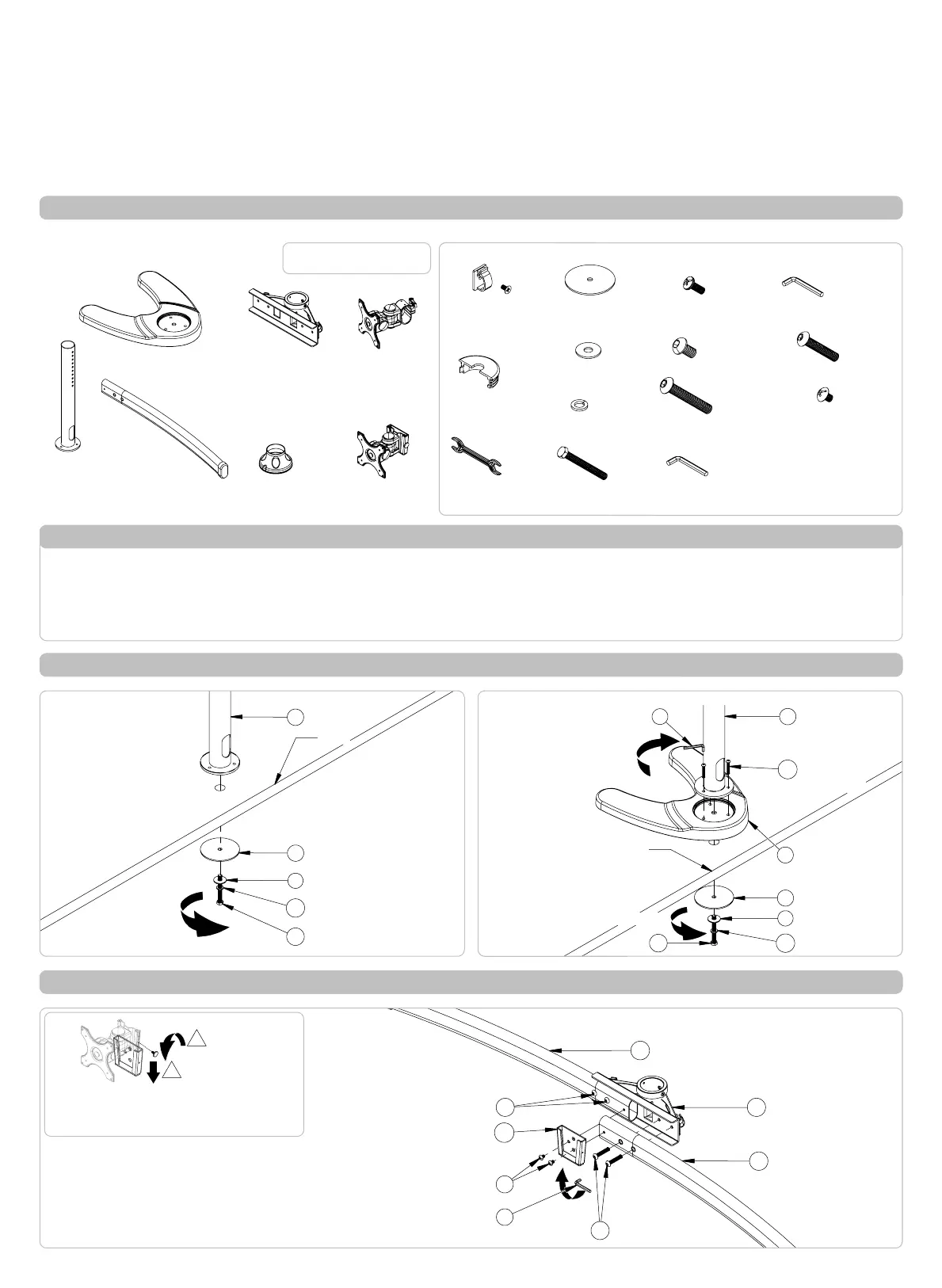

Component Checklist
Installation Instructions
SD-FS-T
IMPORTANT INFORMATION:
Step 1. Install the Pole to the desk.
Step 2. Assemble Horizontal Support Rail.
! IMPORTANT - Install Spacedec Free Standing Triple as per Installation Instructions.
! This product supports a maximum load of 8kg (17.5lbs) in each screen.
! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.
! This product is designed to support three screens of similar weight & size when configured to use the freestanding base.
! Using less than three screens may result in the stand becoming unbalanced & unstable.
! The manufacturer accepts no responsibility for incorrect installation.
Check you have received all parts against the component checklist and Hardware.
Spacedec Freestanding Triple
A. Pole
B. Freestanding Base
C. Horizontal Rail (x2)
D. Horizontal Rail
Brace
E. Pole Cover
F. Mounting Head
L/R (x2)
G. Mounting Head
Centre
I. Pole Top
Cap (x2)
J. Spanner
L. Washer 3/8”
M. Spring
Washer 3/8”
O. Screen Mounting
Screw M4x10 (x12)
P. Screw M8x12mm (x2)
U. Screw M6x8mm (x2)
T. Screw M8x40mm (x4)
R. Allen Key M4
H. Cable Clip
w/ Screw (x6)
K. Bolt Through
Plate
N. Bolt 3/8”
Q. Screw
M6x30mm (x3)
S. Allen Key M5
Desk
A Pole
K Bolt Through Plate
L Washer 3/8”
M Spring Washer 3/8”
N Bolt 3/8
Hardware:
Tools Required:
Phillips Head Screw Driver
Option 1: Bolt Through Option 2: Freestanding (with optional security bolt)
Screw M8x40mm
Allen Key M5
Screw M6x8mm
Mounting Head - Centre
Bracket
TIGHTEN
TIGHTEN
A Pole
Q Screw
M6x30mm
B Freestanding
Base
K Bolt Throug Plate
L Washer 3/8”
M Spring Washer
N
R
Desk
Bolt 3/8”
TIGHTEN
TIGHTEN
Allen Key M4
1. Loosen Thumb Screw.
2. Detach Bracket to mount into Horizontal Rail.
G. Mounting Head - Centre
DETACH
LOOSEN
1
2
Spacedec
Cable Clip H
Installation Complete
C
No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 18.08.11
Step 8. Cable Management
H Cable Clip
Step 3. Install Horizontal Rail to the Pole.
P Screw M8x12mm
S Allen Key M5
E Pole Cover
Horizontal Rail
Sub-Assembly
Pole
I
Pole Top Cap
INSERT
Step 4. Adjust Horizontal Rail Position.
Ensure horizontal rail is attached to
vertical pole with arrow facing upwards.
Select the desired height of your rail to
suit your screen size by inserting the
screws in the various holes in the pole.
TIGHTEN
Step 4. Fasten Display to Mounting Heads.
Step 6. Attach Display to Horizontal Rail.
O Screen Mounting
Screw M4x10mm
F Mounting Head
- L/R
End
Display
TOP
Centre
Display
O Screen Mounting
Screw M4x10mm
G Mounting Head
- Centre
TOP
1
23
To adjust the tension of the
tilt mechanism, first remove
the cover cap to expose the
tilt nut then using the
spanner supplied, tension
the nut until the display
holds the desired position.
Replace cover cap.
Remove rail end cap screw (3) & end cap
(2). Slide Mounting head(1) onto rail &
replace end cap.
Step 7. Adjust Display Tilt Tension.
TIGHTEN
TIGHTEN
End Display
Manage your cables by attaching the cable
clips to the rail & inserting your cables.
Cables can be routed through pole & exit
at the bottom cable port.
