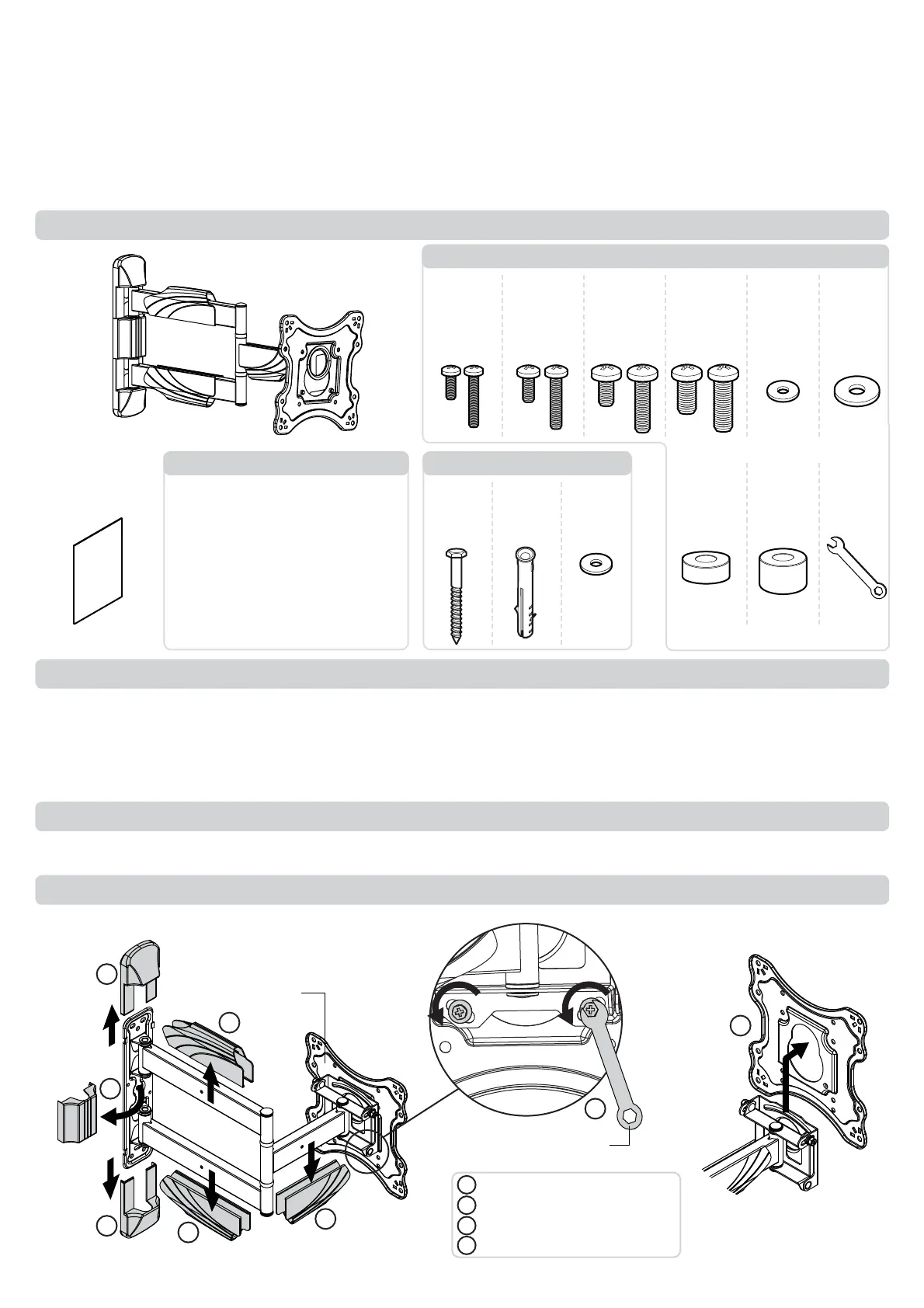

Component Checklist
IMPORTANT INFORMATION
Step 1. Check Components
! IMPORTANT - Install TH-1040-VFL Small-Medium TV Articulated Arm as per the Installation Instructions
! This product supports a maximum load of 35kg (77lbs).
! This product supports VESA mounting hole confi gurations: 100mm x100mm, 100mm wide x 150mm high, and 200mm x 200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Check you have received all parts by comparing supplied parts against the Component Checklist and Hardware lists above.
Articulated Arm DM-A
M4x16/30
(x4 each)
DM-B
M5x16/30
(x4 each)
DM-C
M6x16/30
(x4 each)
DM-D
M8x16/30
(x4 each)
DM-G
M8 x 5mm
Spacer
(x8 each)
DM-H
M8 x 15mm
Spacer
(x4 each)
DM-I
Spanner
DM-E
M5
Washer
(x4 each)
DM-F
M8
Washer
(x4 each)
Display Mounting Hardware
Tools Required
Power Drill
Phillips Head Screwdriver
4.5mm (3/16") Drill Bit
10mm (3/8") Masonry Drill Bit
Spirit Level
Drill
Template
Step 2. Remove VESA Plate, Cable Clips, and Wall Mount Covers.
VESA Plate
DM-I
1 Remove nuts using the supplied spanner.
2 Lift VESA Plate to remove.
3 Remove cable covers.
4 Remove wall mount covers.
2
1
3
3
3
4
4
4
WM-A
Coach
Screw
(x4 each)
WM-C
M6 Washer
(x4 each)
Wall Mounting Hardware
WM-B
Nylon
Anchor
(x4 each)
Installation Instructions
TH-1040-VFL
Small-Medium TV Articulated Arm
Mounting Screw (DM-A,B,C,D)
Washer (DM-E,F) -
Use spacer DM-G
or DM-H as required
VESA Plate
Bottom of Display
Note: Larger circle
should be closer to
bottom of display
Choose mounting hardware
and hole pattern to match
your display
Spirit Level
WM-C
WM-A
Drill Template (discard after holes drilled)
4.5mm
(3
/16
")
hole
55mm (2.2")
Stud
Arrow must
point upwards
Step 3. Attach Tilt Brackets to Screen
Step 4. Reattach Wall Mount Covers Step 5. Attach VESA Plate to Display
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifi cations without notice. Published 26.09.16 ©
Tighten screws through
slots and into VESA Plate
using supplied spanner.
1
2
+5°
-5°
- Loosen both nuts to adjust the tilt angle.
- When desired angle is reached,
re-tighten the nuts to secure.
LoosenTighten
Route cables and push covers onto arm.
Ensure sufficient slack is left for arm movement.
Option 1
Option 2
PUSH
PUSH
PUSH
+5° -8°
LoosenTighten
- Loosen nuts on both sides of
mount to adjust the tilt angle.
- When desired angle is reached,
re-tighten the nuts to secure.
Masonry Wall Timber Stud Wall
OR
Spirit Level WM-A
Arrow must
point upwards
WM-C
WM-B
Drill Template (discard after holes drilled)
PUSH
PUSH
PUSH
Step 6. Attach Display to the Arm
Step 8. Horizontal Adjustment
Step 7. Cable Management
Step 9. Tilt Adjustment
