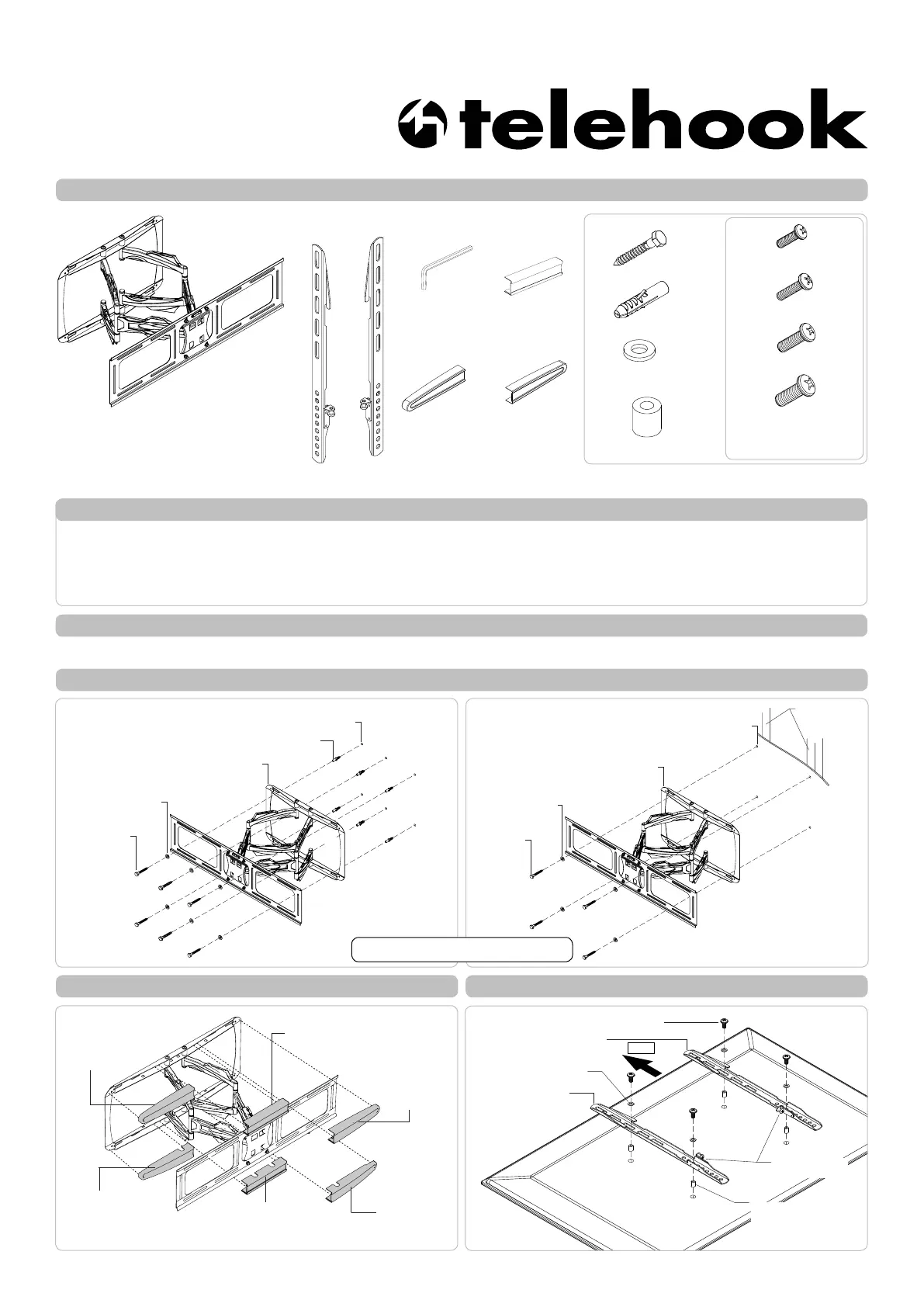

Installation Instructions
TH-3070-UFL
Component Checklist
Large-Medium TV Articulated Arml
Tools Required:
Power Drill
3mm(0.12”) Drill Bit
10mm(0.39”) Masonry Drill Bit
Phillips head screw driver
13mm(0.5”) Socket Wrench or Shifter
! IMPORTANT - Install Telehook 3070 Large-Medium TV Articulated Arm Mount as per installation instruction.
! This product supports a maximum load of 60kg (132lbs.).
! This product has a universal mounting hole pattern that suits a broad range of TV’s:
From 200-800mm in width and 200-400mm in height.
! The manufacturer accepts no responsibility for incorrect installation.
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received against the component checklist and hardware above.
Step 2. Install Arm/Wall Mount to the Wall
Step 3. Attach Wall Mount Covers Step 4. Attach Mounting Brackets to Display
Arm/Wall Mount
Right Mounting
Bracket
Left Mounting
Bracket
Allen Key
Wall Mount
Cover Left (x2)
Wall Mount
Cover Right (x2)
Coach Screw (x6)
Nylon Anchor (x6)
M8 Washer (x6)
M6.5 Washer (x4)
M8 Spacer (x4)
Hardware
M6x12 (x4 each)
M6x30mm (x4 each)
M8x16mm (x4 each)
M8x30mm (x4 each)
Display Mounting
Screws
Masonry Wall Timber Stud Wall
Coach
Screw (x4)
M8 Washer (x4)
Arm/Wall Mount
Ø5mm(0.2”)
Drilled Hole
Nylon Anchor (x6)
Coach
Screw (x6)
M8 Washer (x6)
Arm/Wall Mount
Ø10mm(0.4”)
Drilled Hole
Note: Use a stud finder to
accurately locate the center of
the stud. Ensure that all screws
fix securely into the stud.
Tip: Use a spirit level to ensure
wall plate is horizontal.
Wall Mount
Cover Left
Wall Mount
Cover Right
Wall Mount
Cover Right
TOP
Mounting Screw
Left Mounting
Bracket
Right Mounting
Bracket
Washer
Timber Studs
Ensure locking
screw is in inside.
Spacer
(optional, use only
for recess mounting
holes)
Wall Mount
Cover Left
Wall Mount
Cover Centre
Wall Mount
Cover Centre
Wall Mount Cover
Centre (x2)
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 02.11.12 ©
Step 5. Attach Display to the Arm/Wall Mount
Step 6. Tilt Adjustment
Step 7. Horizontal Adjustment Step 8. Cable Management
1. Hook the display to the mounting
plate.
2. Push the bottom of the display.
3. Ensure display is positioned in the
center of the mounting plate.
4. Tighten the locking screws using a
phillips head screw driver.
10°
Depending on the weight of your display,
you may need to use the supplied allen
key to tighten and loosen the screws for tilt
tension adjustment.
+2°
-2°
TIGHTEN
LOOSEN
1 HOOK
2 PUSH
Phillips Head Screw Driver
3 CENTER
Locking Screw
4 TIGHTEN
Insert cables into the four clips
provided.
LOOSEN
TIGHTEN
