User Manual
AtlonA
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Features .................................................. 3
3. Specications .................................................. 3
4. Package Contents .................................................. 4
5. Panel Descriptions .................................................. 4
5.1 Front Panel .................................................. 4
5.2 Rear Panel .................................................. 4
6. Remote Control .................................................. 5
7. IR Extender .................................................. 5
7.1 IR Extender Connection .................................................. 5
7.2 The IR Extender Components Setup .................................................. 6
8. Applications .................................................. 6
9. Safety Information .................................................. 7
10. Warranty .................................................. 8
11. Atlona Product Registration .................................................. 9
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
FEATURES:

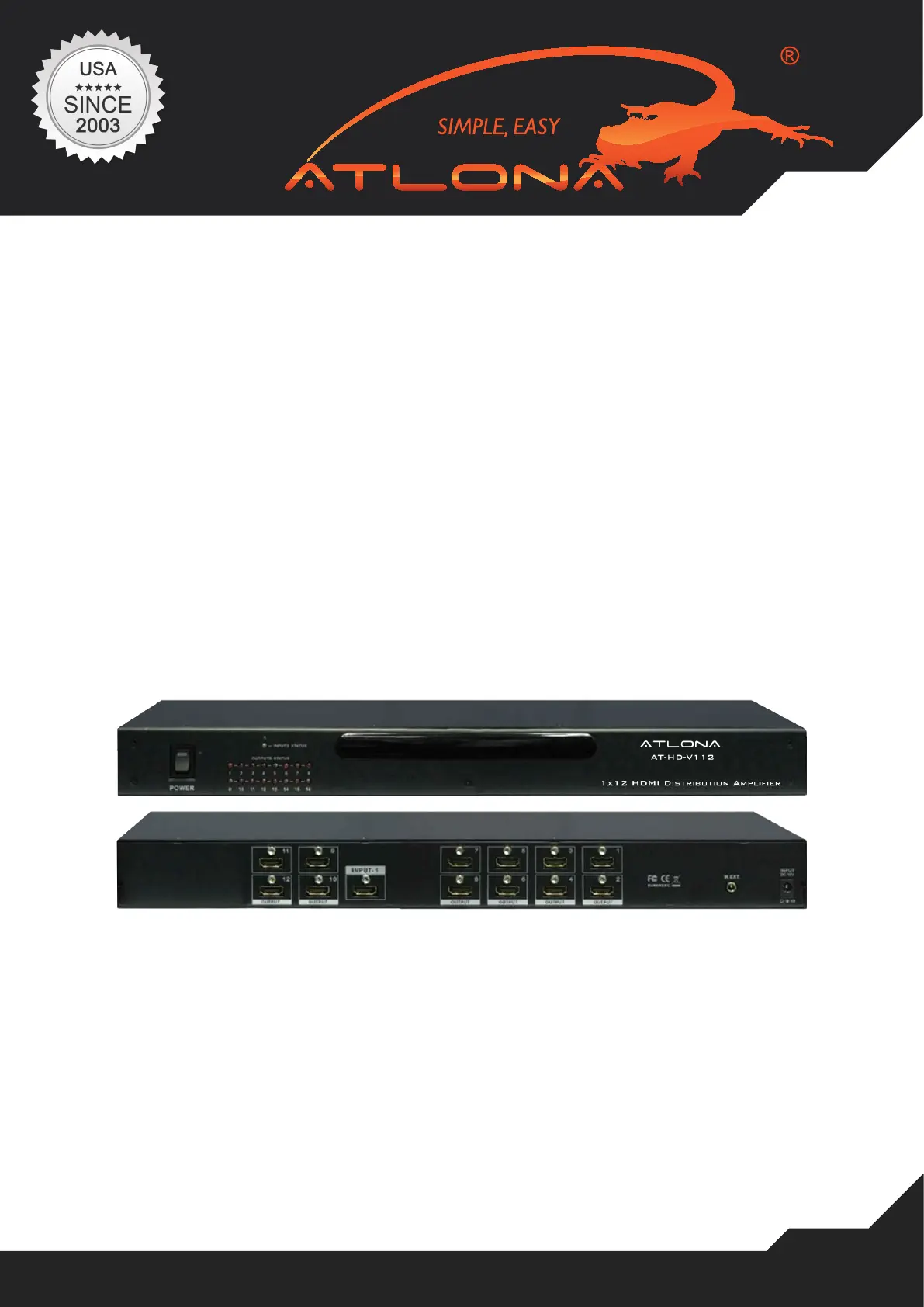

Atlona Technologies’AT-HD-V112 is a 1x12 HDMI Distribution Amplifer designed to work as a splitter for any
High Defnition Video application With 1 HDMI Input and 12 HDMI Outputs, the AT-HD-V112 is capable of split-
ting High Defnition signal from one source to twelve separate displays with compatible inputs With a built in
amplifer, this unit has the ability to boost thH signal great distances, while preventing both signal loss and picture
degrada¬tion. This splitter supports data rates up to 6.75 Gbps and enables HDMI formats at resolutions up to
1080p or 1920x1200 and WUXGA DVI resolution at (1920x1200) With HDCP Compatibility, Atlona’s 1x12 HDMI
Distribution Amplifer is perfect for all applications sending High Defnition Video signal to multiple displays.
• 1x12 HDMI Distribution Amplifer: 12 HDMI Outputs, 1 HDMI Input
• HDMI and HDCP compliant
• Supports video bandwidth up to 675 Gbps
• Supports wide range of PC resolutions from VGA to WUXGA 1920x1200 and HDTV/DTV resolutions
4S0i/4S0p, 576i/576p, 720p, 10S0i and 10S0p
• Compatible with all HDMI sources and displays
• Supports Digital Video TMDS formats in Deep Color 36bits
• Supports color depth of up to 36
• Bi-directional color space conversion (SCS) between RGB and YCBCR color spaces
• Auto-Scan input and outputs status via LED display on front panel
• Control by Select buttons on front panel or IR Remote Controller
• IR Extender with 1000ft long distance
• Rack ear mount and 19 inch Rack mountable type panel
• Power supply 12V DC
• 1x12 HDMI Distributor: 1 x HDMI Input to 12 x HDMI Outputs
• Supports :HDMI Standard, DVI and HDCP Compliant
• Video Support: HDMI formats up to 10S0p or 1920x1200 and DVI up to WUXGA 1920x1200 HD resolutions
• Audio Support: DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus
SPECIFICATIONS:
Compliant standard HDMI, DVI and HDCP
HDTV Support HDMI formats up to 10S0p or 1920x1200 and WUXGA 1920x1200 resolution
Controls Manual or IR Remote and IR Extender (Maximum Distance 300M)
Data Rates 675 Gbps
Pixel clocks 25MHz to 225 Mhz
HDMI Cable Distance 45ft at 675Gbps
Supports digital video
standards
RGB/YCBCR : 24/30/36-bits; YCBCR :S/10/12/16/20/24-bits; Double data rate
interface for RGB/YCBCR : 12/15/1S-bits
Infrared frequency 3SKHz
Safety Approvals CE, FCC, RoHS
Power Supply 12V DC
