Sida 1/10

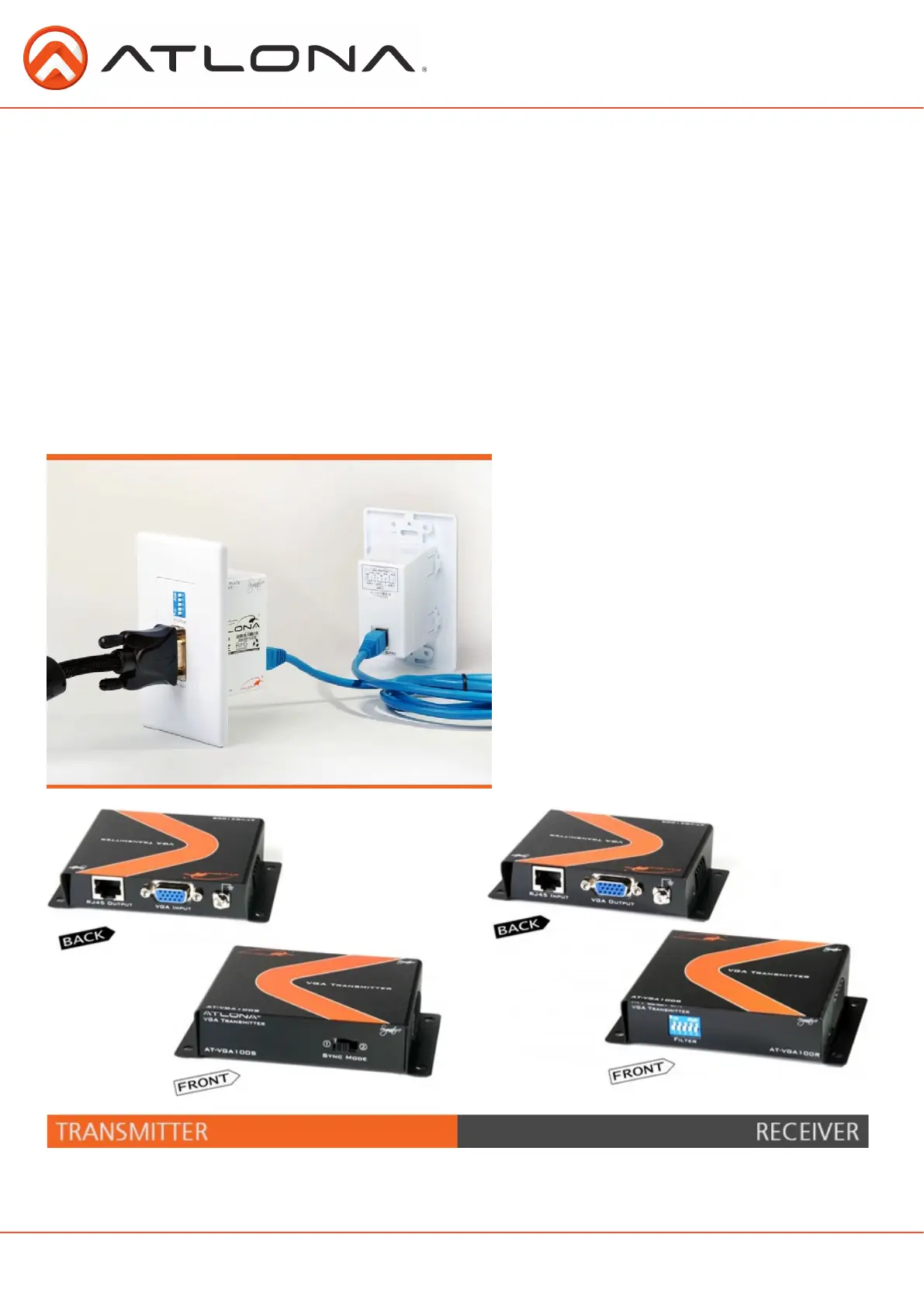

AT-WPVGA-SA T-WPVGA-RA T-VGA100-SA T-VGA100-R
Inputs 1 x VGA 1 x RJ45 1 x VGA 1 x RJ45
Outputs 1 x RJ45 1 x VGA 1 x RJ45 1 x VGA
VGA Type (HD15) female
VGA Resolution 800x600, 1024x768, 1280x768 and 1280x1024
Signal Bandwidth 300 kHz max.
Signal Loss Less than 3dB per pair
Transmitting Distance up to 330ft (100m)
Dimensions (inch) 2.75x2.40x4.52
– Single Gang
2.75x2.40x4.52
– Single Gang
4.3x3.03x1.02 4.3x3.03x1.02
Weight (lb) 0.15
Operation Temperature 0 to 55oC
Storage Temperature -20 to 85oC
Humidity up to 95%
Transmitter:
Receiver:
Filter
Shielded Twisted pair cable (STP cable)ground cable
STP RJ45 connector (Metal Housing)
ground cable (folded) - Must touch the Metal Housing
Shielded Twisted pair cable (STP cable)ground cable
1. Orange-white Video Red +
2. Orange Video Red -
3. Green-white H-Sync
4. BlueV ideo Green +
5. Blue-white Video Green -
6. Green V-Sync
7. Brown-white Video Blue +
8. Brown Video Blue -
1. Orange-white Keyboard Clock
2. Orange Keyboard Data
3. Green-white Power 1
4. BlueG round 1
5. Blue-white Power 2
6. Green Ground 2
7. Brown-white Mouse Clock
8. Brown Mouse Data
