Installation Guide

AT-HDVS-CAM-CMNT

To install the AT-HDVS-CAM, 4 PA3X30 self-tapping screws, 4 PM3X6 screws, 4 screw stoppers, 1 1/4 20UNC

screw, AT-HDVS-CAM-CMNT, and the AT-HDVS-CAM are needed.

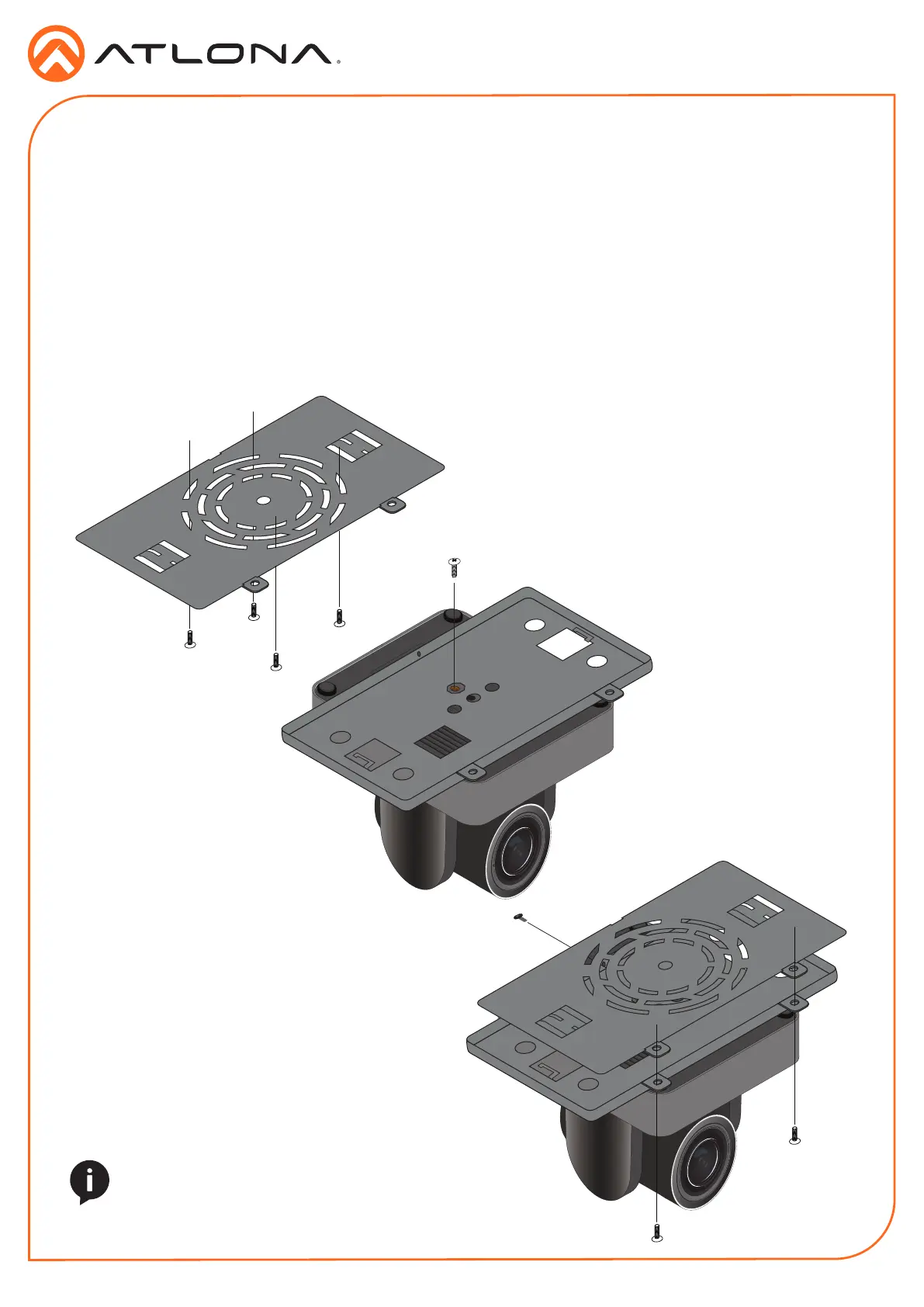

1 Install the 4 screw stoppers in the ceiling.

2 Connect the upper ceiling covering plate to the screw stoppers using the PA3X30 self-tapping screws.

3 Connect the lower ceiling covering plate to the bottom of the AT-HDVS-CAM using the 1/4 20UNC screw.

4 Mount the lower ceiling covering plate to the upper ceiling plate using 3 PM3X6 bolts.

ON KE

1 2

ON KE

1 2

Ceiling Mount for the PTZ Camera for the

HDVS-300 Soft Codec Conferencing System

AT-HDVS-CAM-CMNT

NOTE: The camera picture will need to be inverted for video

to be viewed correctly. View the AT-HDVS-CAM manual for

instructions on how to invert video.

Installation Guide

AT-HDVS-CAM-CMNT
