Sida 1/8
1

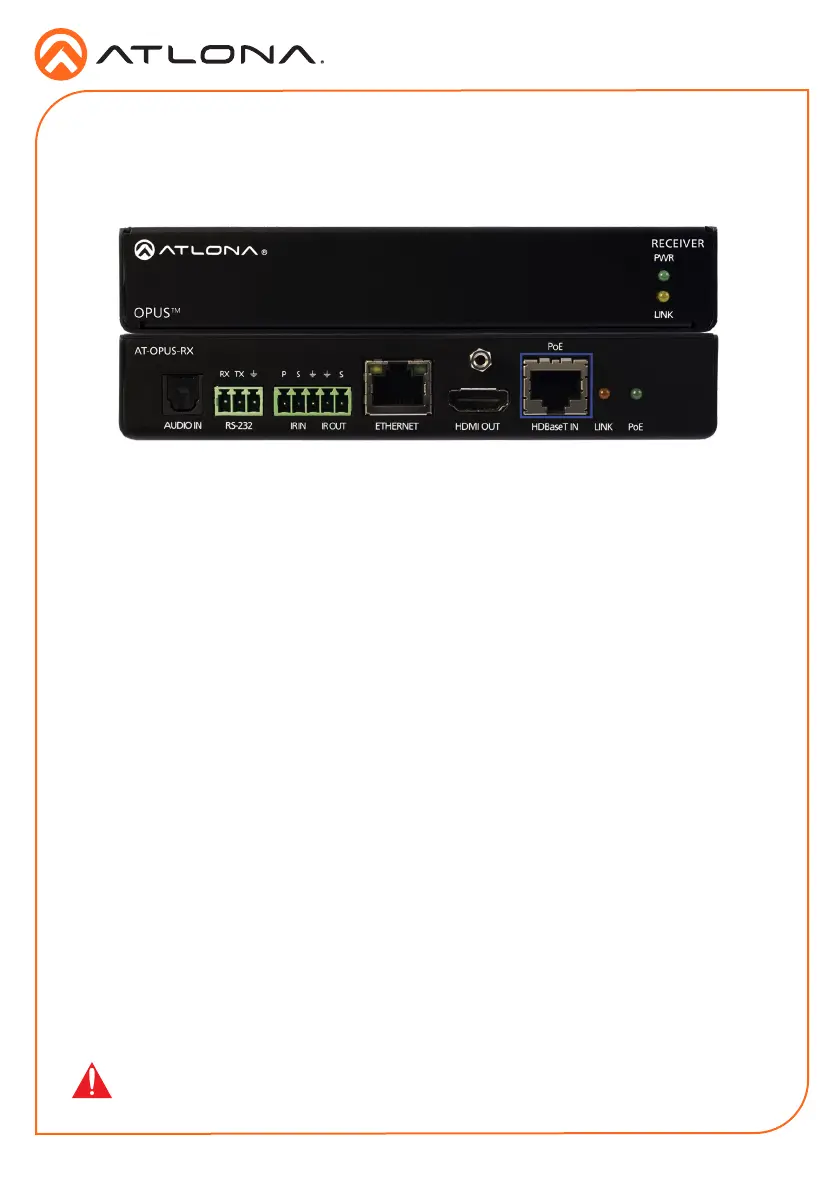

Installation Guide
AT-OPUS-RX
4K HDR HDMI Over 100 M HDBaseT RX for Opus Series
Matrix Switchers
AT-OPUS-RX
The Atlona AT-OPUS-RX is an HDBaseT receiver for high dynamic range (HDR) formats, designed
for use with the Opus™ Series of HDMI® to HDBaseT™ matrix switchers. The OPUS-RX is
HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well
as HDMI data rates up to 18 Gbps. It receives HDMI, Ethernet pass-through, and bidirectional
IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless
VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 video signal extension
over HDBaseT with little to no latency. For additional integration convenience, the receiver is
remotely powered by an Opus Series matrix switcher through Power over Ethernet (PoE). The
OPUS-RX supports the HDMI Audio Return Channel (ARC), with the ability to transmit digital
audio from a television back to an AV receiver through the matrix switcher.
IMPORTANT: Visit http://www.atlona.com/product/AT-OPUS-RX for the latest rmware
updates and Installation Guide.
Package Contents
1 x AT-OPUS-RX
2 x Mounting brackets
4 x Mounting screws
1 x IR Emitter
1 x 3-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
2
Installation Guide
AT-OPUS-RX
SP S
PoE
RX TX
HDMI OUTIR IN IR OUT RS-232AUDIO IN ETHERNET LINK PoE DEBUGHDBaseT IN
AT-OPUS-RX
PWR
LINK
RECEIVER
OPUS
T M

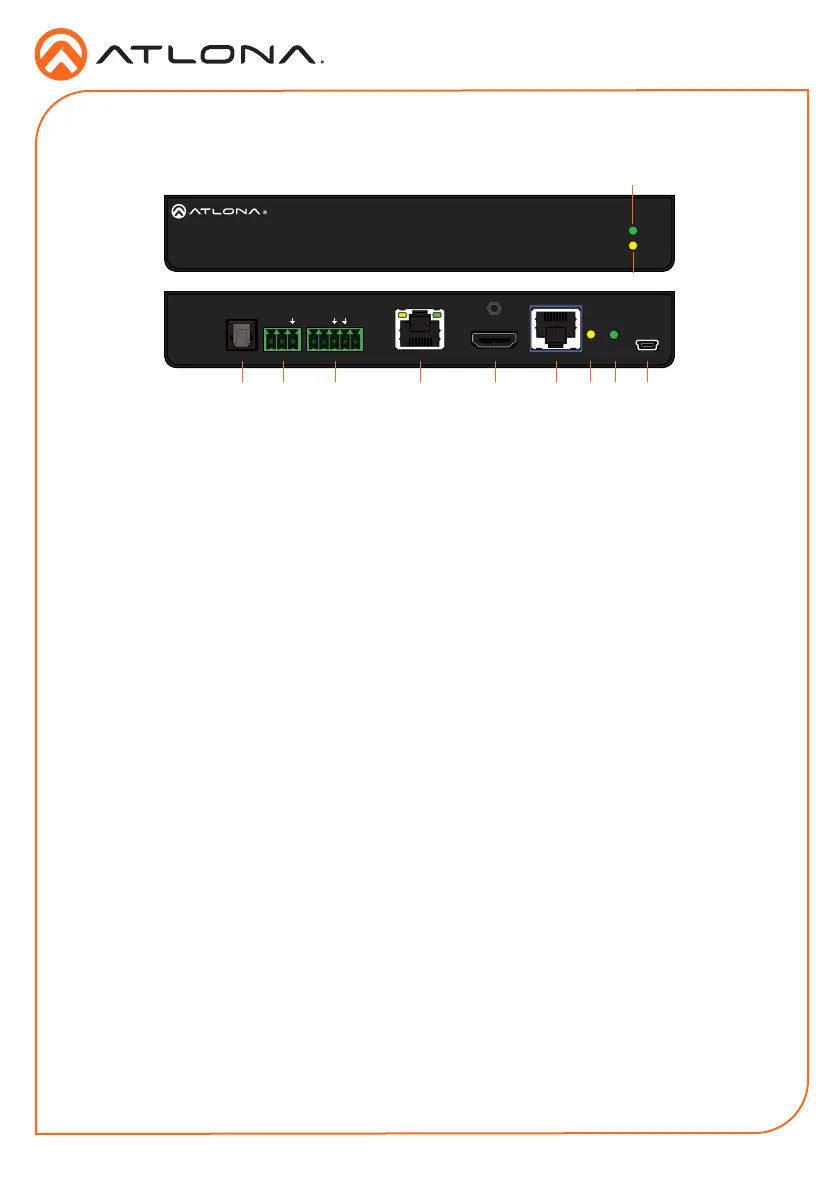

Panel Descriptions
1 POWER
This LED indicator glows solid green when the
unit is powered.
2 LINK
This LED indicator glows solid amber when
an HDMI output is connected and a solid link
is established between the transmitter and
receiver.
3 AUDIO IN
Connect a digital audio cable from the
TOSLINK™ port on the display to this port.
This port serves as the input for the Audio
Return Channel (ARC), receiving audio from the
display and sending it to the transmitter.
4 RS-232
Connect the included 3-pin captive screw
connector to this port for bidirectional RS-232.
5 IR
Connect the included 5-pin captive screw
connector to this port for IR pass through.
6 Ethernet
Connect a LAN cable from this port to either a
network switch or Ethernet capable display.
7 HDMI OUT
Connect an HDMI cable from this port to a
display.
8 HDBaseT IN
Connect to an OPUS series matrix switcher
output, using a 568B terminated cable.
9 LINK
This LED indicator glows solid amber when
an HDMI output is connected and a solid link
is established between the transmitter and
receiver.
10 POWER
This LED indicator glows solid green when the
unit is receiving power from the transmitter.
11 DEBUG
Connect this port to a PC for troubleshooting.
3 64 75 8 9 10 11
2
1
3
Installation Guide
AT-OPUS-RX

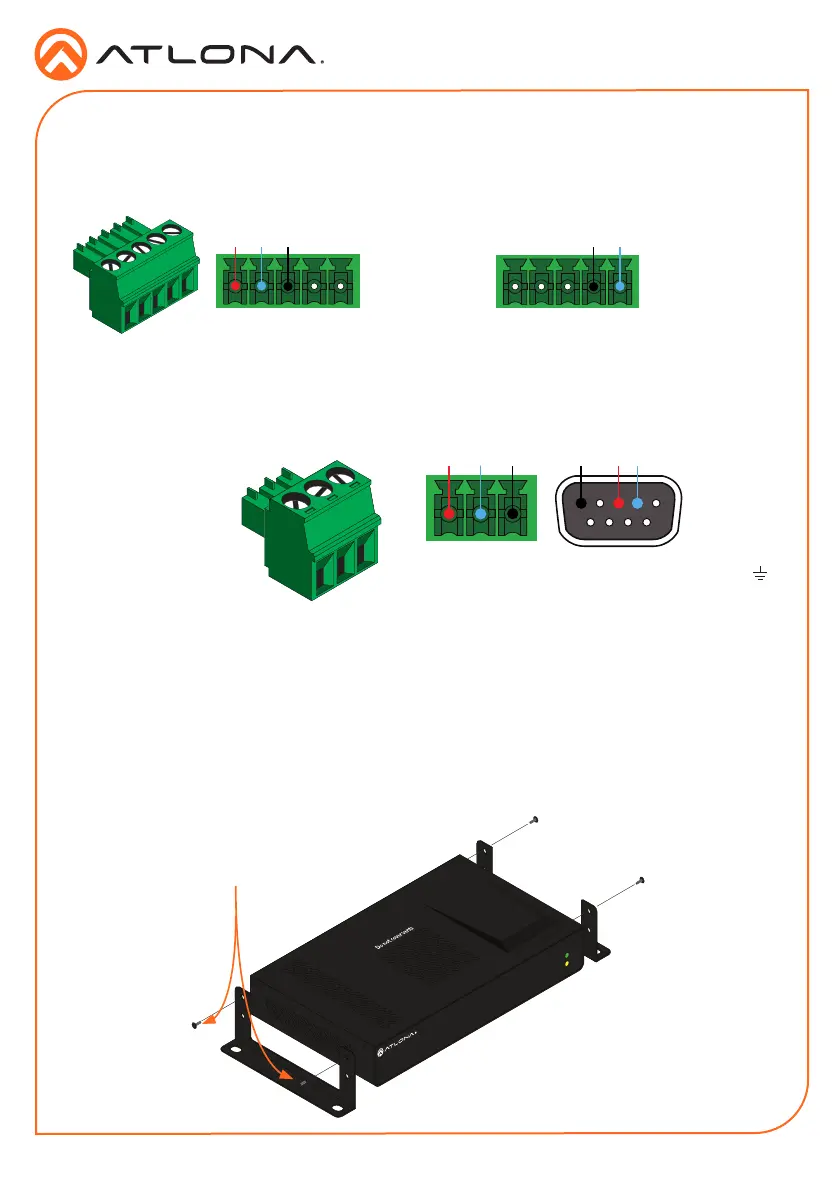

RS-232
A 3-pin captive screw connector has been
included for RS-232.
Pin out will be determined by the RS-232 cable
and connect as RX (receive), TX (transmit) and
(Ground).
A 5-pin captive screw connector for IR control has been included. The rst three terminals are IR
inputs to be used with an IR receiver (AT-IR-CS-RX purchased separately through atlona.com),
the last two terminals are for IR outputs to be used with the included IR emitter.
IR OUT is connected by a ground and
signal wire. Use with the included IR
emitter to pass signals to the display
from a control system.
IR IN is connected by a power,
signal, and ground wire. Use with
IR receivers to pass IR signals
back to the transmitter.
IR
IR IN IR OUT
GND S
GND RX TXGNDRX TX
The AT-OPUS-RX includes two mounting brackets and four mounting screws, which can be used
to attach the units to any at surface.
1. Remove the top 2 case screws on the side of the unit.
2. Align the mounting brackets to the side of the units.
3. Use the previously removed case screws to secure the mounting bracket to the enclosure.
4. Repeat the steps for the other side of the unit.
Mounting Instructions
PWR
LINK
RECEIVER
OPUS
TM
Case screws
GNDSP
