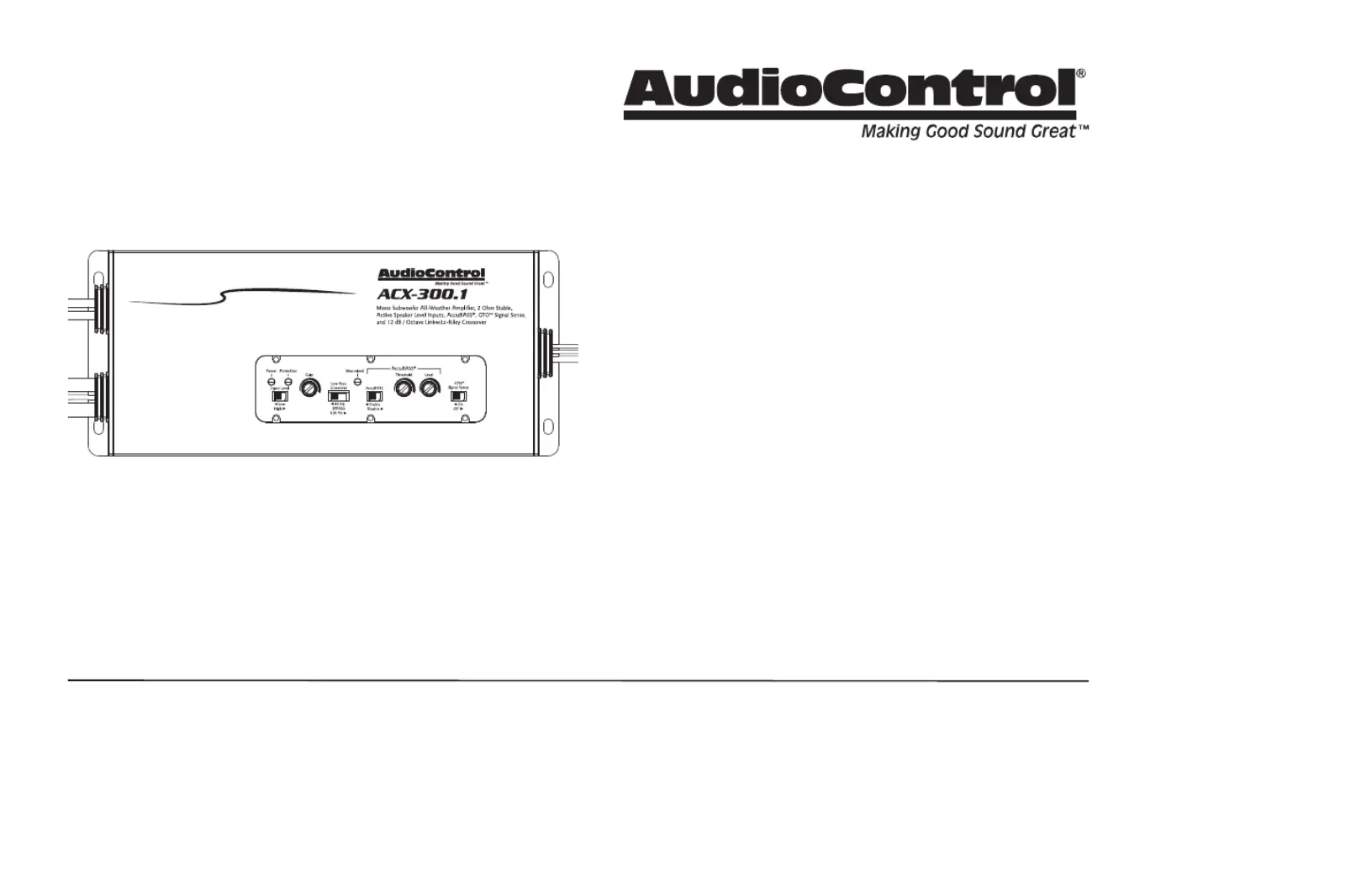

COMPACT HIGH POWER ALL-WEATHER MONO AMPLIFIER
Quick Start Guide
Features
• Compact High Power Mono Subwoofer Amplier
• High Current Design
• 1 x 300 Watts @ 2 Ohms, 1x175 watts @ 4 Ohm
• 12 dB/Octave Linkwitz-Riley Alignment Crossover
• GTO™ Signal Sense (Great Turn On)
• 2 RCA Inputs - switchable for Low and High Level signals
• Optional wired ACR-1 Remote Control for Output Level
• All-weather rated - IPX6 rated!
• Cage-free op-amps
ACX-300.1
2
Quick Start Guide
ACX-300.1
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as muers, silencers, exhaust
pipes, or other apparatus (including ampliers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualied
personnel, to prevent damage to fuel lines, power and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground wiring of sucient size to ensure adequate
current to the amplier. For the ACX-300.4 this means 8 gauge wire or
thicker.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specied by the manufacturer.
13. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged or objects have fallen into the apparatus,
does not operate normally, or has been dropped.
14. Fuses shall be replaced only with the correct type and fuse value, and
only when the apparatus is powered o.
15. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The lightning ash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be
of sucient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the
user of the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside.
Refer servicing to qualied personnel.
Recycling notice: If the time comes and this apparatus has fullled its destiny,
do not throw it out into the trash. It has to be carefully recy-
cled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact
your local or state recycling leaders for assistance in locating a
suitable nearby recycling facility. Or, contact us and we might
be able to repair it for you.
3
1. Speaker Output – Connect these wires to your subwoofer using
the included water resistant harness. Speaker wire may then be
crimped or soldered onto the bare leads. Use a decent sized wire
gauge as this baby is powerful!
2. Power Input Terminal +12V & Ground – Connect these wires
to the +12V and Negative binding posts of the vehicle battery
via one of two included harness options. You may use either the
included water resistant harness, or the included harness kit to
terminate your own custom-length water-resistant harness. Use
quality insulated wiring of the recommended wire gauge, such as
wire gauge 8 or thicker.
3. Remote Power Input Wire – This wire connects to the 12V remote
trigger output of some head units and controls the on/o state of
the amplier. Alternatively, you can use the GTO™ feature of the
amplier so it will turn on when an speaker level signal is detected
at the RCA inputs.
4. Power LED - When the unit has been powered on, the LED will
glow warmly red
5. Input Level - Use this switch to specify which type of signal input
voltage type you are using - high is speaker level & low is RCA line
level.

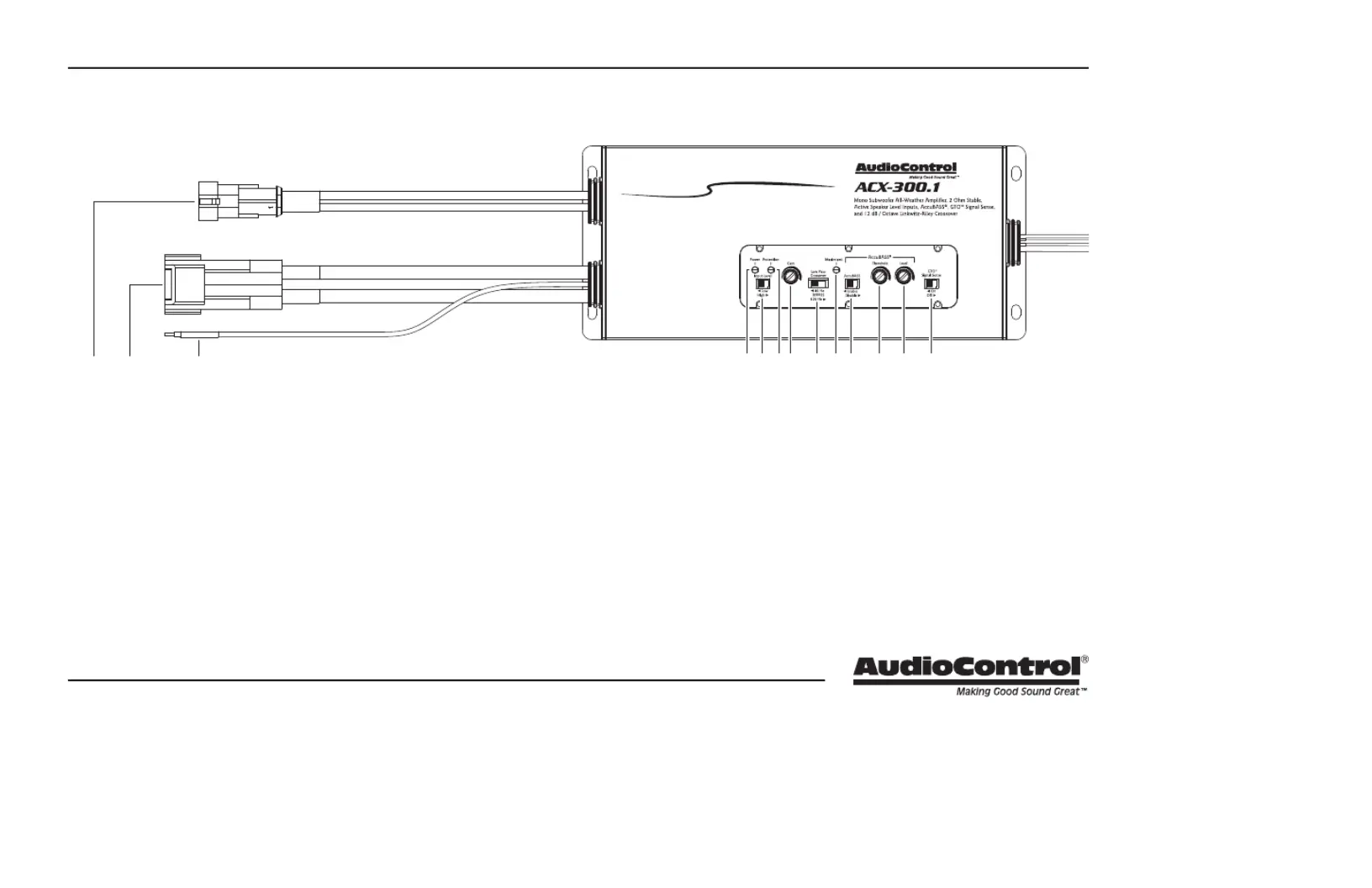

Connection Features
REM
GND
+12V
OUTPUT
1 2 3 4 5 6 7 8 9 10 11 12 13
