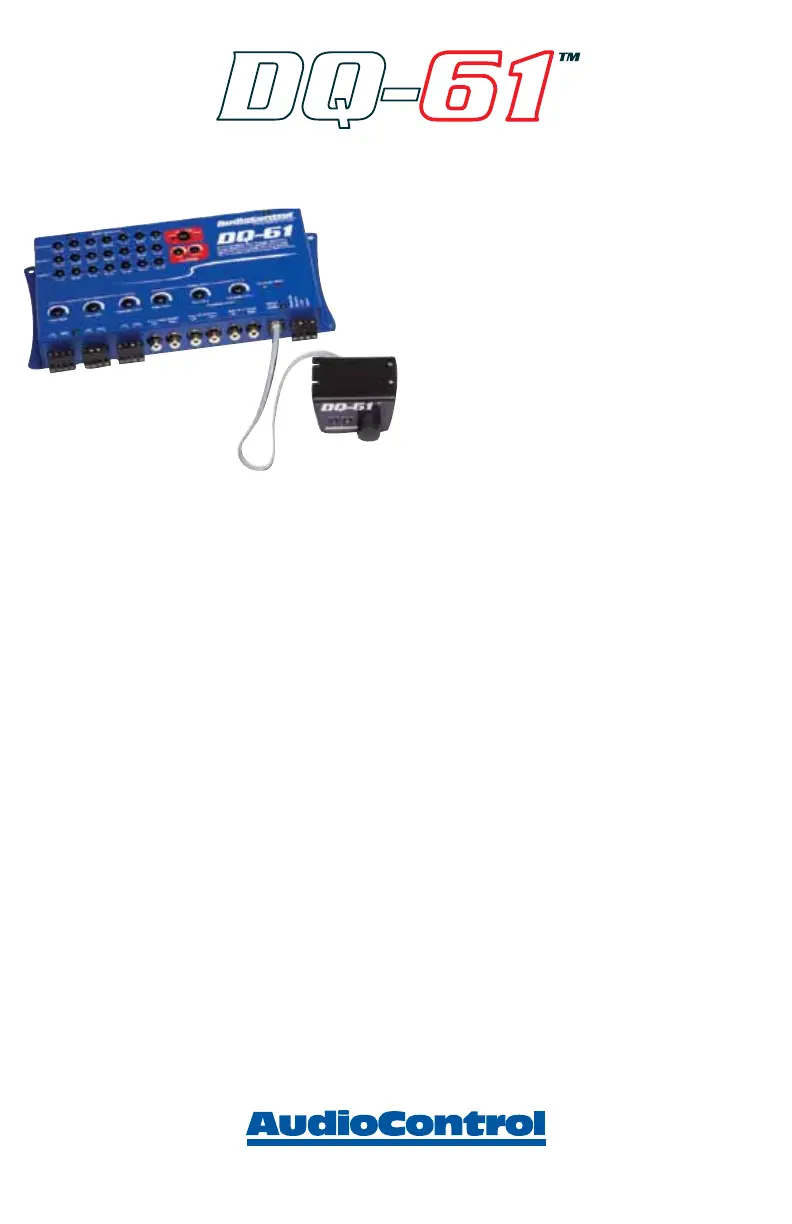

The DQ-61 is your gateway to amazing
sound from a factory head unit. It is a com-
pact six channel, high-performance, line level
converter with independent multi-channel
equalization and signal delay to custom tune
the system. AudioControl’s patent
pending AccuBass® system corrects
for the factory bass roll-off present in
so many of today’s cars. In short; the
DQ-61 can make every car sound its
very best.
Here are some of the unique features of the AudioControl DQ-61:
• User friendly Signal Delay to control the acoustical alignment between the
left and right channels the front and subwoofer channels plus
• Individual equalization controls for the front, rear and subwoofer channels
for simple yet precise system tuning
• Six channels of active speaker level inputs – accept up to 400 watts per
channel
• AccuBASS™- AudioControl’s patented pending processing to correct the
bass roll-off in factory source units
• ACR-3 Dash Control Remote allows for control of the subwoofer level plus
processing bypass
• Internal Channel Summing – Easy interface with factory installed ampli-
ers with built-in crossovers
• Discrete Input and Output level controls
• GTO™ signal sensing inputs (selectable) to turn the DQ-61 on automati-
cally and give you a 12 volt trigger to turn on your amplier
• Bulletproof 5 year warranty (when installed by an authorized AudioControl
dealer)
®Making Good Sound Great®
®
If you are a seasoned audio enthusiast and are chomping at the bit to begin
your experience with the DQ-61, we offer some Quick Install Guidelines below
to help maximize your experience. Please refer to the system diagrams on page
8 as good guidelines.
1 Physically mount the DQ-61 in a location that keeps it away from bever-
age spills, food crumbs, and curious ngers. You will want to select a location
that allows you access to the top panel controls. In many cases you can nd
factory speaker leads in the rear of the vehicle or at the factory amplier that
are easy to access.
2 The DQ-61 needs to be installed in the signal path between your OEM
source unit (or factory amplier) and an after-market amplier and/or
processor(s). Do not connect the DQ-61 between the factory head unit and
the factory amplier. Locate the amplied speaker wires that are coming from
your factory source unit and/or amplier and connect them to the speaker-level
inputs on your DQ-61.
Note: If your source unit has front, rear, and subwoofer speaker-level out-
puts, connect them to the three sets of inputs on your DQ-61. If the source unit
only has front and rear outputs, the Auto Mode circuitry in your DQ-61 auto-
matically routes the Channel 2 input channels to the (Channel 3) subwoofer
channels.
3 Use RCA connecting cables to connect the RCA outputs of the DQ-61 to
your after market amplier(s). If this is not obvious to you, quickly pack up
your DQ-61 and run to your nearest authorized AudioControl dealer to have
them perform the installation. You will thank us later.
4 Connect +12 volt power, ground and turn-on wires as needed. Don’t forget
the fuse! Note: The DQ-61 has a 12-volt trigger input but normally you will
just let the GTO turn on circuit take care of that by itself.
5 Connect your amplier trigger input to the 12-volt trigger output of the
DQ-61
6 Turn your amp gains fully down before turning on the system.
7 Turn on the system and level match your DQ-61 to your source unit and
ampliers.
8 On the chassis of the DQ-61, set to . Signal Delay Mode Set-Up
9 Using the Dash Control, adjust the signal delay between the Left and Right
channels for optimum sound. Check out our YouTube video for assistance.
0 Tap the ACR-3 Dash Control and adjust the signal delay between the front
and subwoofer outputs.
On the chassis, change to .Signal Delay Mode Normal
page 2
Set the equalization controls for the
front, rear, and subwoofer channels. While
your ears are a good reference point, we rec-
ommend using an audio analyzer whenever
possible.
Adjust the AccuBASS setting for maxi-
mum bass.
. Sit back and enjoy the sound
If you have gotten to this point and you have no questions, then “Congratula-
tions” With that said we certainly encourage you to set aside some time to grab
a beverage or two and read through this entire manual as there is a tremendous
amount of useful information. Plus we took the time to write it so it must be
important.
We now interrupt your reading of this manual to highlight a very important
feature of all AudioControl autosound products…
AudioControl autosound products are designed and assembled at our factory
in the Pacic Northwest, just outside of a little town called Seattle. By nature,
our products are rather sophisticated so we spend a good deal of time training
our dealers and their installation team. We do this so you will get the best pos-
sible results from your AudioControl components.
To reinforce this point, if you have an Authorized AudioControl dealer install
your DQ-61, we will extend the normal one-year warranty to a full FIVE years
parts and labor. Complete details of this warranty
are listed at the end of this manual and on our
website at www.audiocontrol.com.
We now return you to your
regularly scheduled reading.
