Congratulations on your purchase of the AudioSource
AC Series Ceiling Speaker System. This product
is designed to reproduce the audio portion of your
home entertainment environment with accuracy and
detail that will satisfy the most discriminating listener.
Please read this Installation Manual to ensure the
proper installation and performance of your AC
Series speakers.
Preparing for your Installation
Gather the necessary tools for your installation.
You will need the following tools:
1) A Keyhole or Drywall Saw
2) A Phillips Screwdriver
3) Masking Tape
4) A Pencil
5) A Tape Measure
6) A Stud Finder (recommended)
7) Your AC Series speakers
Placement
Plan your speaker placement carefully. Make certain
that electrical, plumbing and any other services will not
interfere within the ceiling where you plan to install your
speakers. The AC Series speakers can be mounted in
walls, but are typically used in ceilings. The speakers
should be located so that they provide even coverage
at your listening position. The distance between the
speakers should not be greater than the distance from
the speakers to the listening position (See Figure 1).
If the room’s dimensions or furniture placement prevent
adhering to this requirement, the tweeters in the AC
Series speakers can be swiveled to aim them at the
desired listening position.
New Construction
If you are installing your speakers in new construction
before the finished walls go up, AudioSource offers
New Construction Brackets, which provide a stable
frame that can be fastened to the wall studs or ceiling
joists on 16” or 24” centers. This allows the sheet
rock or other surface covering to be installed and
provides a template to cut the opening for the AC
Series speakers.
AC5C/AC6C/AC8C
Use a stud finder to locate the joists behind the ceiling
surface. Also, you should now check for obstructions
like cross bracing in front of and behind the desired
speaker location.
5“/6.5”/8” 2-Way Ceiling Speakers
11’
16’
20’
11.5’

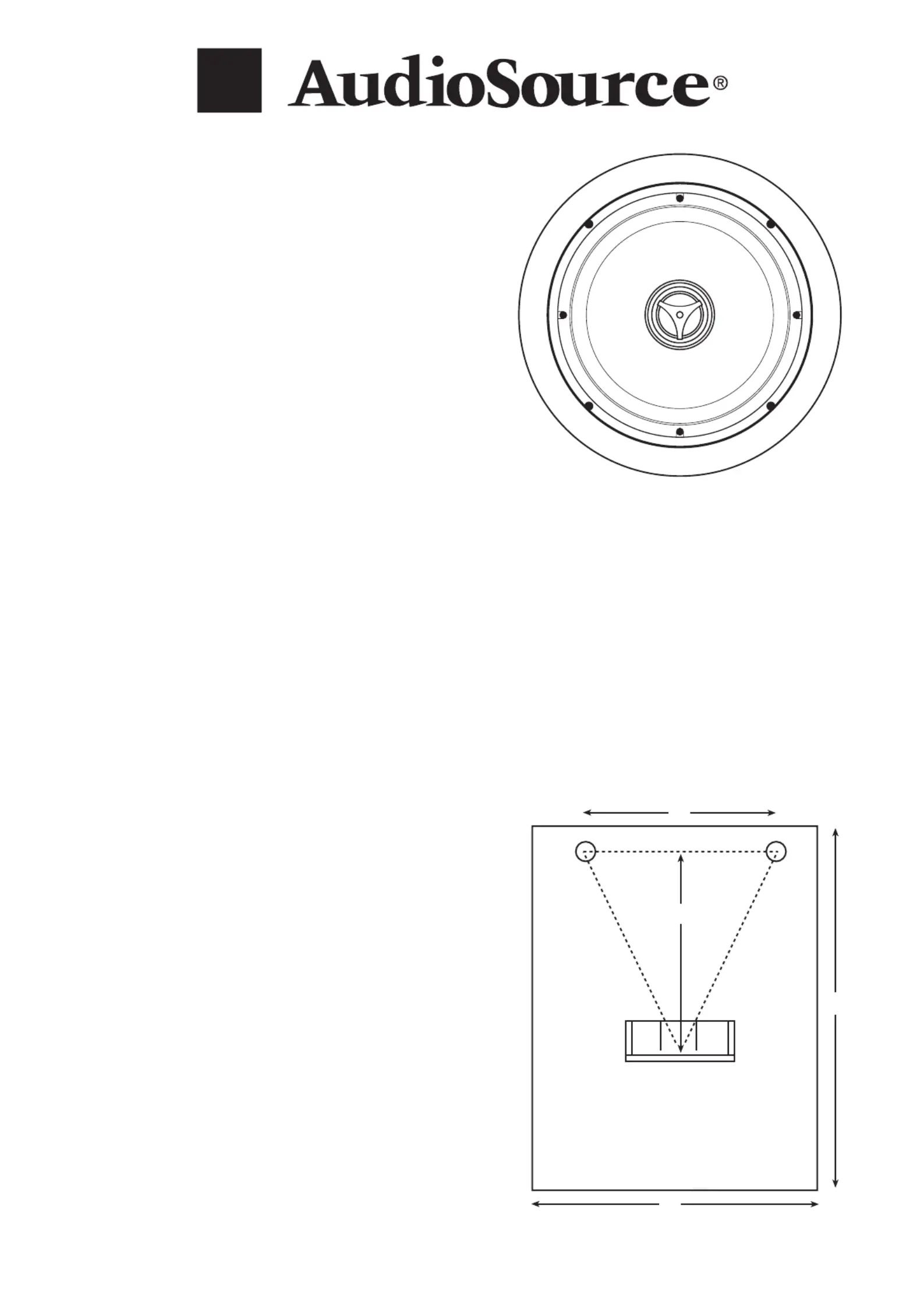

Figure 1
Existing Construction
In most modern buildings ceiling joists are positioned
on 16” centers, providing a space between the studs of
approximately 14 ”. The specifications chart shows 3/8
the appropriate cut out sizes (p. 4). Additionally, you
should allow an extra ” in all directions behind the 3/4
ceiling surface to allow room for the screw clamps that
mount the speaker to the ceiling to swing into position.
After selecting the mounting location, mark the hole to
be cut out. A template is provided in the speaker box.
Locate and align the template, then mark with pencil on
the ceiling surface. If you are unsure whether there are
obstructions behind the ceiling surface where the
speakers are to be mounted, cut a small hole in the
center of your marked mounting location. Holding your
drywall saw at a 45 degree angle (See Figure 2), cut a
square hole that you can use to locate any obstructions,
should they exist.
The 45 degree wedge shape of the removed surfacing
material will make replacement, if necessary, a much
easier task and yield a better finish when patching the
work.
Once it has been determined that there are no obstruc-
tions, cut the hole to mount the speaker using the drywall
saw at a 90 degree angle to the ceiling surface. Cover
the raw edges of the wallboard with masking tape
(Figure 3). This will prevent the back pressure of the
speaker from blowing loose gypsum dust out and onto
the painted ceiling surface after installation. Do not allow
the tape to extend more than 1/4” beyond the edge of the
hole into the room. The frame of the speaker will cover
and hide the tape.
Next run your speaker wire to your speaker locations.
A speaker wire is recommended when UL rated CL3
running wire inside your walls. In many areas it may
be required by code. When running your speaker wire
you should avoid having the speaker wire run parallel
to the 120V power lines to avert picking up hum and
interference from the power service. If the speaker
wire needs to cross a 120V power line at a right angle
this is acceptable and will not create a problem.
If you are uncomfortable with running the speaker wire
yourself in existing construction, it is recommended that
you retain a qualified custom home installation specialist
or electrician.
Installing the Speakers
Installation Tip! To further enhance the performance of
your AC Series speakers, the ceiling joist cavity where
you plan to place your speakers can be stuffed with a
generous quantity of fiberglass insulation. Stuff the area
in front of and behind the speaker opening with 6” thick
insulation to a depth of approximately 2 feet beginning
1 foot in front and 1 foot behind the speaker opening. If
the insulation is foil or paper backed, face the backing
away from the AC Series speaker. The addition of this
insulation will help prevent unwanted transfer of sound
into the otherwise large and resonant cavity of the un-
ROOM
Figure 3
ROOM
Masking T.ape

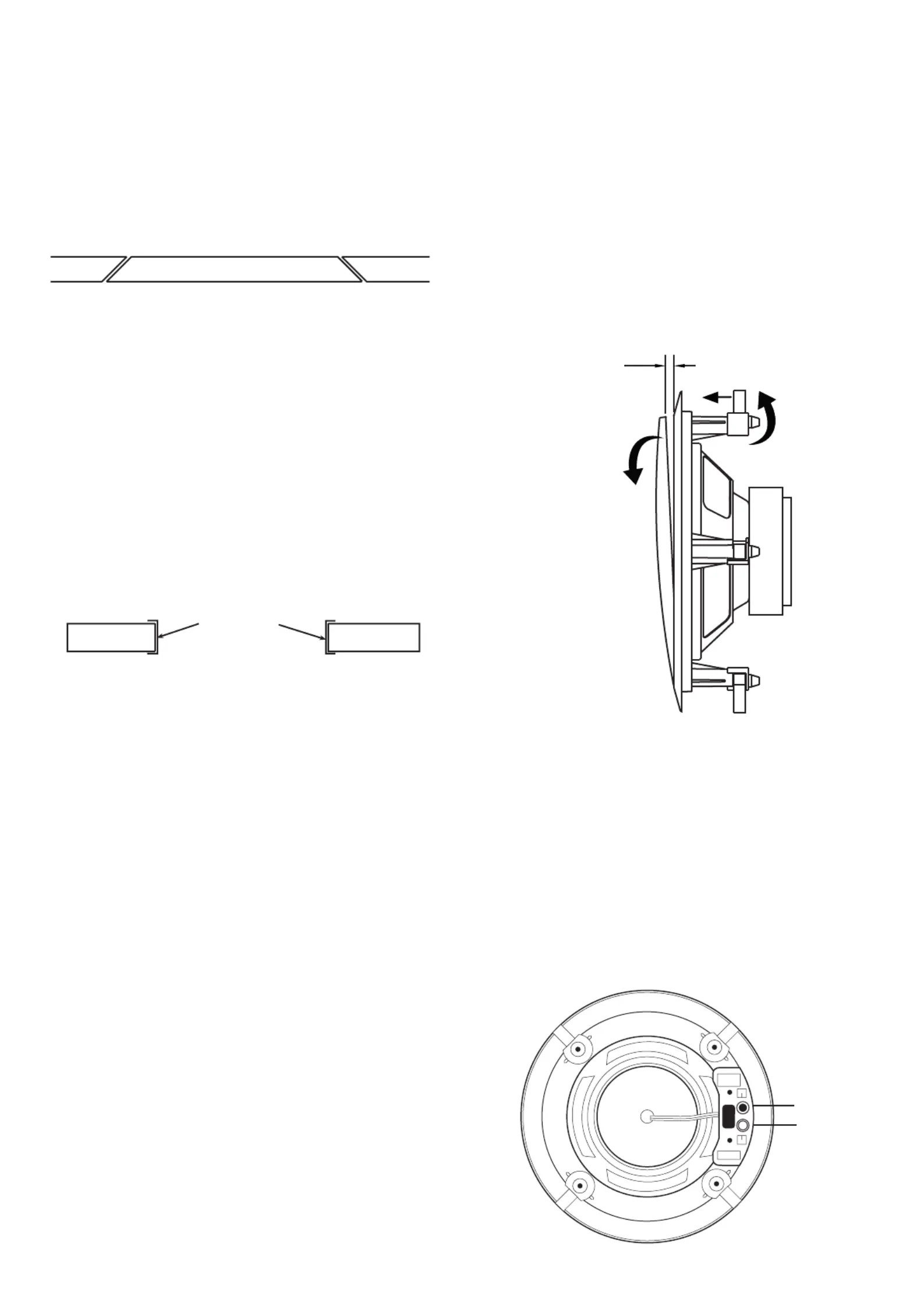

Figure 2
insulated ceiling.
It is now time to connect the speaker wire to the speaker.
Your speaker wire is usually coded to identify each
conductor as either positive or negative. This can be by
color coding, or one conductor may have a printed
marking or at least a rib along one edge that you will not
find on the other. Identify which type of polarity coding
that your wire is using. You must carefully observe that
the positive terminal of the speaker output on your
amplifier is connected to the positive terminal of the
AC Series speaker. Likewise, the negative terminal of the
amplifier’s speaker output should be connected to the
negative terminal of the AC Series speaker (Figure 5).
(+) Amp
(-) Amp
2
Grill Removal for Installation
CAUTION! The grill is held in place by contact pressure
around the edges where it attaches to the speaker frame.
To avoid difficulty reinstalling the grill, care should be
taken to not distort its shape while removing it.
While looking at the rear of the speaker assembly, rotate
two of the adjacent mounting clamps outward and then
evenly press them towards the grill. The clamp screws
contact the inner surface of the grill, pushing it gently
out of its mounting groove (Figure 4). Only lift the grill
1/4" (6mm) at this location. Next use the other mounting
clamps to further loosen the grill. Use care to not distort
the grill shape.

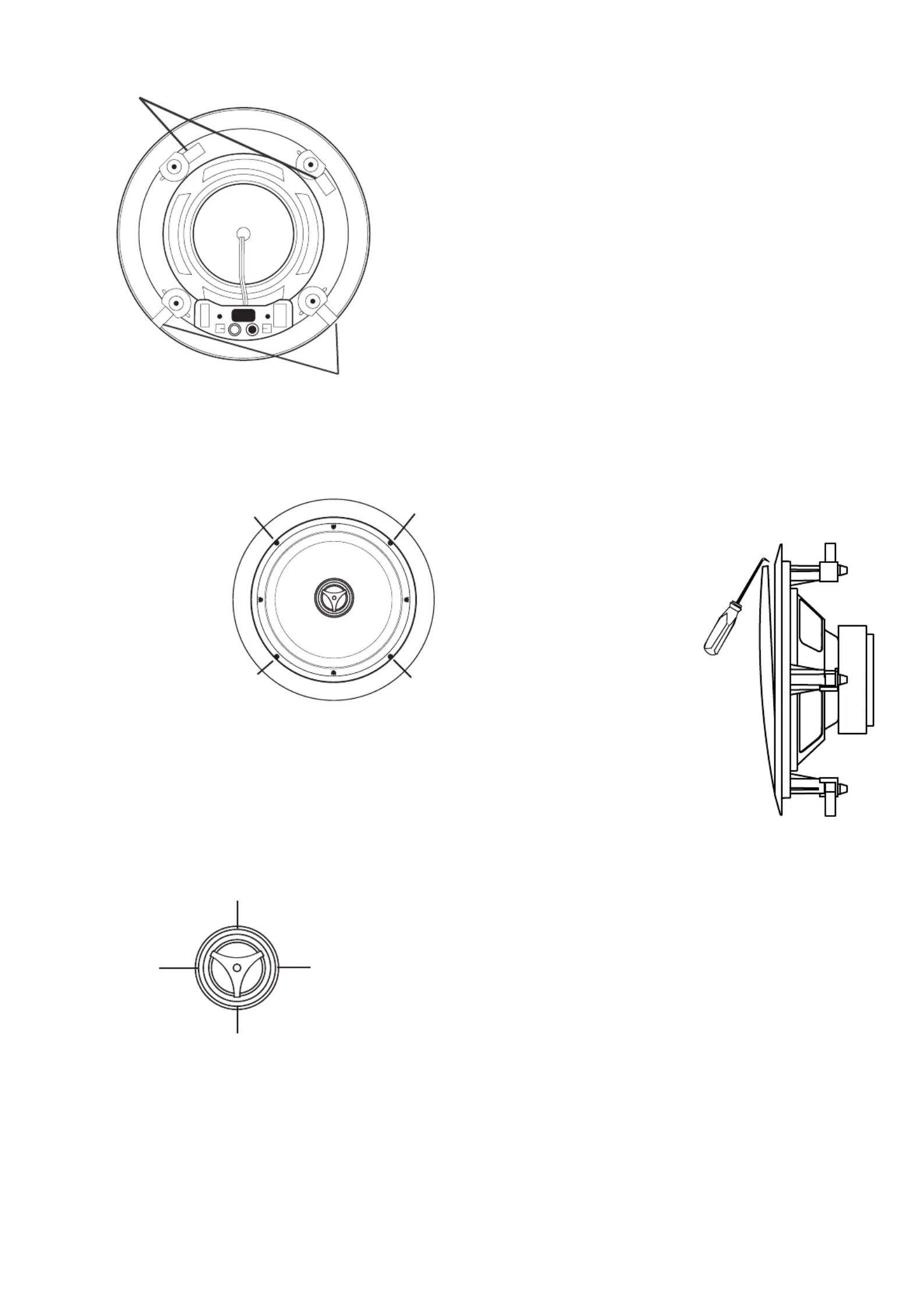

Figure 4
Figure 5
1/4"(6mm)
3
Tighten all four of the mounting screws in the same
manner until the speaker is properly aligned and held
tight to the ceiling surface.
Painting the Speaker
Two paint shields are included in each AC Series
speaker package. Place the paint shield inside the
frame to protect the speakers. You can now safely
paint the speaker frames to match your wall surface
if you desire.
When painting the grill caution should be taken to
ensure that paint does not clog or congest the
perforated openings in the grill. This would prevent
proper operation of the grill by restricting the airflow
from the individual drivers in the speaker.
Aiming the Tweeter
Carefully place your fingertips at the plastic edges of the
tweeter housing.
Removing the AC Series Speaker
Should it ever become necessary to remove the AC
Series speaker from the ceiling, simply remove the
grill and turn the four mounting screws counter-
clockwise until you feel the clamps lock out of position
in their resting flange. The speaker should easily
come out of the wall for service or replacement.
Press Here
Press Here
Press Here
Press Here
Caution: Do not over tighten!
Recommended Speaker Wire Gauges
The resistance of the speaker wire in your installation
can cause your speakers to perform at less than their
optimum quality level. Excess resistance caused by
using an undersized speaker wire can result in loss of
detail and definition in the bass region of your audio
program, as well as loss of dynamic range. Over
extremely long wire runs you may even experience a
loss of high frequency content in the audio signal.
50’ or less - 16 Gauge 2-Cond. CL3 Rated
50’ - 150’ - 12 Gauge 2-Cond. CL3 Rated
150’ - 200’ - 10 Gauge 2-Cond. CL3 Rated
To prevent sonic degradation in your AC Series
speaker installation, total speaker wire resistance
should be kept below 0.5 ohms. The following table
lists recommended speaker wire gauge versus wire
run length.
Using gentle pressure, swivel the tweeter to aim the axis
of the tweeter toward the listening area. You can use a
piece of music with a solid center-imaged vocalist to
assist in correctly aiming the tweeter. When the tweeters
are properly aligned, you will hear a coherent and stable
center image from your listening position. Usually, it is
sufficient to aim the tweeter only, as it handles the
frequencies that control the direction of individual sounds
in your audio program material.
Next make sure that the clamps are positioned inside the
frame of the speaker.
With the grill removed, place the speaker in the ceiling
opening. Make sure that the speaker wire is not hanging
against the speaker where it can vibrate and rattle as the
speaker reproduces your audio program.
Next, one at a time, turn
each of the four screws
that operate the clamps
counter clockwise a few
turns until you feel the
clamp is loose from its
resting position. Now turn
the screw clockwise until
you feel the clamp contact
the ceiling surface.
Correct
12
34
Incorrect
Locate a small hook tool
(available at most auto parts
stores or home improvement
shops, resembling a dentist’s
pick- a bent paper clip or
stiff wire will work as well),
hook the metal mesh of the
grill near a corner or edge
and gently pull it towards you.
Only lift the grill 1/4" (6mm) at
this location. Move the tool
1-2" (25-50mm) and repeat
until the grill can be removed
without damaging it (Figure 6).
Grill Removal (if installed)
Figure 6

Produktspecifikationer

Varumärke: AudioSource
Kategori: högtalare
Modell: AC6C

Behöver du hjälp?

Om du behöver hjälp med AudioSource AC6C ställ en fråga nedan och andra användare kommer att svara dig


högtalare AudioSource Manualer

AudioSource

AudioSource AC6C Bruksanvisning

10 December 2024
AudioSource

AudioSource AC5C Bruksanvisning

10 December 2024
AudioSource

AudioSource LS 545 Bruksanvisning

10 December 2024
AudioSource

AudioSource AC6CD Bruksanvisning

10 December 2024
AudioSource

AudioSource AC8C Bruksanvisning

10 December 2024
AudioSource

AudioSource AS65C Bruksanvisning

10 December 2024
AudioSource

AudioSource AS61C Bruksanvisning

10 December 2024
AudioSource

AudioSource AS545B Bruksanvisning

10 December 2024
AudioSource

AudioSource AS615C Bruksanvisning

10 December 2024
AudioSource

AudioSource AC5W Bruksanvisning

10 December 2024

högtalare Manualer

Nyaste högtalare Manualer

Phonic

Phonic AURRAS 6A Bruksanvisning

11 December 2024
MB

MB PESSPROVS61A Bruksanvisning

11 December 2024
Bogen

Bogen WMT1AS Bruksanvisning

11 December 2024
Ruark Audio

Ruark Audio Sabre-R Bruksanvisning

11 December 2024
Antelope

Antelope R4S Bruksanvisning

11 December 2024
Antelope

Antelope Atlas i8 Bruksanvisning

11 December 2024
MB

MB PESSPROVS62A Bruksanvisning

11 December 2024
MB

MB PESSPROVS32A Bruksanvisning

11 December 2024
Pro-Ject

Pro-Ject Speaker Box 3E Carbon Bruksanvisning

11 December 2024
Phonic

Phonic JUBI 12 Bruksanvisning

11 December 2024
