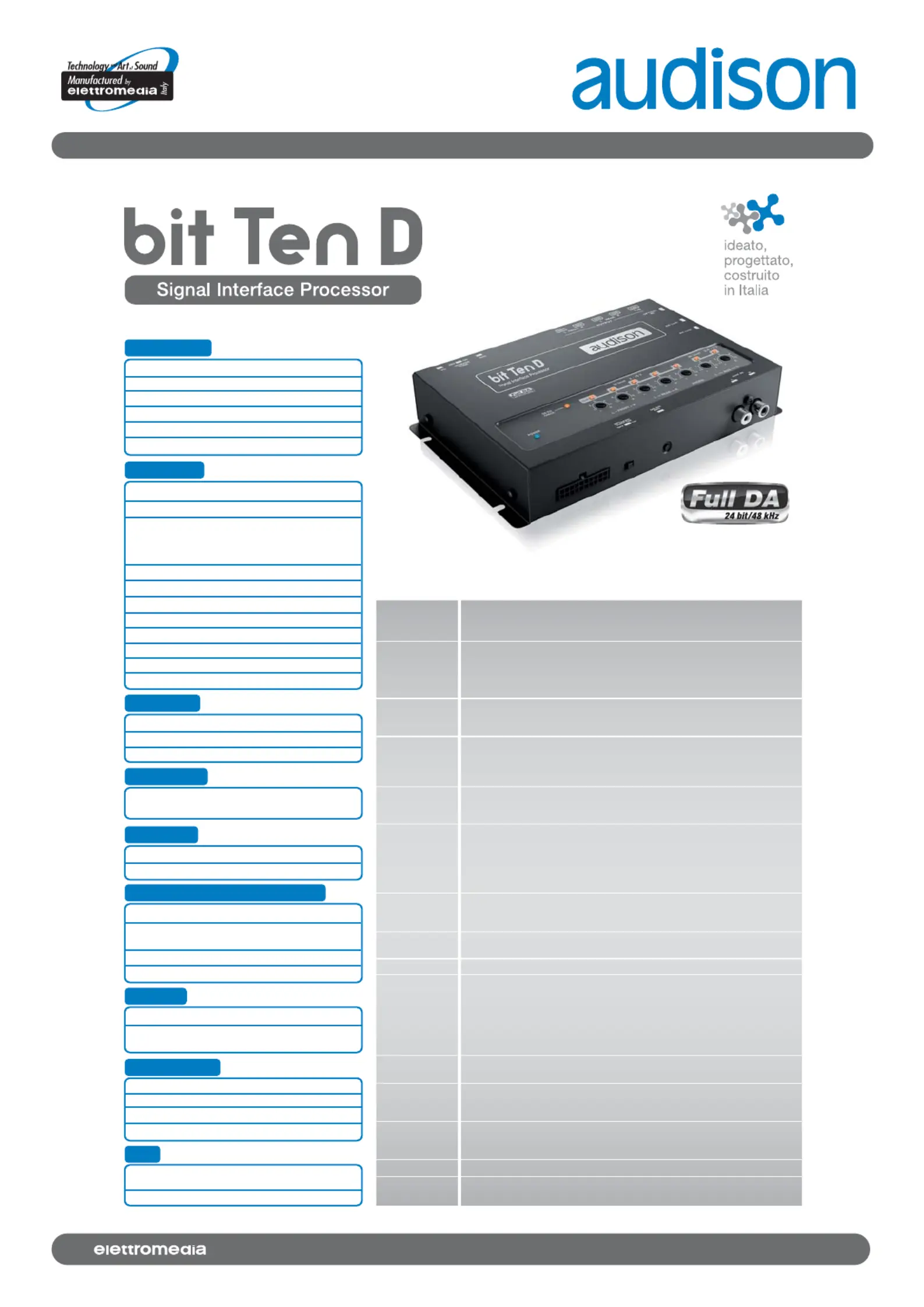

Audio DSP 32 bit Cirrus Logic (Clock speed: 147 MHz) Digital Signal Processing chip and A/D
and converters D/A converters working in PCM at 48 kHz with 24 bit resolution. The processor speed
allows the user to hear and verify in real time the changes applied during the tuning
Audio Inputs 4 independent high-level channels with automatic summing capability
1 analog low-level stereo auxiliary input
1 optical digital input
1 high-level momentary audio interrupt input (with priority) on Phone Mute cable
(settable through PC)
Audio Outputs 5 independent analog PRE channels featuring adjustable level
1 AD Link output featuring 8 independent digital audio channels through a single
CAT 5.S LAN cable for use with amplifiers featuring AD Link input
Control 1 USB /B (2.0) connector for PC connection
Connections 1 AC Link control bus connector for DRC
1 AC Link control bus for use with amplifiers featuring AC Link
1 input for external Mute (settable through PC)
Configuration Guided procedure that, thanks to a wide range of set names, provides the ability to
assign each component to the bit Ten D connections and automatically coordinate
their functions
Turn-on Controls ART™, Automatic Remote Turn on/off, selectable from Hi-Level Front L. The ART™
can be enabled through an external switch.
Through the Remote IN
Through vehicle ignition key trigger with memory function
Through the DRC
Automatically through the hands-free phone kit momentary interrupt
In/Out Volume Manual input sensitivity adjustment for the Master Hi-Level inputs (with supplied Test CD)
Manual input sensitivity adjustment for auxiliary inputs
Independent level control for each output channel for system fine tuning (-40 ÷ 0 dB)
De-equalization Automatic de-equalization of signal fed into the high-level inputs (with supplied Test
CD) if necessary. It can also be performed without the PC
Equalizers 31-band graphic equalizer (1/3 Oct.; ±12dB) for each analog and digital output channel
Crossover Filter Filter typology: Hi-pass, Lo-pass, Full Range or Band-pass with independent
selectable cut-off slope
Cut-off frequency: 70 steps available from 20 Hz to 20 kHz
Cut-off slope: 6 to 24 dB/Oct.
Filter alignment: Linkwitz or Butterworth
Mute function: selectable for each output (on/off)
Phase: selectable for each output (0°/180°)
Signal channels It can reconstruct a stereo output signal from a multi-channel input signal. In addition
reconstruction it can reconstruct rear, centre and subwoofer output channels from a stereo input
Time Alignment Guided procedure for the speaker distance data entry with an automated calculation
(distance to time) for each channel for accurate delay times. System also provides
for manual fine tuning of delay (0.02 ms fine set)
DRC Master Volume, Subwoofer Volume, Balance and Fader controls, Input selection,
Memory selection, Adjustable display brightness. Access to digital features of amplifiers
featuring AC Link
Memory 2 presets separately managed and recalled with the DRC
bit Ten D software Microsoft Windows (XP, Vista and 7) based software with “Standard” and “Expert”
operating modes screen resolution: 1024 x 600 px min.
W (Width) x H (Height) x D (Depth)
(mm/inches):
Weight (kg/lb):
191 x 34 x 131 / 7.51” x 1.33” x 4.76”
0.6 / 1.322
Size
Voltage:
Idling current:
Switched off without DRC:
11 ÷ 15 VDC
0.4 A
2.5 mA
Switched off with DRC: 4 mA
Power Supply
Signal Stage
Input Stage
Remote IN voltage:
Remote OUT voltage:
7 ÷ 15 VDC (1.3 mA)
12 VDC (130 mA)
Distortion - THD @ 1 kHz, 1V RMS Output:
Bandwidth @ -3 dB:
S/N Ratio @ A weighted
Channel Separation @ 1 kHz:
Input sensitivity (Speaker In):
Input sensitivity (AUX In):
Max Output Level (RMS) @ 0.1% THD:
Input impedance (AUX):
Input impedance (PHONE):
0.005%
10 ÷ 22k Hz
Master Input: 95 dBA
Digital Input: 105 dBA
Aux Input: 96 dBA
85 dB
2 ÷ 15 V RMS
Input impedance (Speaker In):
0.6 ÷ 5 V RMS
Input sensitivity (PHONE): 2 ÷ 15 V RMS
4 V RMS

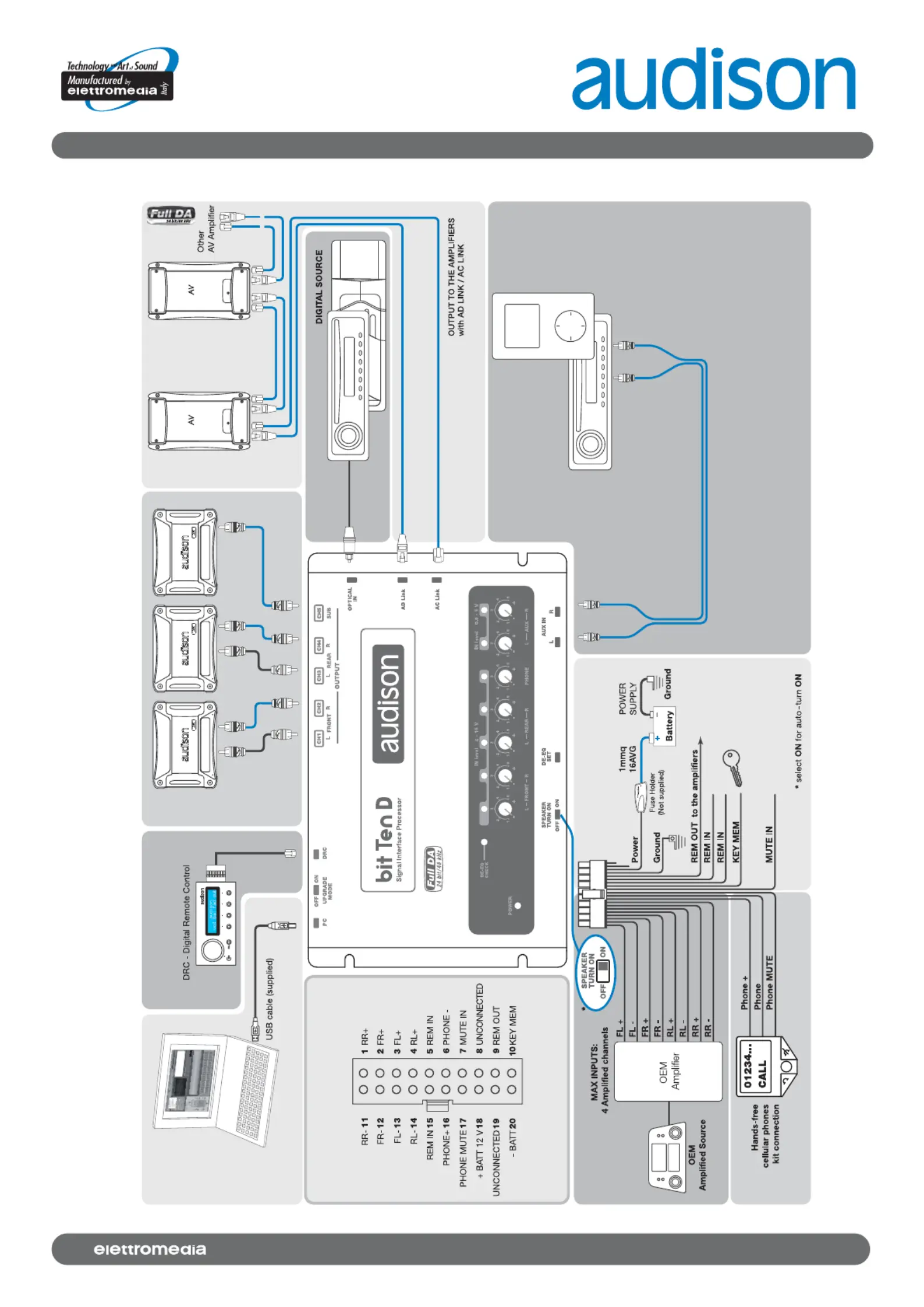

High Level (Speaker): FL - FR - RL - RR, PHONE IN
Digital Optical IN (S/PDIF max 96 kHz/24bit):
OPTICAL IN
Low Level (Pre): AUX IN
AC Link controls
15 kΩ
2.2 kΩ
2.2 kΩ
Output Stage
Digital AD Link: CH1÷ CH8 S/PDIF
FRONT L/R, REAR L/R,SUB
Low Level Pre (Default):
Connection
To Audison Electronics
1 x USB / B (1.1/2.0)
From / To Personal Computer
Filter Type:
Filter mode and slope:
Full / High Pass / Low Pass / Band Pass
Crossover frequency: 68 steps @ 20 ÷ 20k Hz
On Hi-Levels input (Speaker In):
Automatic De-Equalization
On Outputs:
N.5 Graphic: ± 12 dB @ 31 Band ISO 1/3 Oct. 20 ÷ 20k Hz
Phase control: 0° ÷ 180°
Linkwitz @ 12 / 24 dB
Butterworth @ 6 / 12 / 18/ 24 dB
Crossover N.5 (one each output channel)
Equalizer
Distance:
Delay:
Step:
0 ÷ 510 cm / 0 ÷ 200.8 inch
0 ÷ 15 ms
0.08 ms; 2.8 cm / 1.1 inch
Fine set: 0.02 ms; 0.7 cm / 0.27 inch
Time Alignment
- 62018 Potenza Picena (MC) Italy - Tel. + 9 073 33 870870 - Fax +39 0733 www 870880 - .elettromedia.it
www.audi on.eus
All pecificationS s S ubject to Change Without Notice
22/07/2011
- 62018 Potenza Picena (MC) Italy - Tel. + 9 07 9 07 870880 - 3 33 870870 - Fax 3 + 33 www.elettromedia.it
www.audi on.eus
All pecificationS s S ubject to Change Without Notice
22/07/2011
