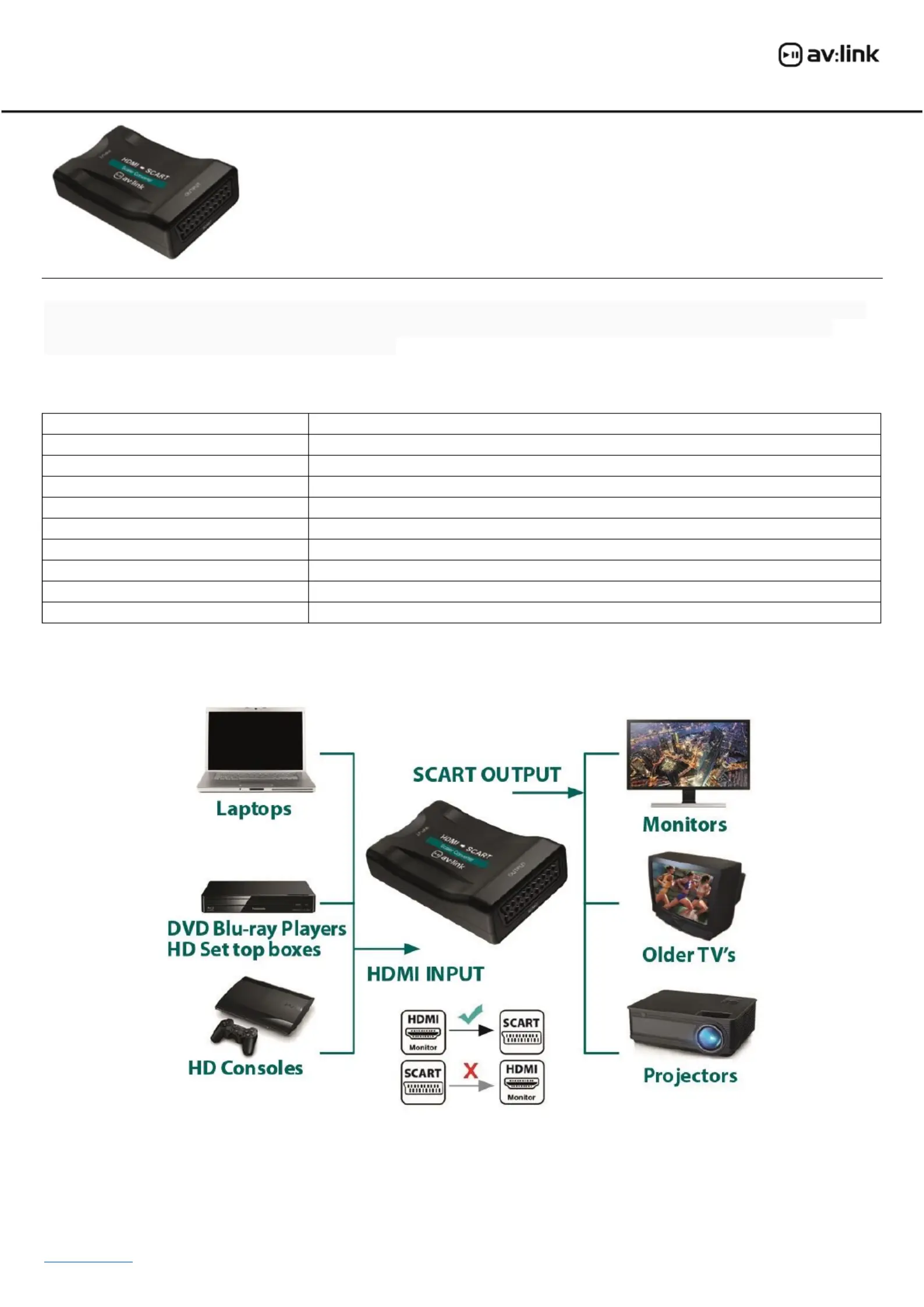

HDMI to Scart Converter
Item ref: 2.417 12 UK
User Manual
A simple USB powered unit that converts high-denition HDMI video signals for use with older TV's and displays with an
analogue Scart interface. Simple to install and operate, this handy little device is ideal for use with Blu-Ray players,
games consoles, Sky HD boxes, laptops and more.
Technical Specifications and Features
Input
HDMI (up to v1.3 @ 60fps)
Output
Scart (PAL/NTSC)
Max. band width
300MHz
Max. baud rate
10.2Gbps
Max. cable length
HDMI Input <= 7m; Scart output <=8m
Max, working current
600mA
Operating temperature range
-10° to 55°C
Power: input
DC/5V 1A
Dimensions
88.5 x 57.5 x 25mm
Weight
60g
Connection Instructions
Using a HDMI lead of the required length, connect one end to the input port of the converter and the other to
the output port on your source device (max length 7m ).
Then Using a Scart lead of the required length, connect one end to the output port of the convert and the er
other to the input port of your splay device (max length 8m di ).
www.avsl.com 122.417 User Manual UK
Using the USB power lead supplied connect the /5V jack to the correct port on the converter and the USB end DV
to a compatible 1A power supply and switch on.
The red Power LED should now illuminate to indicate the converter is receiving sufficient wer to function po
correctly.
Finally select the required region using the switch on e converter, PAL for UK and EU and NTSC for US content. th
In The Box
1. HDMI to Scart Conver ter
2. USB Power Lead (DV5V 1A)
3. User guide
Troubleshooting
Problem
Solution
Power LED illuminate doesn’t
Ensure the USB power lead is correctly connected to the converter and that
a suitable 1A power supply is used and switched on.
No sound or poor sound quality
1. Ensure both the Scart and HDMI leads are correctly fitted to the
converter and both your source and display device s.
2. Ensure all leads use re of sufficient condition and quality.d a
3. Ensure the volume of the display device is not turned down or muted.
No images or poor image quality
1. Ensure the source device is switched on and the Scart lead is connected
correctly.
2. Ensure all leads use re of sufficient condition and quality. d a
3. Ensure the resolution of the display device is compatible with the
selected resolution on the converter and reduce if necessar y.
Warning
For reasons of electrical safety this device must never be immersed in water, exposed to damp conditions or excessive
force.
Please do not use this device if you find that it is damaged in any way.
Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at
the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
