Sida 1/25
Revision Date: 2018/06/ 14

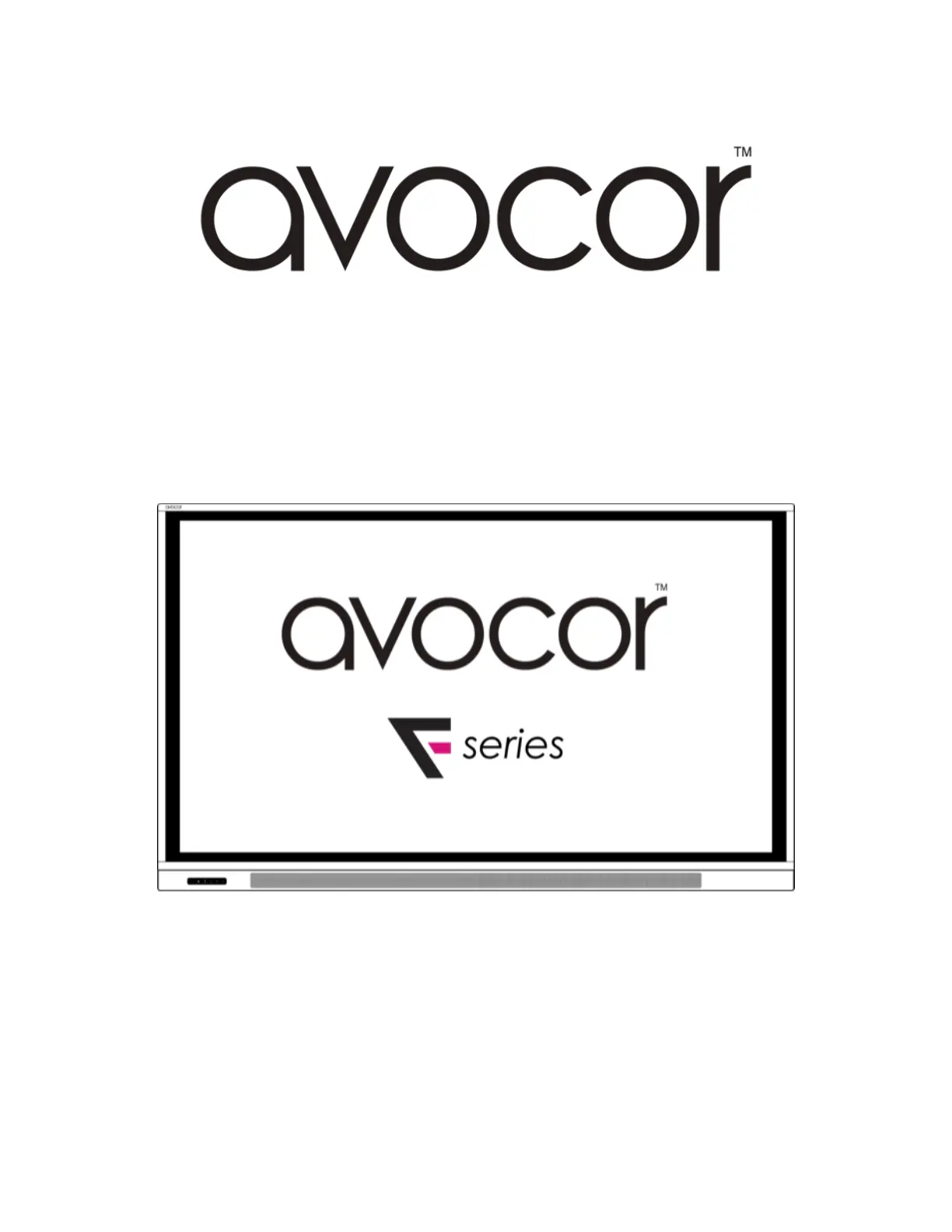

AVF-8650
Large Format Interactive Display
Model AVF- Installation and Operation Manual 8650
Revision Date: 2018/06/14
7
Warnings
Use
Do not use the display lying flat on its back.
Transport the display upright with proper packaging. Avoid placing the display face up or down. Be
careful not to bump into the display.
Do not send a static (non-moving) image to the di -splay, or it may cause image ‘burn in’ or image
retention.
“Burn in” and/or image retention is not covered under warranty.
Make sure to change the image on the display periodically. It is recommended to (1) turn off the display
for at least 6 hours after 18 hours of usage in a 24 hour period to help avoid image retention and (2) to
turn the “IRFM” function to “ON” in the OSD menu (under “Advanced Settings”).
Exemptions
This product isn’t warranted for any damage caused by natural disaster (such as earthqua ke, thunder,
etc.), fire, acts by third parties, accidents, owner’s intentional misuse and fault, or use in other improper
conditions.
This product isn’t warranted for incidental damages (such as profit loss or interruption in business,
modification or erasure of record data, etc.) caused by use or inability to use of this product.
This product isn’t warranted for any damage caused by inappropriate operation, or from not following
the user manual.
This product isn’t warranted for any damage caused by misuse or malfunction through simultaneous use
of this product and the connected equipment or software.
This product isn’t warranted for any damage caused by neglect of the instructions described about
installation.
This product isn’t warranted for any damage caused by improper installation.
This product isn’t warranted for any damage caused by disassembly, modification or repair by non -
authorised service centre or people.
Revision Date: 2018/06/14
27
Connections to the Display
Proceed as follows to connect the display to your video sources, external controller(s) if present and AC – –
power.
When connecting your equipment:
Turn off all equipment before making any connections.
Use the correct signal cables for each source.
For best performance and to minimise cable clutter, use high-quality cables that are only as long as
necessary to connect two devices. (Don't use a cable when a 1.8m cable will suffice.) 7m
Ensure that the cables are securely connected. Tighten the thumbscrews on connectors that have them.
Connecting a Control System or PC
RS232 Connection
Use a straight-through RS- cable with a 9-pin male connector to connect a PC or control/ automation 232
system (if present) to the RS-232 port on the display; see . Figure 3-2
For more information about using this conne ction, refer to on page 50. External Control
Figure 3-2. RS232 Control System Connection
NOTE
The RS232 connection may vary with different control system. If there is any problem regarding
the connection, please contact our customer service for further assistance.
to Automation/
Control System
or PC
2 Receive Data
(to ctrl. system)
3 Transmit Data
(from ctrl. system)
5 Ground
1
2
345
7
89 6
