Sida 1/3
www.btechavmounts.com
v.0508 ORBX
B-Tech International (Hong Kong) Ltd,
23rd Floor, Manulife Tower, North Point, HK.
Tel: (+852) 2556 7337 Fax: (+852) 2556 7321
Email: info@b-tech-int.com.hk
B-Tech PRO-AV bvba,
Brixtonlaan 32, Zaventem 1930,Brussels, Belgium.
Tel: +32 (0)2 720 92 71 Fax: +32 (0)2 725 42 15
Email: info@btechproav.com
B-Tech Audio Video Mounts,
Sparks, NV 89431, USA.
Tel: (1)800 975 5812 Fax: (1)800 592 2876
Email: info@btechavmounts.com
B-Tech International Ltd,
Long March, Daventry, Northants NN11 4NR, UK.
Tel: +44 (0)1327 300 787 Fax: +44 (0)1327 706 562
Email: info@b-tech-int.com

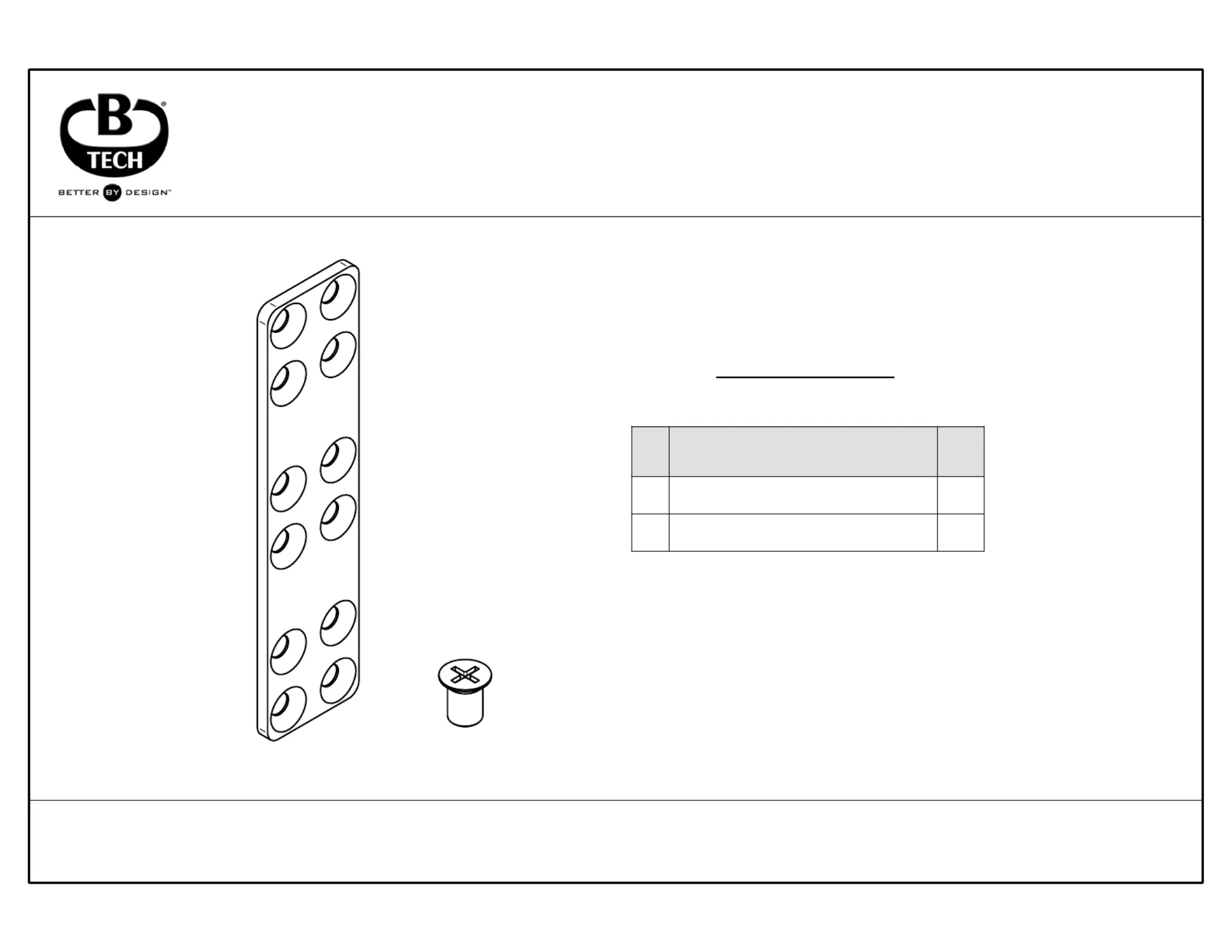

PAGE 1 / 1
No
PART NAME QTY
1 COLLAR ADAPTOR PLATE 1
2 M8 X 12 CSK CROSS HEAD SCREW 12
PAGE 4
v.1008 OR1BX
The BT7025 can be used to build a pole structure capable of holding AV equipment in a variety of
configurations. Some examples are shown below.
The example structures are shown using a B-Tech ceiling mount. This can be substituted for a B-Tech wall
arm / floor stand / trolley.
IMPORTANT
As B-Tech International has no control over
how this product is used, it is important that
installers ensure the structure is strong enoug
before attaching AV equipment.
The structure must be counterbalanced at bot
ends of the horizontal pole.
Attaching Mounts To A Pole Structure.
A variety of B-Tech mounts can be used with
the pole structure to suit any installation. Two
examples are shown below:
1. Four BT7522's mounted back to back on a
horizontal pole.
2. Two BT8026's mounted on a horizontal po
A. B.
C. D.
Do not exceed the weight limit of the mount/s used to support the pole structure.
BT7522
(x4)
BT8026
(x2)
BT7052
Collar
(x2)
PAGE 4
v.1008 OR1BX
A. In line 'T'
configuration.
The horizontal
pole can only be
mounted at the
end of the
vertical pole.
Please note:
Thick collars
must be used for
this configuration.
B. In line 'cross'
configuration.
This allows
multiple
horizontal poles
to be mounted in
line with vertical
poles.
C. Horizontal
pole mounted in
front of a vertical
pole.
Can be mounted
anywhere along
the vertical pole.
BT7025 (x2)
Thick Collar (x2)
Extension Pole (x2)
BT7025 (x2)
Thin Collar (x2)
Thick Collar
Extension Pole (x3)
BT7025
Thin Collar (x2)
Thick Collar
Extension Pole (x2)
BT7025 (x2)
Thin Collar (x2)
Thick Collar (x2)
Extension Pole (x3)
BT7025 (x2)
Thin Collar (x2)
Thick Collar (x2)
Extension Pole (x4)
BT7025
Thin Collar (x2)
Thick Collar
Extension Pole (x2)
D. Horizontal
poles mounted
back to back in
front of a vertical
pole.
Can be mounted
anywhere along
the vertical pole.
E. Horizontal
poles mounted
back to back on
the front of two in
line vertical
poles.
The horizontal
poles can only be
mounted at the
end of the
vertical pole.
F. Horizontal
pole mounted in
front of a vertical
pole.
Can be mounted
anywhere along
the vertical pole.
This is an
alternative to
configuration 'C'.
It can also be
mounted back to
back as an
alternative to
configuration 'D'.
There are many different ways of mounting B-Tech extension poles
horizontally on vertical poles using the BT7025 adaptor plate.
The example configurations shown use the B-Tech 50mm (2") System 2
range of extension poles and collars. Either the B-Tech 50mm (2") or
60mm systems can be used.
Thick collars can be used where thin collars are shown in these examples.
The collar covers cannot always be used (depending on the configuration).
Thin Collar Thick Colla
50mm
(2”)
BT7052 BT7051
60mm
BT7260 BT7060
TO FIX COLLAR TO
BT7025, USE
SCREWS AND
SPRING WASHERS
SUPPLIED WITH
COLLARS.
TO FIX COLLAR T
BT7025, USE
SCREWS AND
SPRING WASHER
SUPPLIED WITH
COLLARS.
TO FIX COLLAR TO
BT7025, USE
SCREWS AND
SPRING WASHERS
SUPPLIED WITH
COLLARS.
TO FIX COLLAR TO
BT7025, USE
SCREWS AND
SPRING WASHERS
SUPPLIED WITH
COLLARS.
