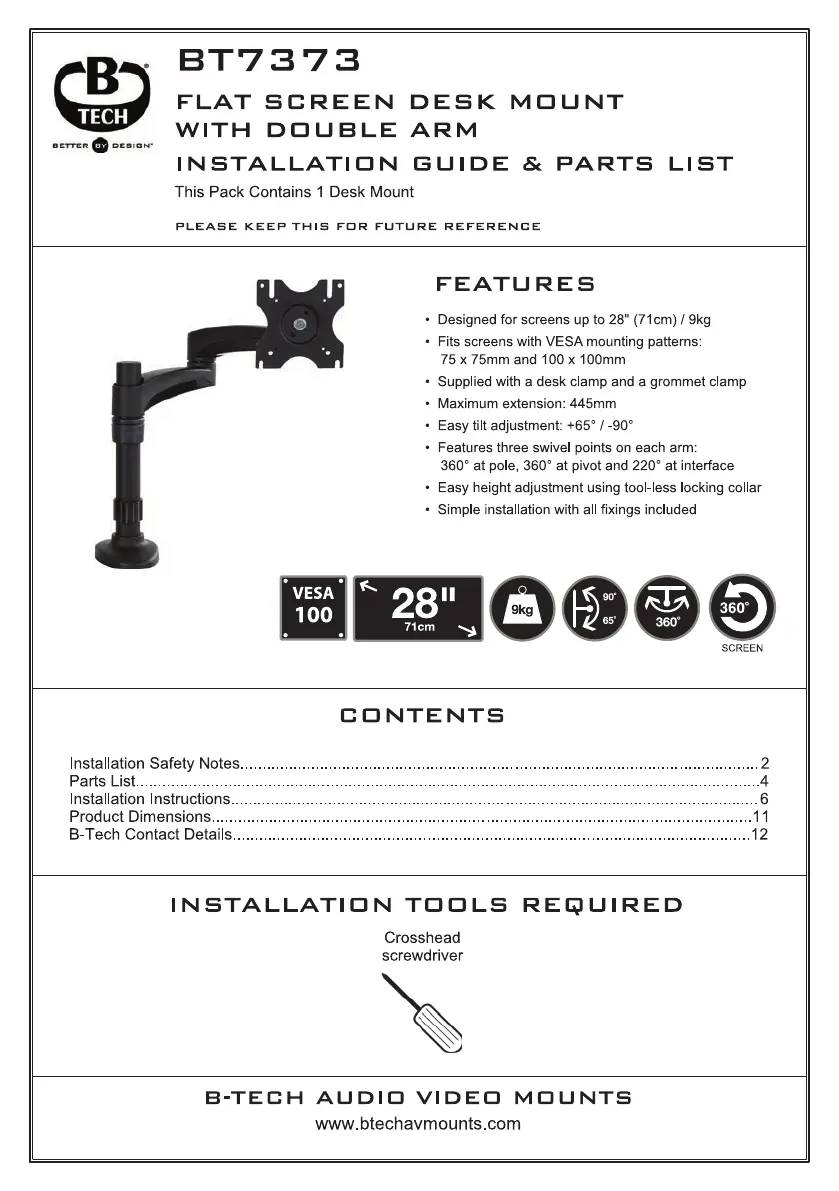

This Pack Contains 1 Desk Mount
Crosshead
screwdriver
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................15
B-Tech Contact Details.....................................................................................................................16
2.5mm Hex Key
(Supplied)
4mm Hex Key
(Supplied)
● Designed for screens up to 24" (61cm) / 9kg (20lbs)
● Fits screens with VESA mounting patterns:
75 x 75mm and 100 x 100mm
● Optional desk clamp and grommet included
● Easy tilt adjustment +/-40° tilt
● Maximum extension is 457mm (18”)
● Features three swivel points: 360° at pole,
360° at both pivot points and 180° at interface
● Simple installation with all mounting hardware included
2
CAUTION: This mount is intended for use only with the maximum weights
indicated. Use with flat screens heavier than the maximum indicated may
result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and
properly understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for
damage or injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases, all guarantees will expire.
General
Great care must always be taken during installation as most AV equipment is of a fragile
nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely,
then please consult a professional for advice and/or to install this product for you. Failure to
mount this product correctly may cause serious injury or death both during installation and at
any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will
vary from product to product.
Product location
Please pay careful attention to where this product is located. Some locations are not suitable
for installation.
If located in a public or frequently populated area ensure that the product is out of the
immediate reach of people.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose of
all other fixing hardware is fully understood. In some cases more AV equipment fixing
hardware will be supplied to accommodate different models of equipment and set up
configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe
installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the
product might provide and ensure that all cables are tidy and secure. Check to see that any
moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or
trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling
installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-
check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as
frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV
installer or other suitably qualified person.
The articulating arm may spring upward and may cause injury or damage to the equipment
when the monitor is removed. Secure the arm by lifting the arm to highest position, to remove
monitor safely.
