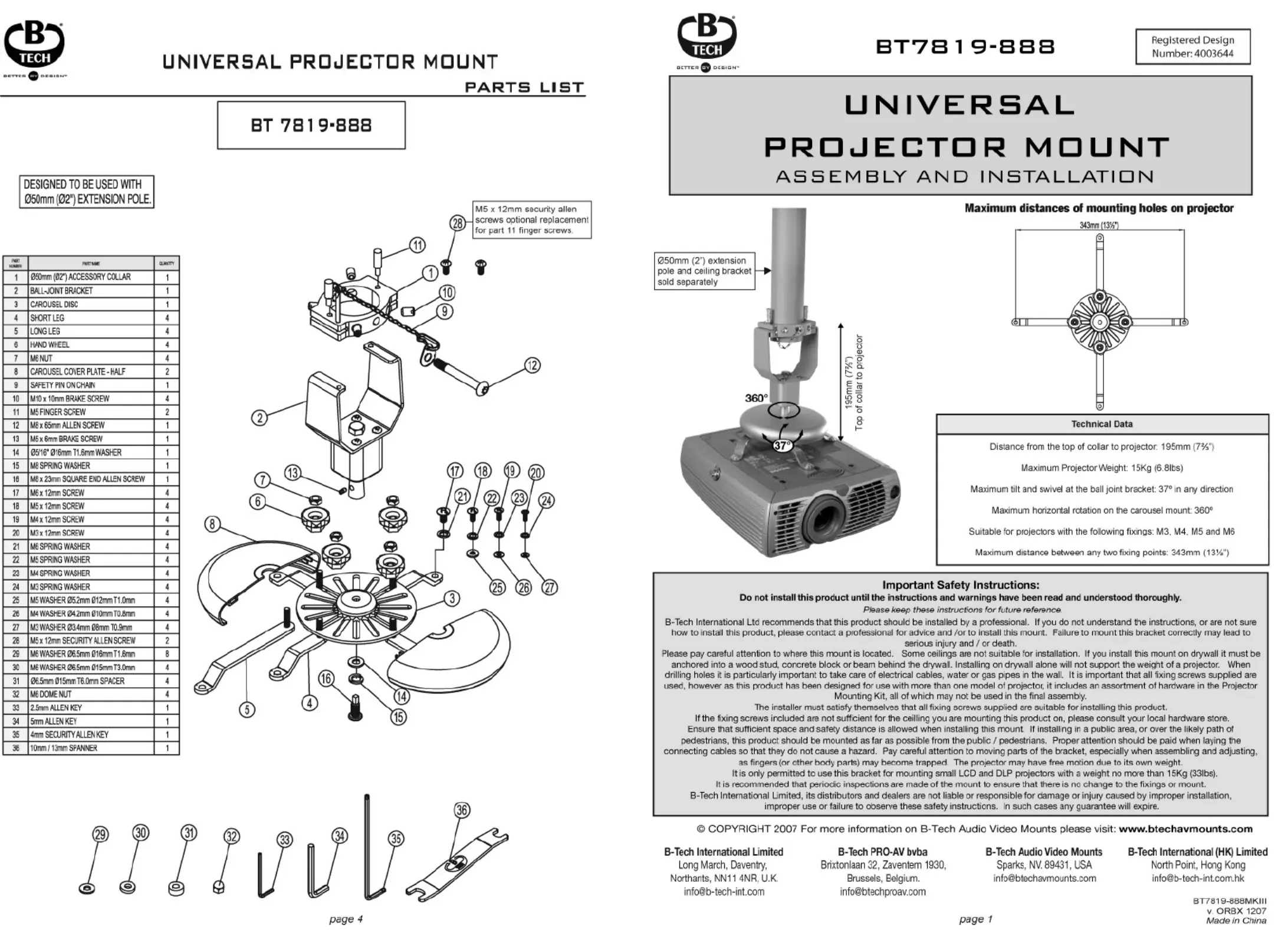

BT7819-888
mounting instructions
Slide the collar on the ball-joint bracket . Insert the safety pin into the hole at the corner of the (Diagram A)
collar, make sure that the safety pin is inserted through the ball-joint bracket . Use either the (Diagram B)
finger screws for quick release and easy installation , or the security allen screws, to secure collar (Diagram C)
position on the ball-joint bracket . (Diagram D)
1
Assemble the ball-joint mount before installation on the pole. Drill holes on the Ø50mm
(2”) pole.
*For the poles that are not supplied from
B-Tech.
Slide the collar and ball-joint onto the pole.
2 3
Assemble carousel
disc to ball-joint
bracket, using the
square end allen
screw with spring
washer . (Diagram I)
Once securely
attached, fasten
brake screw
into ball-joint arm
(Diagram J). (This
will stop carousel disc
from unnecessarily
rotating once
mount is installed).
5
Assemble carousel disc to
ball joint bracket.
9
Rotate the projector to desired position.
Slide collar and ball-joint up onto the pole . Insert the safety bolt through the(Diagram E)
retaining plate, collar and pole ). Fasten brake screws into the thread holes to(Diagram F
the position of the collar (Diagram G).
Choose the correct legs for the projector:
1. Number of legs chosen depends
on the number of mounting holes on the
projector. (Where possible, use 4 legs).
2. The size of the legs depends on where
the carousel disc is placed. Mount the
carousel disc as close as possible to the
centre of gravity of the projector.
*The centre of the projector is not always the
centre of gravity, as the weight may be unevenly
distributed.
Please see for your reference on the legs mounting.Diagram H
3. Check the projector’s manual for screw sizes (M3, M4, M5 or M6).
If the projector has recessed holes, or has an uneven mounting surface,
then choose suitable spacers and/ or washers with spring washers to
allow for a level mounting. Do NOT overtighten.
4
Mount the legs on the projector.
3 mounting holes,
2 short legs and 1
long leg.
4 mounting holes,
2 short legs and 2
long leg.
Ø10.5mm
20mm (minimum distance
from the end of the pole to
the center of the hole)
Drill Ø10.5mm hole horizontally straight through
the pole at the distance from the end of the pole to
the center of the hole.
Position the carousel
disc so that the legs
fit into the slots.
Use either the hand
wheels for easy access
to projector light blub
(Diagram K), or the
locking dome nuts
to secure leg position
on carousel disc
(Diagram L). Tighten
the screws, fixing the
legs to the projector.
6
Mount projector to the carousel disc.
page 3
Diagram K Diagram L
The Aviball arm allows the projector to move freely 37º in any direction or to rotate 360º . To increase (Diagram M) (Diagram N)
stiffness of arm and to lock projector in position, use the spanner to make a small adjustment of the M8 bolt on the ball-joint brac
.(Diagram O)
8
Adjust M8 hexagon bolt
Adjust M8 hexagon bolt on the ball joint bracket to alter
the tension of the ball-joint. Make sure that the stiffness of
ball-joint can hold the projector in place after moving.
7
Attach the cover plates over
the carousel disc.
To complete installation attach the two halves of the
carousel cover plate over the carousel disc.
Diagram M Diagram N Diagram O
Diagram I Diagram J
BT7819-888
mounting instructions
Diagram A Diagram B Diagram C Diagram D
Diagram E Diagram F Diagram G
Diagram H
1
9
2
11 35
12
10
17
18 19
20
22
23
24
21 2625
27
29
4
5
3
34
14
16
33
13
6
32
31
8
36
28
34
15
