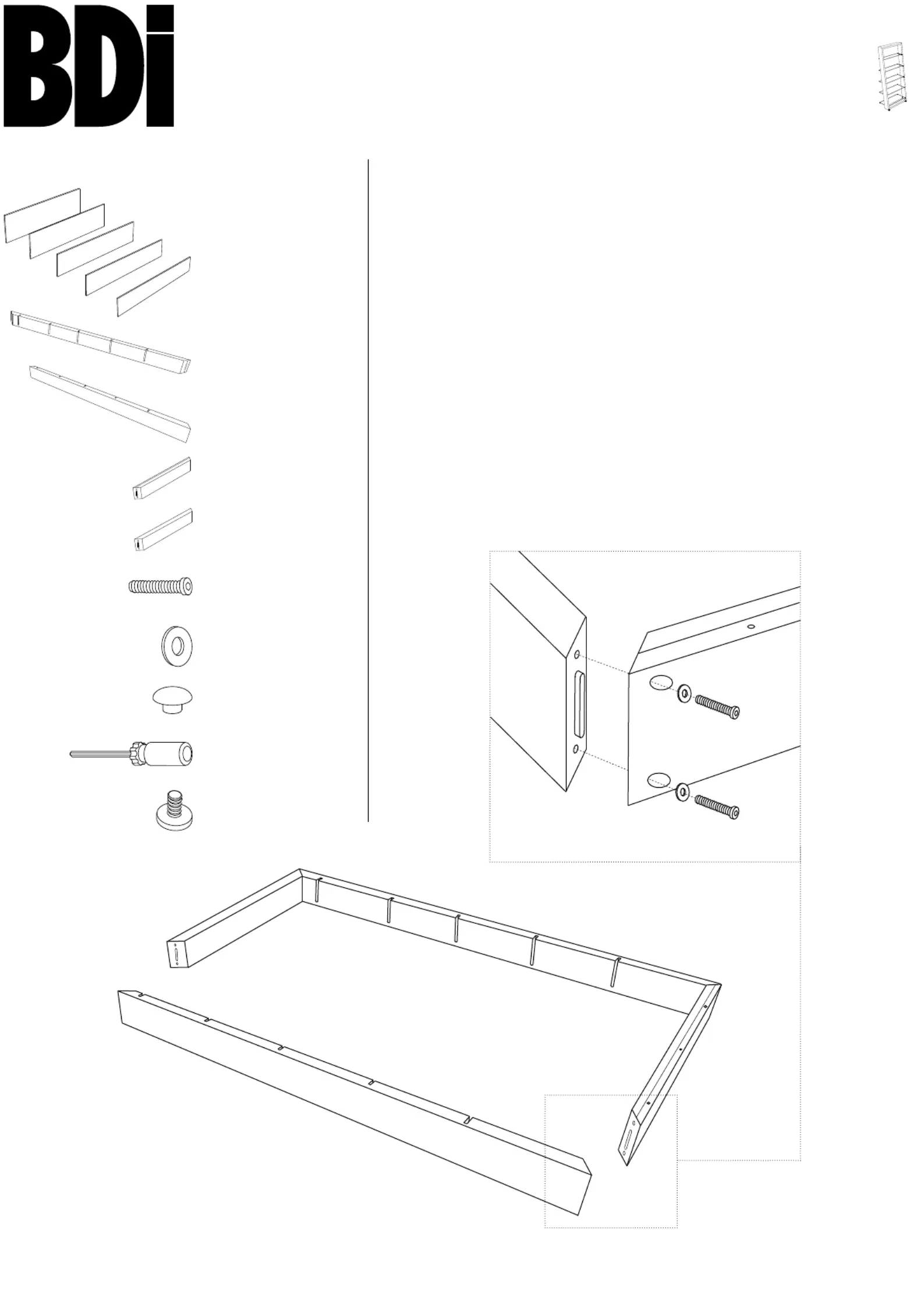

Sida 1/3
1
D - Machine Screw x 8
A1 - Glass Shelf x 1
A2 - Glass Shelf x 1
A3 - Glass Shelf x 1
A4 - Glass Shelf x 1
A5 - Glass Shelf x 1
Left Frame x 1
Right Frame x 1
Top Frame x 1
Bottom Frame x 1
F - Rubber Bumper x 2
E - Washer x 8
H - Leveler x 2
G - Hex Drive
Eileen Shelf is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Placement and Maintenance
Eileen Shelf is designed for indoor use on level floors. Clean glass with
glass cleaner, and steel parts and wood veneer with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. The assembly workspace
should be a non-marring surface such as carpet. For missing
hardware pieces, please contact BDI Customer Service at
customerservice@bdiusa.com. For all other concerns, please contact
your BDI Retailer.
Step 2
Assemble wood frame
Connect and with andLeft Frame Right Frame Top Frame Bottom
Frame Machine Screw (D), Washer (E) Hex Drive (G). using and
Component List
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI is trademark of Becker Designed, Inc.
All rights reserved. ©2010, BDI
Made in China. 03082010v25156REV
a s s e m b l y i n s t r u c t i o n s
bdiusa bdiusa.com customerservice@ .com
EilEEn ShElf
5156
Bottom Frame
Top Frame
Right Frame
Left Frame
D x 8
E x 8
2
assembly instructions
bdiusa bdiusa.com customerservice@ .com
F x 2
H x 2
Step 3
Install Levelers and Rubber Bumper Inserts
Install and as shown below.Levelers (H) Rubber Bumper Inserts (F)
Step5
Secure Glass Shelves
Once shelves have been installed, tighten the plastic threaded insert
on the bottom of shelf bracket using a Phillips screwdriver.
A5
A4
A3
A2
A1
Step 4
Install Glass Shelves
Install glass shelves to all slot locations on left frame and right frame.
3
assembly instructions
bdiusa bdiusa.com customerservice@ .com
A
Restraint Str
Wall Screw
1/8”
Side Elevation
The rear edge of all shelves (except
bottom shelf) should be approximately
1/8” from the wall.
Step 6
Once step 4 and 5 have been completed, lift assembled Eileen against
the wall.
Step 6 - Install Tipping Restraint Kit.
On the rear side of the top frame, there is a pre-drilled hole for
installing the HH510 Furniture Tipping Restraint Kit (included).
This tip restraint must be attached to a wall stud using the
2” screw enclosed.
1. Attach a bracket to the back top rail or back top edge of the
mirror, using the 5/8” screw provided, through the smaller hole
in the bracket.
2. Determine where mirror is to be placed and mark location on
the wall over a wall stud for the wall bracket hole approximately 2”
below the mounting bracket secured to the back of your mirror.
Attach to the wall stud, using the 2” screw provided, through the
smaller hole.
3. Place the mirror into position so both mounting brackets are
vertically in line.
4. Lace the end of the restraint strap through the larger hole
in each bracket. Bring both ends together and slide the flat
end through the locking end and draw it through until all slack is
removed.
5. Confirm that strap is securely laced and locked.
Approx. 2”
To Wall
2" Wall Screw
5/8" Screw
To Mirror
Restraint Strap
*Note HH-510 Furniture Tipping Restraint Kit
is supplied by Walter of Wabash. For further
information, visit www.walterofwabash.com
