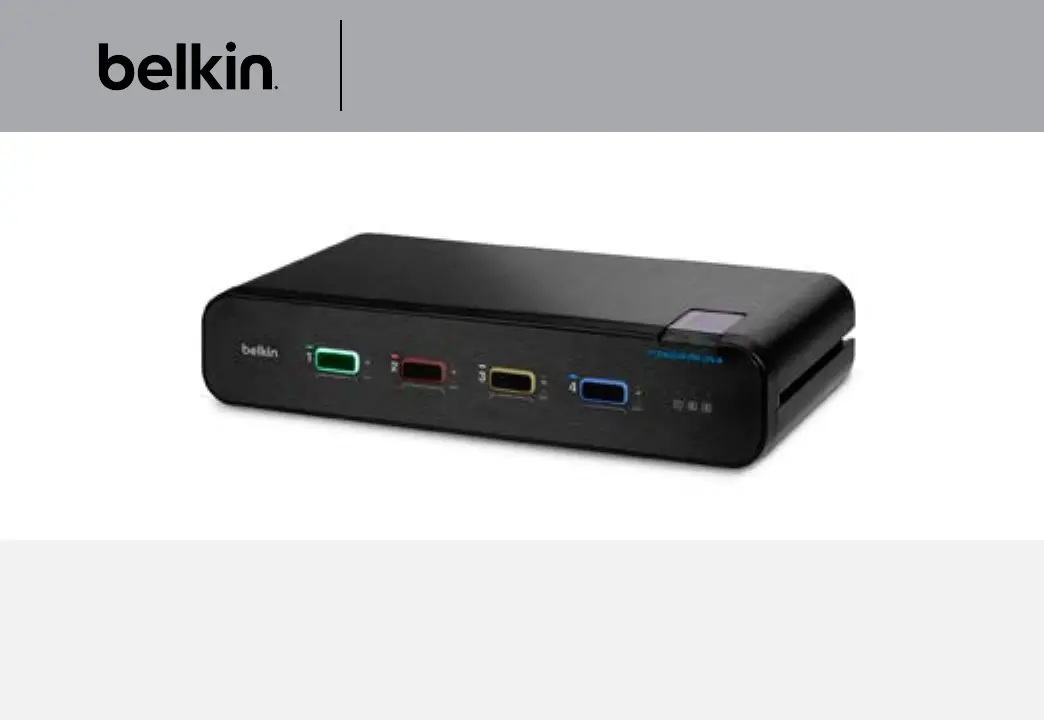

Universal 2nd Gen Secure
DP/HDMI to DP/HDMI KVM Switch
User Manual
F1DN102KVM-UNN4 – Universal Secure 2-Port KVM, PP 4.0
F1DN102KVM-UN-4 – Universal Secure 2-Port KVM with CAC, PP 4.0
F1DN104KVM-UNN4 – Universal Secure 4-Port KVM, PP 4.0
F1DN104KVM-UN-4 – Universal Secure 4-Port KVM with CAC, PP 4.0
F1DN202KVM-UNN4 – Universal Secure 2-Port Dual-Head KVM, PP 4.0
F1DN202KVM-UN-4 – Universal Secure 2-Port Dual-Head KVM with CAC, PP 4.0
F1DN204KVM-UNN4 – Universal Secure 4-Port Dual-Head KVM, PP 4.0
F1DN204KVM-UN-4 – Universal Secure 4-Port Dual-Head KVM with CAC, PP 4.0
Document Number -
LNKPG-00674 Rev. B00
This Belkin product is compliant with the
latest NIAP Protection Profile PSD v4.0,
which exceeds Protection Profile PSS v3.0.
i
Belkin® Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch
TABLE OF CONTENTS
SECTIONS
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
User Guidance & Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overview..................................................................4
Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tamper Evident Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Equipment Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unit Display Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation ................................................................17
Pre-Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connection and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Color Coding the Channel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating the KVM Switch .................................................21
Common access Card (CaC) Configuration and Operation. . . . . . . . . . . . . . . . . . . . 22
Troubleshooting ..........................................................23
Information...............................................................27
Table of Contents SECTIONS 1 2 3 4 5 6 7
1
Belkin® Universal 2nd Gen Secure DP/HDMI to DP/HDMI KVM Switch
INTRODUCTION
SECTIONS
Table of Contents SECTIONS 1 2 3 4 5 6 7
1
Thank you for purchasing this Belkin Secure DisplayPort/HDMI KVM. This Switch is
designed for use in secure environment installations. The Switch offers safe centralized
control, which prevents unintended data transfer between computers running at
different security levels. The Switch provides the highest security safeguards and
features that meet today’s Information Assurance (IA) computing requirements.
Belkin Universal Secure DisplayPort/HDMI KVM is especially challenging in terms
of security as DisplayPort is a very robust protocol by nature, which is capable of
transferring various types of information, such as USB and Ethernet other than
display. Belkin has developed this unique Secure KVM switch with the highest
possible security in mind, assuring no leakage of information between connected
computers through any channels including DP dedicated channels.
This User Manual provides all the details you’ll need to install and operate your
new Switch, in addition to expert troubleshooting advice— in the unlikely event of
a problem.
Please note: Belkin Secure KVMs cannot be upgraded, serviced or fixed.
Package Contents
Belkin Advanced Secure DisplayPort/HDMI KVM
12V 2.5A DC Power Supply with WW interchangeable mains connectors
QIG (Quick Installation Guide)
Important: This product is equipped with an always-on active anti-tamper system.
Any attempt to open the enclosure may activate the anti-tamper system and render
the unit permanently inoperable. If the unit’s enclosure appears disrupted or if
all the port LEDs flash continuously, please call Belkin Technical Support toll-free
at (800) 282-2355.
Revision
A – Initial Release, TBD-2022
Reporting Belkin Product Security Vulnerability
If you are aware of potential security vulnerability while installing or operating
this product, we encourage you to contact us immediately at the following email
address: gov_security@belkin.com
BACK TO TABLE OF CONTENTS >
