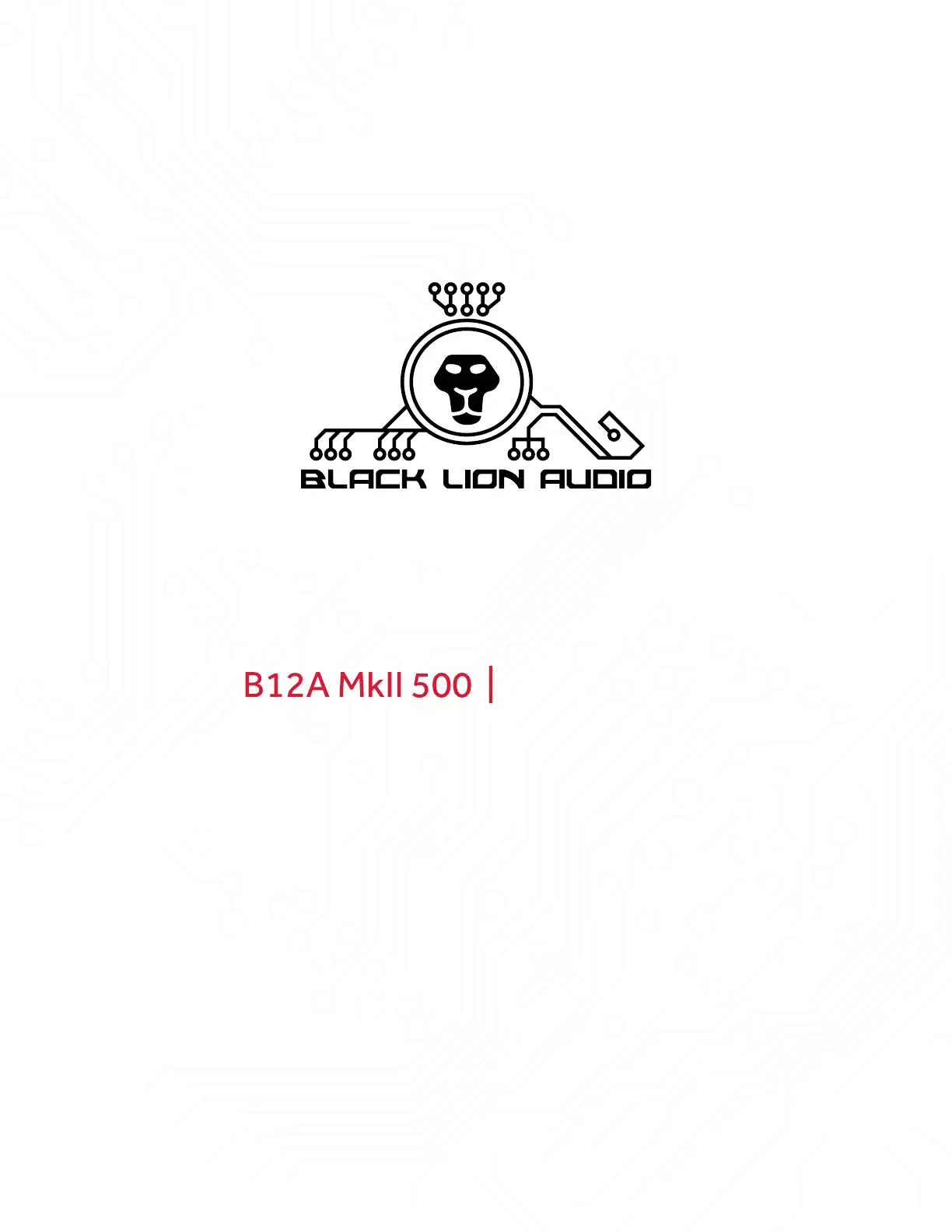

User Manual
User Manual
Introduction 3 ..........................................................................................................
Features 3 .................................................................................................................
Specications ........................................................................................................3
Package Contents 3 .................................................................................................
Front 4 .......................................................................................................................
Connection Diagram 4 .............................................................................................
Signal Flow/Hardware Block Diagram 5 ..................................................................
Repair 5 .....................................................................................................................
Warranty 5 ................................................................................................................
Disclaimer 5 ..............................................................................................................
Copyright 6 ...............................................................................................................
The B12A MkII 500 packs the same punch as its ½ rack cousin, but in the convenient
and exible 500 series format. The API-style design features a delicious CineMag input
transformer, serves up huge portions of low-noise gain, and has the same classic American
rock sound that the original API 312A is known for! Get ready to ll your lunchbox, ‘cause
once you go Black Lion Audio, you never go back!
INTRODUCTION
FEATURES
SPECIFICATIONS
Mic Section
• Max Microphone Input Level: +1dBu
• Input Impedance: 200Ω
• Pad: 18dBu
• Gain (no pad): +26dB to +70dB
• Equivalent Input Noise (noise oor):
-120dB
• THD+N:
• .01% @ +26dB Gain
• .011% @ +40dB Gain
• .049% @ +60dB Gain
• .15% @ +70dB Gain
• Bandwidth (1kHz, 150Ω source,
unweighted): 10Hz to 30kHz
D.I. Section
• Max D.I. Input Level: +18dBu
• Input Impedance: 500kΩ
• Pad: none
• Gain: +10dB to +53dB
• Equivalent Input Noise (noise oor):
-94dB
• 500 Series format (lunchbox required)
• Cinemag Input Transformer
• Edcor Output Transformer
• 70dB Gain
• THD+N:
• .008% @ +10dB Gain
• .01% @ +25dB Gain
• .03% @ +40dB Gain
• .15% @ +53dB Gain
• Bandwidth (1kHz, 600Ω unbalanced
source, unweighted): 10Hz to 30kHz
Output Section
• Max Output Level: +28dBu
• Output Impedance: 600Ω
Power Supply
• +/- 15v (lunchbox supply)
Product Dimensions
• 1 .5” x 6.5” x 5.25”
Product Weight
• .8 lbs
Shipping Dimensions
• 13” x 11” x 5”
Shipping Weight
• 1.8 lbs
• Hi-Z Input (passive, unbalanced)
• Phantom Power
• 18dB Pad
• Phase Switch
• B12A MkII 500
PACKAGE CONTENTS
User Manual
