Audio ‘Lion Face’ logo, BLA, are trademarks

or registered trademarks of Black Lion Audio.

This manual and any associated intel-

lectual property are subject to copyright

protection. No part of this document may

be reproduced in any form without explicit

written consent from Black Lion Audio.

Notice

This manual provides general information, preparation for

use, installation and operating instructions for the Black Lion

Audio B173 mkII.

The information contained in this manual is subject to

change without notice. Black Lion Audio makes no warran-

ties of any kind with regard to this manual, including, but not

limited to, the implied warranties of merchantability and t-

ness for a particular purpose. Black Lion Audio shall not be

liable for errors contained herein or direct, indirect, special,

incidental, or consequential damages in connection with the

furnishing, performance, or use of this material.

B173 mkII

Half-rack British-styled Microphone Preamplier

Owner’s Manual

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other.

A grounding-type plug has two blades and a third grounding prong.

The wide blade or third prong is provided for your safety. If the pro-

vided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particular-

ly at plugs, convenience receptacles, and the point where they exit

from the apparatus. If the power cord becomes frayed, stop using

immediately.

11. Use only attachments/accessories specied by the manufacturer

12. Use only with a cart, stand, tripod, bracket or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid in-

jury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is re-

quired when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been ex-

posed to rain or moisture, does not operate normally, or has been

dropped.

15. This apparatus shall not be exposed to dripping or splashing, and

no object lled with liquids, such as vases, shall be placed on the

apparatus.

16. Note that this apparatus is not completely disconnected from the

AC mains service when the power switch is in the OFF position.

17. The mains plug or power inlet on the product is used as the discon-

nect device, so the disconnected device shall remain readily opera-

ble when reconnected.

18. Any changes or modications not expressly approved in this manu-

al could void your authority to operate this apparatus.

IMPORTANT !

Be sure to use a three prong AC cable that properly ts the power

source. Please use the correct fuse designated on the rear panel be-

fore plugging in the power cord. Improper selection can result in dam-

age to the unit that will not be covered under the warranty.

The lightning ash with an arrow-

head symbol within an equilateral

triangle is intended to alert the

user to the presence of uninsu-

lated “dangerous voltage” within

the product’s enclosure that may

be of sucient magnitude to

constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

The Black Lion Audio B173 mkII complies with all applicable / RoHS/

WEEE European Union directives.

Do not attempt to service this unit yourself, as it will void your warran-

ty. Please check your unit carefully upon receipt and return to place

of purchase immediately if there are any problems with the product.

After that, the standard Black Lion Audio 3 YEAR warranty will apply

to defects in materials and workmanship.

INTERNATIONAL

For service or warranty assistance, please contact the Black Lion Au-

dio distributor in your country through the dealer from whom you pur-

chased this product.

LIMITED 3 YEAR WARRANTY

Black Lion Audio’s B173 mkII is warranted by Black Lion Audio to be free

from defects in materials and workmanship for the period of THREE (3)

YEARS to the original purchaser. In the event of such defects, the prod-

uct will be repaired without charge or, at our option, replaced with a new

one if delivered to Black Lion Audio prepaid, together with a copy of the

sales slip or other proof of purchase date. The warranty excludes prob-

lems due to normal wear, abuse, shipping damage or failure to use the

product in accordance with the specications.

All parts and labor are covered under this Limited Warranty. However,

if it is determined by Black Lion Audio that the device was damaged or

made defective through abuse, we reserve the right to charge the cus-

tomer for the cost of the repair.

Black Lion Audio shall not be liable for damages based upon inconve-

nience, loss of use of the product, loss of time, interrupted operation or

commercial loss or any other damages, whether incidental, consequen-

tial or otherwise. This warranty gives you specic legal rights, and you

may have other rights, which will vary from state to state.

This warranty is not transferable.

QUICK START GUIDE

Meet the Black Lion Audio B173 mkII — the most portable 1073 British-

sound around! The B173 mkII uses the same Cinemag input and output

transformers as our B173 Quad for a whopping 70dB of gain, a revamped

gain stage, and a lower noise oor for cleaner, lower distortion sound. A

front panel D.I. delivers a harmonically rich tone to guitars, keyboards,

and synthesizers, and stepped input gain and variable output

attenuation allow for perfect control over transformer saturation.

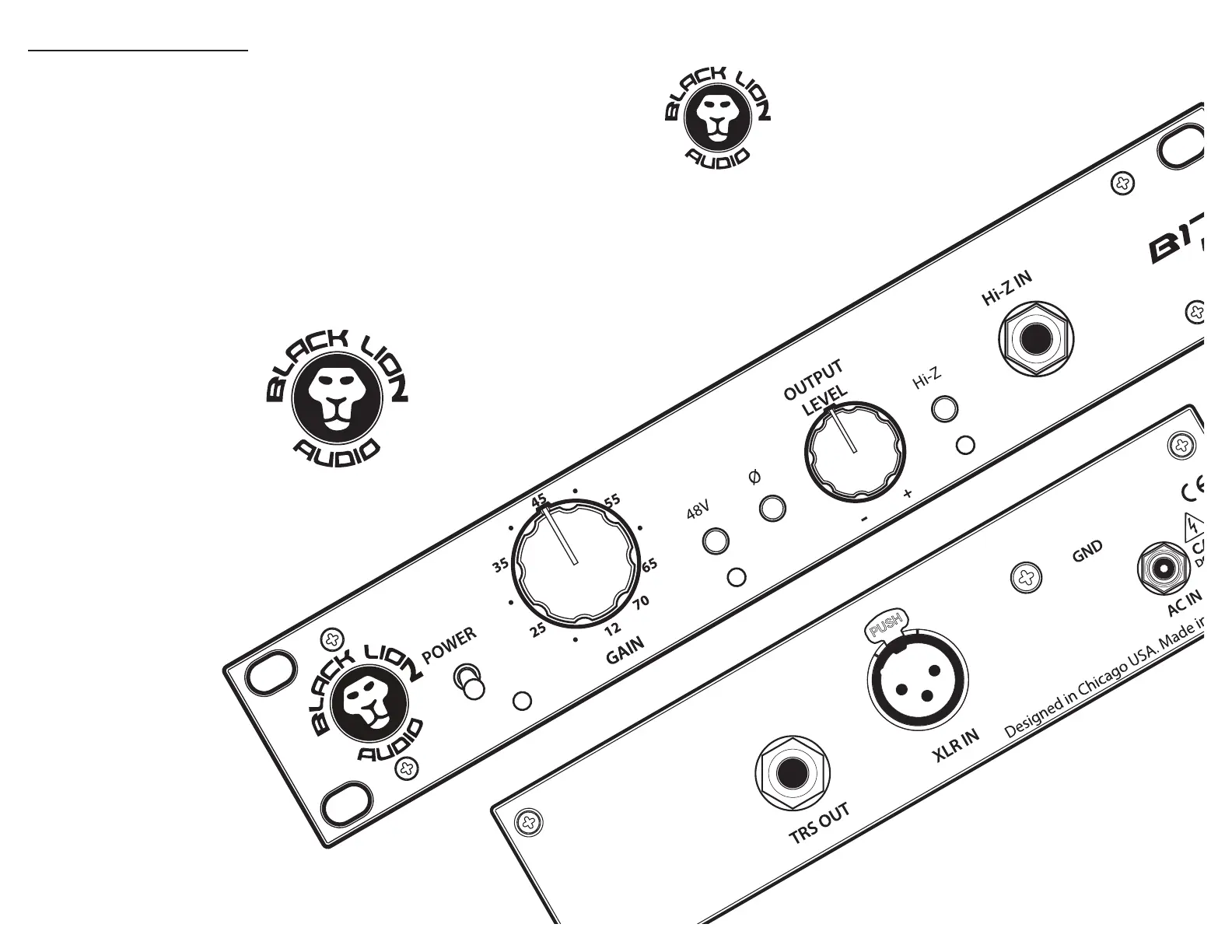

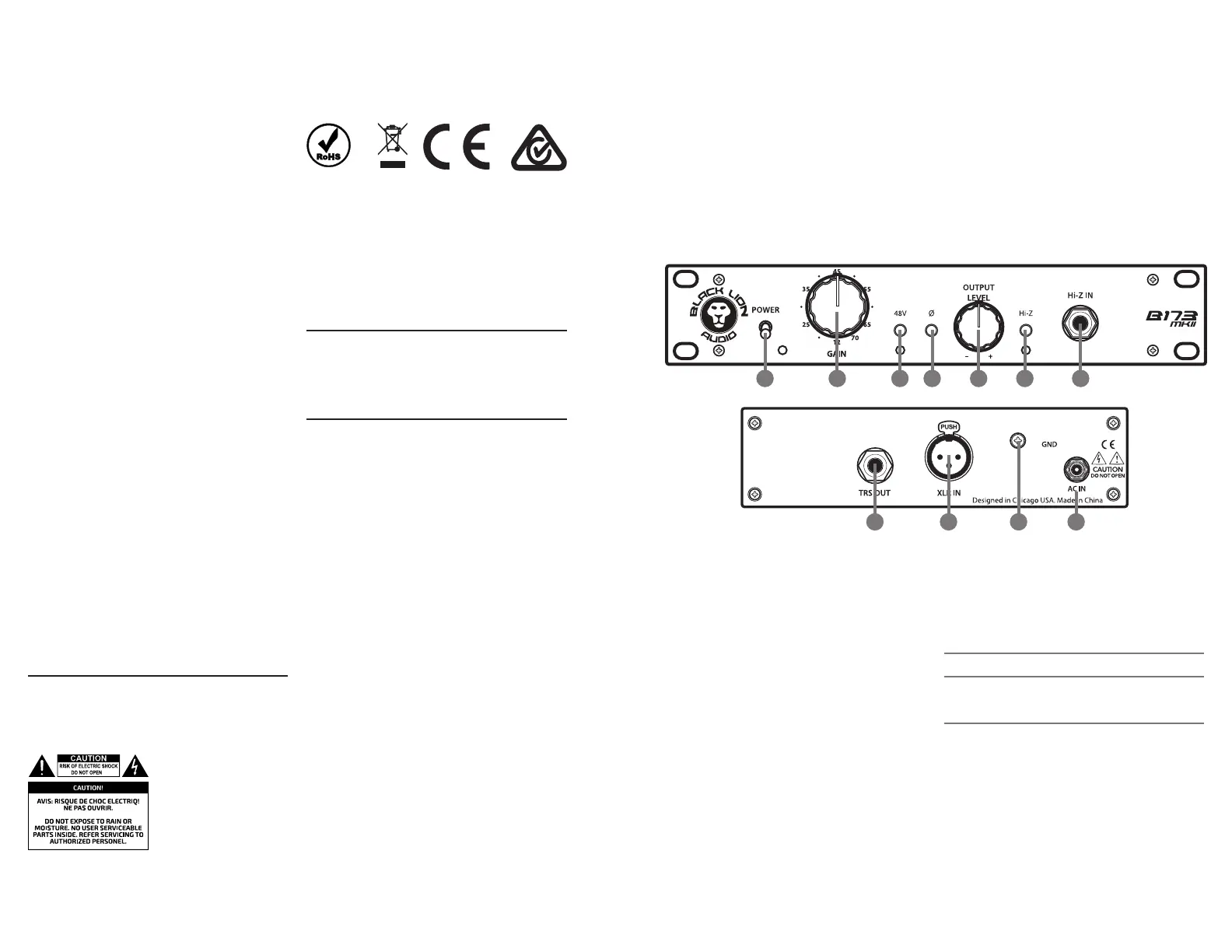

1. Power Switch: This turns the unit on and off. (Note: there’s a 2-3

minute “warm up” time for lowest distortion)

2. Gain: This control operates the amount of gain provided by the pre-

amp.

3. 48V Button: Engage to turn on 48V phantom power.

4. Phase Invert Button: Engage to adjust input signal polarity by 180°.

5. Output Level: clockwise rotation yields less attenuation, counter-

clockwise rotation yields more attenuation (for beginners, it’s best to

leave the output level fully clockwise and increase Mic Gain as needed

so as not to saturate the input transformer).

6. Hi-Z Button: Engage this to use the Hi-Z Input as the input source.

7. Hi-Z Input: Input jack for use with high-impedance, unbalanced

sources (Output Level knob adjusts signal amplitude).

8. XLR Input: Balanced mic-level input.

9. TRS Output: Balanced line-level output.

10. Ground: Optional internal chassis ground.

11. Power Input: 24VAC input jack (Note: only use a BLA-specied pow-

er supply).

SPECIFICATIONS

Voltage 230VAC 15A max

AC Mains Input Type 1 Plug

Dimensions Width 438mm (19”)

Height 44mm (1U)

Depth 250mm

Weight 4.2+kg

1 2 3 54 6 7

1089 11
