Sida 1/4

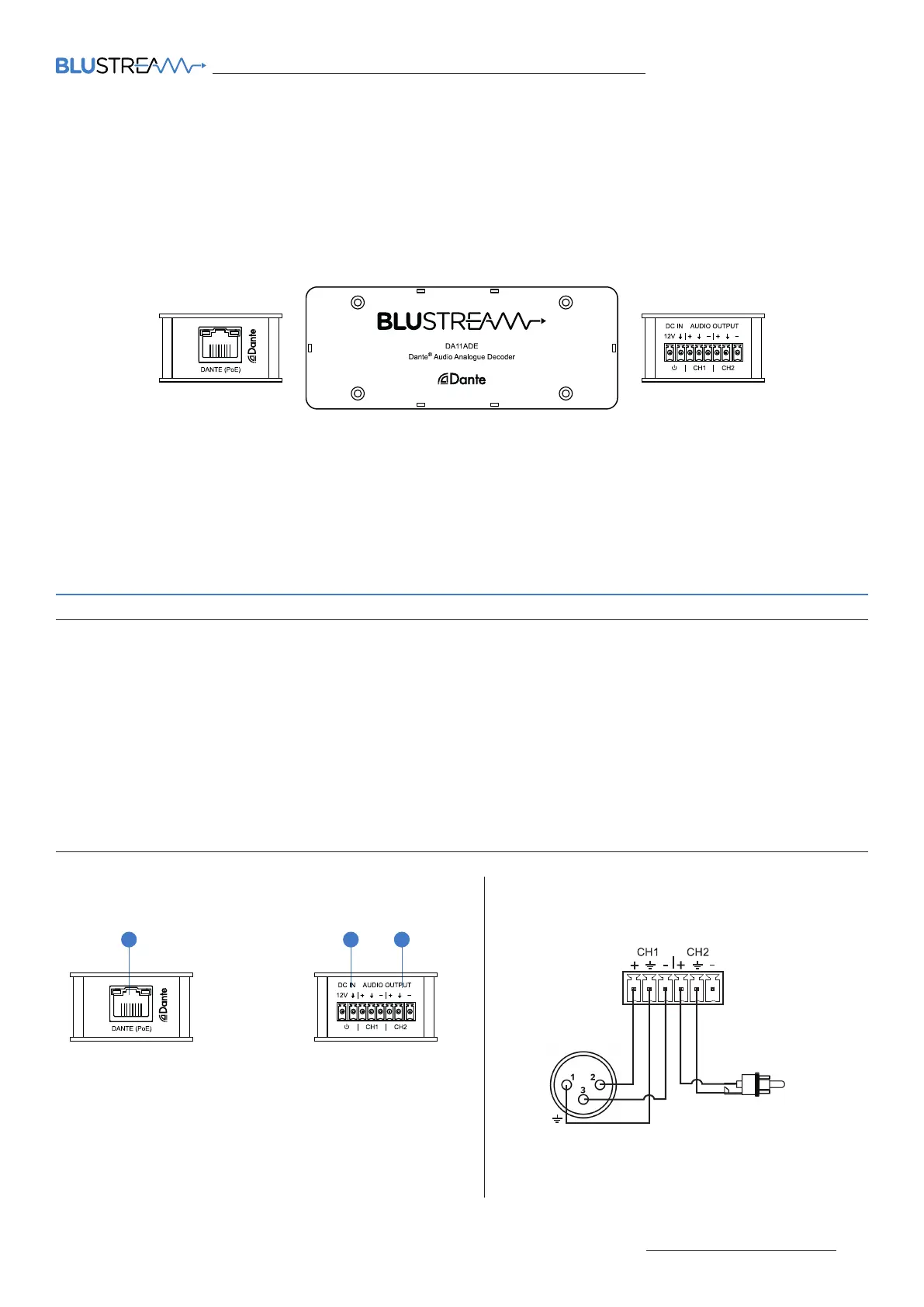

DA11ADE QUICK REFERENCE GUIDE
01
Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk| |
Our DA11ADE has been designed to decode two Dante® digital signals to two
unbalanced or balanced analogue audio channels. The DA11ADE is a plug & play
device that is powered using either PoE (Power Over Ethernet) from any PoE
network switch or via local a 12V power supply input. The DA11ADE also supports
AES67 RTP audio transport.
Introduction
DA11ADE
Quick Reference Guide
• Decodes two Dante® digital signals to two unbalanced or balanced analogue audio channels
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 3 802.3af PoE for powering of product from any PoE switch
• Local 12V power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
FEATURES:
Connections:
1 Dante® Audio Input - RJ45 socket connects Dante® network.
2 DC Input - Connect to +12VDC power supply (not supplied) if
device is not powered via a PoE switch
3 Audio Output - Phoenix Connector accepts balanced or
unbalanced 2 channel audio output.
Front Panel
1
Rear Panel
3
Wiring Configuration
Balanced - XLR Unbalanced - RCA
+
-
-
+
2
DA11ADE QUICK REFERENCE GUIDE
02 www.blustream.com.au | www.blustream-us.com www.blustream.co.uk|
Dante Controller
Dante Controller soware is required in order to setup and configure the DA11ADE as well as control your Dante
network. Audinate provide extensive training videos and documentation on their website. This can be found here:
http://www.audinate.com/products/soware/dante-controller
Upon connecting your DA11ADE to a compatible network, the Dante Controller soware should automatically
discover the device. The DA11ADE will appear in the Dante Controller with a name denoted with “BLS”. On the
“Routing” screen you can create audio routing between Dante transmitters and receivers in your system.
Please ensure your PC is on the same network as your Dante devices. Dante is not able to transmit over WiFi and it
is recommended to hardwire into the Dante network. Having multiple network devices enabled can also confuse
the Dante Controller soware so it is recommended to disable WiFi during configuration.
By default the DA11ADE is shipped with its network settings set to obtain an IP Address automatically. This means
that if a DHCP server is present on your network, it will provide the DA11ADE with an IP Address. If no DHCP server
is present then the DA11ADE will receive a default IP Address in the 169.254.xxx.xxx range. To change the IP Address
of the DA11ADE, you must enter the “Network Config” menu in the “Device Info” screen of the Dante Controller
soware.
DA11ADE QUICK REFERENCE GUIDE
03
Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk| |
RevC0_QRG_DA11ADE_Working
Advanced Dante Settings
It is also possible to change the settings of the DA11ADE under the “Device Info” screen in the Dante Controller
soware. To do so, select the “Device Config” menu.
Here we can adjust the sample rate of the DA11ADE. Please note that Dante products can only transmit or receive
audio from other Dante products that are set up with the same sample rate. A mismatch in sample rate may stop
audio from transmitting.
Under the “Device Config” screen we can also adjust the latency of the DA11ADE from 1, 2 or 5 milliseconds.
SWITCH POSITION OUTPUT GAIN
1 +18dBu
2 +4dBu
3 +0dBu
4 0dBV
5 -10dBV
Depending on the connected audio device, it may be necessary to adjust the output gain.
The DA11ADE features a 5 pin switch on the side of the device to adjust the gain of each channel from various
settings between +18dBu to -10dBV.
Output Gain Adjustment
DA11ADE QUICK REFERENCE GUIDE
04 www.blustream.com.au | www.blustream-us.com www.blustream.co.uk|
Specifications
Audio Input Connectors: 1 x RJ45, female (100 Mbps Dante® network)
Audio Output Connectors: 6-PIN Phoenix connector (2ch balanced/un-
balanced analogue audio)
Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
Shipping Weight: 0.3 Kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
Power Supply: Class 3 IEEE 802.3af PoE PD or 12V/1A DC 2-PIN Phoenix connector
Package Contents
• 1 x DA11ADE
• 1 x Quick Reference Guide
Acknowledgements
Dante® is a registered trademark of
Audinate Pty Ltd.
DA11ADE
Example Schematic
CAT Cable
Analogue Audio
DA11ADE
Dante ®
Audio Analogue Decoder
DA11AEN
Dante ®
Audio Analogue Encoder

Analogue
Audio Output
(2 x channels)
DA11ADE DA11AEN Analogue
Audio Input
(2 x channels)
1G Network Switch
Dante®
Controller
FCC NOTICE
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.Operation
is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with
other household wastes. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmentally safe recycling.
Certifications
