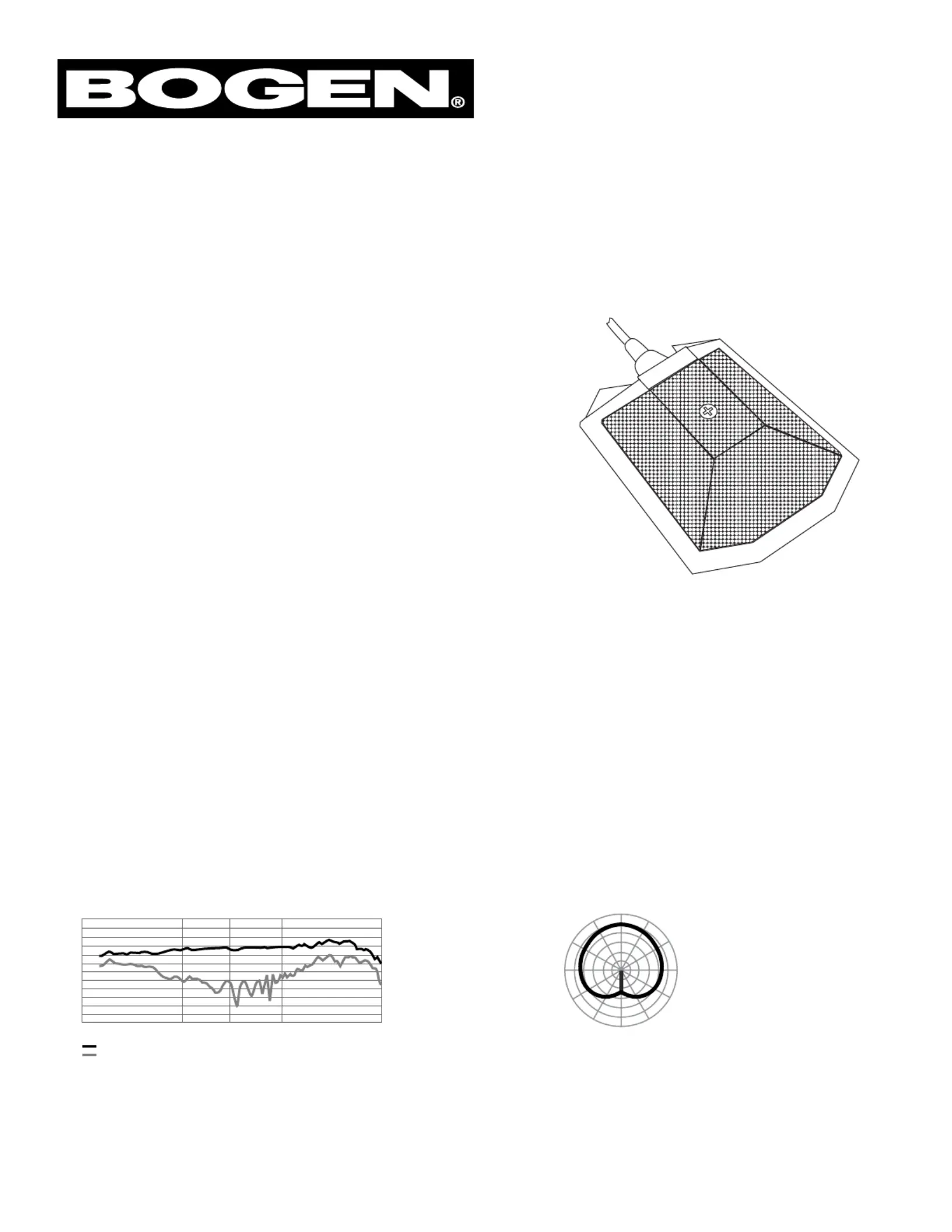

Model SCU250
Professional Boundary
Microphone
DESCRIPTION
The SCU250 is an unobtrusive, uni-directional, surface-mount microphone
ideal for meeting rooms, conferences, and stage productions where minimum
visibility is ideal. The SCU250 provides full, rich reproduction of voice and
music and is well-suited in capturing the sound source and the immediate sur-
roundings. It has a low sensitivity to stage vibration and thumping noise and
has excellent user sound isolation feedback rejection.The SCU250 has a low-
impedance balanced output.The SCU250 features a heavy copper case with a
non-glare matte black finish, mounting keyways on bottom for hanging or for
attachment to the mounting surface, and a cardioid pickup pattern.The micro-
phone requires an external 9V - 52V DC phantom power supply and is ter-
minated by a standard male XLR with a built-in pre-amplifier.
SPECIFICATIONS
MIC Type: Boundary
Element: Back Electret condenser
Polar Pattern: Uni-directional
Impedance: 250-ohm
Frequency Response: 20 Hz to 8 kHz1
Sensitivity*: -58 dB +/- 3 dB
Max SPL @ 30 dB1% THD: >1
S/N Ratio: >65 dB
Cable: 26 ft.
Dimensions: 23
/4" W x 3/4" H x 31
/4" D
Product Weight: 1lb.
Material: Zinc die cast
Finish: Matte black finish
* (0dB= ,000 Hz indicated by open circuit)1 1V/microbar
-50
-60
dB
-70
-80
-90
-100
20 1KHz200 2 20K K
Frequency Response, Magn dB re 1 V/microbar
= 0o
on axis
= 180o o axis
-40
0˚
180˚
330˚ 30˚
60˚300˚
90˚270˚
240˚
210˚
120˚
150˚
FREQUENCY RESPONSE GRAPH POLAR GRAPH
1
23
3
2
1
LOOSEN SCREWS 1, 2 & 3
INSERT THE WIRES
TIGHTEN SCREWS 1, 2 & 3
RED
YELLOW
SHIELD
(INSTALLATION TUBE)
Figure 2.
Figure 4.
Figure 3.
Note: There are two red, yellow,
and shield wires.

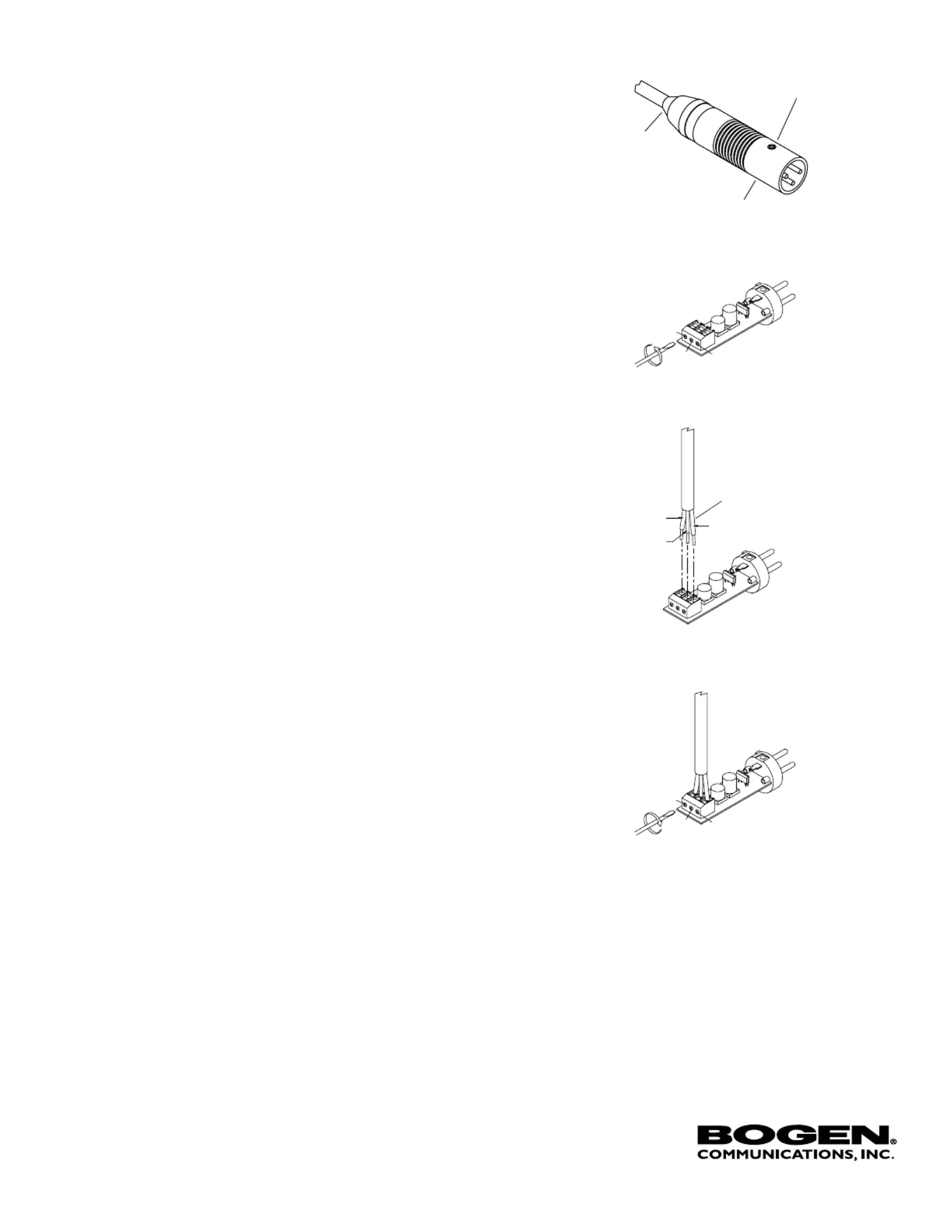

INSTALLATION
Rather than drill a hole large enough to fit the male XLR, the SCU250 cable
can be disconnected from the XLR and then reconnected, thereby permitting
an installer to drill a hole only large enough for the cable to fit through.
1. Release the shell by unscrewing the shell screw. See Figure 1.
2. Pull shell up cable.
3. Disconnect the cable by loosening the three terminal strip screws.
See Figure 2.
4. Remove shell and strain relief from cable.
5. Drill a /8" hole or greater and feed cable through hole.1
6. Slide shell and then strain relief back on cable.
7. Reconnect cable to terminal strip following the illustrations in
Figures 3 and 4.
8. Slide shell over electronics assembly and replace and tighten the shell
screw.
SHELL SCREW
SHELL
STRAIN RELIEF
Figure 1.
Printed in Philippines. 0308
© 2003 Bogen Communications, Inc.
54-2048-0 B1
Specifications subject to change without notice.
LIMITED WARRANTY
Bogen microphones are warranted to be free from defects in material or workmanship provid-
ed that the product has not been subjected to abuse or accident or altered in any way for one
(1) year from the date of sale to the original purchaser.Any part of the product covered by this
warranty that, with normal installation and use, becomes defective will be repaired or replaced
by Bogen, at our option, provided the product is shipped insured and prepaid to: Bogen Factory
Service Department, 50 Spring Street, Ramsey, 07446, USA.The product will be returned toNJ
you freight prepaid.This warranty does not extend to any of our products that have been sub-
jected to misuse, improper storage, neglect, accident, improper installation or have been modi-
fied or repaired in any manner that Bogen believes may affect the reliability of the product, or
where the serial number or date code has been removed or defaced.
THE FOREGOING LIMITED WARRANTY IS BOGEN'S SOLE AND EXCLUSIVE WARRANTY
AND THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY. BOGEN MAKES NO OTHER
WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND ALL IMPLIED WAR-
RANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY
DISCLAIMED AND EXCLUDED. Bogen's liability arising out of the manufacture, sale or supply-
ing of products or their use or disposition, whether based upon warranty, contract, tort or oth-
erwise, shall be limited to the price of the product. In no event shall Bogen be liable for special,
incidental or consequential damages (including, but not limited to, loss of profits, loss of data or
loss of use damages) arising out of the manufacture, sale or supplying of products, even if Bogen
has been advised of the possibility of such damages or losses.
Products that are out of warranty will also be repaired by the Bogen Factory Service Department
-- same address as above or call 20 -934-8500. The parts and labor involved in these repairs are1
warranted for 90 days when repaired by the Bogen Factory Service Department. All shipping
charges in addition to parts and labor charges will be at the owner's expense.
www.bogen.com
