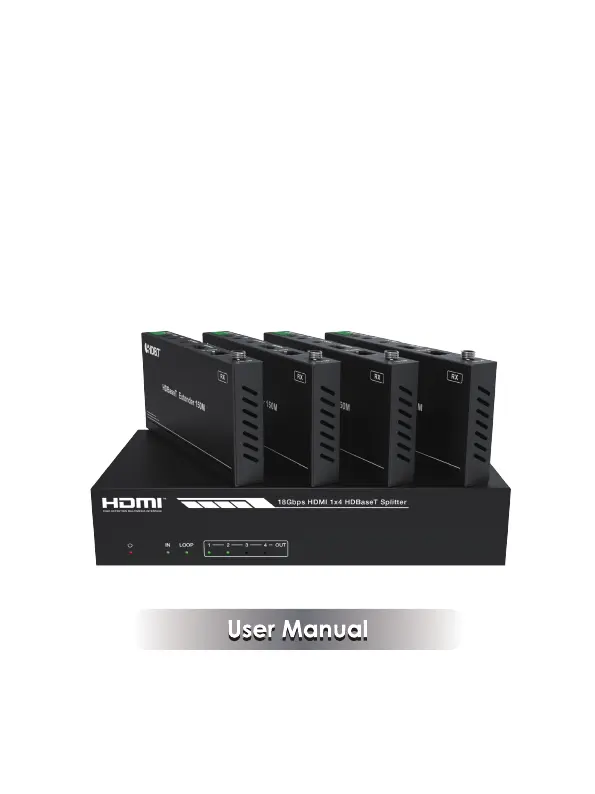

BG-UDA-E14
18Gbps HDMI
1×4 HDBaseT
Splitter
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction...........................................................................................
2. Features.................................................................................................
3. Package Contents................................................................................
4. Specifications.......................................................................................
5. Operation Controls and Functions......................................................
5.1 Transmitter.......................................................................................
5.2 HDBaseT Receiver...........................................................................
5.3 IR Pin Definition................................................................................
6. EDID Mode.............................................................................................
7. ASCII Commands.................................................................................
8. Application Example............................................................................
1
1
1
2
3
3
5
6
7
8
12
3. Package Contents
①1 × 18Gbps HDMI 1×4 HDBaseT Splitter
②4 × HDBaseT Receiver
③5 × IR Blaster Cable (1.5 meters)
④5 × 20K~60KHz IR Receiver Cable (1.5 meters)
⑤5 × 3-pin Phoenix Connector
⑥1 × 5-pin Phoenix Connector
⑦10 × Mounting Ear
⑧1 × 24V/2.7A DC Locking Power Adapter
⑨1 × User Manual
1. Introduction
The BG-UDA-E14 18Gbps HDMI 1x4 HDBaseT Splitter can distribute 1
source signal to any 4 display devices. The HDMI signal transmission distance
can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150
meters at 1080P@60Hz via a single CAT6 cable.
/6a/7 The product supports
up to 7.1CH HD audio pass-through. Audio extract function and advanced
EDID management are supported.
2. Features
-1-
☆HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆Support 18Gbps video bandwidth
☆Support video resolution up to 4K2K@60Hz 4 4 4: :
☆Support HDR, HDR10+, HLG and Dolby vision
☆Support up to 7.1CH HD audio pass-through
☆Support digital and analog audio de-embedded output
☆Extend the signal transmission distance up to 120 meters at the resolution
of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6 cable
/6a/7
☆Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
☆IR, RS-232 routed to HDBaseT output
☆Advanced EDID management
☆Support one-way POC function (only from transmitter to receiver)
☆Compact design for easy and flexible installation
