BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT Save these
instructions for local inspector’s use.
IMPORTANT Observe all
governing codes and ordinances.
Note to Installer Be sure to leave these
instructions with Consumer.
Note to Consumer Keep these
instructions for future reference.
Skill level Installation of this appliance
requires a qualified installer or electrician.
Proper installation is the responsibility
of the installer.
Product failure due to improper installation
is not covered under Warranty.
Product is for indoor use only.
Installation Instructions
30 Electric Push-to-Open Door
Built-In Wall Ovens
FOR YOUR SAFETY:
WARNING
Before beginning the installation, switch power off at the service panel and lock
the service disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure. Weight
on the oven door could cause the oven to tip and result in injury. Never allow anyone to climb, sit,
stand or hang on the oven door.
Make sure the wall coverings, counters and cabinets around the oven can withstand the heat (up to
200°F [93.3°C]) generated by the oven.
MATERIALS YOU MAY NEED
Junction Box
Wire Nuts
Strain Relief Clamp for 1/2” Conduit
36” (91 cm) of String
TOOLS YOU MAY NEED
1/8” Drill Bit and Electric or Hand Drill
T20 Screwdriver
Phillips Screwdriver
Wire Strippers
7/16” Nut Driver (combination ovens)
1/4” Nut Driver (30” combination ovens)

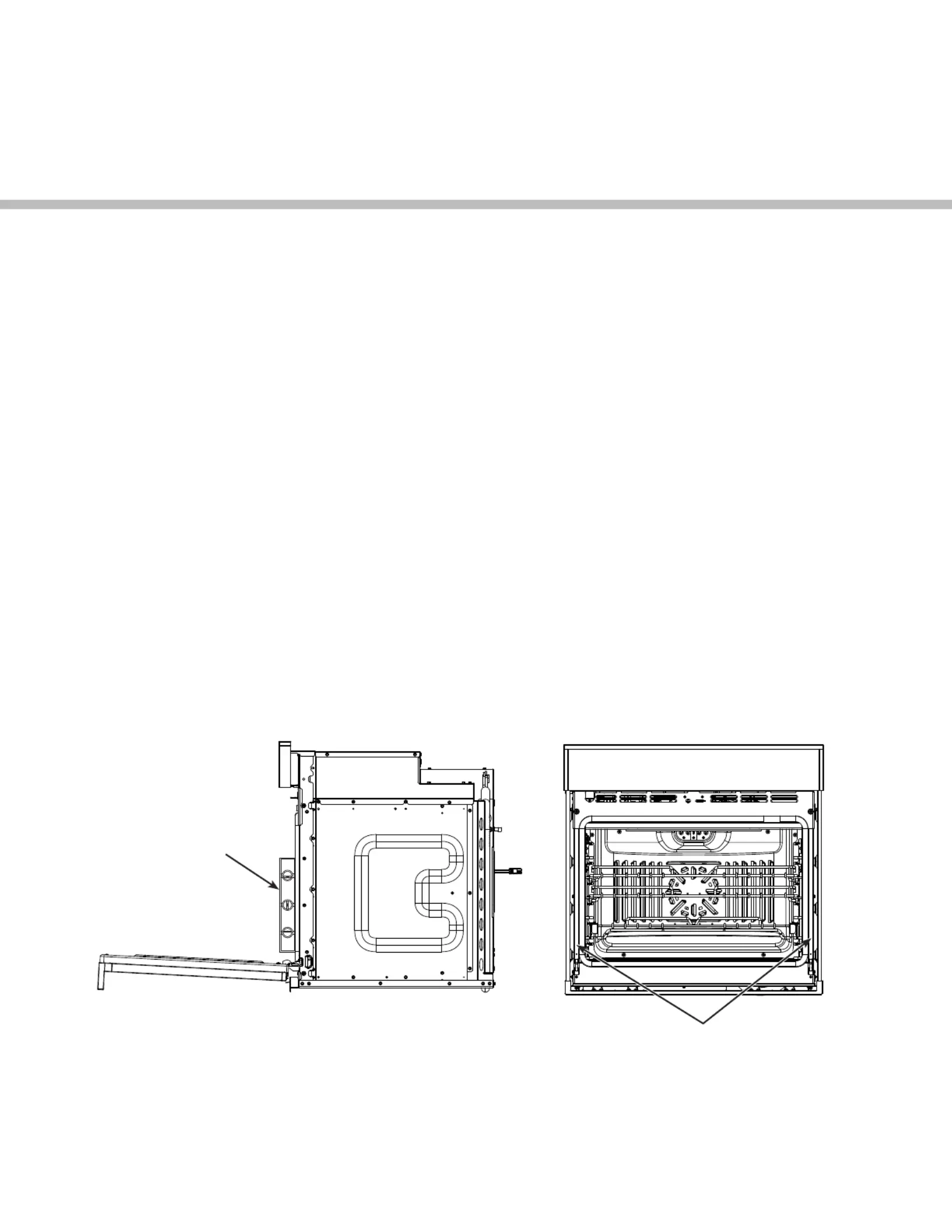

1 REMOVE PACKAGING MATERIALS
Failure to remove packaging materials could result in damage to the appliance. Remove all
packing parts from oven, racks and heating elements. Remove protective film and labels on
the outer door and control panel. Also, remove plastic on trims and panel, all tape around the
oven and any shipping screws securing the oven to the base pad. Open oven door and remove
literature pack and oven racks. Remove the bottom trim from the top of the oven. It will be
installed at the end of the installation process. The trim is wrapped separately and taped to the top
of the unit. Remove pedestal rails from separate box and set aside (30” Double Wall Ovens Only).
2 PREPARE THE OPENING
NOTE: If the cabinet does not have a solid
bottom, two braces or runners must be
installed to support the weight of the oven.
For single ovens, the runners and braces
must support 220 lbs (99 kg). For double and
combination ovens, the runners and braces
must support 400 lbs. (181 kg).
NOTE: If marks, blemishes or the cutout
opening are visible above the installed oven,
it may be necessary to add wood shims
under the runners until the marks or opening
are covered.
NOTE: If the cabinet does not have a front
frame and the sides are less than ¾” (1.9 cm)
thick, shim both sides equally to establish the
cutout width.
ATTENTION INSTALLER: All electric wall ovens must be hard-wired (direct-wired)
into an approved junction box. A plug and receptacle is NOT permitted on these products.
DESIGN INFORMATION
SINGLE OVEN INSTALLATIONS
The single oven may be installed in a cabinet alone or above a warming drawer. The single oven
may also be installed side by side. However, the Push-to-Open single wall oven is not allowed
under a counter unit or cooktop. See the label on top of the oven for approved models.
DOUBLE OVEN INSTALLATIONS
A double oven may be installed in a cabinet alone or above a warming drawer. See the label on
top of the oven for approved models.
IMPORTANT: Always refer to individual installation instructions packed with each product for
specific requirements.
Questions? Call us at 1.800.432.2737 or visit GEAppliances.com.
In Canada, call 1.800.561.3344 or visit GEAppliances.ca.
Suitable
Bracing
to Support
Runners
2" x 4" (5 cm x 10 cm)
or Equivalent Runners Level
with Bottom of Cutout
and Flush with Sides of Cutout
C
L
2 B CUTOUT FOR DOUBLE OVENS (2 THERMAL
OVENS)
NOTE: If the cabinet does not have a front frame and the sides are less than ¾(1.9 cm) thick,
shim both sides equally to establish the cutout width.
Dim. Description
30” Double Oven with
Pedestal
30” Double Oven without
Pedestal
ACabinet Width 30” (76.2 cm) 30” (76.2 cm)
BCutout Width 281»2(72.4 cm) min.
285»8(72.7 cm) max.
281»2” (72.4 cm) min.
285»8” (72.7 cm) max.
CCutout Height 5113»16(131.6 cm) min.
5115»16(131.9 cm) max.
50 ¼” (127.64cm)
DClearance from cutout - side
edges*
11»16(1.75 cm) 11 »16(1.75 cm)
E
Clearance to Adjacent Corners,
Drawers, Walls, etc., When Door
Is Open
23” (53.3 cm) min. 23” (53.3 cm) min.
FClearance from cutout - top* 1” (2.5 cm) min. 1” (2.5 cm) min.
GClearance from cutout -
bottom*
11
»4(3.2 cm) 1 1
»4(3.2 cm)
HJunction Box Location 9 1
»2(24.1 cm) max.
right side only
91»2(24.1 cm) max.
right side only
KMinimum Cutout Location from
Floor
12” (30.5 cm) 12” (30.5 cm)
PJunction Box location 5-1/4” (13.34 cm) max. 5-1/4(13.34 cm) max.
RJunction Box location 2-1/2(6.35 cm) max. 2-1/2(6.35 cm) max.
2 A CUTOUT FOR SINGLE OVENS IN WALL CABINET
NOTE: If the cabinet does not have a front frame and the sides are less than ¾(1.9 cm) thick,
shim both sides equally to establish the cutout width.
These ovens
are not
approved for
installations
that stack one
single wall
oven above
another single
wall oven.
Cutout
observe all
dimensions and
requirements.
Cutout
observe all
dimensions and
requirements.
2” (5.1 cm) Min.
30.5” (77.5 cm)
30” models
Center Line Center Line
Side-by-Side Installations
Install two ovens in separate cutouts.
Continue to Section 3.
H
R
P
B
F
GC
D
A
E
Junction
Box
Location
(junction
box may
be located
in adjacent
cabinet)
Cutout Depth
23-1/2”
(59.7 cm) Min.
Cutout Location
from Floor
32-1/2” (82.6 cm)
16-1/4” (41.3 cm) Min
Opening
Between Inside
Walls Must be
at Least 28-1/2”
(72.4 cm) Wide
H
P
R
B
C
K
F
G
D
A
E
Junction
Box
Location
(junction
box may
be located
in adjacent
cabinet)
Cutout Depth
23-1/2”
(59.7 cm) Min.
NOTE: Allow
1/4” (0.64 cm)
clearances from
side edges of
oven door.
NOTE: Allow
1/4” (0.64 cm)
clearances from
side edges of
oven door.
Dimension Dimension Description 30” Single Oven
ACabinet Width 30” (76.2 cm)
BCutout Width 28 1»2” (72.4 cm) min.
285»8” (72.7 cm) max.
CCutout Height 27 1»4(69.2 cm) min.
275»16” (69.4 cm) max.
DClearance from cutout - side edges* 11»16(1.75 cm)
EClearance to Adjacent Corners, Drawers,
Walls, etc., When Door Is Open
23” (53.3 cm) min.
FClearance from cutout - top* 1” (2.5 cm) min.
GClearance from cutout - bottom* 11»4 (3.2 cm)
HJunction Box Location 9 1»2(24.1 cm) max. right side only
PJunction Box location 5-1/4” (13.34 cm) max.
RJunction Box location 2-1/2(6.35 cm) max.
* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions. * Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.
2 C CUTOUT FOR INSTALLATION OVER A
WARMING DRAWER
NOTE: Install the oven only with specific models listed on the label located on top of the oven.
NOTE: Additional clearances between cutouts may be required. Check to be sure the oven
supports above the Warming Drawer location do not obstruct the required interior depth and height.
When installing a Warming Drawer below a single, double, or combination oven, a separate
120V, 60 HZ, properly grounded receptacle must be installed. Refer to installation instructions
packed with the Warming Drawer for specific installation requirements.
Anti-Tip Block Against
Rear Wall Per Warming
Drawer Requirement
2" (5.1 cm)
Min.
Per Warming
Drawer
Requirement
Continue to Section 3 for Double Wall Oven with Pedestal. Otherwise, continue to Section 4.
3 A DETERMINING WHEN TO USE THE PEDESTAL
(30” DOUBLE OVENS ONLY)
WHEN TO USE THE PEDESTAL
When replacing an older GE Appliances 30” double wall oven with a new GE Appliances model.
Cutout height = 51-13/16” to 51-15/16”. This is our traditional cutout height.
WHEN NOT TO USE THE PEDESTAL
When replacing a 30” double wall oven from another manufacturer (ie. Whirlpool) with a new
GE Appliances 30” double wall oven. Cutout height = 50-1/4”. You will need to verify that the
existing cutout matches the 50-1/4” dimension.
If the new GE Appliances 30” double wall oven is being installed into new construction (ie. not a
replacement), then the recommended installation is to use the Pedestal.
3 B PEDESTAL RAIL INSTALLATION
(30” DOUBLE OVENS ONLY)
A. Position the pedestal rails with the top cutout toward the front of the opening and the flanges
on the bottom, pointing toward the center. Locate each rail on the floor or cabinet runner,
slightly inward from the side of the cabinet. Make sure the front of each rail is not protruding
beyond the front of the cabinet opening.
B. Drill pilot holes and attach rails to runner or bottom of cabinet with provided hardware.
31-2000923 Rev. 2 03-24 GEA
Flanges toward
center of cutout
Top cutout
toward front
Attachment
screws
