BEFORE YOU BEGIN

Read these instructions completely and

carefully.

• IMPORTANT — Save these

instructions for local inspector’s use.

• IMPORTANT — Observe all

governing codes and ordinances.

• Note to Installer – Be sure to leave these

instructions with Consumer.

• Note to Consumer – Keep these

instructions for future reference.

• Skill level – Installation of this appliance

requires a qualified installer or electrician.

• Proper installation is the responsibility

of the installer.

• Product failure due to improper installation

is not covered under Warranty.

• Product is for indoor use only.

Installation Instructions

27” & 30” Electric Built-In Wall Ovens

FOR YOUR SAFETY:

WARNING

Before beginning the installation, switch power off at the service panel and lock

the service disconnecting means to prevent power from being switched on accidentally. When the

service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a

tag, to the service panel.

Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure. Weight

on the oven door could cause the oven to tip and result in injury. Never allow anyone to climb, sit,

stand or hang on the oven door.

Make sure the wall coverings, counters and cabinets around the oven can withstand the heat (up to

200°F [93.3°C]) generated by the oven.

MATERIALS YOU MAY NEED

Junction Box

Wire Nuts

Strain Relief Clamp for 1/2” Conduit

36” (91 cm) of String

TOOLS YOU MAY NEED

1/8” Drill Bit and Electric or Hand Drill

T20 Screwdriver

Phillips Screwdriver

Wire Strippers

7/16” Nut Driver (combination ovens)

1/4” Nut Driver (30” combination ovens)

ATTENTION INSTALLER: All electric wall ovens must be hard-wired (direct-wired)

into an approved junction box. A plug and receptacle is NOT permitted on these products.

Questions? Call us at 1.800.432.2737 or visit GEAppliances.com.

In Canada, call 1.800.561.3344 or visit GEAppliances.ca.

1 REMOVE PACKAGING MATERIALS

Failure to remove packaging materials could result in damage to the appliance. Remove all

packing parts from oven, racks and heating elements. Remove protective film and labels on

the outer door and control panel. Also, remove plastic on trims and panel, all tape around the

oven and any shipping screws securing the oven to the base pad. Open oven door and remove

literature pack and oven racks. Remove the bottom trim from the top of the oven. It will be

installed at the end of the installation process. The trim is wrapped separately and taped to the top

of the unit. Remove pedestal rails from separate box and set aside (30” Double Wall Ovens Only).

Consider recycling options for your appliance packaging material.

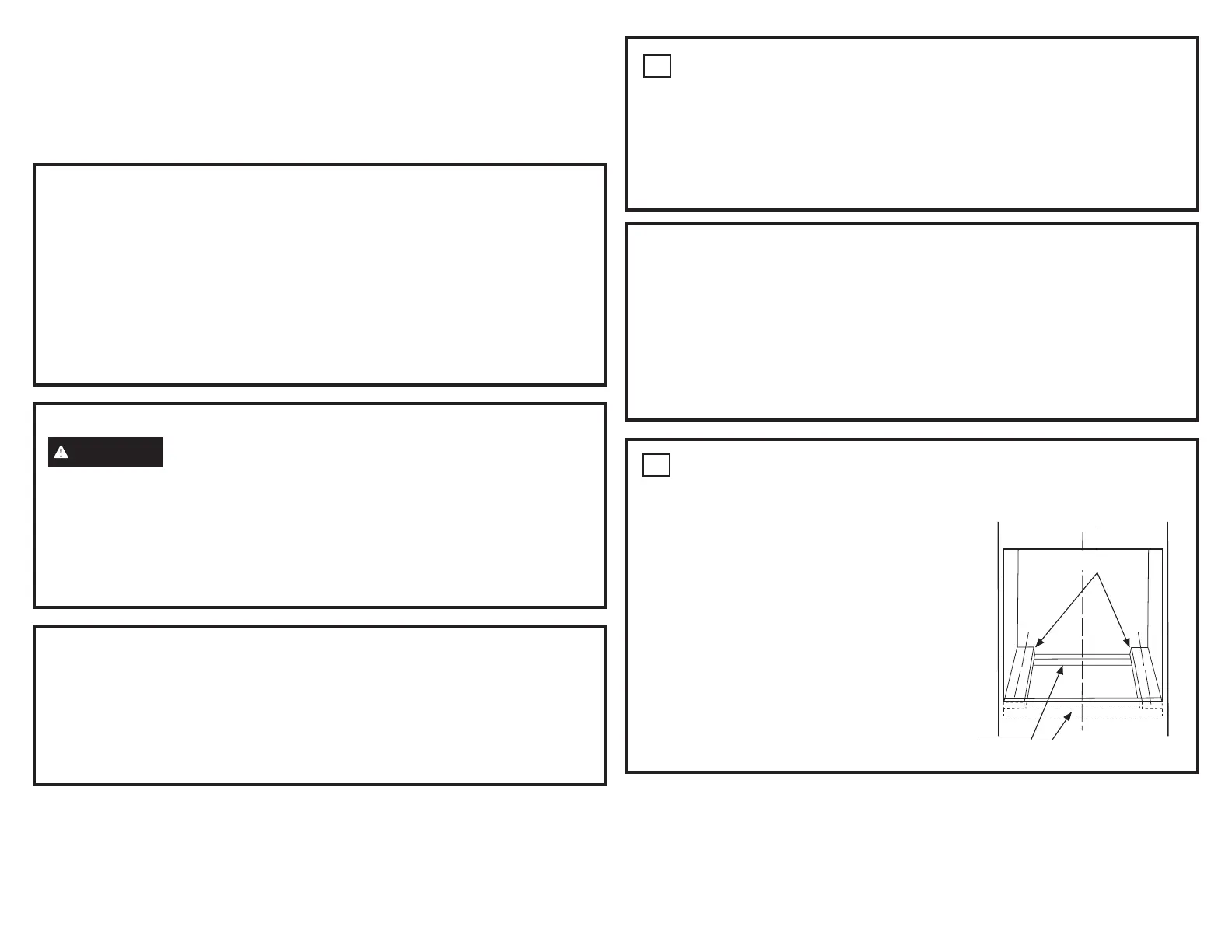

2 PREPARE THE OPENING

NOTE: If the cabinet does not have a solid

bottom, two braces or runners must be

installed to support the weight of the oven.

For single ovens, the runners and braces

must support 220 lbs (99 kg). For double and

combination ovens, the runners and braces

must support 400 lbs. (181 kg).

NOTE: If marks, blemishes or the cutout

opening are visible above the installed oven,

it may be necessary to add wood shims

under the runners until the marks or opening

are covered.

NOTE: If the cabinet does not have a front

frame and the sides are less than ¾” (1.9 cm)

thick, shim both sides equally to establish the

cutout width.

DESIGN INFORMATION

SINGLE OVEN INSTALLATIONS

The single oven may be installed in a cabinet alone or above a warming drawer. The single oven

may also be installed side by side, below a countertop, or below specified cooktops. See the label

on top of the oven for approved models.

DOUBLE AND COMBINATION OVEN INSTALLATIONS

A double or combination oven may be installed in a cabinet alone or above a warming drawer.

See the label on top of the oven for approved models.

IMPORTANT: Always refer to individual installation instructions packed with each product for

specific requirements.

Suitable

Bracing

to Support

Runners

2" x 4" (5 cm x 10 cm)

or Equivalent Runners Level

with Bottom of Cutout

and Flush with Sides of Cutout

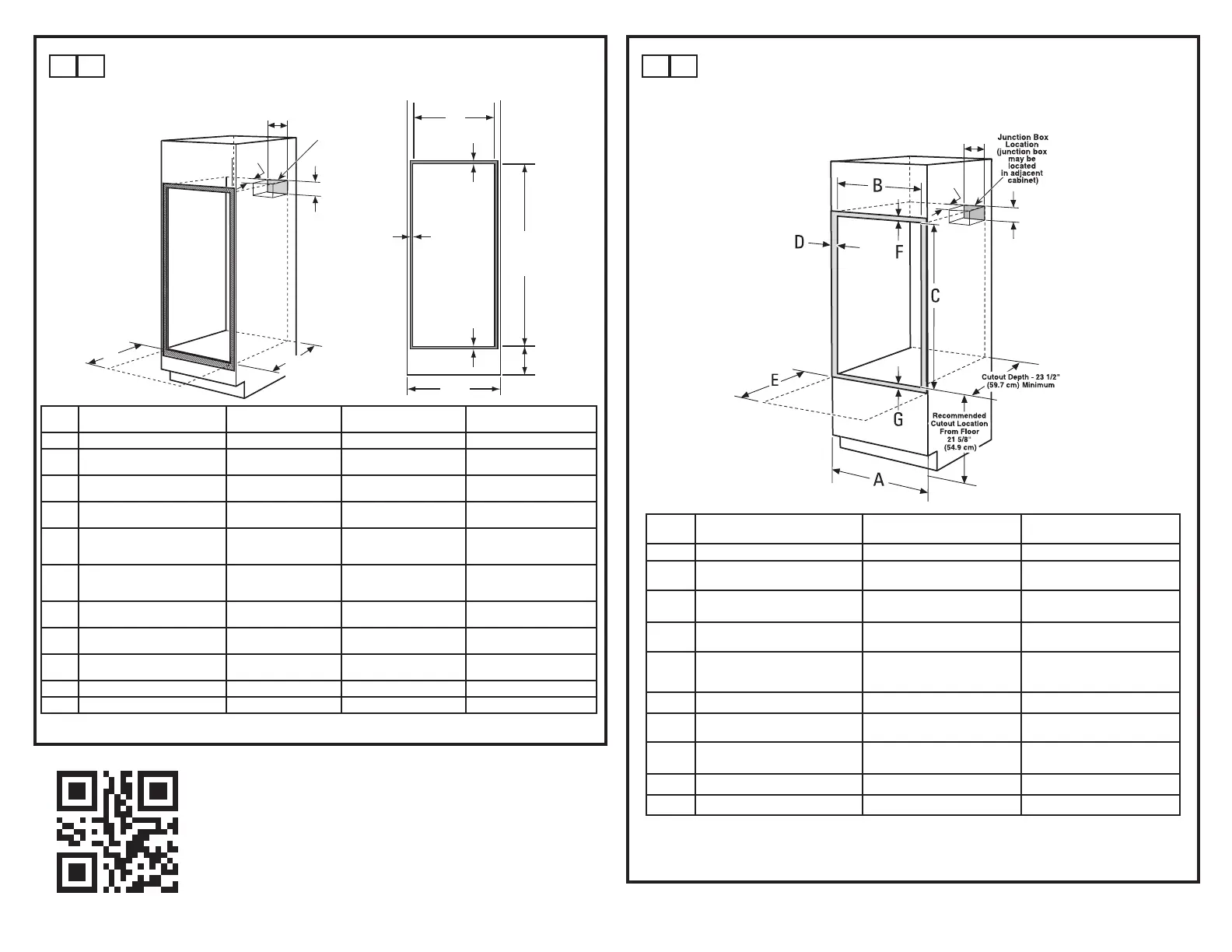

2 B CUTOUT FOR SINGLE OVENS – UNDER COUNTER

NOTE: These ovens are only approved to be installed under the specific models as labeled on

the unit.

NOTE: One cooktop may be centered over either

oven in the side-by-side installation.

Cutout – observe

all dimensions and

requirements.

2” (5.1 cm) Min.

30.5” (77.5 cm) 30” models

27” (68.58 cm) 27” models

Center Line Center Line

Side-by-Side Installations

Install two ovens in separate cutouts.

Cooktop

Cutout – observe

all dimensions and

requirements.

Continue to Section 4.

Dimension Dimension Description 27” Single Oven 30” Single Oven

ACabinet Width 25” (63.5 cm) min.

251»4” (64.1 cm) max.

281»2” (72.4 cm) min.

285»8” (72.7 cm) max.

BCutout Height 275»8” (70.2 cm) min.

281»8” (71.4 cm) max.

271»4” (69.2 cm) min.

275»16” (69.4 cm) max.

CClearance from cutout - top* 1” (2.5 cm) 1” (2.5 cm)

(11»4” (3.2 cm) for

PT9050

ZET1S and ZET1P)

DClearance from cutout - bottom* 1” (2.5 cm) 11»4” (3.2 cm)

EClearance from cutout - side edges* 1” (2.5 cm) 11»16” (1.75 cm)

FJunction Box Location 83»4” (22.2 cm) max.

right side only

»2” (24.1 cm) max.

right side only

* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.

IMPORTANT: Maintain

a minimum distance

of 31-1/4” from the

top surface of the

countertop to the

wall oven platform to

ensure that the cooktop

and wall oven do not

interfere with each other

(see picture).

31-1/4” min.

(79.4 cm)

SIDE VIEW

Cooktop

Wall Oven

2-1/2” min. (6.4cm)

2 A CUTOUT FOR SINGLE OVENS IN WALL CABINET

NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick,

shim both sides equally to establish the cutout width.

These ovens

are not

approved for

installations that

stack one single

wall oven above

another single

wall oven.

Cutout –

observe all

dimensions and

requirements.

Cutout –

observe all

dimensions and

requirements.

2” (5.1 cm) Min.

30.5” (77.5 cm)

30” models

27” (68.58 cm)

27” models

Center Line Center Line

Side-by-Side Installations

Install two ovens in separate cutouts.

Recommended

Cutout Location

from Floor

32-1/2” (82.6 cm)

Junction

Box

Location

(junction

box may

be located

in adjacent

cabinet)

Cutout Depth

23-1/2”

(59.7 cm) Min.

Opening

Between Inside

Walls Must be

at Least 28-1/2”

(72.4 cm) Wide

NOTE: Allow

1/4” (0.64 cm)

clearances from

side edges of

oven door.

Dimension Dimension Description 27” Single Oven 30” Single Oven

ACabinet Width 27” (68.6 cm) 30” (76.2 cm)

BCutout Width 25” (63.5 cm) min.

251»4” (64.1 cm) max.

281»2” (72.4 cm) min.

285

»8” (72.7 cm) max.

CCutout Height 27

5»8” (70.2 cm) min.

281»8” (71.4 cm) max.

271

»4” (69.2 cm) min.

275

»16” (69.4 cm) max.

Clearance from cutout - side edges*

1” (2.5 cm) 11»16” (1.75 cm)

EClearance to Adjacent Corners,

Drawers, Walls, etc., When Door

Is Open

23” (50.8 cm) min. 23” (53.3 cm) min.

FClearance from cutout - top* 1” (2.5 cm) min. 1” (2.5 cm) min.

(1 1»4” (3.2 cm) for PT9050,

ZET1S and ZET1P)

GClearance from cutout - bottom* 1” (2.5 cm) min. 1

1»4” (3.2 cm)

HJunction Box Location 83»4” (22.2 cm) max.

right side only

»2” (24.1 cm) max.

right side only

PJunction Box location 5-1/4” (13.34 cm) max. 5-1/4” (13.34 cm) max.

RJunction Box location 2-1/2” (6.35 cm) max. 2-1/2” (6.35 cm) max.

* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.

2 C CUTOUT FOR DOUBLE OVENS (2 THERMAL OVENS)

NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick,

shim both sides equally to establish the cutout width.

2 D CUTOUT FOR COMBINATION OVENS

(WITH UPPER MICROWAVE OVEN)

NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick,

shim both sides equally to establish the cutout width.

Dim. Description 27” Double Oven 30” Double Oven with

Pedestal 30” Double Oven without

Pedestal

ACabinet Width 27” (68.6 cm) 30” (76.2 cm) 30” (76.2 cm)

BCutout Width 25” (63.5 cm) min.

251

»4” (64.1 cm) max. 281»2” (72.4 cm) min.

285»8” (72.7 cm) max. 281»2” (72.4 cm) min.

285»8” (72.7 cm) max.

CCutout Height

4911»16” (126.2 cm) min.

501»8” (127.3 cm) max. 5113

»16” (131.6 cm) min.

5115

»16” (131.9 cm) max. 50 ¼” (127.64cm)

DClearance from cutout - side

edges* 1” (2.5 cm) 11

»16” (1.75 cm) 11

»16” (1.75 cm)

Clearance to Adjacent Corners,

Drawers, Walls, etc., When Door

Is Open

23” (50.8 cm) min. 23” (53.3 cm) min. 23” (53.3 cm) min.

FClearance from cutout - top* 1” (2.5 cm) min. 1” (2.5 cm) min.

(11

»4” (3.2 cm) for PT9550,

ZET2S and ZET2P)

1” (2.5 cm) min.

(11

»4” (3.2 cm) for PT9550,

ZET2S and ZET2P)

GClearance from cutout -

bottom* 1” (2.5 cm) min. 11

»4” (3.2 cm) 11

»4” (3.2 cm)

HJunction Box Location 8

3»4” (22.2 cm) max.

right side only 91

»2” (24.1 cm) max. right

side only 91

»2” (24.1 cm) max. right

side only

KRecommended Cutout

Location from Floor

131»4” (33.7 cm) 12” (30.5 cm) 12” (30.5 cm)

PJunction Box location 5-1/4” (13.34 cm) max. 5-1/4” (13.34 cm) max. 5-1/4” (13.34 cm) max.

RJunction Box location 2-1/2” (6.35 cm) max. 2-1/2” (6.35 cm) max. 2-1/2” (6.35 cm) max.

Dim. Description

27” Oven

with Microwave

30” Oven

with Microwave

ACabinet Width 27” (68.6 cm) 30” (76.2 cm)

BCutout Width 25” (63.5 cm) min.

251»4” (64.1 cm) max.

281»2” (72.4 cm) min.

285»8” (72.7 cm) max.

CCutout Height 41

1»8” (104.5 cm) min.

411

»4” (104.8 cm) max.

423

»16” (107.2 cm) min.

421

»4” (107.3 cm) max.

DClearance from cutout -

side edges* 1” (2.5 cm) 11»16” (1.75 cm)

Clearance to Adjacent Corners,

Drawers, Walls, etc., When Door

Is Open

23” (58.4 cm) min. 23” (58.4 cm)

FClearance from cutout - top* 1” (2.5 cm) min. 1” (2.5 cm) min.

GClearance from cutout -

bottom* 1” (2.5 cm) min. 1 1»4” (3.2 cm)

HJunction Box Location 83

»4” (22.2 cm) max.

right side only

»2” (24.1 cm) max.

right side only

PJunction Box location 5-1/4” (13.34 cm) max. 5-1/4” (13.34 cm) max.

RJunction Box location 2-1/2” (6.35 cm) max. 2-1/2” (6.35 cm) max.

Continue to Section 3.

Continue to Section 2E.

Junction Box

Location

(junction

box may

be located

in adjacent

cabinet)

Cutout Depth

23-1/2”

(59.7 cm) Min.

31-2000964 Rev. 1 11-21 GEA

* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.

NOTE: Allow

1/4” (0.64 cm)

clearances from

side edges of

oven door.

NOTE: Allow

1/4” (0.64 cm)

clearances from

side edges of

oven door.

Produktspecifikationer

Varumärke:	Café
Kategori:	Ugn
Modell:	CTD90DP4NW2

Behöver du hjälp?

Om du behöver hjälp med Café CTD90DP4NW2 ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Ugn Café Manualer

Café CES700P4MW2 Bruksanvisning

17 Oktober 2024

Café CGS750P4MW2 Bruksanvisning

17 Oktober 2024

Café C2Y486P2TS1 Bruksanvisning

17 Oktober 2024

Café CES750P4MW2 Bruksanvisning

17 Oktober 2024

Café CHP90302TSS Bruksanvisning

17 Oktober 2024

Café CGY366P4TW2 Bruksanvisning

17 Oktober 2024

Café CES700P2MS1 Bruksanvisning

17 Oktober 2024

Café CGS700P3MD1 Bruksanvisning

17 Oktober 2024

Café CEP90301TBB Bruksanvisning

13 Oktober 2024

Café CTD90DP2NS1 Bruksanvisning

26 September 2024

Ugn Manualer

Nyaste Ugn Manualer

Taurus HM778WHD Bruksanvisning

27 Oktober 2024

Lacanche CITEAUX Bruksanvisning

27 Oktober 2024

JennAir JDS1450FS Bruksanvisning

27 Oktober 2024

Orima ORP-76-IN Bruksanvisning

27 Oktober 2024

Breville the Handy Hot Plate BHP150 Bruksanvisning

27 Oktober 2024

JennAir JGRP436HL Bruksanvisning

27 Oktober 2024

Neff C17MS22G1 Bruksanvisning

27 Oktober 2024

Pit Boss BK24 Bruksanvisning

27 Oktober 2024

Guzzanti GZ-8206 Bruksanvisning

27 Oktober 2024

Avanti DE2402SC Bruksanvisning

27 Oktober 2024
