Sida 1/14
4
21
N O T E S

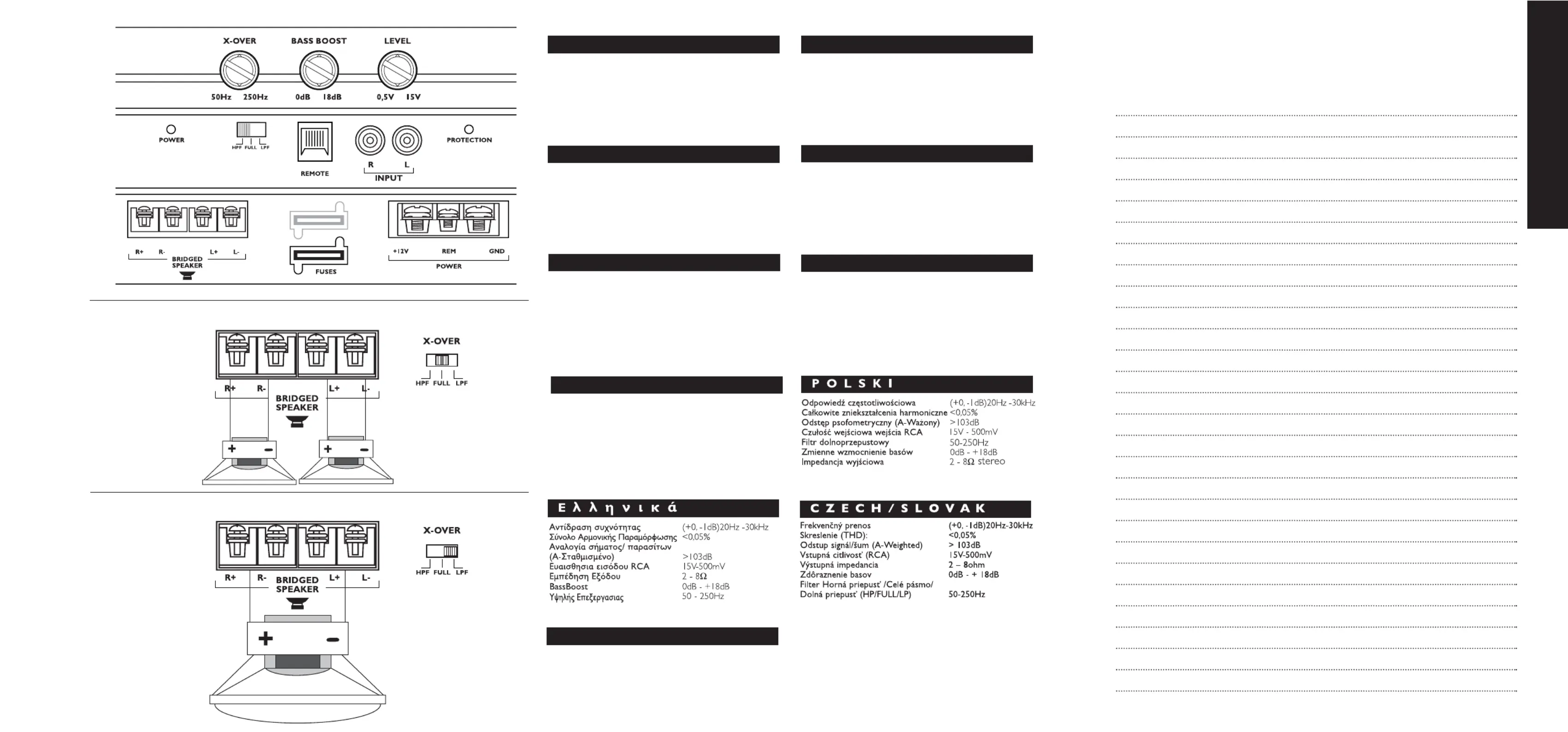

NORMAL SYSTEM SET-UP
OPTIONAL SYSTEM SET-UP
Frequency response (+0, -1dB)20Hz-30kHz
Total Harmonic Distortion <0,05%
Signal to noise ratio (A-Weighted) > 103dB
Input Sensitivity RCA input 15V-500mV
Output Impedance 2 - 8Ω
Bass Boost 0dB - + 18dB
Low Pass/Full Range/High Pass Filter 50 - 250Hz
Frequenzgang (+0, -1dB)20Hz-30kHz
Gesamtklirrfaktor <0,05%
Rauschabstand (A-bewertet) > 103dB
Eingangsempfindlichkeit Cinch-Eingang 15V-500mV
Ausgangsimpedanz 2 - 8Ω
Basshervorhebung 0dB - + 18dB
Tiefpass/Vollbereich/HochpassSchalter 50 - 250Hz
Frekvensrespons (+0, -1dB)20Hz-30kHz
Total harmonisk forvrengning <0,05%
Forhold mellom signal og støy (A-vektet) > 103dB
Inngangsfølsomhet RCA-inngang 15V-500mV
Utgangsimpedans 2 - 8Ω
Basshevning /senking 0dB - + 18dB
Low Pass Filter / Full Range /
High Pass Filter 50 - 250Hz
Respuesta de frecuencia (+0, -1dB)20Hz-30kHz
Distorsión armónica total <0,05%
Media señal-ruido (ponderada en A) > 103dB
Entrada Input Sensitivity RCA 15V-500mV
Impedancia de salida 2 - 8Ω
Compensador de Bajos 0dB - + 18dB
Filtropaso bajo/Full Range/
Filtro paso alto 50 - 250Hz
Réponse en fréquence (+0, -1dB)20Hz-30kHz
Distorsion harmonique totale <0,05%
Rapport signal/bruit (pondéré A) > 103dB
Sensibilité d'entrée Entrée Cinch 15V-500mV
Impédance de sortie 2 - 8Ω
Accentuation des graves 0dB - + 18dB
Filtre passe-bas/Gamme complète/
Filtre Passe Haut 50 - 250Hz
Risposta in frequenza (+0, -1dB)20Hz-30kHz
Distorsione armonica totale <0,05%
Rapporto segnale/rumore (pesato 'A') > 103dB
Sensibilità di ingresso RCA 15V-500mV
Impedenza di uscita 2 - 8Ω
Enfatizzazione bassi 0dB - + 18dB
Filtro passa basso/Full Range/ passa alto 50 - 250Hz
Resposta de frequência (+0, -1dB)20Hz-30kHz
Distorção harmónica total <0,05%
Média sinal-ruído (ponderada em A) > 103dB
Entrada Input Sensitivity RCA 15V-500mV
Impedância de saída 2 - 8Ω
Compensador de Baixos 0dB - + 18dB
Passagem Baixa / Filtro de Gama
Completa / Passagem Alta 50 - 250Hz
E N G L I S H
E S P A Ñ O L P O R T U G U Ê S
S V E N S K
D E U T S C H I T A L I A N O
F R A N C A I S
Frequentierespons (+0, -1dB)20Hz-30kHz
Totale harmonische vervorming <0,05%
Signaal-ruisverhouding (A-Weighted) > 103dB
Ingangsgevoeligheid RCA-ingang 15V-500mV
Uitgangsimpedantie 2 - 8Ω
Bass Boost 0dB - + 18dB
Low Pass / Full Range / High Pass Filter 50 - 250Hz
N E D E R L A N D S
CA 2080
Maximum Power Output at 14,4V
4Ω20Hz - 30kHz THD 1% 2x 120W
2Ω20Hz - 30kHz THD 1% 2x 150W
4Ω1kHz Mono Bridged 1x 300W
Continuous Power Output at 14,4V
4Ω20Hz - 30kHz THD 1% 2x 75W
2Ω20Hz - 30kHz THD 1% 2x 95W
4Ω1kHz Mono Bridged 1x 190W
Fuse Rating 25A
Dimensions 320 x 250 x 80mm
CA 2150
Maximum Power Output at 14,4V
4Ω20Hz - 30kHz THD 1% 2x 225W
2Ω20Hz - 30kHz THD 1% 2x 285W
4Ω1kHz Mono Bridged 1x 570W
Continuous Power Output at 14,4V
4Ω20Hz - 30kHz THD 1% 2x 95W
2Ω20Hz - 30kHz THD 1% 2x 125W
4Ω1kHz Mono Bridged 1x 250W
Fuse Rating 2x 20A
Dimensions 320 x 390 x 80mm
4
E N G L I S H
3
E N G L I S H
2
S I G N A L I N P U T
• The RCA’s to your left are the ‘Line-in’ terminals and are to be connected with your radio/cassette
or CD player.
• All Caliber amplifiers have a variable input level adjustment. It allows you to match any signal source
(CD player,AM/FM cassettedeck, etc) correctly from its pre-amp output into your Caliber amplifier.
The adjustment ranges from 15V - 500mV(0.5V).
• The Caliber Evolution amplifiers feature a built-in variable crossover which allows you to fine-tune
your amplifiers response as you like it. Either for the Full Range sound, in which case the HPF-FULL-
LPF switch remains in its FULL position, or you can specifically select the High-Pass-Filter (HPF) or
Low-Pass-Filter (LPF) to adjust to your speakers requirements.The built-in variable crossover can
be adjusted in a range from 50Hz - 250Hz.
S P E A K E R O U T P U T
• All the Caliber Evolution amplifiers have Stereo/Bridgeable Tri-Mode speaker output terminals.The
amplifier has its own stereo/bridge switch built-in, so there is no need to select a stereo or bridged
mode.You can connect the speakers to each channel in stereo mode, and simultaneously connect
a sub-woofer to the speaker terminal in a bridged mode.
• Pay attention in connecting your speakers and/or sub-woofers. Be sure to observe correct speaker
output connections for front, rear and their polarity.
• In the stereo mode, connect the right speaker output to the right speaker and the left to the left.
Connect the positive (+) output to the positive (+) speaker terminal and the negative (-) output
to the negative (-) speakerterminal.
• In the bridged mode connect the right (+) positive to the positive speaker terminal and the left (-)
negative to the negative speaker terminal.
• Do not use the negative speaker output commonly for left and right speakers (common ground).
Improper polarity causes a loss of bass response.
• Never connect the negative speaker output to the chassis of your vehicle.This can cause severe
damage to your Car Audio System.
A M P L I F I E R A D J U S T M E N T S
• Put the input level adjustment knob to the minimum.
• Put the volume of your radio to 3/4 of the maximum.
• Adjust the Bass Boost to your personal sound.
• Now adjust the input level of the front channel. Slowly turn up the input level and listen carefully
untill you hear the amplifier begin to distort.A Caliber Amplifier “clips” very softly, so this can some-
times be a difficult adjustment. If you have turned up the Bass Boost to much, the amplifier will start
clipping immediatly. In that case you must turn back the Bass Boost and start adjusting the input-
level again.You will hear that the Bass you wanted can be required in this way.
C A L I B E R W A R R A N T Y
Due to the complexity of our products, we strongly recommend that this amplifier is installed by
your authorized Caliber dealer. If properly installed by your dealer we provide a warranty for 12
month from the date of purchase.
If you install this amplifier yourself, we wish you lots of fun and succes in doing so. If you follow our
guidelines, you’ll get the best result. Our warranty, however, will be limited to and not exceed 30
days from the date of purchase.
F E A T U R E S
• Bridgeable outputs.
• ’Tri-mode’ output capability, simultaneous stereo & bridged mono set up is possible.
• Pulse Width Modulated (PWM) MOSFET Power Supply.
• Variable input sensitivity: RCA input 0.5V to 15V.
• Thermal-, Overload- and Shortcircuit protection.
• Excellent muting circuitry assures no turn on/off ‘pops’.
• Built-in High Pass / Full Range / Low Pass Filter Switch.
• Chrome plated power connectors for optimal power distribution.
• European design and engineering.
• Chrome plated speaker connectors for optimal signal output.
M O U N T I N G
The amplifier has to have at least 5 cm (2”) ventilation space at all sides, to allow the heat to rise
away from the amplifier. Be sure that the power and signal cables can enter and leave the amplifier
in a straight line, to avoid the risk of malfunction. Always place the power- and signalcables at
opposite sides of the vehicle to reduce any noises.
The amplifier should be protected from exposure to moisture and direct sunlight.
Mark the mounting surface using the amplifier as a template, then drill 2.5 mm (1/8”) diameter holes
at the marked locations and mount the amplifier using the supplied self-tapping screws.
I N S T A L L A T I O N
Remember to always disconnect battery ground before working on a vehicle’s electrical system!
Always place a fuse or circuit breaker no more than 30 cm (12”) from the battery, no greater than
the fuse(s) of your amplifier for optimal protection.
G E T T I N G Y O U R P O W E R S T A R T E D
• First, the +12V terminal is connected directly to the battery of your car. Use a cable of at least
10 mm2, and make sure that the connectors are of the same value.
- Don’t forget the extra “Vehicle protection” fuse.
- The 12V + terminal should NOT be connected to the car fuse box.
• Second, the ground terminal (GND) must be fastened securely to the chassis of the vehicle with the
same mm2 cable as the positive cable (the same amount of power has to run through it). Ensure
that all paint, undercoating or any other insulation is removed from the area where you want to
make your ground connection to.
• Third, the last cable to connect is your remote turn-on (REM). Many radio-cassette and CD-players
have an output terminal for connection of the REM of an amplifier. If you don’t have such an out-
put, a separate switch must be installed to control your amplifiers on/off function.
