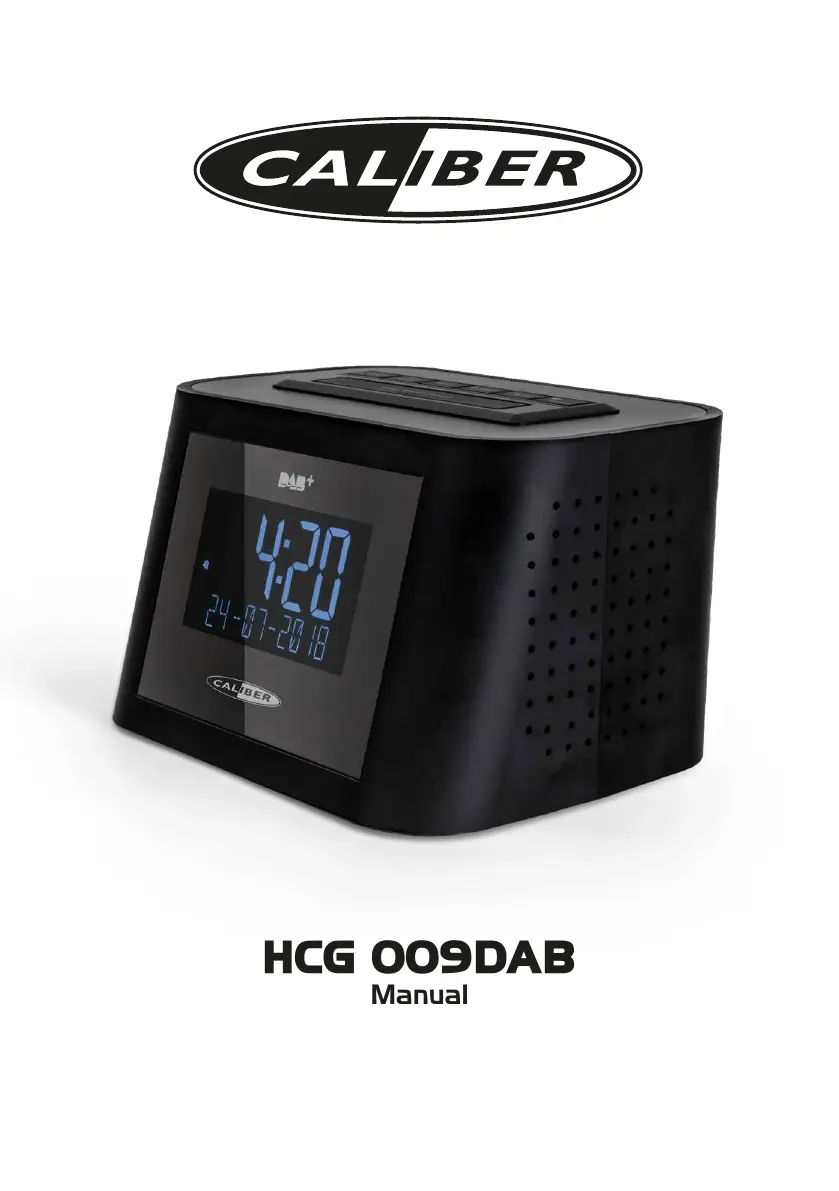

Caliber HCG 009DAB Bruksanvisning
Caliber
Klockradio
HCG 009DAB
Läs nedan 📖 manual på svenska för Caliber HCG 009DAB (15 sidor) i kategorin Klockradio. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/15
GB • F • D • I • E • P • SW • PL • GR • CZ/SK • NL
SPECIFICATIONS, CONNECTIONS AND BUTTONS
Input: 5V DC 1.2A (by adapter 100V~240V, 50/60Hz)
Power Consumption: 6W
Frequency range: FM 87.5 - 108MHz
DAB 174.928MHz - 239.200MHz
Speaker: 2x8Ω1WRMS
Dimensions: 120(W) x 95(D) x 78(H)mm
1. Mode / Standby q button
Push repeatedly to switch between:
FM radio / DAB+ radio / OFF (standby)
2. Info / Menu
- Long press the button to enter main menu,
- Press briefly to see the information under the
station.
3. Preset
- Long press the button to enter the Preset menu,
choose the number then press [ /Select ] (6)
to save the preset.
- Short press the button to recall the preset list.
4. ▼Down
- Press the button to scroll through items from the
menu
- Hold to do quick scan FM station downwards.
5. ▲Up
- Press the button to scroll through options
- Hold to do quick scan FM station upward.
6. / Select
- Press to confirm a selection
- To adjust volume, press this button and follow by
up / down to adjust the volume level.
7. Sleep/Alarm/Snooze
- Sleep
Press the button to scroll through the Sleep timer
interval options.
- Alarm
Long press the button to enter alarm setting.
- Snooze
when alarm is active, press the button to activate
Snooze, the alarm will come on again in 9
minutes.
8. LCD Display
9. 3.5mm Earphone jack
10. DC in jack (5V 1.2A)
11. USBfor5Vcharging
Charge your phone or other device
12. SoftwareUpdateport
Reservedforinternalupgradeonly.
13. Wire antenna
extend as far as it can for best reception
We are continuously improving/updating our products and product information.
It’s therefore possible that there is a slight difference between the description in this manual to the operation of the product.
If something is different or not clear; always check our website for the most current version.
ENGL ISH
MANUAL
Connection and clock set
• Plug the adapter into a 100~240V AC outlet and the other end in the DC in (10).
• The electronic clock will turn ON and the clock shows “0:00”.
• The LCD backlight will light up and shows “PLZ SET TIME”. Press [ /Mode] button to turn ONq
theradio.TheradiowillstartscanningtheDABchannelsautomaticallyinthersttime:
• The time will sync to the time broadcasted by DAB, by default.
• Oncethescanisnished,itwilldisplaythenumberofradiostationsreceived,andstarttoplaytherststation
automatically.
• Toexplorethestationsthathavebeenfound,youneedtopresseitherthe‘Downor‘Up’keytoseethenextor
previousstation.Whenyoundaradiostationthatyouwouldliketolistento,thenpressthe[ / Select] button
to select the station. If you don’t press the select key, the radio will switch to the new station automatically after 5
seconds.
• When you start up the radio again, the radio plays the same mode and same station as last listened.
Adjusting the volume
Press [ /Select]button,thenpress[Up]or[Down]toincreaseanddecreasethevolume.
Changing radio mode (DAB+/FM)
Select the DAB+/FM mode by long pressing the [ /Mode ] button.q
Adjusting the backlight
There are 3 levels of brightness available for selection.
• To adjust the brightness level, turn the radio to Standby and use the up/down button to adjust.
• You can set the time out interval under the <Time out> setting menu. Long press the Info/Menu button to access the
main menu, choose <System> and select <Timeout> option to do the setting.
Remark: Refer to the System section for the options available of Time out.
DAB+ mode
The Info/Menu button enables you to change some of the default settings of your radio, so that it works just the way you
want it to. To enter into the main menu, hold and press the Info/Menu button for 3 seconds, it will enter into the main
menubelow.Youcanpress[Up]or[Down]tochoosedifferentsubmenus.Wheneveryouwanttoexitthemenu,long
pressing the Info/Menu button to return the previous menu.
Full scan
It searches all stations available in your location; it may take 1-3 minutes to complete the scan.
Manual Tune
1.Usingthemanualtunefeature,youcanmanuallytunethereceiver.Thiscanhelpyouwhenaligningyouraerialor
when adding stations that were missed while auto tuning.
2.Pressthe[Up]or[Down]buttontoscrollthroughthedigitalradiofrequenciesandselectthefrequencyyouwantto
netune.
Precautions
Points to observe for safe usage
Readthismanualcarefullybeforeusingthisitemanditscomponents.
They contain instructions on how to use this product in a safe and
effective manner. Caliber Europe BV cannot be responsible for problems
resulting from failure to observe the instructions in this manual.
Turn off the device immediately in case of a problem.
Failure to do so may cause personal injury or damage to the product.
ReturnittoyourauthorizedCaliberEuropeBVdealerforrepairing.
Product cleaning.
Useasoftdryclothforperiodiccleaningoftheproduct.Formore
severe stains, please dampen the cloth with water only. Anything else
has the chance of dissolving the paint or damaging the plastic.
Temperature.
Ensure that the ambient temperature is between 0°C and +45°C
before turning on the device.
Maintenance.
If you have problems, do not attempt to repair the unit yourself.
ReturnittoyourCaliberEuropeBVdealerforservicing.
Placement.
Placetheproductonaatsurface.Provideenoughspace
aroundtheproductforsufcientventilation.
Heat.
Do not locate the appliance in the vicinity of a heat surface or
in direct sunlight.
