E N G L I S H
1
S P E C I F I C A T I O N S
GENERAL
Power Supply DC 11 -14V
Polarity Negative Ground
Speaker impedance 4 ohms
Power Output 4 x 55W
CD PLAYER
System Compact disc audio system
Usable disc Compact disc
Sampling frequency 44.1KHz
No of quantization bits 1bit
Frequency 5-20,000Hz
Number of channels 2 stereo
S/N Ratio 70dB
RADIO SECTION
FM
Frequency Range 87.5-108 Mhz
Usable Sensitivity Better than 15dB at S/N 30 dB
Stereo Separation 25 dB at 1KHz
S/N Ratio 50 dB
AM/MW
Frequency Range 522-1620 Khz
Intermediate Frequency 450KHz
Usable Sensitivity Better than 45dB
S/N Ratio 40 dB
REMARK :
Specifications subject to change without notice.

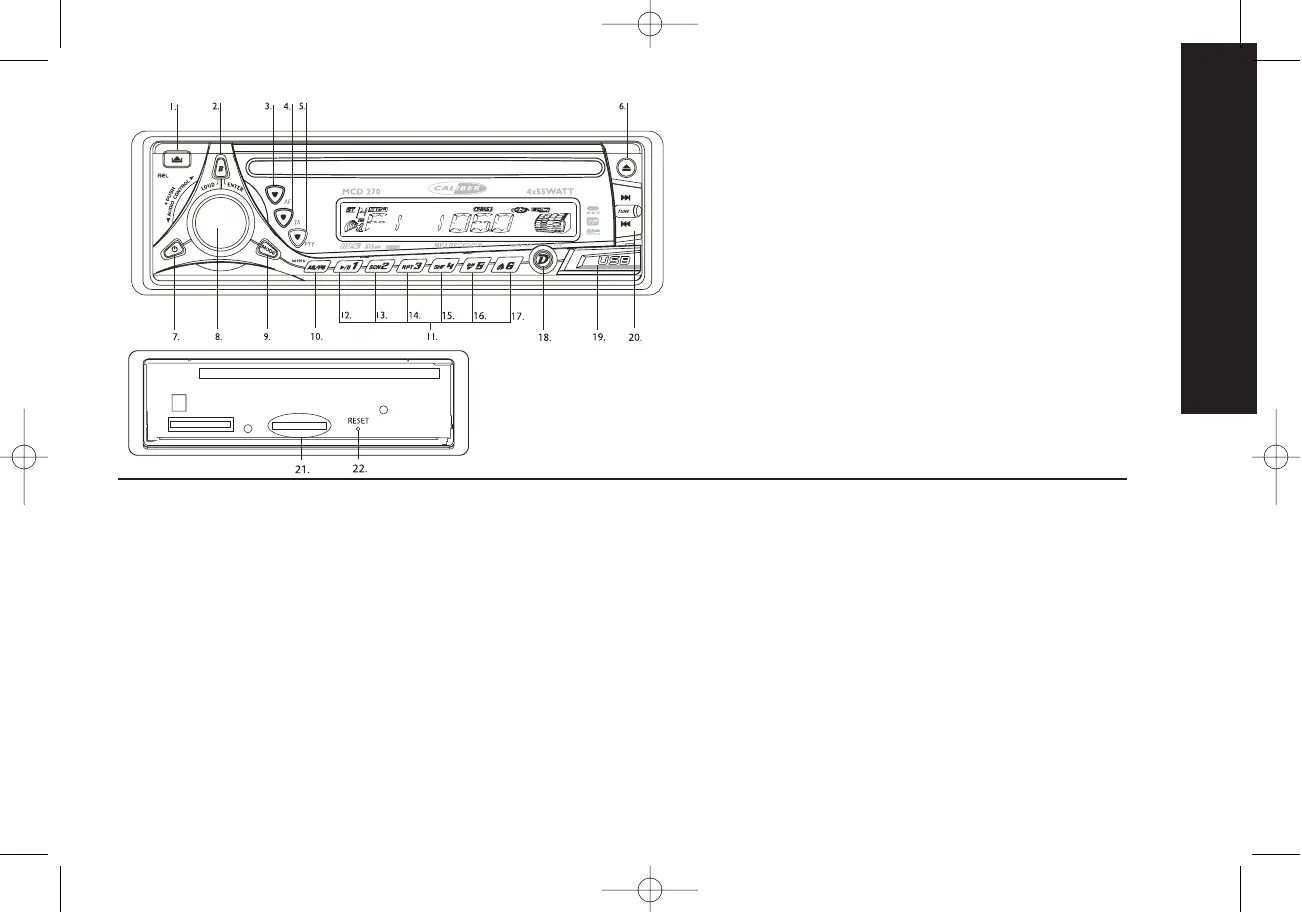

1. PANEL RELEASE BUTTON
2. BAND/LOUD BUTTON
3.AF BUTTON
4.TA BUTTON
5. PTY BUTTON
6. DISC EJECT
7. POWER BUTTON
8. ROTARY VOLUME KNOB
AUDIO SELECT BUTTON/ MP3 ENTER BUTTON
9. MODE BUTTON
10.AUTOMATICALLY STORE/PRESET SCAN (AS/PS)/MENU BUTTON
11. PRESET STATIONS BUTTONS (1~6)
12.PAUSE BUTTON
13. SCAN BUTTON
14. REPEAT BUTTON
15. SHUFFLE (RANDOM) BUTTON
16. PREVIOUS FOLDER BUTTON
17. NEXT FOLDER BUTTON
18. DISPLAY BUTTON/ MP3 ID3 BUTTON
19. USB COVER
20.TUNING UP/DOWN,TRACK UP/DOWN BUTTONS
21. SD/MMC CARD INPUT
22. RESET BUTTON
MCD 270 manual 18-08-2006 11:21 Pagina 1
E N G L I S H
2
D I S C P L A Y
P R E C A U TI O N S
• Use only in a 12-volt DC negative-ground electrical system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the
unit.
• When replacing the fuse, be sure to use one with an identical amperage rating.
• Using a fuse with a higher amperage rating may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dan-
gerous to the eyes.
• Make sure that pins or other objects do not get inside the unit; they may cause mal-
functions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the tem-
perature in the car become normal before operating the unit.
• Keep the volume at a level at which you can hear outside warning sounds (horns
sirens, etc.).
CD N OTE S
• Playing a defective or dusty CD can cause dropouts in sound.
• Hold CDs as illustrated.
• DO NOT touch the unlabeled side.
• DO NOT attach any seal, label or data protection sheet to either side of a disc.
• DO NOT expose a CD to direct sunlight or excessive heat.
• Wipe a dirty CD from the center outward with a cleaning cloth.
• Never use solvents such as benzine or alcohol.
• This unit cannot play 3-inch ( 8cm ) CDs.
• NEVER insert a 3-inch CD contained in the adapter
or an irregularly shaped CD.
• The unit may not be able to eject it, resulting in a
malfunction.
B E F OR E O P E R ATION
• DO NOT raise the volume level too much, as this
will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operation.
C A U T I O N
DO NOT open covers and do not repair by yourself.
Consult the dealer or an experienced technician for help.
Installation procedures
First complete the electrical connections, and then
check them for correctness.
Anti-Theft System
This unit is equipped with a detachable panel.
Removing this panel makes the radio totally inoperable.
Removing the panel
1. Switch off the power of the unit.
2. Remove the detachable panel.
3. Gently press the button of the case and open the
cover. Place the panel into the case and take it with you
when you leave the car.
Install detachable panel
1.Fix right part of face plate in the right part of panel slot
of the unit.
2.Press down the left side of the face plate until it clicks
into the panel slot of the unit.
Remove the unit
Switch of the power of the unit.
1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole in front of the set until
they lock.
3. Pull out the unit.
1. Insert mounting bracket into the
dashboard, and bend the mounting
tabs out with a screwdriver. (Make
sure that lock lever is flush with
the mounting bracket. Not projec-
ting outward)
2. Secure the rear of the unit After
fixing mounting bolt and power
connector, fix the rear of the unit
to the car body by rubber cushion.
3. Insert trimplate
MCD 270 manual 18-08-2006 11:21 Pagina 2
E N G L I S H
3
BASIC OPERATIONS
ON/OFF
Switch on the unit by pressing POWER button(7) or any other button on the radio
(except eject) when system is on, press POWER button(7) to turn off the unit.
FACEPANEL RELEASE
Press REL button (1) to remove the facepanel.
SOUND ADJUSTMENT
Press button (8) volume knob to enter the sound set up,the sound set up will change
in the following order Volume, Bass,Treble, Balance, Fader and back to Volume.
Press button (2) “BAND/LOUDNESS” longer then 3 seconds then Loudness will be
activated or disactivated.
SOURCE
Press button (9) “MODE“ to switch between CD, USB, SD/MMC and radio.
BEEPS 2ND, BEEP ALL, BEEP OFF
Press button (8) “VOLUME KNOB” longer then 3 seconds. Now press the volume
knob until you see “BEEP” in the display.You can rotate the volume knob to select the
following options:
BEEP 2ND Beeps only when the second function of the dual function button is selec-
ted (long press).
BEEP ALL Beeps when any button is pressed.
BEEP OFF To disable the beep option.
RADIO OPERATIONS
BAND SELECTION
At tuner mode, press button (2) shortly to select the desired band.The reception
band will change in the following order: FM1, FM2, FM3 and MW
STATION SELECTION
Press up or down button (20) shortly to activate automatic seek function. Press for 2
seconds until “ MANUAL” appeared on the display, the manual tuning
Mode is selected. If the buttons are not touched for more then 3 seconds it automa-
tic goes back to “AUTO SEEK”
AUTOSTORE AS
-Automatic Memory Storing
Press func button (10) “AS/PS” longer then three seconds , activate AS.The radio searches
for the 6 strongest stations and stores them into the preset of the currently selected band.
NOTE: Any stations that were previously stored in this memory bank are replaced by
a new station.
PRESET SCAN PS
Press func button (10) “AS/PS” for less then three seconds.The unit will pause for ten
seconds at each preset station. Press button (10) “AS/PS” again to stop scanning when
the desired station is reached.
Station store and recall
Press any one of the preset buttons (12 to 17) to recall a station which had been sto-
red in the memory. Press a preset button for 2 seconds, previous preset station is
overwritten by current tuned frequency.
RDS (RADIO DATA SYSTEM) OPERATIONS
The RDS data are the PI, PS,TP, PTY,TA and AF data.
PI: Program indentification code
Code for identifying program
PS: Program service name
Broadcast station name data expressed
In alphanumerically character
TP:Traffic program identification
Identification data for traffic information broadcasting station
TA:Traffic announcement identification
Identification data showing traffic information is being transmitted or not
AF:Alternative frequencies
Frequency list of broadcasting station transmitting the same program
SETTING AF MODE
Press button (3) AF for less then three seconds to select AF to be ON or OFF
Whenever AF is switched on, symbol “AF” appears on the display.
The tuner will return to Alternative Frequencies whenever the reception signals get-
ting worse.“ALARM” will be displayed when an emergency broadcasting is
received;meanwhile sound output level will be adjusted to the preset output level
automatically when the volume control is set at minimum.
USING PTY TO SELECT PROGRAM
The PTY function allows you to search for stations with a particular program type.
To select your program type, press the button (5) “PTY” less then three seconds.
Display will show: “pop music” or “news.
Now you can select the music type or speech type using preset keys 1 to 6 for your
selection as listed table:
Preset number PTY “pop” group PTY in “news” group
1 pop m, rock m news,affairs,info
2 easy m, light m sport,educatie,drama
3 classics, other m culture, science, varied
4 jazz, country weather, finance, childeren
5 nation m, oldies social, religion, phone in
6 folk m travel, leisure, document
MCD 270 manual 18-08-2006 11:21 Pagina 3
