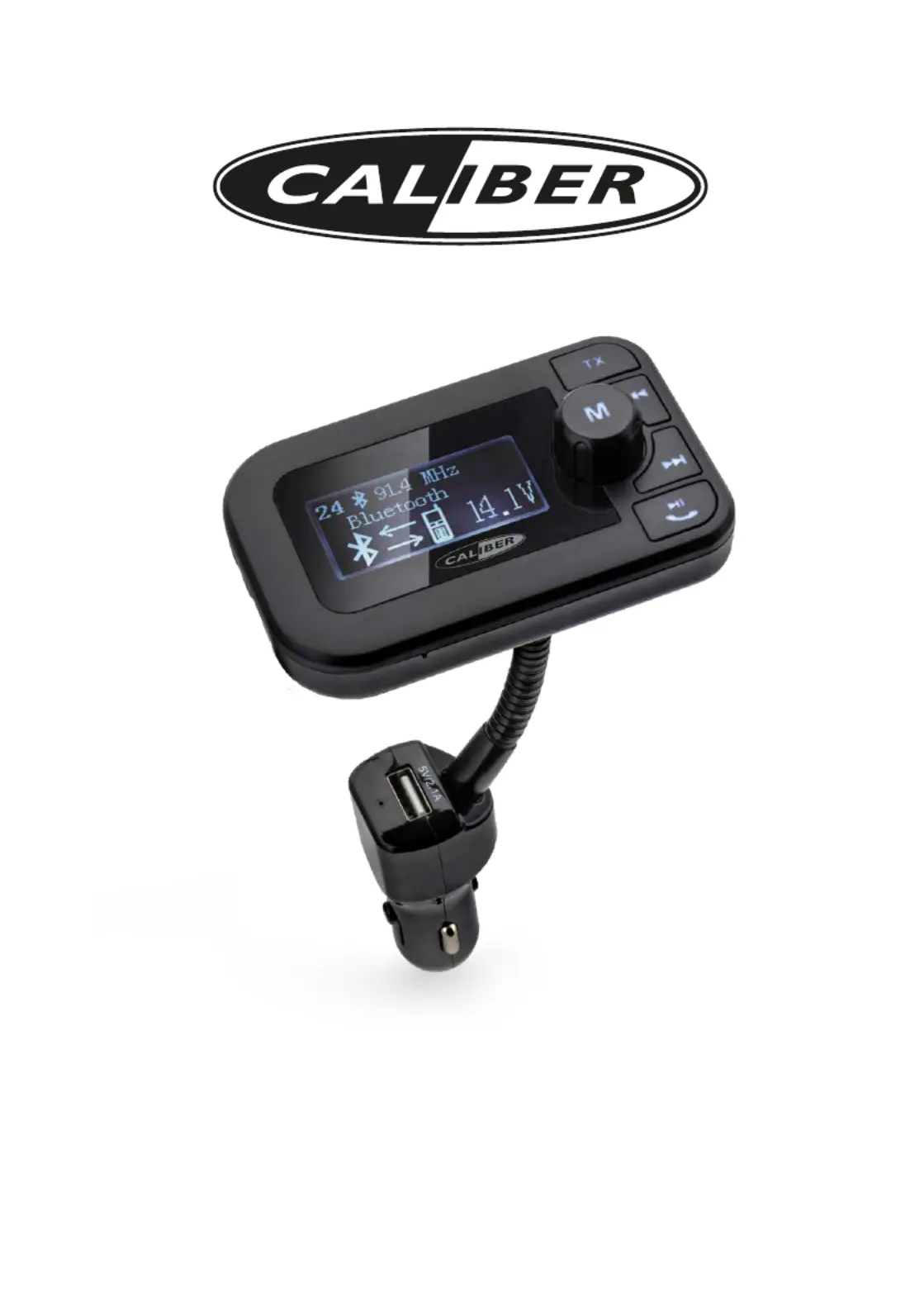

PMT 562BT

Manual

• GB •

Bluetooth® version: 4.1 + EDR

 supportsA2DPandAVRCPprole

Bluetooth® range: up to 10 meters (without barrier)

Transmission: Bluetooth®: Freq range: 2402-2480 Mhz / Max e.r.p:

<100mW/20dBm

Bluetooth name: “PMT562BT_CALIBER”

Built-in connections: - USB slot (max. size 64GB)

- Micro SD card slot (max. size 64GB)

- Aux-out 3.5mm jack connection

FM Freq. transmitter range: 87.6-107.9MHZ, Max e.r.p: <50nW/-43dBm

Frequency stability: ±10ppm

USB charging output: 5V DC 2.1A + 1.0A

Power supply: 12-24V DC

Dimensions: 90(W) x 55(D) x 15(H) mm

PMT 562BT Specifications

Product introduction

This device is a car MP3 player , which is equipped with professional high performance Bluetooth Bluetooth

module and MP3 decoder chip. It can play and transmit the music from SD-card/USB to car stereo via FM

radio signal. It can transmit your mobile phone’s music to car stereo via . It can also be used as Bluetooth

a hands-free car kit during driving. This device transmits signal by wireless method, no need to modify

anything in car. It can be used both as the music player for entertainment purpose or hands-free car kit in

safety purpose during driving.

Product features

1. Support hands free MIC calls, allowing you to answer the phone safely.Bluetooth

2. Noise and wind suppressed by CVC technology to create full duplex sound quality.

3. Support mobile’s A2DP function. Music will be played directly while the device is connected with a

mobile phone.

4. Mobile phone can be re-connected automatically.

5. Support an external SD card/USB, can play music les in MP3/WMA/WAV format.

6. Integrated car charger of output 5V/2.1A, it’s available for charging handheld devices in car.

Operation instructions

1. Device power-on

(1). Device turns on automatically when plug its integrated car charger to car cigarette lighter power.

(2). Select a frequency.

(3). Turn on car FM stereo and keep the frequency same with the device.

2. Frequency and volume adjustment

(1). This device supports 206 transmission frequency point : 87.5~108.0MHZ, Short press [ ] into the

Frequency setting mode, then rotate [ ] to adjust FM transmission frequency

(2). Rotate [ ] to adjust the volume

3. Playing music from SD-card

(1). Insert the SDcard into the device, it will automatically detect and play the MP3/WMA/WAV format

music in the SDcard.

(2). Musicselection: short press or to select songs.

4. Connect to Bluetooth devices

(1). This device is equipped with built-in chip, it can connect to an other handheld Bluetooth Bluetooth

devices.

(2). It will enter pairing mode automatically when the device is powered on.

Search this device with name of “PMT562BT_CALIBER”, and connect it.

(3). Memory function. It will connect to its memorized paired device automatically once the unit Bluetooth

is powered on.

5. Automatic re-connect function

When the unit is in power , the phone beyond the reception range, or leave the unit for some Bluetooth

time {more than 3 minutes}. Then put the phone back to the product‘s reception range, this time, Bluetooth

click any key of the unit, then the phone can be connected automatically. Don’t need to power o and re-

connect the unit and the mobile phone.
