Caliber RCD120/B Bruksanvisning
Läs nedan 📖 manual på svenska för Caliber RCD120/B (11 sidor) i kategorin bilradio. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/11

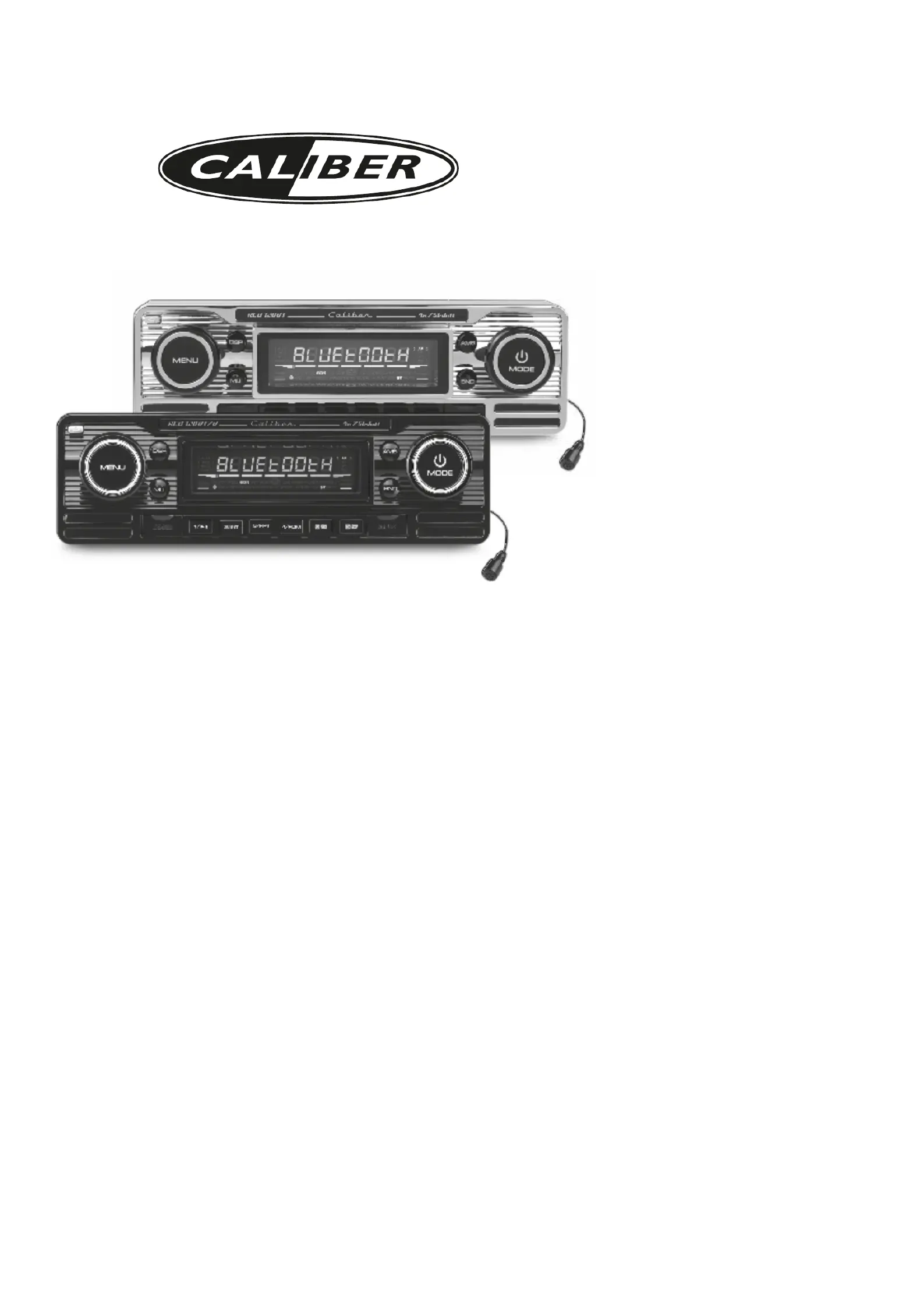

RCD 120BT(/B)
MANUAL
• GB •
Installation 02. ............................................... ..
Additional information 04.................................
General
operations
......................................
05
Radio
operations
.........................................
09
CD/SD/MMC/USB Operations ..................... 11
MP3 WMA overview 16.....................................
Specification.................................................17
Before playing discs..................................... 18
Trouble shooting............................................19
BLUETOOTH
15
...............................................
RDS
operation
.............................................
14
RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL
INPUT THE SD CARD
The SD oblique angle keeps
rightward , exposure put into
the SD slot and press it again
to .eject
1. Dashboard
2. Nut (5mm)
3. Spring Washer
4. Screw (5 x 25mm)
5. Screw
2.Insert fingers into the groove in the
front of frame and pul l out to remove
. ( the fram e When reatt achi ng the
frame, point the side with a groove
dow nwards and attach it.)
3 Leve r.
Insert the leve rs sup pl ied with the
uni t into the grooves at both sides of
the uni t and show n in figure unti l they
cli ck makes. Pull ing the le vers possible
to remove th e unit fro m th e dashboard .
DIN REAR-MOUNT (Method B)
Installation using the screw holes on
the sides of the unit
Fastening the unit to the factory
radio mounting bracket:
1. Select a position where the screw
holes of the bracket and the
screw holes of the main unit
become aligned (are fitted), and
tighten the screws at 2 places on
each side. Use either truss screws
(5 x 5mm) or flush surface screws
(4 x 5mm)
2. Screw
3. Dashboard or Console
INSTALLATION
6. Strap
Be sure to use the strap to
secure the back of the unit in
place. The strap can be bent by
hand to the desired angle.
7. Plain Washer
2
3
2
2
1
3
( )Fig.3
Removing the unit
1
2
3
4
5
6
7
( )Fig.2
RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL
