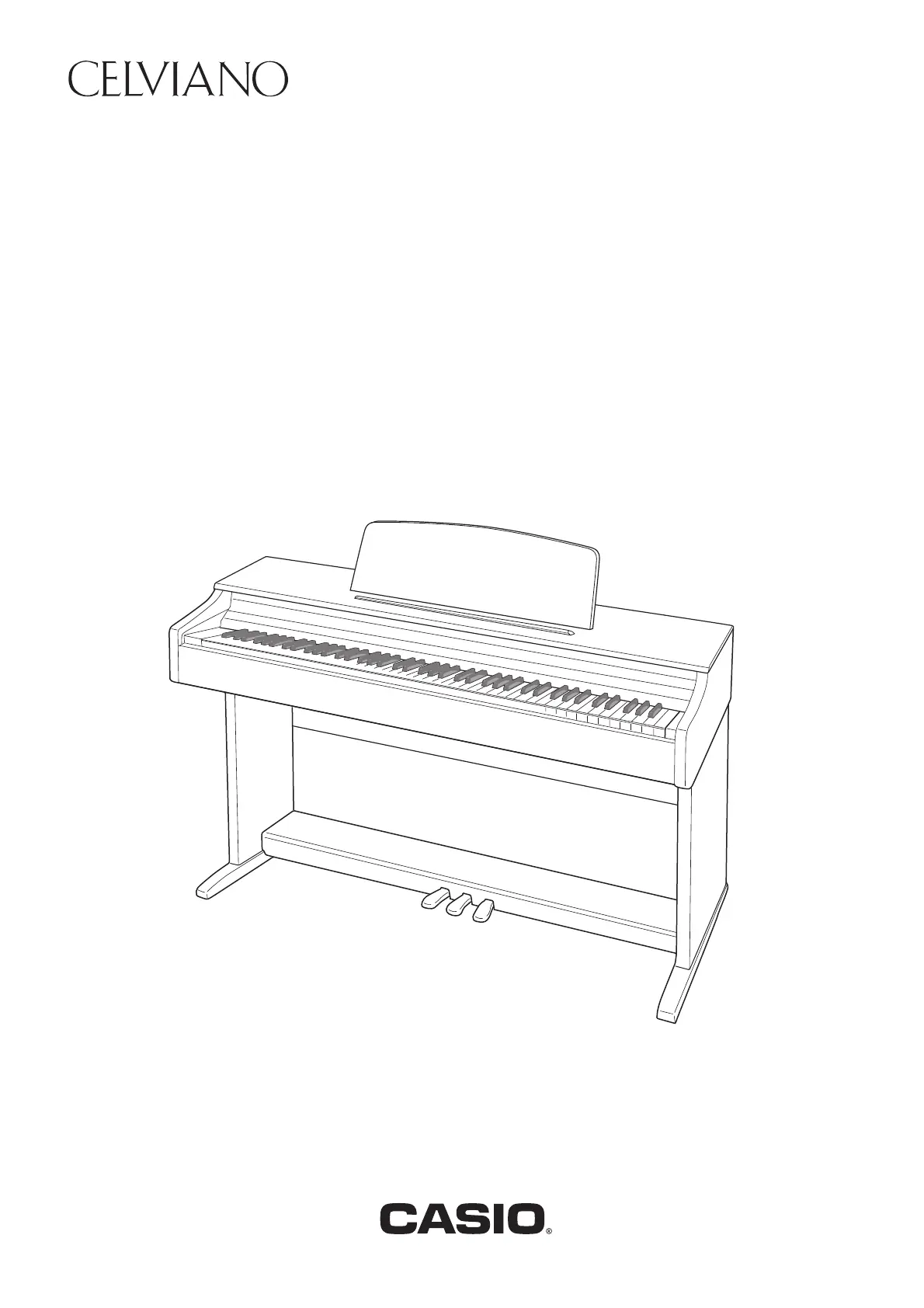

1/4USER’S GUIDE
AP-270
EN
USER’S GUIDE
Please keep all information for future reference.
These instructions consist of four pages on two sheets. Each page is identified by a page number in the
upper right corner.
●Refer to “Assembling the Stand” on page 4/4 of these instructions for information about how
to assemble the stand and attach the music stand.
●Be sure to read the “Safety Precautions” in these instructions and use the Digital Piano
correctly.
*Caution!
Make sure that the keyboard cover is fully open whenever you are playing. A partially open cover can
suddenly close unexpectedly and pinch your fingers.
About These Instructions
Before performing any operation, be sure to go to page 3/4 first and read the
information under “Piano Buttons”, “Using the FUNCTION Button”, and
“Keyboard Keys Used for Configuring Settings”.
These instructions provide general information about Digital Piano operations. For
more detailed information, refer to the “User’s Guide (Full)”, which can be
downloaded by visiting the website below or by using the nearby QR code.
http://world.casio.com/manual/emi/
The “User’s Guide (Full)” includes information on the topics listed below.
• Auto Resume and Operation Lock
• Connecting to an audio system and amplifier
• Connecting to a computer
• Details about settings using the FUNCTION button
• MIDI Implementation Chart, etc.
Your Digital Piano runs on standard household power. Be
sure to turn off power whenever you are not using the Digital
Piano.
■Using an AC Adaptor
Use only the AC adaptor (JEITA Standard, with unified
polarity plug) that comes with this Digital Piano. Use of a
different type of AC adaptor can cause malfunction.
• Use the supplied power cord to connect the AC adaptor.
Bottom
IMPORTANT!
• Never connect the AC adaptor that comes with this
Digital Piano to any other device besides this Digital
Piano. Doing so creates the risk of malfunction.
• Make sure the Digital Piano is turned off before
plugging in or unplugging the AC adaptor.
• The AC adaptor will become warm to the touch after
very long use. This is normal and does not indicate
malfunction.
• Never try to use the supplied power cord with any
other device.
• Place the AC adaptor on the floor with its label
surface pointed downwards. The AC adaptor
becomes more prone to electromagnetic wave
generation if the label surface is in a different
position.
■To turn on power
Press the P (Power) button. Power up takes about five
seconds.
■To turn off power
Hold down the P (Power) button until the power lamp goes
out.
Front
IMPORTANT!
• Pressing the P (Power) button to turn off power
actually puts the Digital Piano into a standby state
(minute current continues to flow). If you do not plan
to use the Digital Piano for a long time or if there is a
lightning storm in your area, unplug the AC adaptor
from the power outlet.
■Auto Power Off
Power turns off automatically after four hours of non-use.
To disable Auto Power Off, turn on power by holding down
the FUNCTION button and pressing P (Power).
Use the knob to adjust the volume of speaker and VOLUME
headphone output.
Power Outlet
Specified AC Adaptor:
AD-A12150LW
Power Terminal
( )DC 12V
Turning Power On or Off
Adjusting Volume
Power lamp
The factory tuning (A4=440.0Hz) can be change in 0.1 Hz
steps.
1.
Hold down the FUNCTION button and use the A-
tuning keys (+, –).
• Tuning is raised or lowered in 0.1 Hz steps.
• To toggle between the two settings below, hold
down the FUNCTION button and press the A-tuning
keyboard keys (+ and –) at the same time.
440.0 Hz (1 beep)
442.0 Hz (2 beeps)
Connect headphones to the PHONES/OUTPUT jack.
Connecting headphones mutes speaker output, so you can
practice even late at night. To protect your hearing, do not
set the volume too high when using headphones.
Front
NOTE
• If the plug of the headphones does not match the
PHONES/OUTPUT jack, use a commercially available
adaptor plug.
1.
Press the GRAND PIANO 1 button or GRAND
PIANO 2 button.
Tone names are marked above the keys.
1.
Hold down the FUNCTION button and press the
desired tone key. (See the “Tone” area under
“Keyboard Keys Used for Configuring Settings”.)
• Some keys may have more than one tone assigned.
In this case, each press of the key cycles to the next
assigned tone. Which tone is selected by the key
press is indicated by beeps.
Example: Cycling through MODERN, ROCK, and
JAZZ settings
MODERN: (1 beep)
ROCK: (2 beeps)
JAZZ: (3 beeps)
■Bass Tone (BASS)
Pressing the BASS (LOWER) key to select a bass tone
selects a bass tone for the low end (left side) of the
keyboard only. The high end (right side) of the keyboard
retains the tone assigned to it before the bass tone was
selected.
1.
Hold down the FUNCTION button and press the
Select Layer Tone key.
• Each press of the keyboard key toggles between on
and off.
2.
Hold down the FUNCTION button and press key of
the tone to be layered.
3.
To return to the original tone, hold down the
FUNCTION button and press the Select Layer Tone
key (which exits the Layer Mode).
Changing the Tuning
Connecting Headphones
PHONES/OUTPUT jack
Selecting a Tone with a Button
Selecting a Tone with a Keyboard
Key
Layering Two Tones
Split point
Bass range High range
BASS JAZZ ORGAN
(previously selected tone)
GRAND PIANO 1 BRIGHT
STRINGS 2
You can split the keyboard in the center so the left and right
sides have the same range. The left outer pedal is the left
side damper pedal, while the right outer pedal is the right
side damper pedal.
Keyboard
Pedals
NOTE
• Only the damper pedal for the right keyboard supports
half-pedal operations.
1.
Select a tone.
2.
To cycle between the Duet Mode settings below,
hold down the FUNCTION button and press the
Duet Mode key.
Off
On
Pan: Outputs left side keyboard tone from the left
speaker and right side keyboard tone from the right
speaker.
You can change the ranges of the left and right keyboards in
octave units from their initial default settings.
1.
Pressing the FUNCTION button and the GRAND
PIANO 1 button, press the C-key you want as
middle C (C4) of the left keyboard. Keep the
FUNCTION button and the GRAND PIANO 1
button depressed as you advance to step 2.
Example: Pressing the leftmost C key configures the
keyboards below.
2.
With the FUNCTION button and the GRAND
PIANO 1 button still depressed, press the C-key
you want as middle C (C4) of the right keyboard.
This sounds the note assigned to C4 and change the
octave of the right keyboard.
NOTE
• You can return the keyboards to their initial default
ranges by exiting and then re-entering the Duet Mode.
Splitting the Keyboard for Duet
Play
C3 C4 C5 C6 C3 C4 C5 C6
Split point
Left keyboard Right keyboard
(Middle C) (Middle C)
Left keyboard
damper pedal
Left and right damper pedal
Right keyboard
damper pedal
Changing the Octaves of the Keyboards
C4 C5 C6 C7 C3 C5 C6C4
Left keyboard Right keyboard
(Pressed key)
1 octave higher than initial setting Unchanged
This Digital Piano comes with a Music Library of 60 piano
songs (numbered 1 to 60), and Concert Play selection of
piano and orchestra performance songs (numbered 1 to 10)
built in.
1.
Hold down the FUNCTION button and press the
METRONOME button.
This starts sequentially looped playback of all Concert
Play (Listen) songs and Music Library songs.
• To advance to the next demo song, hold down the
FUNCTION button and press the MIDI REC
button.
• To return to the previous demo song, hold down the
FUNCTION button and press the REVERB button.
• To stop demo playback, press the a button.
NOTE
• Pressing the METRONOME button while holding down
the FUNCTION button during Concert Play jumps to the
first Music Library song. Performing the same operation
during Music Library play jumps to the first Concert Play
song.
• The only operations possible during demo play back are
changing the currently playing tune and stopping
playback.
1.
To select a song, hold down the FUNCTION button
and use the Select Music Library Song keys (–, +).
You can also input a value from 0 to 9 to specify a
Music Library song number.
2.
To start playback press the a button.
• To stop playback, press the a button.
1.
To select a song, hold down the FUNCTION button
and use the CONCERT PLAY area SELECT keys
(–, +).
2.
To start song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
• To stop song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
NOTE
• Concert Play uses recordings of a live orchestra, so the
tones used for recording are different from those that can
be selected with the Digital Piano. Also note that breath
and performance noises may be audible in Concert Play
songs.
Use the steps below to turn off the left-hand part or right-
hand part of a song and play along.
1.
To select a song to practice, hold down the
FUNCTION button and use the Select Music Library
Song keys (–, +, keys 0 to 9).
2.
To select on or off for each part, hold down the
FUNCTION button and press the a button.
Play the part you turned off.
• Each press of the a button cycles the on/off
settings as shown above.
3.
To start playback, press the a button.
• To stop playback, press the a button.
You can use Concert Play for 3-step practice.
■Step 1: LISTEN
Listen to playback of the piano and orchestra to familiarize
yourself with the music.
1.
To select a song, hold down the button FUNCTION
and use the CONCERT PLAY area SELECT keys
(–, +).
2.
Hold down the FUNCTION button and press the
CONCERT PLAY area LISTEN key.
3.
To start song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
• To stop song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
Playing Back Built-in Songs
Demo Songs
Music Library
Concert Play
Practicing with Built-in Tunes
Music Library
Both parts on Right-hand part off Left-hand part off
Concert Play
Left-hand part
(lit)
Right-hand part
(lit)
Right-hand part
(unlit)
Left-hand part
(unlit)
■Step 2: LESSON
You can turn off the left-hand part or right-hand part of a
built-in song and play along on the Digital Piano. Practice
the piano part of the ensemble.
1.
Hold down the FUNCTION button and press the
CONCERT PLAY area LESSON key.
2.
To select on or off for each part, hold down the
FUNCTION button and press the a button.
See the illustration under step 2 of the “Music Library”
part selection procedure.
3.
To start song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
• To stop song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
■Step 3: PLAY
Play along with the orchestra.
1.
Hold down the FUNCTION button and press the
CONCERT PLAY area PLAY key.
2.
To start song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
• To stop song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
■Damper Pedal
Pressing the damper pedal while playing causes the notes
you play to reverberate. Half-pedal operation (pressing the
pedal part way) is also supported.
■Sostenuto pedal
Only the notes of the keys that are depressed when this
pedal is pressed are sustained, even if the keyboard keys
are released, until the pedal is released.
■Soft pedal
This pedal makes notes softer and gentler. The effect is
applied only to notes played while the pedal is depressed.
NOTE
• If pressing the pedal does not produce the desired effect,
it could mean that the pedal cord is not connected
properly. Fully push the plug in as far as it goes.
■To sound the metronome
1.
Press the METRONOME button.
The first beat of a measure is a chime, and remaining
beats are clicks. The lamp flashes with each beat.
Press the METRONOME button again to turn off the
metronome.
■To set the beat
1.
Hold down the FUNCTION button and press the
METRONOME area BEAT key.
• Keep the FUNCTION button depressed as you
advance to the next step.
2.
Still holding down the FUNCTION button, use the
number keys (0 to 9) to specify the beat.
Setting range: 0 to 9
• Specifying 0 sounds a straight click, without any chime.
■To set the tempo
1.
Hold down the FUNCTION button and press the
METRONOME area TEMPO key.
• Keep the FUNCTION button depressed as you
advance to the next step.
2.
Still holding down the FUNCTION button, use the
number keys (0 to 9) to specify the tempo.
Setting range: 20 to 255
• Each press of the + or – key raises or lowers the tempo
by 1.
■To adjust the metronome volume
Hold down the FUNCTION button and use the Metronome
Volume keys (–, +) to set a volume level from 0 to 42.
Setting range: 0 to 42
• To return to the initial default volume, press the
Metronome Volume + key and – key at the same time
Using a Pedal
Soft pedal
Sostenuto pedal Damper pedal
Using the Metronome
Metronome Settings
Touch Response alters tone volume in accordance with
keyboard pressure (speed).
1.
Hold down the FUNCTION button and press the
Keyboard Touch key.
• You can select from among three levels, or off. Each
press of the keyboard key causes it to beep the
number of times shown below to indicate the current
setting.
Once (long): Off
Once (short): 1
Twice: 2
Three times: 3
• Setting a smaller value causes lighter touch to
produce more powerful sound.
• Selecting off causes notes to be played at a fixed
volume, regardless of the key press velocity.
You can use the built in MIDI recorder to record your
performance and play it back when you want.
■Recording Capacity
• You can record approximately 5,000 notes in Digital
Piano memory.
■Recorded Data
• Keyboard play
• Tone used for keyboard play
• Beat (Track 1 only)
• Tempo setting (Track 1 only)
• Layer setting (Track 1 only)
• Duet (Track 1 only)
• Temperament (Track 1 only)
• Keyboard volume (Track 1 only)
• Chorus (Track 1 only)
• Brilliance (Track 1 only)
• Reverb setting (Track 1 only)
• Damper Noise On/Off (Track 1 only)
■Recording Data Storage
• Starting a new recording deletes any data that was
previously recorded in memory.
• Should power fail during recording, all of the data in the
track you are recording will be deleted.
IMPORTANT!
• CASIO COMPUTER CO., LTD. takes no responsibility
for any damages, lost profits, or claims by third
parties arising from the loss of deleted recorded data
due to malfunction, repair, or for any other reason.
■Tracks
A “track” is a location where your performance is recorded.
This Digital Piano has two tracks, and the status of each is
indicated by the L/R lamps of the a button.
NOTE
• You can record each track separately and then combine
them so they play back together as a single song.
■To record keyboard play
1.
Press the MIDI REC button once or twice so the
MIDI REC lamp is flashing.
This enters record standby.
2.
Hold down the FUNCTION button and press the
a button once or twice until the lamp of the track
to be recorded is flashing.
3.
To start recording, press the a button or start
playing.
Recording can also be started by pressing a pedal or
performing another operation.
• If, while recording is in progress, you want to re-
record from the beginning, hold down the MIDI
REC button until the Digital Piano beeps. This
discards the current recording data and enters
recording standby.
• To stop recording, press the a button or MIDI
REC button.
Changing Keyboard Response to
Touch Pressure (Touch
Response)
Using the MIDI Recorder
Lamp Status
Unlit Off
Lit Playback standby or playback in
progress
Flashing Recording standby or recording in
progress
Track 1 Track 2
Song name
Track 1 Record While playing
back...
Track 2 Record
■To play back a recorded performance
1.
Press the MIDI REC button once or twice (Until the
MIDI REC lamp is lit.)
This enters playback standby.
2.
Hold down the FUNCTION button and press the
a button once or twice until the lamp of the track
to be played back is lit.
• To play back both tracks, make sure that both the L
and R lamps are lit.
3.
Press the a button.
This starts playback.
• To stop playback, press the a button.
■To play back from one track as you record to
another track
1.
Press the MIDI REC button once or twice (Until the
MIDI REC lamp is lit.)
This enters playback standby.
2.
Hold down the FUNCTION button and press the
a button once or twice until the lamp of the track
to be played back is lit.
3.
Press the MIDI REC button so the MIDI REC lamp is
flashing.
This enters record standby.
4.
Hold down the FUNCTION button and press the
a button once or twice until the lamp of the track
to be recorded is flashing.
5.
Press the a button or start playing.
This starts recording and playback.
• If you want to re-record from the beginning, hold
down the MIDI REC button until the Digital Piano
beeps.
• To stop playback and recording, press the a
button.
■To delete a recorded performance
IMPORTANT!
• A track delete operation cannot be undone. Deleted
data is unrecoverable.
1.
Press the MIDI REC button once or twice so the
MIDI REC lamp is flashing.
2.
Hold down the FUNCTION button and press the
a button once or twice until the lamp of the track
to be deleted is flashing.
3.
Hold down MIDI REC until the MIDI REC lamp is lit.
This enters delete standby.
4.
Hold down the FUNCTION button and press the
a button.
This deletes the contents of the selected track.
• To exit the above operation at any point, press the
MIDI REC button once or twice so the MIDI REC
lamp is unlit.
1.
Each press of the REVERB button toggles reverb
between on and off.
Reverb is applied when it is turned on.
■To select the reverb type
1.
While holding down the FUNCTION button, press
the keyboard key of the reverb type to be applied.
1: Room
2: Small hall
3: Large hall
4: Stadium
Applying Reverb
Continued on the back
AP270_EN.fm 2 ページ ２０１７年７月１０日 月曜日 午後７時６分
2/4USER’S GUIDE
Troubleshooting
If this happens: Do this:
No sound is produced when I
press a keyboard key.
1. Rotate the VOLUME knob more towards “MAX”.
2. Disconnect whatever is connected to the PHONES/OUTPUT jack.
3. Turn on the Local Control setting. For details, refer to the “User’s Guide (Full)”.
The pitch of the Digital Piano
is off.
1. Change the transpose setting to “0”. Or turn power off and then back on.
2. Change the tuning setting to 440.0 Hz. Or turn power off and then back on.
3. Change the octave shift setting to “0”. For details, refer to the “User’s Guide (Full)”.
4. Change the temperament setting to “00: Equal”.
Nothing happens when I press
a pedal.
Check the orientation of the pedal unit plug and makes sure it is inserted as far as it goes.
For the correct plug orientation, see “To connect the cables” under “Assembling the
Stand” of page 4/4 of these instructions.
Tones and/or effects sound
strange. Turning power off and
then back on again does not
eliminate the problem.
Example: No change in
intensity when key press
pressure (touch) is changed
Turn off Auto Resume, and then turn power off and then back on again. For details, refer
to the “User’s Guide (Full)”.
A tone’s quality and volume
sounds slightly different
depending where it is played
on the keyboard.
This is an unavoidable result of the digital sampling process,* and does not indicate
malfunction.
*Multiple digital samples are taken for the low range, middle range, and high range of
the original musical instrument. There may be a very slight difference in tonal quality
and volume between sample ranges.
When I press a button, the
note that is sounding cuts out
momentarily or there is a
slight change in how effects
are applied.
This happens while multiple parts are sounding at the same time while using layer, using
the Duet Mode, playing back a built-in tune, recording, etc. Pressing a button when one of
these conditions exists causes the effect setting that is built into the tone to change
automatically, which causes notes to cut out momentarily or a slight change in how
effects are applied. It does not indicate malfunction
I need to reset all Digital Piano
data and settings to their
initial defaults.
Hold down the buttons, and press the FUNCTION, MIDI REC and GRAND PIANO 2
power button to turn on power.
I need to reset a specific
setting to its initial default.
Hold down the FUNCTION button and press the + and – keyboard keys of the setting at
the same time.
• Specifications and designs are subject to change without notice.
Product Specifications
Model AP-270BK/AP-270BN/AP-270WE
Keyboard 88-key piano keyboard, with Touch Response
Maximum Polyphony 192 notes
Tone 22 types
• Layer (excluding bass tones)
Acoustic Simulator Damper Resonance (Damper Noise on/off), Hammer Response
Effects Brilliance (–3 to 0 to 3), Reverb (4 types), Chorus (4 types), DSP
Metronome • Beats: 0 to 9
• Tempo range: 20 to 255
Duet Mode Adjustable tone range (–2 to 2 octaves)
Concert Play • Songs: 10
• Song volume: Adjustable
• Part On/Off: L, R (Lesson Mode only)
• 3 Modes: LISTEN, LESSON, PLAY
Music Library • Songs: 60; 10 download songs (Up to approximately 90 KB per song, up to approximately 900
KB/10 songs total)*
*Based on 1 KB = 1024 bytes
• Song volume: Adjustable
• Part On/Off: L, R
Recorder MIDI Recorder
• Modes: Real-time recording, playback
• Songs: 1
• Tracks: 2
• Capacity: Approximately 5,000 notes total
• Recording storage: Built-in flash memory
Pedals Damper (half-pedal supported), sostenuto, soft
Other Functions • Touch Response: 3 levels, Off
• Transpose: 2 octaves (–12 to 0 to +12)
• Tuning: 415.5 Hz to 440.0 Hz to 465.9 Hz (0.1 Hz steps)
• Temperament: Equal + 16 other types
• Octave Shift: 4 octaves (–2 to 0 to +2)
• Panel Lock
MIDI 16-channel multi-timbre receive
Input/Output Terminals • PHONES/OUTPUT jacks: Stereo standard jacks × 2
• AC Adaptor Terminal: 12 VDC
• USB port: Type B
• Pedal connector
Speakers φ12 cm × 2 (Output: 8W + 8W)
Power Requirements AC adaptor: AD-A12150LW
• Auto Power Off: Approximately 4 hours; Can be disabled.
Power Consumption 12V = 18W
Dimensions Piano and Stand: 141.7(W) × 43.2(D) × 82.1(H) cm (55 13/16 × 17 × 32 3/8 inches)
Weight Piano and Stand: Approximately 36.6 kg (80.7 lbs)
Your Digital Piano can connect with a smartphone, tablet, or other smart device. A special app is available to display music
scores and a piano roll display to support your practice.
Go to the website below to download the app and install it on your smart device.
http://web.casio.com/app/en/
Linking with an Application (APP Function)
Downloading the Special App
Included Accessories
●AC adaptor
●Power cord
●Music Stand
●Leaflets
• Safety Precautions
• Other (Warranty, etc.)
Items included as accessories are subject to change
without notice.
Separately Available Accessories
• You can get information about accessories that are
separately for this product from the CASIO catalog
available from your retailer, and from the CASIO
website at the URL below.
http://world.casio.com/
Continued on sheet 3/4
[Continued below left]
Produktspecifikationer
| Varumärke: | Casio |
| Kategori: | Digital piano |
| Modell: | Celviano AP-270 |
Behöver du hjälp?
Om du behöver hjälp med Casio Celviano AP-270 ställ en fråga nedan och andra användare kommer att svara dig
Digital piano Casio Manualer
15 Juli 2024
15 Juli 2024
15 Juli 2024
15 Juli 2024
15 Juli 2024
15 Juli 2024
Digital piano Manualer
Nyaste Digital piano Manualer
15 September 2024
15 September 2024
15 September 2024
29 Augusti 2024
