Chamberlain B4643TC Bruksanvisning
Chamberlain
Garageportöppnare
B4643TC
Läs nedan 📖 manual på svenska för Chamberlain B4643TC (104 sidor) i kategorin Garageportöppnare. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/104
1. Take a photo of the camera icon including
thepoints ( ).
2. Send it in by texting the photo to 71403 (US).
www.chamberlain.com
• Please read this manual and the enclosed safety materials carefully!
• Fasten the manual near the garage door after installation.
• The door WILL NOT CLOSE unless the Protector System® is connected and properly aligned.
• Periodic checks of the garage door opener are required to ensure safe operation.
• The model number label is located on the left side panel of your garage door opener.
• This garage door opener is compatible with myQ® and Security+ 2.0® accessories.
• DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
Installation Manual
LED Belt Drive Garage Door Opener
Models B4603TC • B4643TC • B4613TC
B6713TC• B6753TC
FOR RESIDENTIAL USE ONLY
PRE-PROGRAMMED REMOTE
CONTROL INCLUDED
To register your garage door opener to receive
updates and offers from Chamberlain, visit
chamberlain.registria.com or use the icon below:
2
When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply with the cautionary statements that accompany it.
Read them carefully.
WARNING: This product can expose you to chemicals including lead, which are known to the State
of California to cause cancer or birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Unattended Operation
The Timer-to-Close (TTC) feature, and the myQ® App are examples of unattended close and are to be used ONLY
with sectional doors. Any device or feature that allows the door to close without being in the line of sight of the
door is considered unattended close. The Timer-to-Close (TTC) feature, the myQ® App, and any other myQ®
devices are to be used ONLY with sectional doors.
The images throughout this manual are for reference only and your product
may look different.
Safety Symbol and Signal Word ReviewContents
Preparation 5 ......................................................................................................................................
Assembly 9..........................................................................................................................................
Installation 14 ....................................................................................................................................
Install the Door Control 24 ............................................................................................................
Install the Protector System® 26 ...................................................................................................
Connect Power 30 .........................................................................................................................
Adjustments 32 ..................................................................................................................................
Battery Backup 35 .............................................................................................................................
myQ® App Control 36 .........................................................................................................................
Connect With Your Smartphone 36 ..............................................................................................
Camera 37 ...........................................................................................................................................
Operation 38 .......................................................................................................................................
Using your Garage Door Opener 38 ..............................................................................................
Motion Detecting Control Panel 39 ..............................................................................................
Remote Control and Keyless Entry 40 ...........................................................................................
HomeLink® 40 ................................................................................................................................
Erase the Memory 41 .....................................................................................................................
To Open the Door Manually......................................................................................................41
Maintenance 42 .................................................................................................................................
Troubleshooting 43 ............................................................................................................................
Warranty 45 ........................................................................................................................................
Automatic Garage Door Opener Safety & Maintenance Guide 46 ................................................
Repair Parts 48 ...................................................................................................................................
Rail Assembly Parts 48 ..................................................................................................................
Installation Parts 48 ......................................................................................................................
Model B4603TC 49 ........................................................................................................................
Model B4613TC 50 ........................................................................................................................
Model B4643TC 51 ........................................................................................................................
Models B6713TC , and B6753TC 52 .............................................................................................
This garage door opener has been designed and tested to oer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the
possibility of if you do not comply with the warnings that accompany them. The serious injury or death
hazard may come from something mechanical or from electric shock. Read the warnings carefully.
3
Torsion
Spring Extension
Spring

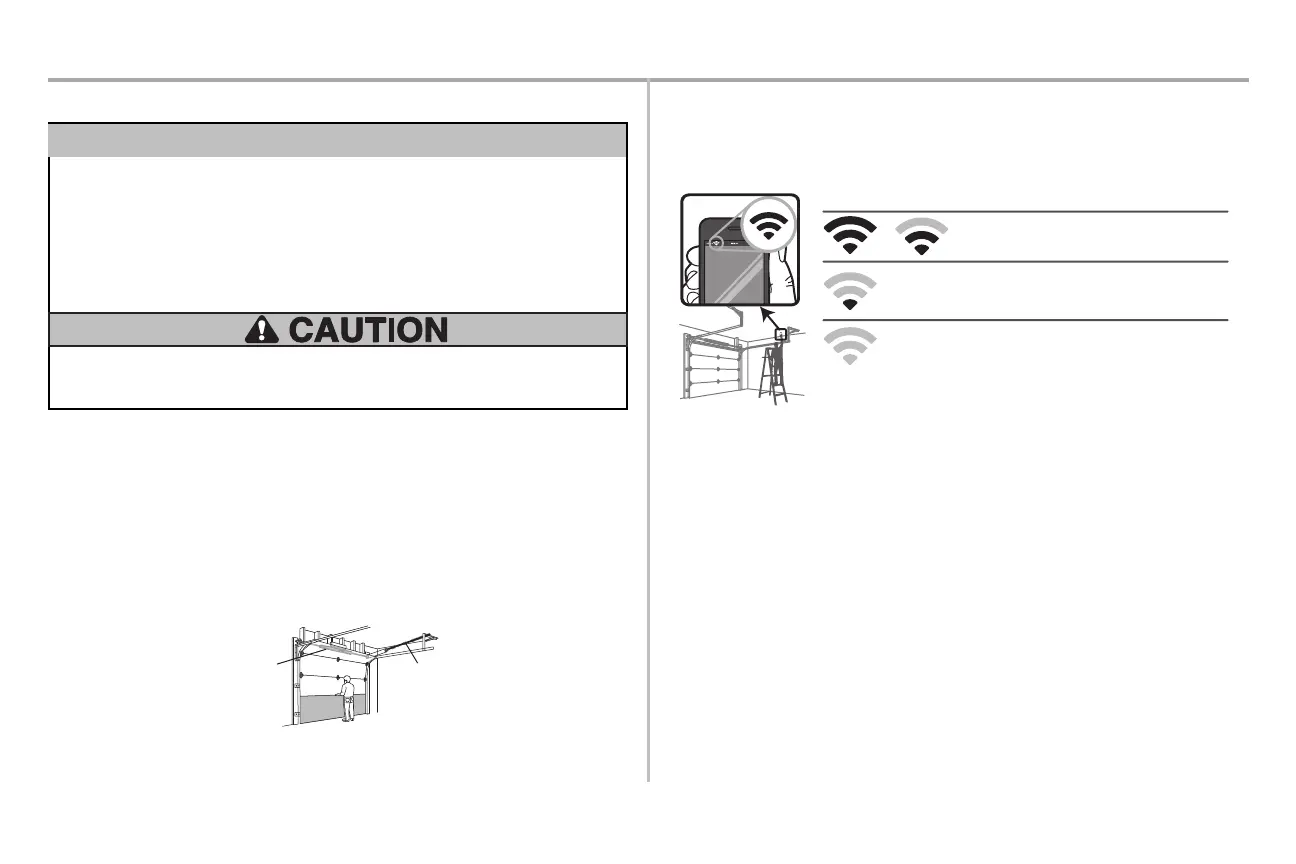

Preparation
Check the Door
Before you begin:
1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should stay in place, supported entirely by its
springs.
3. Raise and lower the door to check for binding or sticking. If your door binds, sticks, or is out of balance,
call a trained door systems technician.
4. Check the seal on the bottom of the door. Any gap between the oor and the bottom of the door must not
exceed 1/4” (6 mm). Otherwise, the safety reversal system may not work properly.
5. The opener should be installed above the center of the door. If there is a torsion spring or center bearing
plate in the way of the header bracket, it may be installed within 4 feet (1.2 m) to the left or right of the
door center. See page 15.
Before You Connect with Your Smartphone
Monitor and control your garage door from anywhere using the myQ® App. You will need a router with Wi-Fi®
and a smartphone or other mobile device. Make sure your mobile device is connected to your Wi-Fi® network.
Hold your mobile device in the place where your garage door opener will be installed and check the Wi-Fi® signal
strength.
Visit support.chamberlaingroup.com for more details.
See myQ® App Control page 36 to connect your garage door opener to your Wi-Fi® network.
Check Signal Strength. If you see:
Wi-Fi signal is strong. You’re all set!
Install your new garage door opener.
Wi-Fi signal is weak.
The garage door opener will likely connect to your Wi-Fi-
network. If not, try one of the options below.
No Wi-Fi signal. Try one of the following:
• Move your router closer to the garage door opener
tominimize interference from walls and other objects
• Buy a Wi-Fi range extender
To prevent possible SERIOUS INJURY or DEATH:
l ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An
unbalanced garage door may NOT reverse when required.
l NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware,
ALL of which are under EXTREME tension.
l Disable ALL locks and remove ALL ropes connected to garage door BEFORE installation and operating
garage door opener to avoid entanglement.
l DO NOT install on a one-piece door if using devices or features providing unattended close.
Unattended devices and features are to be used ONLY with sectional doors.
To prevent damage to garage door and opener:
l ALWAYS disable locks BEFORE installing and operating the opener.
l ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.
