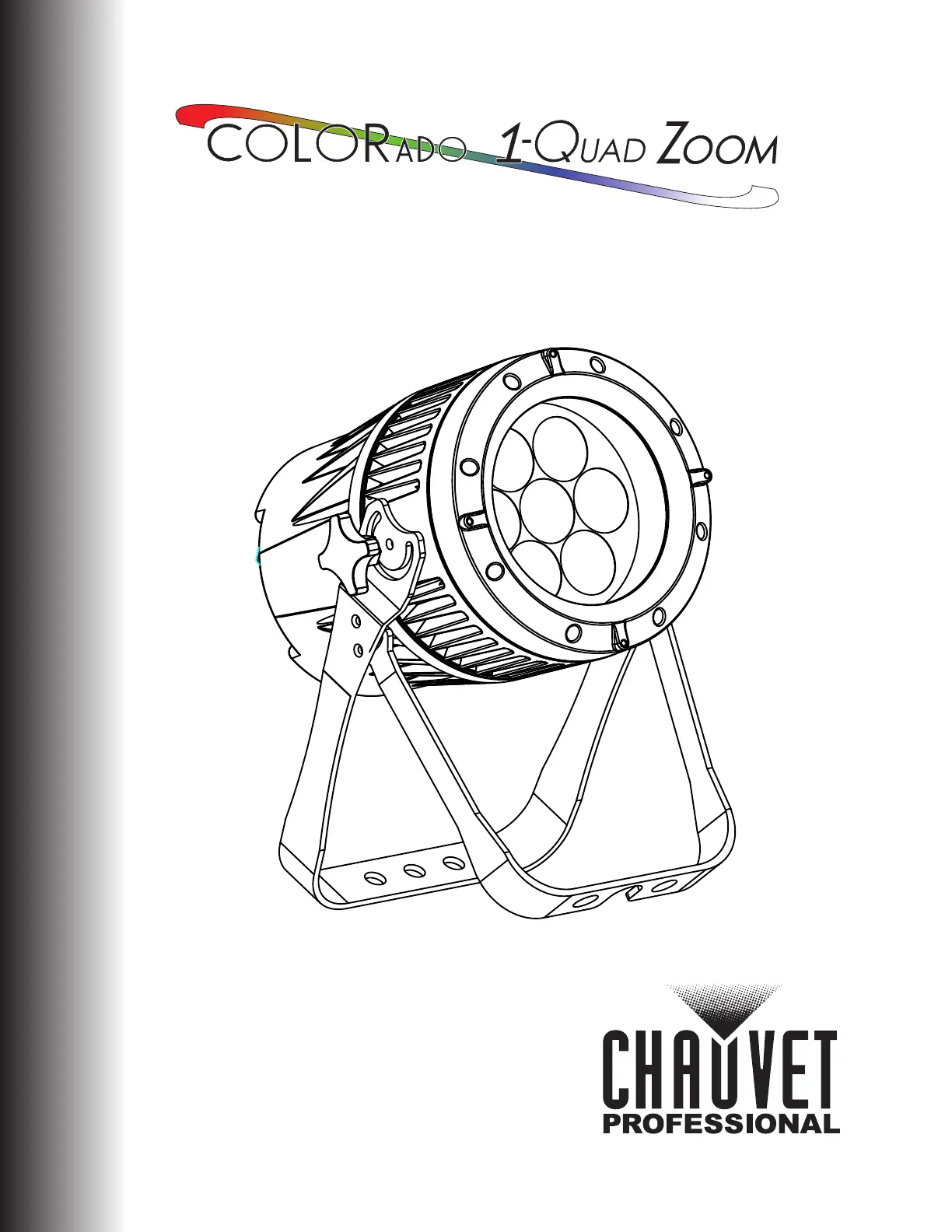

Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL
Model ID: COLORADO1QUADZOOM

1
EN
QUICK REFERENCE GUIDE
Colorado 1 Quad Zoom QRG Rev. 3
About This Guide
The Colorado 1 Quad Zoom Quick Reference Guide (QRG) has basic product information such as connection, mounting,
menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration/
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 3.5 m is
not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord
exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product’s housing may be hot when lights are operating. Mount this product in a location with
adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not
limited to:
• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
• Where the normal high or low temperatures of the location exceed the temperature ranges in this
manual.
• Locations that are prone to flooding or being buried in snow.
• Other areas where the product will be subject to extreme radiation or caustic substances.
• When using this product in an outdoor, IP65 type environment, be sure to use IP65 (or higher) rated
power/data cables, secure unused ports with attached IP65 covers, and secure the display plate to the
control panel.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
Outside the U.S., U.K., Ireland, France, Germany, Mexico, or Benelux, contact your distributor to request support or
return a product. From inside the U.S., UK, Ireland, France, Germany, Mexico, or Benelux, use the information in Contact
Us at the end of this QRG.

EN
2
Colorado 1 Quad Zoom QRG Rev. 3
QUICK REFERENCE GUIDE
What is Included
• Colorado 1 Quad Zoom
• Seetronic Powerkon IP65 power cord
• Gel frame holder (7.5 in/191 mm accessories)
• Gel frame
• Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 13 Colorado 1 Quad Zoom products at 100 VAC, 15 at 120 VAC, 27 at 208 VAC, 28 at 230 VAC, or 29
at 240 VAC. Never exceed this number. Power linking cords can be purchased separately.
AC Plug
DMX Linking
The Colorado 1 Quad Zoom will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is
available from www.chauvetprofessional.com.
DMX Connection
The Colorado 1 Quad Zoom uses a 5-pin DMX data connection for its DMX personalities: TOUR, TR16, FULL, ARC.1,
AR1.D, ARC.2, AR2.D, C1Q, STD.Y, AR2.S, AR2.Z, and HSV. See the User Manual for information about connecting
and configuring the product for DMX operation.
Master/Slave Connection
The Colorado 1 Quad Zoom uses the DMX data connection for its Master/Slave mode. See the User Manual for
information about connecting and configuring the product for master/slave operation.
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the
mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps/
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
• When using this product in an outdoor IP65 type environment, be sure to use IP65 (or higher)
rated power cables and secure unused ports with attached IP65 covers.
When using this product in an outdoor IP65 type environment, be sure to use IP65 (or higher) rated
data cables and secure unused ports with attached IP65 covers.
The C1Q personality has been designed to be used to match the Colorado 1-Quad series. In this
personality, the zoom is locked to match the beam and field angles of the Colorado 1-Quad series.
For optimum control of the 16-bit dimming channels in the TR16, FULL, and STD.Y personalities, be
sure that both dimming curves in SETTING > DIMMER are set to OFF
