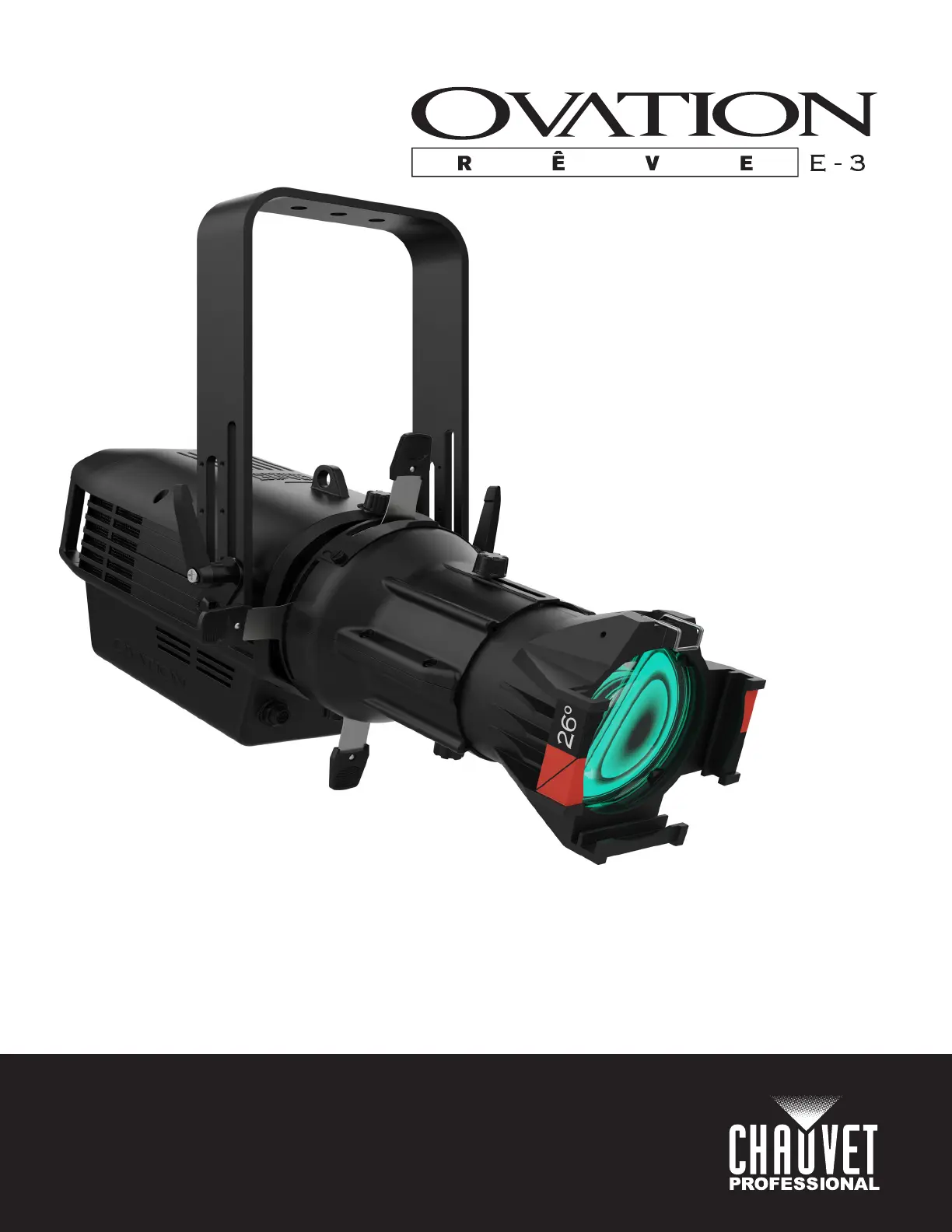

Ovation Rêve E-3
Läs nedan 📖 manual på svenska för Chauvet Ovation Rêve E-3 (12 sidor) i kategorin SLR kamera. Denna guide var användbar för 6 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/12
English EN
Español ES
Français FR
Deutsch DE
Nederlands NL
Quick Reference Guide
Model ID: OVATIONREVEE3
Scan the QR code to
access the product page,
warranty terms, and the
complete User Manual
*lens tube sold separately
1
EN
QUICK REFERENCE GUIDE
Ovation Rêve E-3 QRG Rev. 1
Safety Notes
These Safety Notes include important information about installation, use, and maintenance of the Ovation Rêve E-3
.
What is Included
• The luminaire is intended for professional use only.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than
10 ft (3 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord
exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or
a similar qualified person.
• CAUTION:
• This product’s housing may be hot when operating. Mount this product in a location with adequate
ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure,
allow the product to fully acclimate to the surrounding environment before connecting it to power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification
of strobe use.
• ALWAYS:
• Disconnect from power before cleaning the product or replacing the fuse.
• Replace the fuse with the same type and rating.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.
• DO NOT:
• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Leave any flammable material within 1.64 ft (50 cm) of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
• Operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect
it (adhere to standards for the published IP rating).
• ONLY use the hanging/mounting bracket to carry this product.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -14°F (-10°C). Do not start the product at lower temperatures.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• In the event of a serious operating problem, stop using immediately.
• Ovation Rêve E-3
• Seetronic Powerkon power cable
• Ovation metal gobo holder
• Soft focus filter
• Quick Reference Guide
EN
2
Ovation Rêve E-3 QRG Rev. 1
QUICK REFERENCE GUIDE
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
Power Linking
It is possible to power link Ovation Rêve E-3 products. See the table below for the current draw at each voltage and frequency:
Never exceed 12A on a single circuit. Power-linking cables can be purchased separately.
Mounting
Before mounting this product, read the Safety Notes. Make sure the mounting clamps are capable of supporting the
weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.
Mounting Diagram
Control Panel Description
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz 230 V, 50 Hz 240 V, 60 Hz
Current Draw 3.68 A 3.04 A 1.76 A 1.59 A 1.52 A
For the version 2 of the Ovation Rêve E-3, the soft focus filter comes pre-installed in front of the
shutter blades and is being held by four filter holders.
Button Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function
<UP> Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN> Navigates downwards through the menu list or decreases the numeric value when in a function
<FOCUS>
Sets fixture into Focus Mode, which takes the unit to full power for easy focusing without changing any other
fixture settings. Press again to release from Focus Mode.
Safety cable
Mounting clamp
Mounting bracket
* Lens tubes sold separately
*To remove the soft focus filter, gently
squeeze and slide the filter out from under
the four filter holders.
Soft focus filter
Filter holder (x4)
