Quick Reference Guide
Model ID: REM3IPSQ
Scan the QR code to
access the product page,
warranty terms, and the
complete User Manual
Model ID: REM3IP
1
EN
QUICK REFERENCE GUIDE
REM 3IP and REM 3IPSQ QRG Rev. 1
Safety Notes
T
hese Safety Notes include important information about installation, use, and maintenance of the REM 3IP and REM 3IPSQ
.
FCC Statement of Compliance
This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment do interference to es cause harmful
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
What is Included

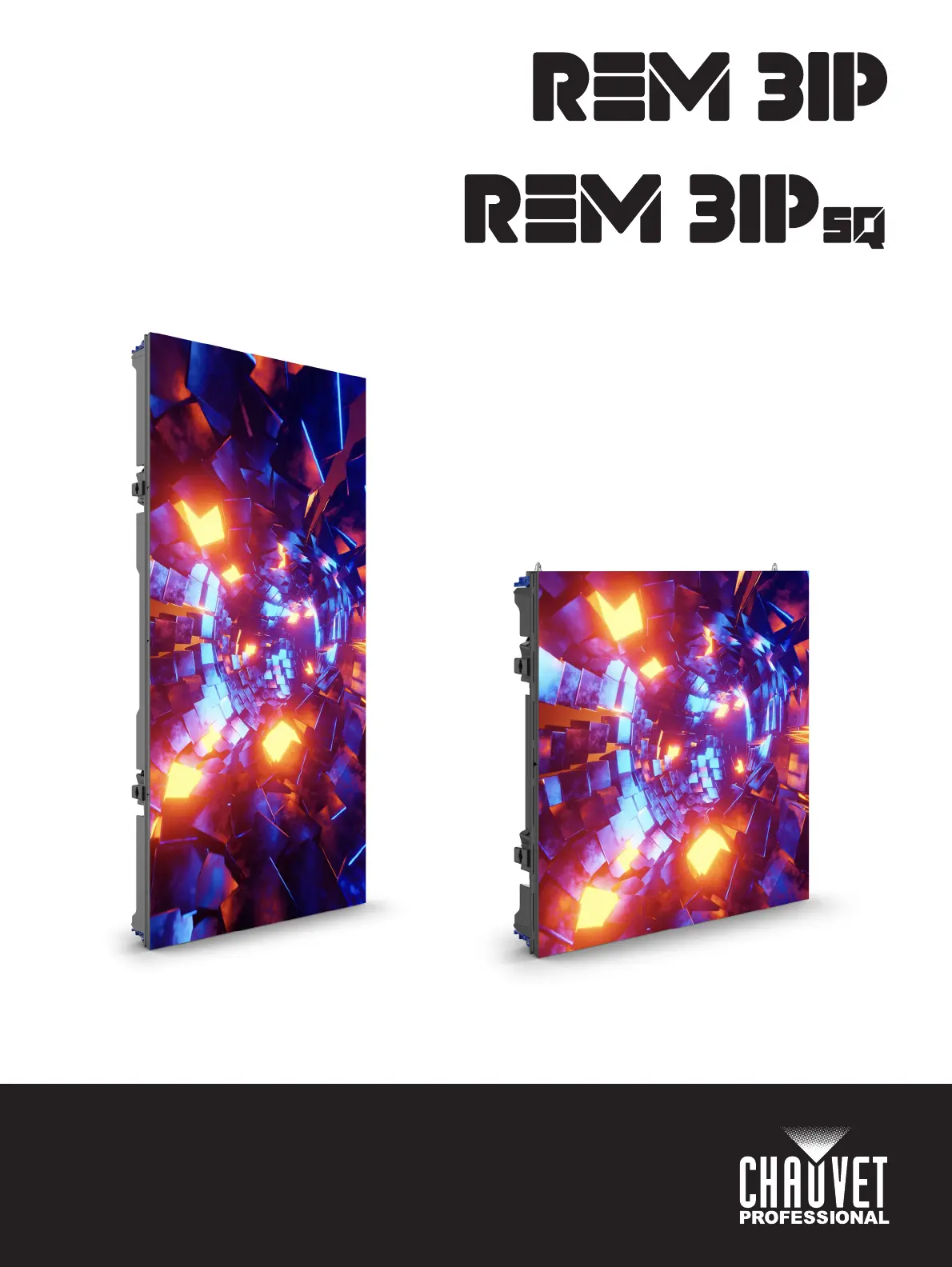

REM3IP
REM3IPSQ
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
• CAUTION:
• This product’s housing may be hot when operating. Mount this product in a location with adequate
ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure,
allow the product to fully acclimate to the surrounding environment before connecting it to power.
• ALWAYS:
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.
• DO NOT:
• Open this product. It contains no user-serviceable parts.
• Leave any flammable material within 50 cm of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
• Submerge this product (IP65). Regular outdoor operation is fine.
• ONLY use the hanging/mounting bracket to carry this product.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• In the event of a serious operating problem, stop using immediately.
• 1 case (REM3IP X4)
• 1 Seetronic® PowerKON® power cable
• 4 Seetronic® PowerKON® power linking cables
• 4 Seetronic® etherKON® signal linking cables
• 5 spare LED masks
• User manual
• 1 case (REM3IPSQ X8)
• 1 Seetronic® PowerKON® power cable
• 8 Seetronic® PowerKON® power linking cables
• 8 Seetronic® etherKON® signal linking cables
• 5 spare LED masks
• User manual
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
EN
2
REM 3IP and REM 3IPSQ QRG Rev. 1
QUICK REFERENCE GUIDE
Power Linking
It is possible to power link REM 3IP and REM 3IPSQ products. See the table below for the current draw at each voltage
and frequency:
REM3IP
REM3IPSQ
Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.
Mounting
Before mounting this product, read the . Use rig bars (REM-RB50CMIP orSafety Notes REM-RB100CMIP) from Chauvet,
or the M10 threaded mounting holes on the product. Make sure the mounting devices are capable of supporting the
weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.
Mounting Diagram
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz 230 V, 50 Hz 240 V, 50 Hz
Current Draw 3.0 A 2.5 A 1.44 A 1.3 A 1.25 A
100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz 230 V, 50 Hz 240 V, 50 Hz
Current Draw 1.5 A 1.25 A 0.72 A 0.65 A 0.63 A
• Warning! The magnetic attachments are not load-bearing, and are intended for alignment
assistance only. Do not release panel until the hanging hardware has been fully secured.
•
The M10 mounting points are not intended for hanging or suspending from a truss or other overhead structure
.
Rig bar speego (x3) Female speego
M10 threaded mounting
hole
Female speego
Rigging eye bolt (x2)
Alignment conical (x2)
M10 threaded mounting
hole
Male speego
Female speego
M10 threaded mounting
hole
Male speego
M10 threaded mounting
hole
Male speego Male speego
Alignment bolts (x4)
Female speego
!
