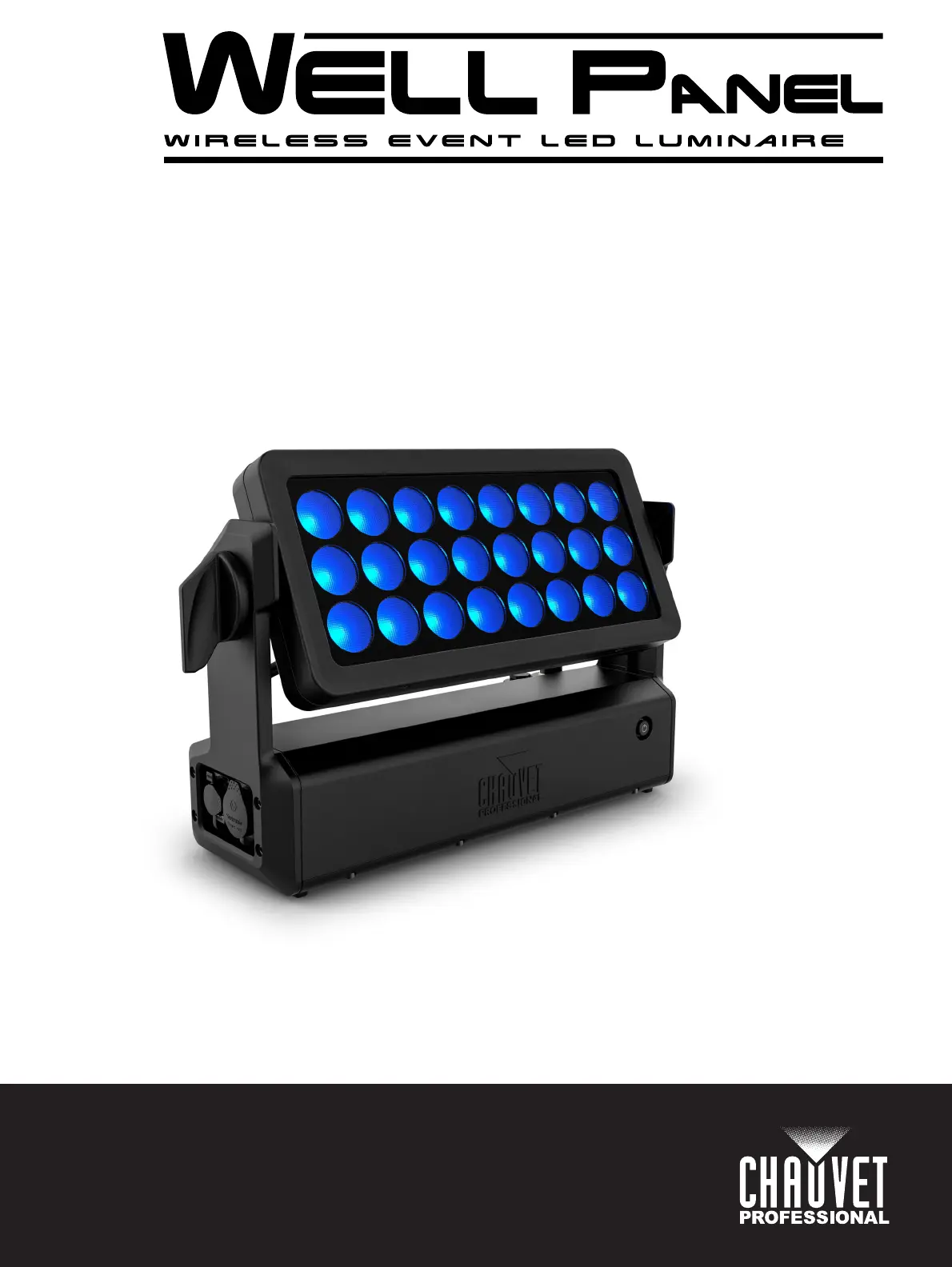

Quick Reference Guide
Model ID: WELLPANEL
1
EN
QUICK REFERENCE GUIDE
WELL Panel QRG Rev. 7
About This Guide
The WELL Panel Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu
options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
RF Exposure Warning for North America and Australia
Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico contact your distributor to request support or return
a product. Visit www.chauvetprofessional.com for contact information.
What is Included
• WELL Panel
• Seetronic Powerkon IP65 power cord
• Color blending filter lens
• Omega bracket with mounting hardware
• Quick Reference Guide
EN
2
WELL Panel QRG Rev. 7
QUICK REFERENCE GUIDE
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
It is possible to link up to 9 WELL Panel products at 120 VAC, 17 products at 208 VAC, or 18 products at 230 VAC. Never
exceed this number. Power-linking cords can be purchased separately.
AC Plug
Battery Charge Notes
This product is equipped with a built-in rechargeable lithium ion battery.
• Avoid depleting the battery below 10%.
• For best results, charge the battery in a temperature between 32 ºF (0 ºC), and 95 ºF (35 ºC).
• When charging the battery, keep the product at least 1 m from any open flame or hot plate.
• If the battery is completely discharged, the device cannot be turned on immediately when the charger is
connected. Allow a depleted battery to charge for a few minutes before turning on the device.
• While charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance.
If the battery gets hotter than usual, the charger may stop charging.
• Always charge the battery with the product in an upright position.
• Do not charge the battery for more than 24 hours.
• This product must be charged under supervision only. NEVER leave it unattended or unmonitored while charging.
Storage Notes
• Store charged product(s) in a dry environment, away from direct sunlight.
• Charge or discharge the battery to approximately 50% of capacity before storage.
• Lithium-Ion batteries continue to slowly discharge (self-discharge) when not in use or while in storage. Routinely
check the battery’s charge status.
• Store the battery at temperatures between 41 °F and 68 °F (5 °C and 20 °C).
• Always store the product in an upright position (≤ 10° tilt).
Battery Run ime T
DMX Linking
The WELL Panel will work with a DMX controller using a 5-pin DMX data connection or a wireless DMX connection. A
DMX Primer is available from www.chauvetprofessional.com.
DMX Connection
The WELL Panel uses a wireless or 5-pin DMX data connection for its DMX personalities: 4Ch, 8Ch, 12Ch 13Ch, , and
21Ch. See the User Manual for information about connecting and configuring the product for DMX operation.
Master/Slave Connection
The WELL Panel uses the DMX data connection for its Master/Slave mode. See the User Manual for information about
connect and configure the product for master/slave operation.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
Battery Run ime T Recharge Time
3, 5, 8, or 12 hours 4 hours
