Cougar Duoface RGB Bruksanvisning
Cougar
Computerbehuizing
Duoface RGB
Läs nedan 📖 manual på svenska för Cougar Duoface RGB (2 sidor) i kategorin Computerbehuizing. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2
Tempered glass front panel (pre-installed)
A
GVertical slot covers
Airflow front panel (packed separately)
B
H1 x 120mm / 1 x 140mm fan for rear panel
(120mm ARGB fan x 1 pre-installed)
CQuick slide dust filter IAir filter for top panel
D2 x 120mm / 2 x 140mm fans for front panel
(140mm ARGB fans x 2 pre-installed)
2 x 120mm / 2 x 140mm fans for top panel
J
EAir filter for bottom panel
K2.5”SSD tray
Installing the I/O Connectors /
FTempered glass side panel
LRight side panel
M3.5”HDD cage
WARRANTY PERIODS OF COUGAR GAMING DEVICES /
Product / : COUGAR DUOFACE RGB /
Warranty / : 1 Year /
● This warranty gives you specific legal rights. You may also have other rights granted under local law.
These rights may vary. /
● Only for electrical components. /
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H 000001 означает, что товар был произведен в феврале 2022 года.2202
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,и означают год,
последующие две цифры – месяц изготовления.
Например, S/N: D REVI000001 означает, что товар был произведен в феврале 2022 года.BB02
● Например,
BB = 22 = 2022 год
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
A B C D E F G H I J
1 345678902
A
B
X 1
X 17
Motherboard screws and 2.5" SSD screws
X 7
Power supply screws
X 5
Stand off for motherboard and VGA riser cable
3.5" HDD screws / X 8
Cable ties X 6
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
България QR код
* E-ATX up to 277mm wide. /
* Please choose either front or top to install a 280mm radiator. /
* Max. length of RTX 3090 graphic card is 325mm. /
Two front panels for double enjoyment
Innovative quick slide dust filter
Integrated RGB system with 5V ARGB motherboard synchronization
Support for E-ATX motherboard
Up to 330mm graphics cards
Up to five fans and 190mm CPU cooler
ENGLISH
Две передние паннели для лучшего эффекта
Инновационный быстросъемный пылевой фильтр
Встроенная RGB синхронизация с материнской платой через 5V ARGB
Поддержка материнской платы E-ATX
Вмещает видеокарту длинной до 330 мм
Вмещает до пяти вентиляторов и 190-мм процессорный кулер
RUSSIAN
Dos paneles frontales para un doble aprovechamiento
Innovador filtro de polvo de deslizamiento rápido
Sistema RGB integrado con sincronización de placa base ARGB de 5V
Soporte para placa base E-ATX
Tarjetas gráficas de hasta 330 mm
Hasta cinco ventiladores y un cooler de CPU de 190 mm
SPANISH
Dois painéis frontais para duplo aproveitamento
Inovador filtro de pó de deslizamento rápido
Sistema RGB integrado com sincronização da placa-mãe ARGB de 5V
Suporte para a placa-mãe E-ATX
Placas gráficas de até 330mm
Até cinco ventiladores e um CPU Cooler de 190mm
BRAZILIAN PORTUGUESE
Zwei Frontplatten für doppeltes Vergnügen
Innovativer Staubfilter mit Schnellverschluss
Integriertes RGB-System mit 5V-ARGB-Synchronisierung der Hauptplatine
Unterstützung für E-ATX-Motherboards
Grafikkarten bis zu 330 mm
Bis zu fünf Lüfter und 190-mm-CPU-Kühler
GERMAN
2つのフロントパネルで2倍の楽しみを
革新的なスライド防塵フィルター
統合したRGBシステムによって5V ARGBマザーボードのRGBに同期可能
E-ATXマザーボードもサポート
最大330mmのグラフィックカードに対応できます
最大5つのファンと190mmのCPUクーラーを搭載可能
日本語
2배의 즐거움을 위한 2개의 전면 패널
혁신적인 퀵 슬라이드 먼지 필터
5V ARGB 마더보드 동기화 기능이 있는 통합 RGB 시스템
E-ATX 마더보드 지원
최대 330mm 그래픽 카드 장착 가능
최대 5개의 팬 및 190mm CPU 쿨러 장착 가능
KOREAN
双面板为您带来双重体验
侧拉式快拆防尘滤网
整合式RGB系统支援5V ARGB主机板灯效同步功能
支援E-ATX 主机板
最高支援330mm 显卡
最高支援5个风扇和190mm CPU散热器
中文
3.5” HDD cage screws
USB 3.0 HD AUDIO POWER SW
HD AUDIO
POWER SW
H.D.D LEDPOWER LED
POWER LED +
POWER LED
-
USB3.0
USB 2.0
USB
H.D.D LED
-
+
HD音效线 电源开关线 电源 LED 灯线 H.D.D LED 灯线
X 1
Fan splittercable
Case Form Factor /
Dimension /
Motherboard Type /
I/O Panel /
3.5" Drive Bay /
2.5" Drive Bay /
Expansion Slots /
Product Name /
Cooling Fan Support
Water Cooling Radiator Support
Maximum Number of Fans
Max. Graphics Card Length
Onboard Lighting System Yes
Yes
Yes
RGB Sync with M/B
COUGAR Logo RGB Light
Max. CPU Cooler Height
Max. PSU Length
330(mm) / 13(in)
190(mm) / 7.5(in)
160(mm) / 6.3(in)
Transparent Left Panel 4mm Tempered Glass /
Duoface RGB /
Model No. / CGR-5ZD1B-RGB
Mid Tower /
230(W) x 491(H) x 386(D) (mm) / 9.1(W) x 19.3(H) x 15.2(D) (in)
7+3
Mini ITX / Micro ATX / ATX / CEB / *E-ATX
USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button
2
2 (2 SSD trays included) /
Front / : 120mm x 2 / 140mm x 2 (140mm ARGB fan x 2 pre-installed)
Rear / : 140mm / 120mm
Top / : *280mm / 240mm / 140mm / 120mm
Front / : *280mm / 240mm / 140mm / 120mm
5 Max.
Top / : 120mm x 2 / 140mm x 2
Rear / : 120mm x 1 / 140mm x 1 (120mm ARGB fan x 1 pre-installed)
A
G
B
H
C
I
D
J
E
K
F
L
M
双 面
产品名称
产品型号
双面
中塔机箱机箱规格
主板类型
尺寸 (宽x高x深)
I/O 接孔
3.5" 硬盘槽
2.5"硬盘槽
扩充插槽
散热风扇规格
最高风扇安装数量
水冷排规格
透明左侧盖
支援主板RGB同步软件
灯效控制板
COUGAR Logo RGB灯效
显卡最大长度
CPU 风扇最大高度
全球保固条款
COUGAR电竞产品保固期
280 mm 水冷排请择一安装于前板或上盖。
E-ATX 主板最高可支援宽度为 277 mm。
产品名称
本保固条款赋予您特定的合法权利，而您所在的地区可能也会赋予您其他权利。
仅适用于电子元件。
保固期 1年
双面
RTX 3090 显卡长度最大为 325 mm。
电源供应器最大长度
上盖
背板
4mm 钢化玻璃
前板
(预装140mm ARGB风扇x 2)
(预装120mm ARGB风扇 x 1)
上盖
背板
2 (内附2个SSD硬盘架)
前板

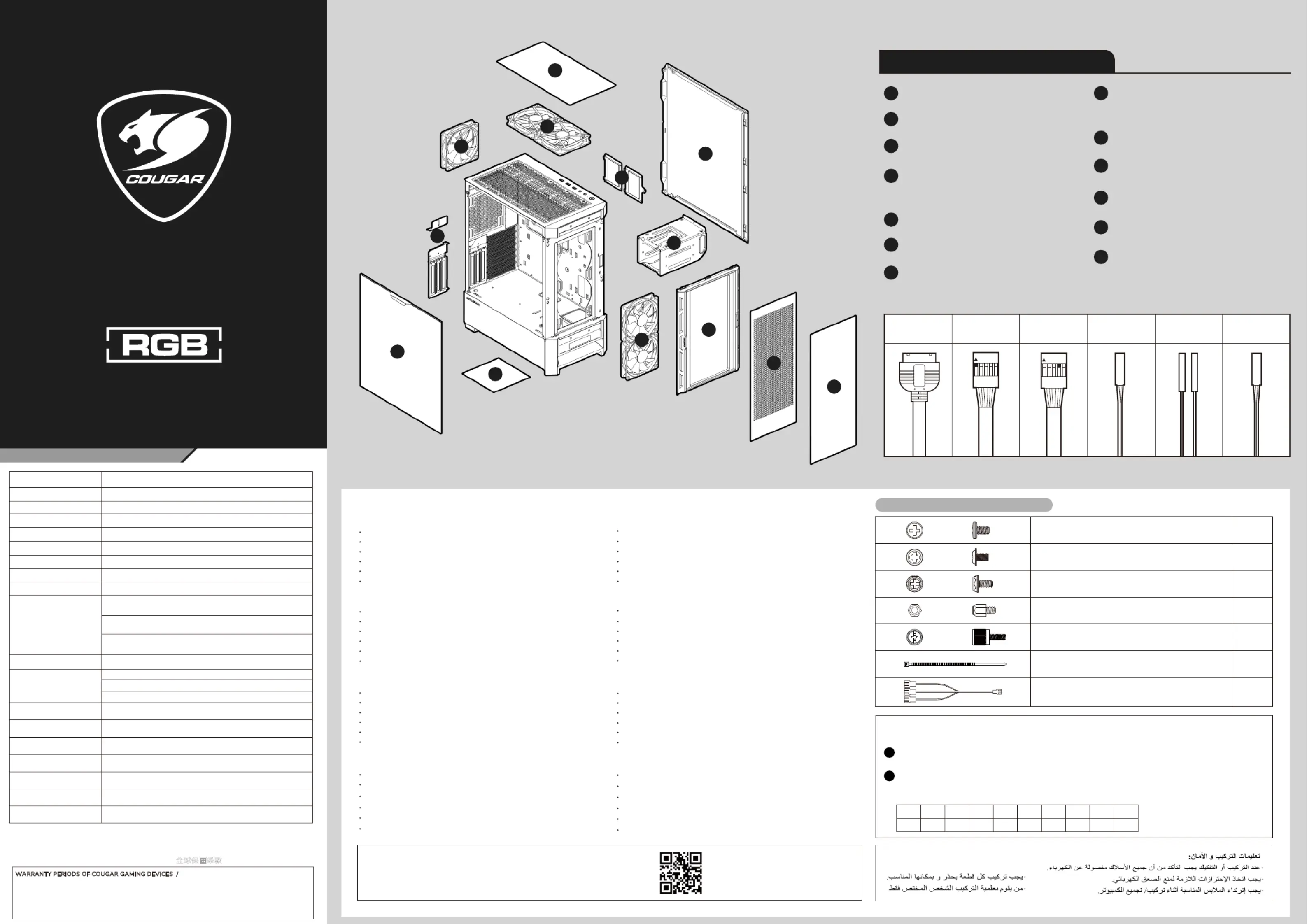

爆炸图
玻璃前饰板 (预装)
金属网孔前饰板 (单独包装)
侧拉式快拆防尘滤网
前板支援2 x 120mm / 2 x 140mm 风扇
(预装140mm ARGB风扇x 2)
底部防尘网
玻璃左侧板
垂直扩充插槽
I/O线材接头
背板支援1 x 120mm / 1 x 140mm 风扇
(预装120mm ARGB风扇x 1)
上盖防尘网
上盖支援2 x 120mm / 2 x 140mm 风扇
2.5” SSD托盘
右侧板
HDD硬盘槽
配件包
3.5” HDD螺丝
主机板螺丝 / 2.5” SSD螺丝
电源螺丝
主机板铜柱 / 垂直显卡排线铜柱
3.5” HDD硬盘槽手动螺丝
束线带
小3 pin风扇转接线
120
140
240
*280
120 / 140
( Top / )
1
( Rear / )
3
120140
120140 240*280
120 / 140
120 / 140
( Front / )
2

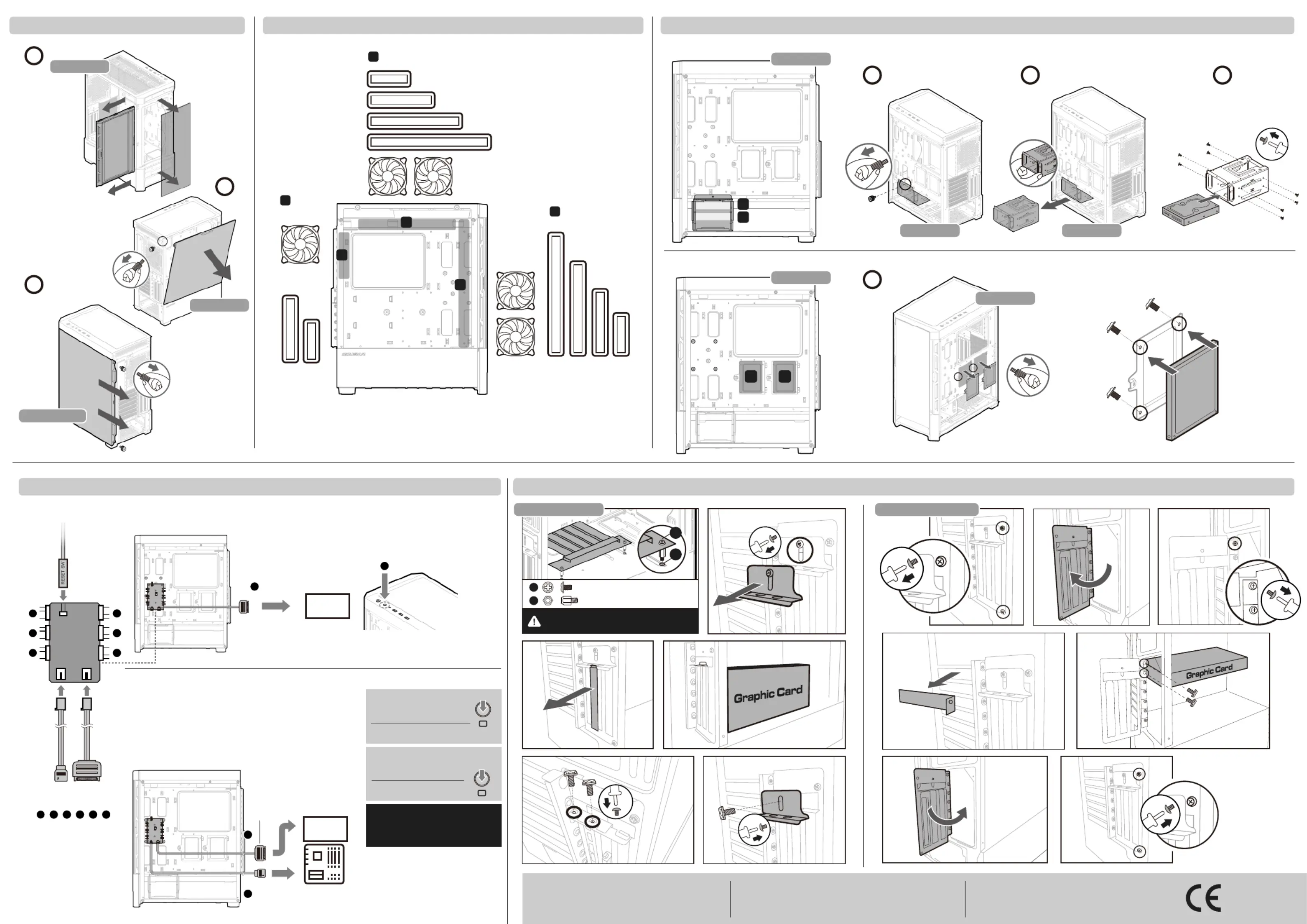

Installing water cooling radiators & cooling fans /
1
2
3
Removing panels /
1
For more info rmat i on, ple a s e v isit
Com p ucas e Ent erp ris e Co., Ltd .
Al l ri ght s r eserved. Made in China
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C
Tel:+886-6-356-0606
Service E-Mail:ser vice@cougargaming.com
COUGAR USA Technical Service
Tel: (833) 256-3778
Mail: rma@compucaseusa.com
https://cougargaming.com/suppor t/contact/upload/
2
3
* Please choose either front or top to install a 280mm radiator.
1 2
1 3
1
2
2
Installing the 3.5" HDDs / 2.5" SSDs /
Controlling lighting modes / Installing Graphic Card /
FIRST MODE: SEVERAL LIGHTING EFFECTS /
RGB SW button
1
2
3
4
5
6
5V Addressable
RGB adapter
Power connector
123 4 5 6
Power supply
SECOND MODE: MOTHERBOARD SYNCHRONIZATION
Power supply
Motherboard
5V Addressable RGB connector
2
25V Addressable
RGB adapter
Several Lighting Effects
Press the RGB button for one second
1 sec
Motherboard synchronization
Press and hold the RGB button for 3 seconds.
3 secs
1
Power cable
1Power cable
You can use the top panel’s RGB button to switch between several beautiful lighting effects
we have preset for you. /
Please use the included adapter to connect to a compatible motherboard’s 3-pin
5V Addressable RGB header. Then, press and hold the RGB SW button for 3
seconds. The lights will flash in white once, it means the light signal has been
changed to motherboard synchronization mode.
※ If you press and hold the RGB SW button for 1 second again. It will be
returned to the First mode: Several Lighting Effects.
If you press and hold the RGB button for 6
seconds, the lights will flash in white for twice,
and the lights will be turned off.
The vertical graphic card and the PCI-E riser cable are not
included in the package, please purchase separately.
1
A
B
Stand-off for VGA riser cable
Motherboard screws and 2.5" SSD screws
A
B
LEFT / 左侧板
RIGHT / 右侧板
FRONT / 前板
前面板与左右侧板拆卸说明 水冷与风扇安装说明
RGB灯效操作说明 显卡安装说明
模式一：多种预设灯效
模式二：主机板同步灯效
模式二
回复模式一
主机板同步灯效
多种预设灯效
长按RGB灯效控制键 3 秒
短按RGB灯效控制键 1 秒
请短按上盖的RGB灯效控制键，即可切换多种预设灯效。
灯控板电源线
灯控板电源线
电源供应器
电源供应器
RGB灯效控制切换线
5V/3pin ARGB
可编程主机板接头 灯控板电源线
5V/3pin ARGB
可编程主机板接头
主机板
5V/3pin ARGB可编程主机板接口
3.5" HDD / 2.5" SSD安装说明
上盖
背板 前板
* 280 mm 水冷排请择一安装于前板或上盖。
RIGHT / 右侧
RIGHT / 右侧 RIGHT / 右侧
RIGHT / 右侧
RIGHT / 右侧
VERTICAL / 垂直安装 HORIZONTAL / 水平安装
请使用灯控板随附的5V/3pin ARGB可编程主机板接头，连接到主机板上的5V/3pin
接口，然后长按RGB灯效控制键 3 秒，会快闪白光一次，表示灯光讯号已切换至主板
同步模式。
SECOND MODE
BACK TO FIRST MODE
如果长按RGB灯效控制键 6 秒，会快闪白光
两次，然后关闭灯效。
电脑重新开机，可记忆关机之前的灯效。但如果透
过长按RGB灯效控制键 6 秒的方式来关闭灯效，就
没有记忆功能，重新亮灯仅能回到模式一的初始预
设灯效。
主机板螺丝 / 2.5” SSD螺丝
主机板铜柱 / 垂直显卡排线铜柱
显卡和 PCI-E 转接线不包含在包装内，请单独购买。
The lighting controller has memory function after
REBOOTING.
However, if you press and hold for 6 seconds and return
on the light again, it will only return to the first light
mode of default, and it cannot memorize the light effect
before it was turned off.
