Important Safety Advice

When using electrical appliances, basic

precautions should always be followed to

reduce the risk of re, electrical shock, and

injury to persons, including the following:

IMPORTANT – The wall bracket supplied

with the appliance must be used.

WARNING – DO NOT USE THIS HEATER

IN THE IMMEDIATE SURROUNDINGS OF

A BATH, A SHOWER OR A SWIMMING

POOL.

IMPORTANT – If the heater is installed in a

room containing a bath or shower, it must be

so installed that switches and other controls

cannot be touched by a person using a bath

or shower.

Do not use outdoors.

Do not locate the heater immediately below

a xed socket outlet or connection box.

WARNING: In order to avoid overheating, do

not cover the heater. Do not place material

or garments on the heater, or obstruct the

air circulation around the heater, for instance

by curtains or furniture, as this could cause

overheating and a re risk.

NEVER cover or obstruct in any way the heat

outlet slots at the top of the heater or the air

inlet slots in the base of the heater.

The heater carries the Warning symbol

indicating that it must not be covered.

CAUTION - Some parts of this product

can become very hot and cause burns.

Particular attention has to be given where

children and vulnerable people are present.

This appliance can be used by children

aged from 8 years and above and by

persons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

Installation and Operating Instructions

INCMUKP7RG Issue 6

Contour 100 Electronic Panel Heaters

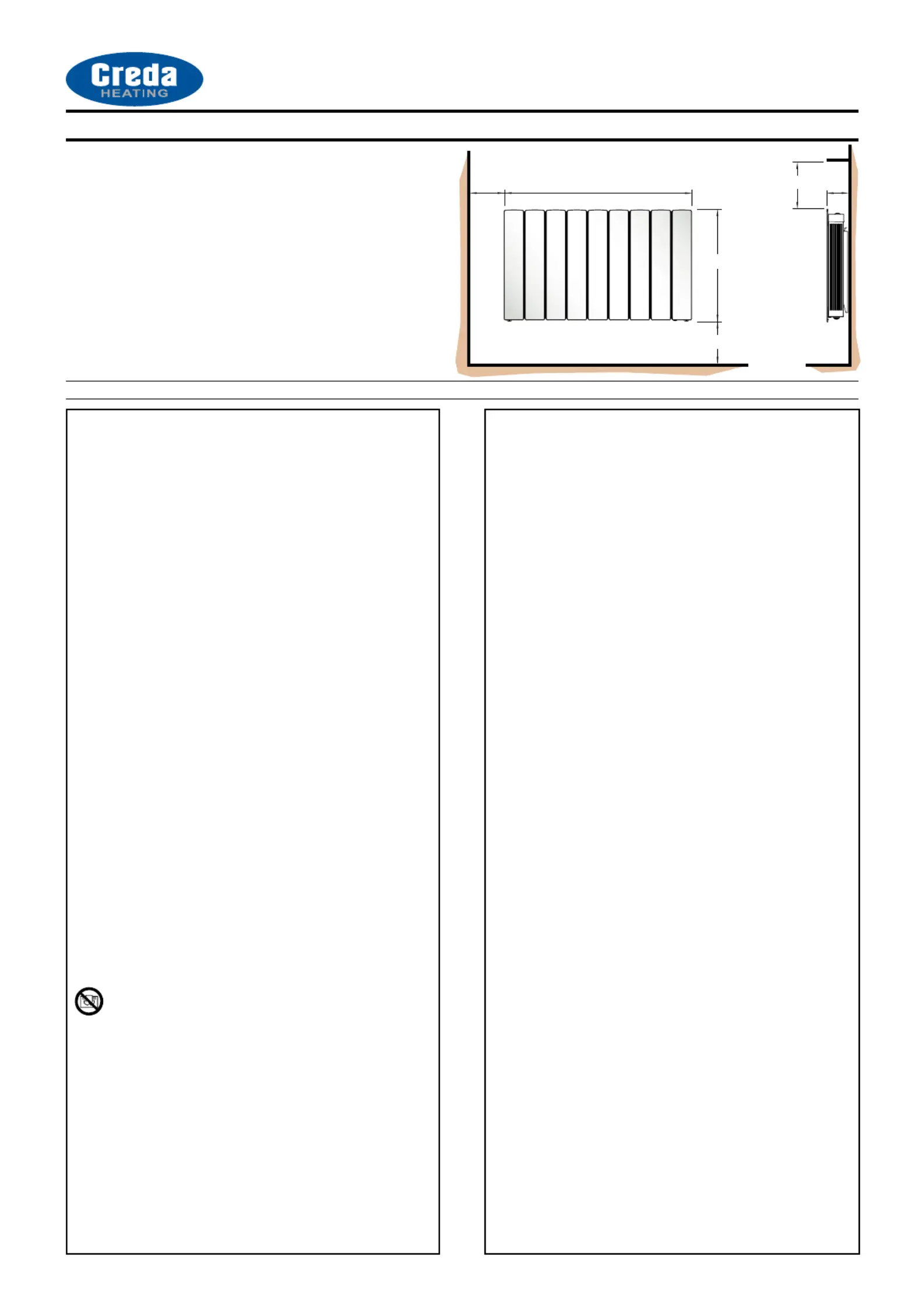

Dimensions

(millimetres)

Model s Watt A B ( )

CEP500E 0.5kW 503 104

CEP750E 0.75kW 503 104

CEP1000E 1.0kW 671 104

CEP1500E 1.5kW 741 104

CEP2000E 2.0kW 911 104

Fig. 1

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintainance shall not

be made by children without supervision.

Children of less than 3 years should be kept

away unless continuously supervised.

Children aged from 3 years and less than 8

years shall only switch on/off the appliance

provided that it has been placed or installed

in its intended normal operating position

and they have been given supervision or

instruction concerning use of the appliance

in a safe way and understand the hazards

involved. Children aged from 3 years and

less than 8 years shall not plug in, regulate

and clean the appliance or perform user

maintainance.

Note that due care and consideration must

be taken when using this heater in series

with a thermal control, a program controller,

a timer or any other device that switches on

the heat automatically, since a re risk exists

when the heater is accidentally covered or

displaced.

If the supply cord is damaged it must be

replaced by the manufacturer or service

agent or a similarly qualied person in order

to avoid a hazard.

WARNING: Servicing and product

repairs should only be undertaken by the

manufacturers approved service agent or a

similarly qualied person, using only exact

manufacturer approved spare parts.

A means for disconnection must be

incorporated in the xed wiring of the

premises in accordance with the wiring

rules. The supply circuit to the heater must

incorporate a double pole isolating switch

having a contact separation of at least 3mm.

536

150

Min.

300 n.Mi

shelf

150 Min.

Operation

Switching On the Heater

The controls are located on the right hand side on top of the appliance.

The button marked ‘ ’ controls the electricity supply to the electronic

thermostat. An indicator beside the ‘ ’ button shows when the unit

is powered ‘ON’.

Electrical

WARNING – THIS APPLIANCE MUST BE EARTHED

The electrical installation must be carried out by a competent

electrician, and be in strict accordance with the current I.E.E.

regulations for Electrical Equipment in Buildings.

The wires in this mains lead are coloured in accordance with the

following code:

GREEN AND YELLOW : EARTH

BLUE : NEUTRAL

BROWN : LIVE

BLACK : PILOT WIRE

- see also ‘Pilot Wire Connection’.

The heater is tted with a length of exible cable type H05VV-F size 4

x 1.0mm2 for connection to the xed wiring of the premises through a

suitable connection box positioned adjacent to the heater.

The supply circuit to the heater must incorporate a double pole isolating

switch having a contact separation of at least 3mm.

Pilot Wire Connection

The BLACK control wire is designed to carry a signal from slot in or

wall mounted Creda programmers. If, however a programmer is not

being used, the pilot wire should be isolated in accordance with the

current IEE Wiring Regulations.

IMPORTANT - connect the BLACK pilot wire to earth. Care DO NOT

should be taken with the installation of the pilot wire(s) as when

switching to background (set back) they become energised at 240V

although only at a current of less than 100mA. In every case a suitable

means of isolation must be provided for the pilot wire and marked

to indicate that two sources of supply may be present at the heater.

Where pilot wires are installed separately from the heater nal sub-

circuit they should be protected, double insulated and carry their own

integral earth continuity conductor.

Supplementary Earth Bonding

Should Equipotential Earth Bonding be required the earthing conductor

in the supply cord is deemed to provide the supplementary bonding

connection (see Regulation 544.2.5, 17

th Edition I.E.E. Wiring

Regulations).

General

The heater is designed for wall mounting on the wall bracket supplied.

It should only be operated when in the upright position as shown -

see .Fig. 1

All models are splashproof to IPX4 standard and may be used in

bathrooms, however not in the immediate vicinity of baths, showers,

water connections, wash basins or swimming pools.

Before connecting the heater check that the supply voltage is the same

as that stated on the heater.

NOTE - Lit cigarettes, candles and oil burners, combined with the

convection effect of electric heaters can cause soot deposits to build

up on the surface directly above and to the sides of the heater. This

is not a fault of the heater. Extensive burning of candles or smoking

in the operating environment of this product can produce heavy

discolouration within a few months of use.

Wall Mounting

IMPORTANT – The wall bracket supplied with the appliance must

be used. The heater should be positioned observing the minimum

clearances stated around the heater - see and .Fig. 1 Fig. 2

DO NOT locate the heater immediately below a xed socket outlet

or connection box.

1. Remove wall mounting bracket from the back of the heate r

by depressing the spring latch at the top of each bracket - see

Fig. 2.

2. Fix the wall bracket securely to the wall through the four screw

holes provided.

3. Present the heater to the wall bracket, and engage lower slots

in the back with bracket.

4. Raise the heater to upright position and push the heater onto

the bracket to engage the top latch.

Fig. 2

MAX

MIN

Fig. 3

Turn on the heater using the ‘ ’ button and rotate the thermostat knob

to the desired position. When the room temperature has reached the

desired level, the power to the elements will be reduced, the heater

will then maintain the room temperature at the chosen level.

NOTE - Should your heater fail to come on when the thermostat knob

is at a low setting, this may be due to the room temperature being

higher than the thermostat setting.

Background Temperature

When used in conjunction with a remote programming device

supporting a background/setback setting, the heater will automatically

operate at a room temperature setting of 5

0C less than the thermostat

setting when the programme is in background/setback mode.

Limiting the thermostat setting

Before wall mounting the product the installer may wish to limit the

heat selection knob movement for the operator. This may be achieved

by unclipping the knob and removing the two plastic pins (see Fig. 4)

using pliers and inserting them in the preferred holes to limit the knob

movement. Replace the plastic cap.

Setting Desired Temperature Fig. 3(see )

The heater is tted with an adjustable thermostat enabling the room

temperature to be controlled by rotating the knob accordingly. The min

setting ‘ ’ represents a room temperature of approximately 5

0C and

may be used for protection against frost. The ‘MAX’ setting represents

a room temperature of approximately 30

0C. The ‘ ’ symbol glows when

the elements are actually heating.

255 Min.

C D

CEP500E 390 300

CEP750E 390 300

CEP1000E 560 300

CEP1500E 630 300

CEP2000E 800 300

Safety - Overheat protection

For your safety this appliance is tted with a thermal cut-out. In

the event that the product overheats for some reason, the cut-out

prevents excessive temperatures on the product by cutting the power

to the heater. Once the heater has cooled down, it will reset

automatically, it will continue to cycle on and off automatically until

the reason for overheating is removed.

Cleaning

WARNING – ALWAYS DISCONNECT FROM THE POWER SUPPLY

BEFORE CLEANING THE HEATER.

Before commencing cleaning, unplug the heater and allow it to cool.

Disconnect the electricity supply to the appliance.

The outside can be cleaned by wiping it over with a soft damp cloth

and then dried. Do not use abrasive cleaning powders or furniture

polish, as this can damage the surface nish.

To release the heater from the wall bracket for cleaning or redec-

oration, depress the latch on each bracket (see ) and hinge Fig. 2

forward.

Recycling

For electrical products sold within the European

Community. At the end of the electrical products

useful life it should not be disposed of with household

waste. Please recycle where facilities exist. Check

with your Local Authority or retailer for recycling

advice in your country.

After Sales Service

Your product is guaranteed for one year from the date of purchase.

Within this period, we undertake to repair or exchange this product

free of charge provided it has been installed and operated in

accordance with these instructions. Your rights under this guarantee

are additional to your statutory rights, which in turn are not affected

by this guarantee.

Should you require after sales service you should contact our

customer services help desk on 0844 879 3588. It would assist us

if you can quote the model number, series, date of purchase, and

nature of the fault at the time of your call. The customer services help

desk will also be able to advise you should you need to purchase

any spares.

Please do not return a faulty product to us in the rst instance as

this may result in loss or damage and delay in providing you with a

satisfactory service. Please retain your receipt as proof of purchase.

Notes to the Installer

Test Mode

When the heater is connected via a pilot wire system, the test mode

allows the installer to check whether the heater is responding correctly

to the incoming pilot wire signal.

Before switching the heater on at the mains, rotate the thermostat

knob to the ‘MAX’ position, then press and hold the ‘ ’ button whilst

switching on the mains.

The unit will now enter a test state for 4 mins. During this test state

the ‘ ’ neon will indicate the pilot wire status:

NEON PILOT WIRE

CONTROLLER MODE

Neon on - ON

Neon off - OFF

Fig. 4

Fig. 5

Neon ashing fast approx every 0.1sec - FROST

Neon ashing slow approx every 0.5 sec - SETBACK

Accessory Modules

Optional accessory modules are available for use with this range of

heaters - see separate User Instructions for details on the operation

of each accessory module.

Before tting a control module switch the heater off at the mains supply.

To insert a module, the plug-in protective cover on the right hand side

of the thermostat unit at the back of the heater must rst be removed.

Insert a at-head screwdriver into the side of the cover and prise away

from the heater - see Fig. 5.

Lift the cover away from the heater to reveal the slide in compartment.

Insert the accessory module into the slot ensuring it is positively

located in position - see . Secure the module in place with the Fig. 5

screw provided.

Switch the heater on at the mains supply.

Produktspecifikationer

Varumärke:	Creda
Kategori:	Värmare
Modell:	CEP750E

Behöver du hjälp?

Om du behöver hjälp med Creda CEP750E ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Värmare Creda Manualer

Creda TSR18MW Bruksanvisning

18 September 2024

Creda CEP1500E Bruksanvisning

18 September 2024

Creda TSRE150 Bruksanvisning

18 September 2024

Creda CEP2000E Bruksanvisning

18 September 2024

Creda CEP075E Bruksanvisning

18 September 2024

Creda COR15TS Bruksanvisning

18 September 2024

Creda TPRIII 500M Bruksanvisning

18 September 2024

Creda TPRIII 1500M Bruksanvisning

18 September 2024

Creda EPH500 Bruksanvisning

18 September 2024

Creda EPH1500 Bruksanvisning

18 September 2024

Värmare Manualer

Nyaste Värmare Manualer

Vonroc PH503AC Bruksanvisning

27 Oktober 2024

JANDY VersaFlo Bruksanvisning

27 Oktober 2024

Master 215TMHD-KFA Bruksanvisning

26 Oktober 2024

Yamazen DBC-VK123 Bruksanvisning

23 Oktober 2024

Yamazen DCT-B08 Bruksanvisning

23 Oktober 2024

Yamazen DOL-J122 Bruksanvisning

23 Oktober 2024

Yamazen DSF-S122 Bruksanvisning

23 Oktober 2024

Yamazen DBC-SK123 Bruksanvisning

23 Oktober 2024

Yamazen DBC-W121 Bruksanvisning

23 Oktober 2024

Yamazen DMF-D021 Bruksanvisning

23 Oktober 2024
