Instruction Manual
V1.0
4040 A
Integrated Amplifier
WWW.CREEKAUDIO.COM
ENGLISH
USER MANUAL FOR 4040 A INTEGRATED AMPLIFIER
The 4040 A is an easy integrated amplifier to use, but please read the User Manual first to get started and stay safe.
Thank you for purchasing Creek Audio’s 40th Anniversary 4040 A Integrated Amplifier. You are now in possession of
a State-Of-The-Art audio product. Please take a little time to study the User Manual to obtain the best performance
from it.
The user manual may describe the 4040 A as the “amp” or “amplifier”.
Please check www.creekaudio.com for the latest versions of this manual. Go to the 4040 A product page and click on
the tab marked “User Manual”.
UNPACKING AND LOCATING THE AMPLIFIER
When unpacking the amplifier, please keep the packaging material in a safe place for possible future use. Inside the
carton is a power cord suitable for connecting to the mains supply in the country of use. You will also find a remote-
control handset and batteries, plus a Bluetooth antenna.
MAINS CONNECTION AND IMPORTANT SAFETY INFORMATION
The amplifier is factory-set, with the voltage selector switch on the base, to the correct power supply voltage for
your region. Please make sure the switch is set to the voltage in your location. The two nominal mains voltage
options are 115V or 230V. The 4040 A will operate normally from 200V to 250V or 100V to 125V AC, 50Hz to 60Hz AC.
The amplifier must be grounded for safety and correct electromagnetic performance via the regional mains plug
provided. Do not use a ground-li device to disconnect the safety ground pin.
SAFETY WARNING
Damage will occur if 230V AC is input when the voltage selector switch is set for 115V AC.
Contact your dealer, importer, or info@creekaudio.com if you require further advice.
2
Page:

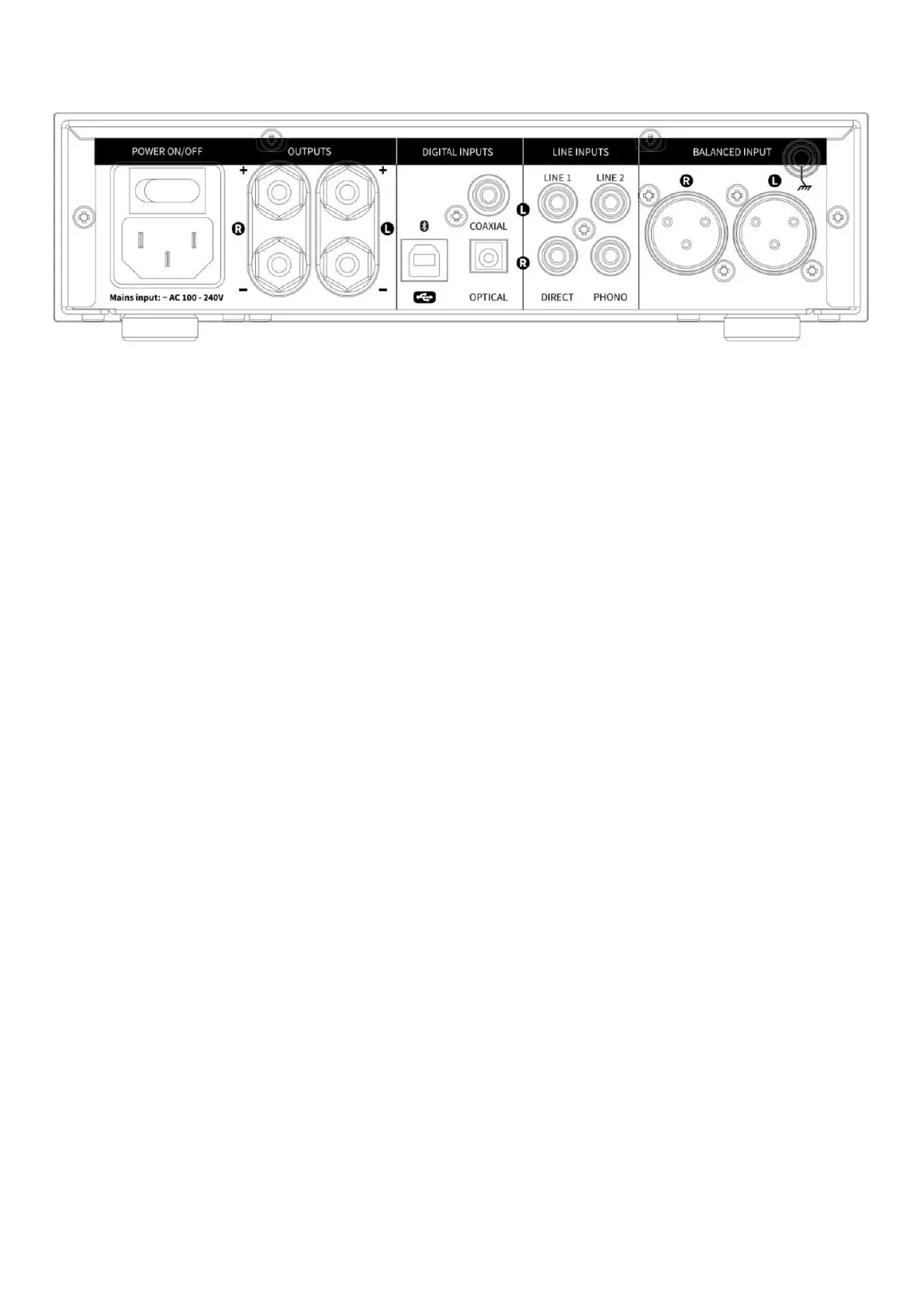

CONNECTIONS TO THE REAR PANEL
OUTPUTS With POWER OFF, connect a good quality speaker cable from each loudspeaker to the output
terminals.
LINE INPUTS Connect the audio output of a streamer/DAC, or CD Player to either Line 1, or Line 2
(unbalanced inputs) with a good quality stereo RCA-to-RCA interconnect cable.
DIRECT Line 1 can be set in the Menu as PA Direct, to bypass the pre-amp and feed signals directly to
the power amp from an external pre-amp or volume-controlled DAC, etc.
PHONO INPUT Line 2 becomes a Phono input with an optional Sequel mk4 module installed.
BALANCED INPUT Connect a streamer, DAC, or CD Player to the balanced inputs with a pair of XLR-to-XLR
interconnect cables.
USB Connect a computer/laptop or music streamer with a USB (printer) cable, type A to B, or
type C to B, not longer than 5 metres in length.
COAXIAL Connect a CD Transport, Network Streamer, or other digital product with a 75 Ohm RCA-to-
RCA digital coaxial cable.
OPTICAL Connect a CD Transport, Network Streamer, TV, Satellite receiver, or other digital output
device with a good quality optical interconnect.
BLUETOOTH Screw-in the 10cm antenna provided until it is tight and then swivel it vertically for best
reception range.
MAINS CONNECTION
Plug the mains power cord provided into the IEC socket on the rear panel and the mains power plug to the nearest
wall socket or good-quality extension socket strip.
POWER ON/OFF
Move the rocker switch above the IEC mains-socket on the rear panel to the ON position, marked I. The 4040 A will
automatically power-ON and the CREEK logo will be displayed on the front panel for a few seconds before switching
to the HOME screen.
To electrically isolate the amplifier from the mains, move the rocker switch on the back panel to the OFF position,
marked O or remove the power cable.
3
