MODEL #:

DSB-F154LH

OWNER'S MANUAL

S/N : 3113909901

This air conditioner meets strict safety and operating standards. The

installer of this unit must install or service this unit so it operates safe-

ly and efficiently.

The lightning flash with arrowhead symbol, within

an equilateral triangle is intended to alert the user to

the presence of uninsulated dangerous voltage

within the product’s enclosure that may be of suffi-

cient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

Contact Installer if Necessary:

The installation instructions are for a experienced installer. If you are

not an experienced installer, contact a local installer for help. If you

require help with service, contact your certified dealer or Daewoo

Electronics for additional instructions.

If Unit is Installed Improperly:

The manufacturer shall in no way be responsible for improper instal-

lation or maintenance service, including failure to follow the instruc-

tions in this manual.

Precautions When Wiring:

• Do not plug in the unit until all connections (tubing, drain hose,

mounting, etc.) have been made and double-checked.

• High voltages are present in this unit and are very dangerous.

Please refer to these instructions and diagrams when wiring.

Improper connections or inadequate grounding can cause acciden-

tal injury.

• This unit must be grounded in accordance with local electrical

codes.

• Connect wires and pipes securely and tightly as loose connec-

tions/wiring may cause overheating at connections and a possible

fire hazard.

Precautions When Transporting:

• When transporting the unit, be very careful and get help as the

units are very heavy. Be careful of sharp edges on the units also.

Precautions When Installing:

• When installing in a ceiling or wall, make sure the ceiling/wall is

strong enough to hold the unit’s weight. A frame may be necessary

for added support.

• When installing in a room, make sure the tubes are well insulat-

ed to protect the walls and furniture from sweating of the tubes.

• When installing in moist or uneven locations, make sure to use

a raised level concrete pad or concrete blocks to provide a level,

solid foundation for the outdoor unit; this prevents water damage

and vibration.

• When installing in an area of high winds, make sure to securely

anchor the outdoor unit down with bolts and a metal frame.

When Connecting Refrigerant Tubing:

• Keep all tubing as short as possible.

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the flare and

union tubes before connecting them, then tighten , making sure not

to overtighten.

• Check the tubes carefully for leaks before starting the test run.

When Servicing:

• Make sure the power is off and the unit is unplugged before open-

ing the unit to troubleshoot or repair electrical parts and wiring.

• Keep your fingers and clothing away from any moving parts.

• Clean up the sight after you finish, making sure no metal scraps

and wiring are left in the unit.

• The Air conditioner shall be installed in accordance with the

nationed wiring regulation.

• The equipment fulfills the requirements in EN 61 000-3-11 and is

subject to conditional connection to the mains.

• It may be connected in consultation with the supply authority.

• The equipment may only be connected to a mains supply with a

system impedance of less than 0.3 ohm.

• The system impedance in the interface point may be obtained

from the supply authority.

• If the mains supply has a higher system impedance, short voltage

dips may appear when the equipment is started or during opera-

tion.

• This may influence or disturb the operation of other apparatuses, e.

g. flickering lamps, especially those connected to the same supply

mains.

SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE

INSTALLING AND OPERATING THE UNIT:

IMPORTANT NOTES

• Adhere to all safety instructions and warnings throughout this

manual.

• Read this manual carefully before installing or operating this

unit to become familiar with its features and obtain the perfor-

mance that will bring you continued enjoyment for many

years.

• Follow each installation or repair step exactly as shown in the

manual.

• Observe all local, state and national electric codes. Contact

your local government for more information on electrical

codes.

WARNING:

• ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL

INJURY OR DEATH. ONLY A QUALIFIED, EXPERIENCED

ELECTRICIAN/INSTALLER SHOULD ATTEMPT TO WIRE THIS

SYSTEM.

• THE APPLIANCE IS NOT INTENDED FOR USE BY CHIL-

DRENOR INFIRM PERSONS WITHOUT SUPERVISION.

• YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE

THAT DO NOT PLAY WITH THE APPLIANCE

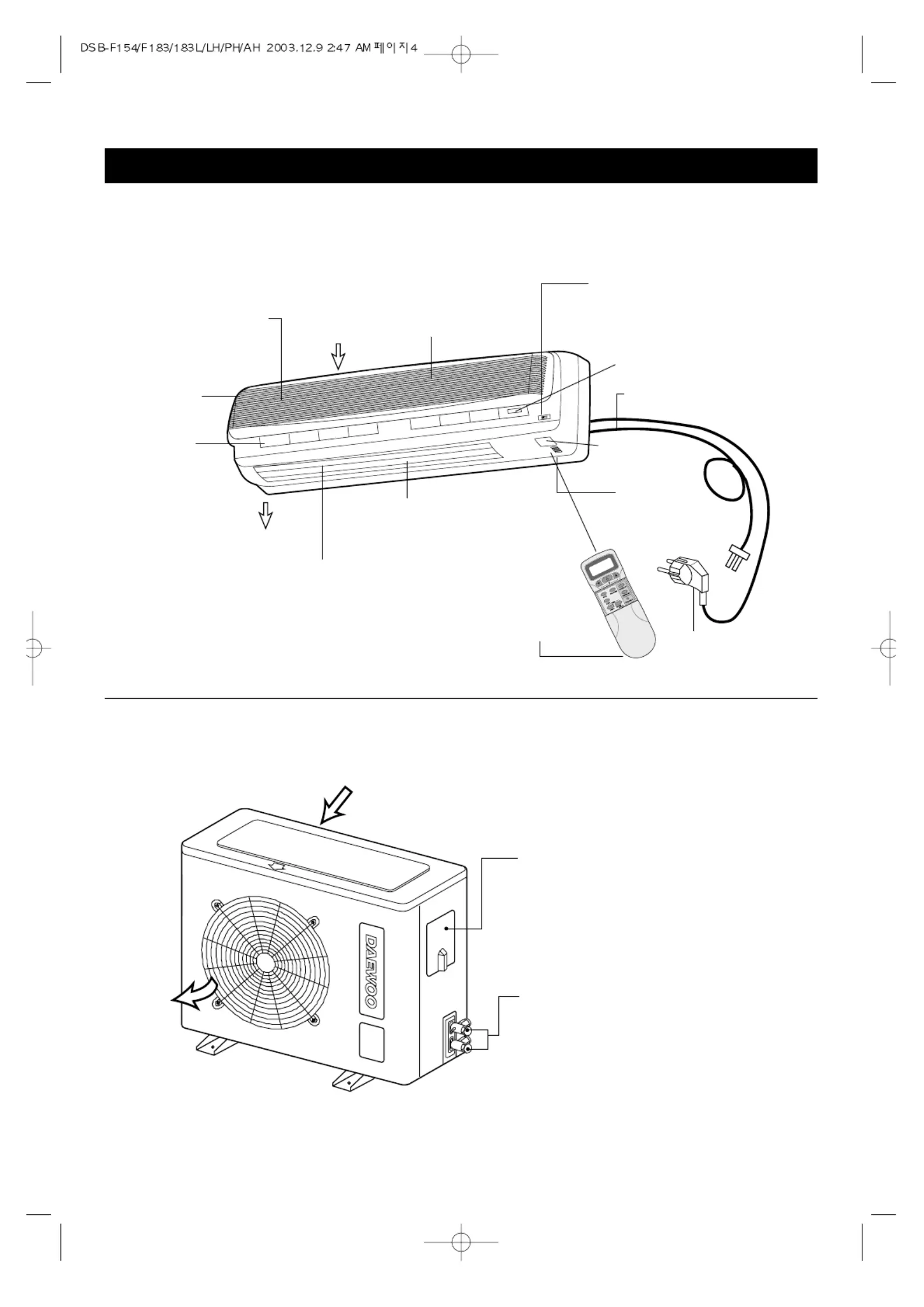

LOCATION OF CONTROLS

Indoor Cover

Deodorizing Filter

Removes bad

smells from the air.

Emergency/

Remote Switch

Slide to select

the desired position.

O2 Hose Cover (AH Model Only)

Indicators

Indicate the

AC setting.

Remote Sensor

Power Plug

Air Cleaning

Filters

Removes dust

and prohibits

germs.

AIR OUT

Air In

Sensor Wire

(LH/PH/AH Model Only)

Fan Direction

(Up/Down)

Fan Direction

(Left/Right)

LCD Remote Controller

Electric Dust Collector

(Air clean Plasma)

Removes small dust and

generates (-) ions.

INDOOR UNIT

OUTDOOR UNIT

Connection Cover

Remove cover to access the AC connection

from this unit to the indoor unit.

Service Valves

The indoor and outdoor units

are connected by copper tubes

which are connected here.

AIR IN

AIR OUT
