Sida 1/10

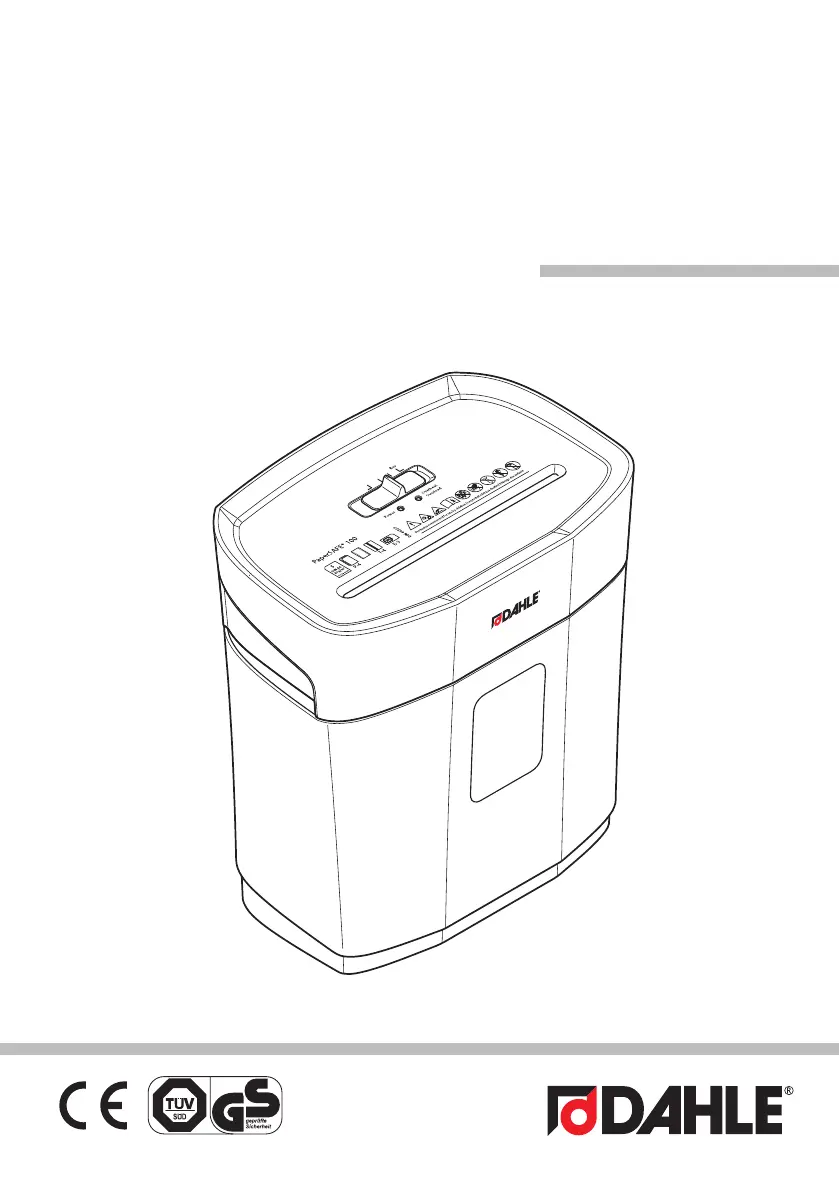

PS 100

PS 120

PS 140

Type: 23100

Type: 23120

Type: 23140

PaperSAFE®

FWD Auto O

F-1



en Instructions

IMPORTANT!

Read the operating and safety instructions

BEFORE placing the document shredder into

operation.

You must follow the instructions.

Keep the operating instructions in a safe

place ready for later use.

Table of Contents

 Important information . . . . . . . . . . . . . . . . . . . . . . . . 

1.4 Scope of supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

1.5 Technical specifications . . . . . . . . . . . . . . . . . . . . . . 60

 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 

2.5 Paper shredding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

2.8 Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

2.10 Overheated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

2.11 Card shredding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 

3.1 Emptying shredding waste . . . . . . . . . . . . . . . . . . . 65

3.3 Cleaning the shredder . . . . . . . . . . . . . . . . . . . . . . . . 65

1.1 Intended use, warranty

The document shredder is intended to be used for

shredding paper.

Depending on the model variant, a small amount of the

following materials can also be shredded:

- CDs/DVDs, bank cards and credit cards (see technical

data).

- The normal staples and paper clips found in paper

documents (exception: security level P6 and P7 devic-

es).

Wear, damage due to improper use or unauthorised

modifications and repairs are not covered by the war-

ranty or the guarantee.

The document shredder was designed for private use

and for use in normal office environments.

The following conditions apply to the performance in

terms of sheets listed under technical data:

Maximum number of sheets that are shredded in one

pass under the following conditions: New cutting roll-

ers, oiled if needed, cold motor, power supply with

nominal voltage and nominal frequency (230 V/50 Hz;

120 V/60 Hz). Deviations may result in reduced sheet

processing and increased operating noises. The sheets

are fed centrally and lengthwise at a 90 degree angle.

The performance in terms of sheets can also vary

depending on the paper properties and input.

1.2 Safety instructions

- Do not place the device near a source of heat.

- Store, transport and operate the device in an upright

position only.

- Only use liquids and gases on the device that comply

with DAHLE guidelines.

- Do not open up the device. Risk of electric shock.

- Only operate the device in closed spaces, at tempera-

tures of between 10 °C and 25 °C (50 °F to 77 °F) and

at a non-condensing humidity of between 15 % and

95 %.

- Ensure that the building installation has short-circuit

protection: max. 16 A(US max. 20 A).

- Do not operate the document shredder without

inserting documents.

- The device is not intended for use by persons (includ-

ing children) with restricted physical, sensory or men-

tal capabilities or a lack of experience and knowledge,

unless they are working under supervision or receive

detailed instruction about how to use the device from

a person who is responsible for safety.

Dispose of the document shredder properly

in an environmentally friendly way at an

authorised collection point. Do not dispose of

any parts of the document shredder or pack-

aging in domestic waste.

1.3

Key to pictograms

Important information

User information/safety

instructions

WARNING

CAUTION! Risk of electric

shock.

WARNING, moving parts

This equipment is not

intended for use use by

children. Avoid touching

the media feed opening

with the hands, clothing

or hair. Unplug this equip-

ment when not in use

for an extended period of

time, hazardous moving

parts in this equipment,

keep body parts away from

moving parts.

ATTENTION, sharp edges.

Do not touch.

Do not use near caustic

substances.

Place the device in a stable

position on the floor, leav-

ing a gap of 100 mm to the

wall, ensure no heat can

accumulate, engage brake

mechanisms (depending

on type)

Do not use near inflamma-

ble liquids or gases.

Automatic start-up

Do not expose to moisture

This document shredder is

not intended to be used by

children (the product is not

a toy).

Do not touch the paper

feed with your hands.

Do not allow items of

clothing to come into con-

tact with the paper feed.

Do not allow your hair to

come into contact with the

paper feed.

Keep spray cans away from

the device.

Remove paper clips and

staples before shredding.

Do not insert any diskettes.

Disconnect the document

shredder from the electri-

cal power supply before

performing maintenance

work.

Technical specifications

- Subject to technical modi-

fications.

Noise level when operated

without shredding docu-

ments

Intake speed

Paper - cross cut

Card - cross cut

Weight

The power plug is used

to disconnect the power

supply.

The mains socket must

be easily accessible at all

times.

How to use

Document shredder on

standby

Document shredder in

operation

Automatic shut-down!

The document shredder

will switch off automati-

cally to cool down if used

for a long time and /or if

overloaded

Maintenance instructions /

troubleshooting

Container full

Possible malfunctions

Automatic switch-off when

housing is open
